Banana Pi BPI R64 Smart WiFi Router - High Speed Wireless Router,Dual Band, 5 Gigabit Port with 1GB DDR3 Based in MediaTek MTK MT7622 Soc OpenWRT for NAS VPN Server,Bundle with Wifi Dual-band Module

• [WiFi Router Development Board]The Banana Pi R64 is a router based development board, With MediaTek MTK MT7622 ,Mali 450 MP4 GPU and 1G DDR3 SDRAM,It has 4 Gigabit LAN ports, 1 Gigabit WAN, AC wifi AP function, Highly integrated 4x4 802.11n and Bluetooth 5.0 system-on-chip
• [Rich interface] Banana Pi R64 Wifi Router features a variety of interfaces,including 1x USB 3.0 host; Dual Band Wifi 2.4GHz/ 5GHz. Mini PCIE interface support 4G Module,1x SATA interface,1080P high-definition video output
• [Multi-system support]It can run on a variety of open source operating systems including OpenWRT & LEDE, Android6.0, Ubuntu, Debian,AArch64 Linux
• [Wide application]it can be used for high wireless performance, home entertainment, home automation,NAS server, Smart home control gateway, Network cache server,Industrial grade network aggregation server, Security video intelligent terminal,4G routing intelligent terminal etc
• [WIKI]User Guide: http://wiki.banana-pi.org/Getting_Started_with_R64 Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click "smartfly info" and ask a question

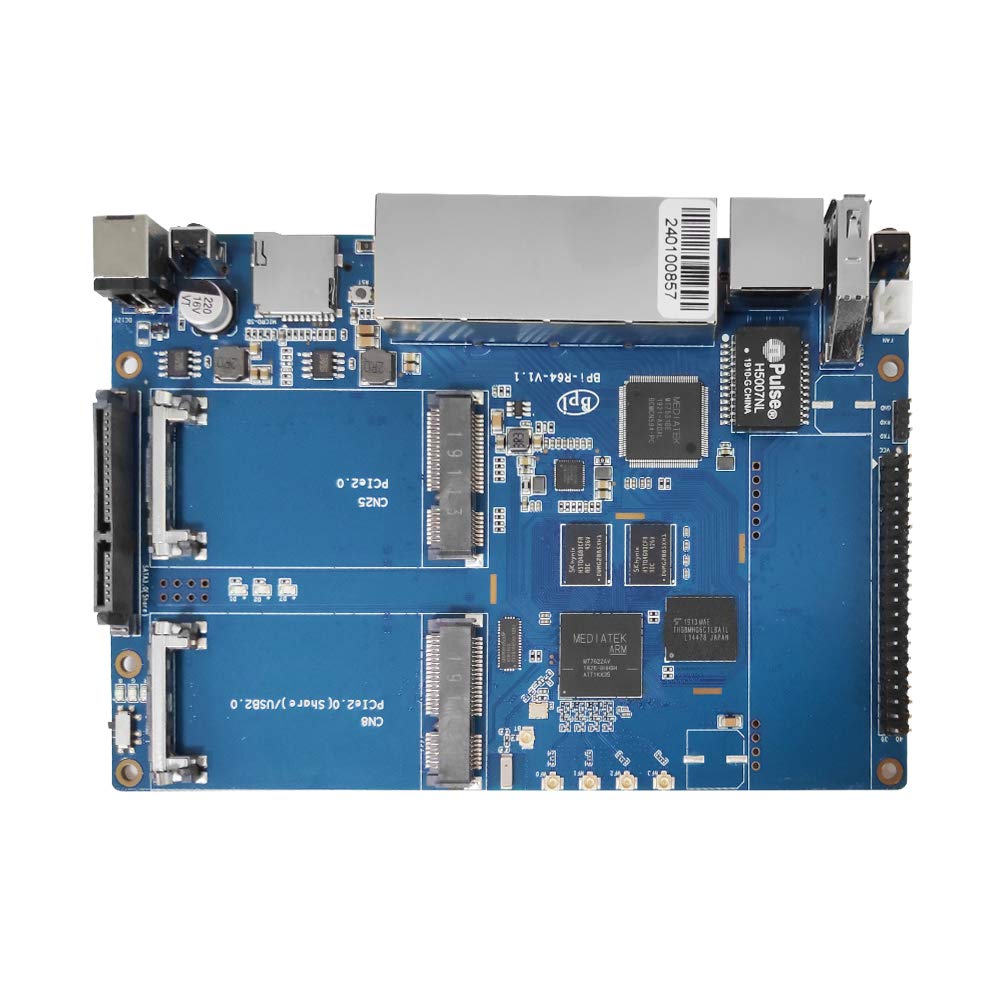

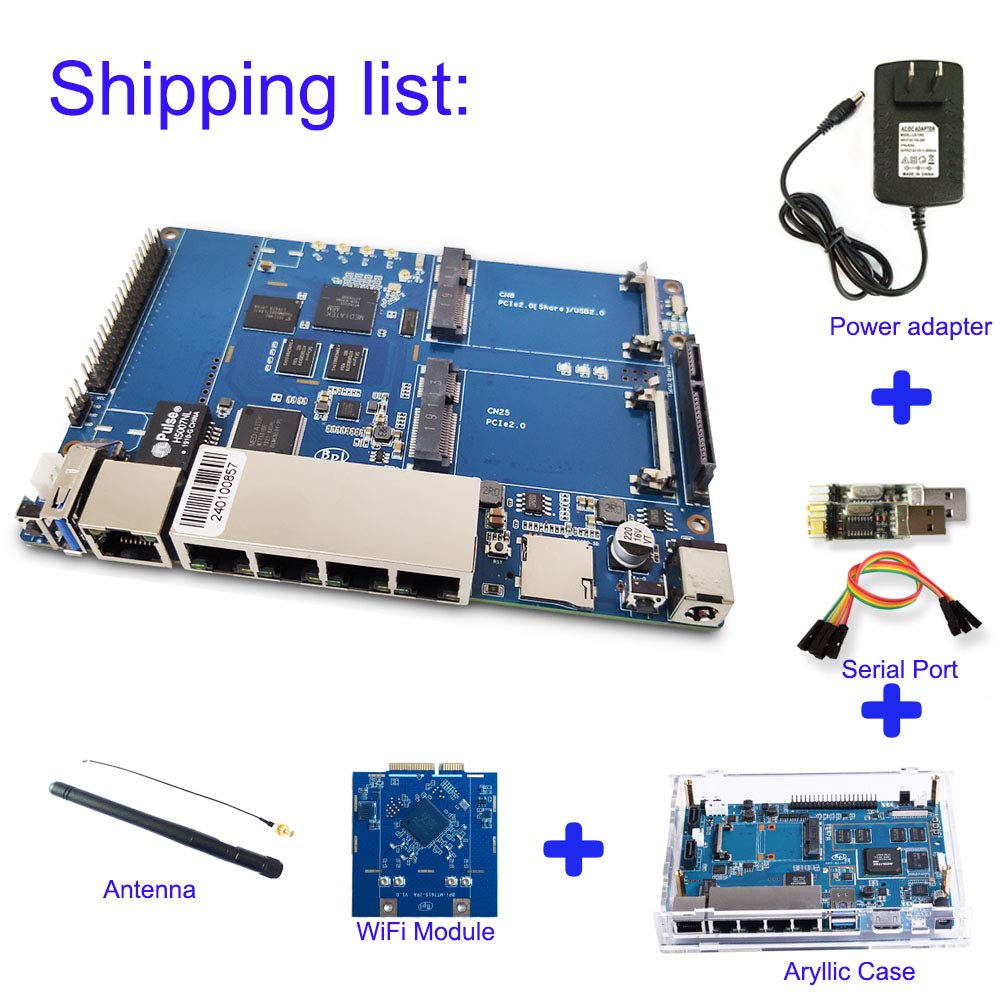

-Overview- The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function. use 64 bit chip design. Highly integrated 4x4 802.11n and Bluetooth 5.0 platform with dedicated Network Accelerator MediaTek MT7622 is the world’s first with 4x4n 802.11n/Bluetooth 5.0 system-on-chip -Key Features- MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53 1G DDR3 SDRAM Mini PCIE interface support 4G module built-in 4x4n 802.11n/Bluetooth 5.0 system-on-chip MTK7615 4x4ac wifi (option) support 1 SATA interface MicroSD slot supports up to 256GB expansion 8G eMMC flash (option 16/32/64G) 5 port 10/100/1000 Mb Ethernet port 1x USB 3.0 Slow I/O:ADC, Audio Amplifier, GPIO, I2C, I2S, IR, PMIC I/F, PWM, RTC, SPI, UART POE function support-Application- applications including routers/repeaters, home automation gateways, wireless audio, and wireless storage. -In the Box- 1x Banana Pi BPI R64 Board 1x BPI-MT7615 802.11 ac wifi 4x4 dual-band module 1x 12V-2A Power Supply 1x Acrylic Case 1x Antenna -Tech-support- Wiki: http://wiki.banana-pi.org/Banana_Pi_BPI-R64 Get Started: http://wiki.banana-pi.org/Getting_Started_with_R64 Forum: https://www.youyeetoo.net/ http://forum.banana-pi.org/ Image Download:http://wiki.banana-pi.org/Banana_Pi_BPI-R64#Release Tech-Team: monica@smartfire.cn Skype: monica_9122
