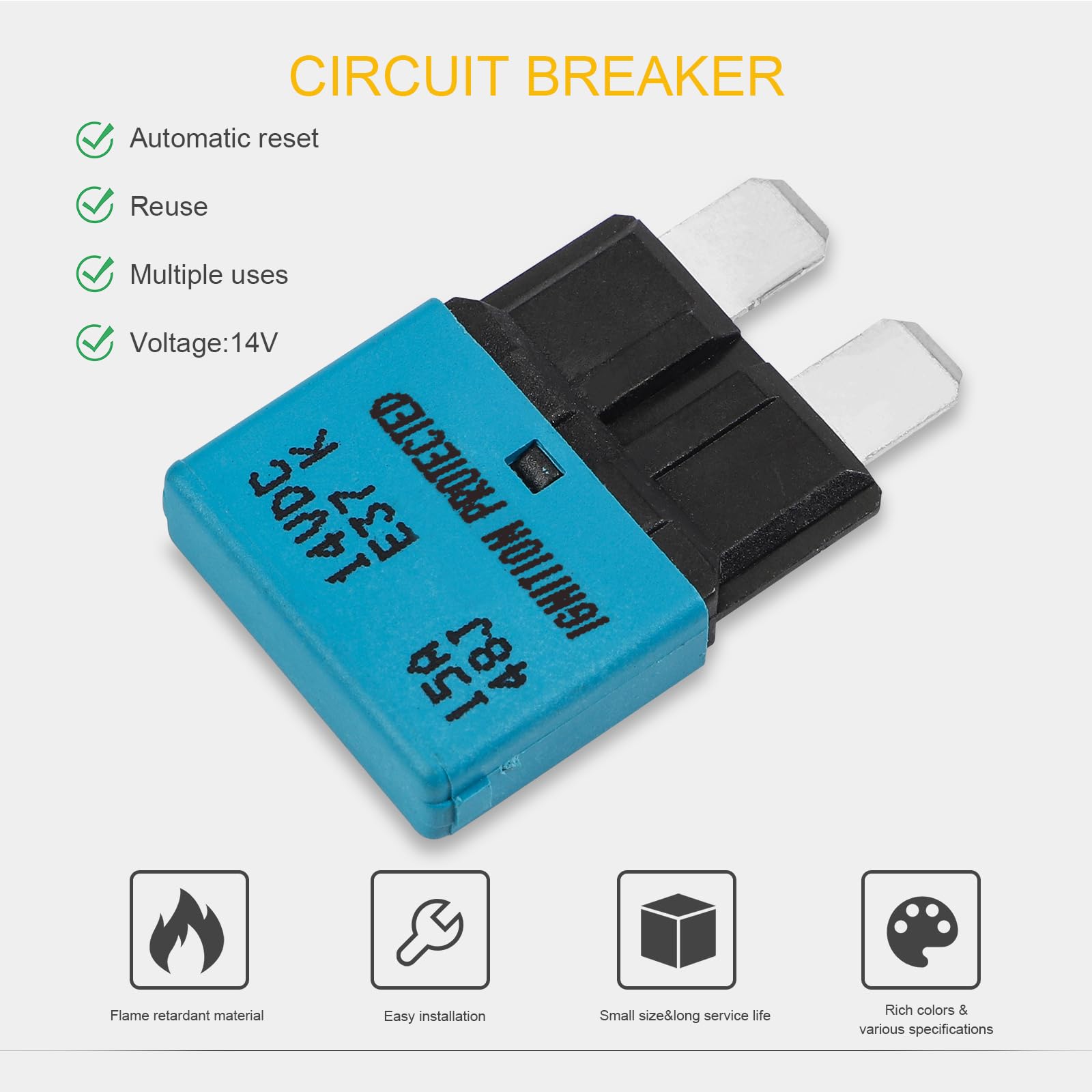

GLOSO E37 Auto (T1) Reset Low Profile ATC/ATO Circuit Breakers (25A, 3 Pack)

• 25A @ 14Vdc - 3 Pack
• ATO/ATC Auto Reset (T1) Circuit Breakers
• Materials: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
• Termination: 5.2mm wide blades compatible with ATO/ATC type fuse blocks
• Compliances: SAEJ553; SAEJ1171 (Ignition protected)

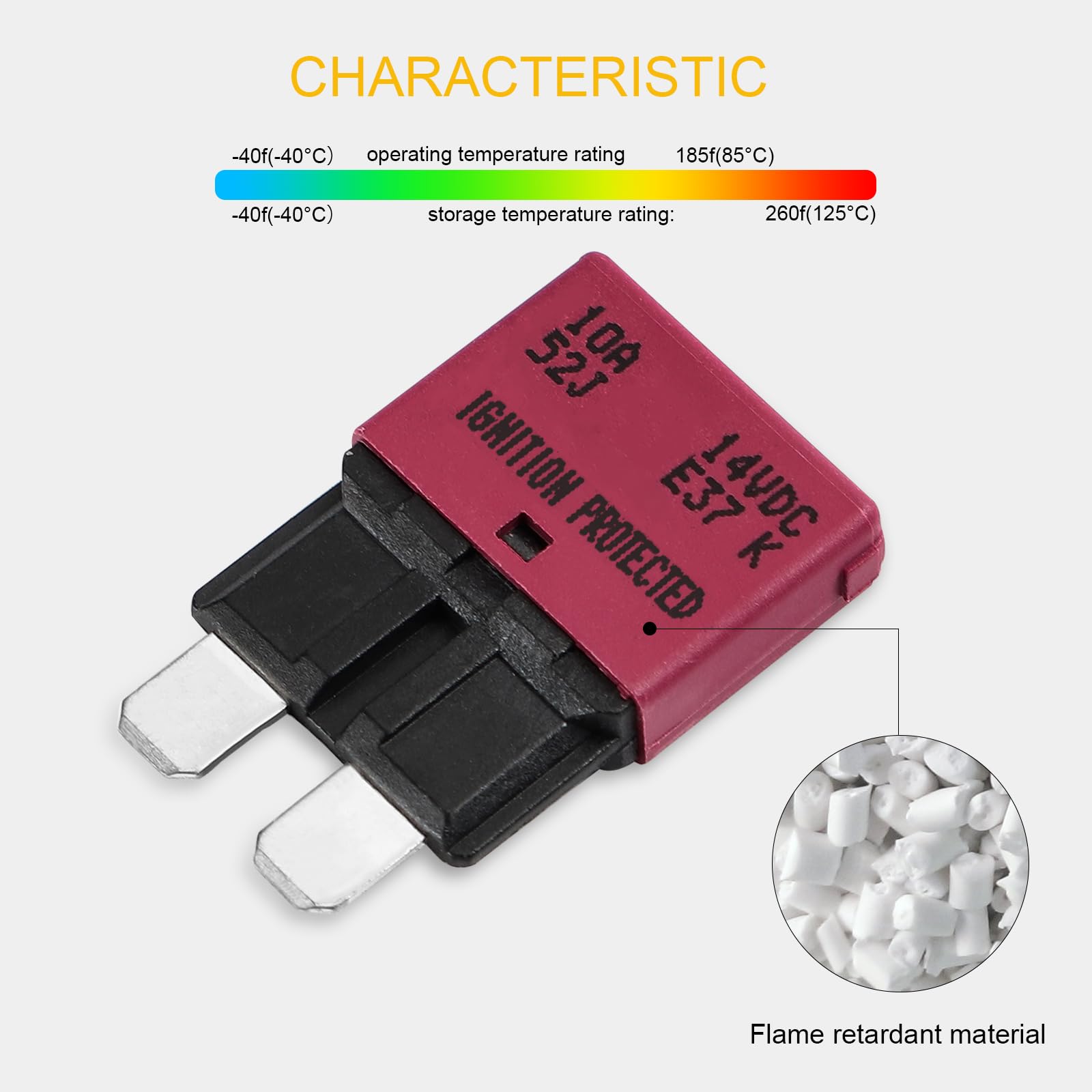

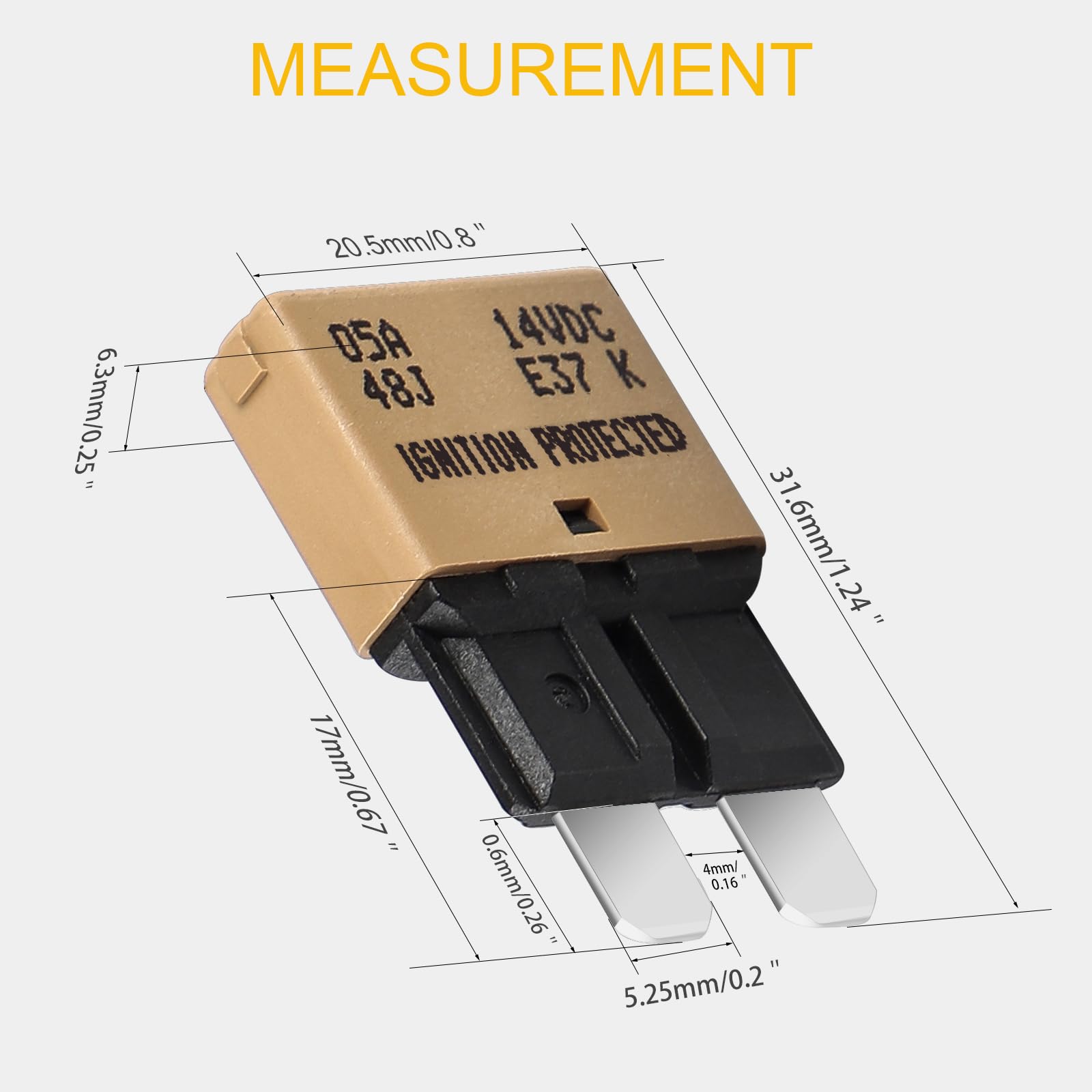

The height (excluding terminals) of this breaker is 1.16" (29.5 mm) and standard fuse is around 0.48" (12.19 mm). The breakers are taller and may not fit into some fuse boxes. Single Pole Thermal Type Breakers Rating: 25A, 14Vdc (3 Pack) Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C) Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C) Materials: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals Marking: Cover is color-coded to amperage ratings Termination: 5.2mm wide blades compatible with ATC type fuse blocks Compliances: SAEJ553; SAEJ1171 (Ignition protected)
