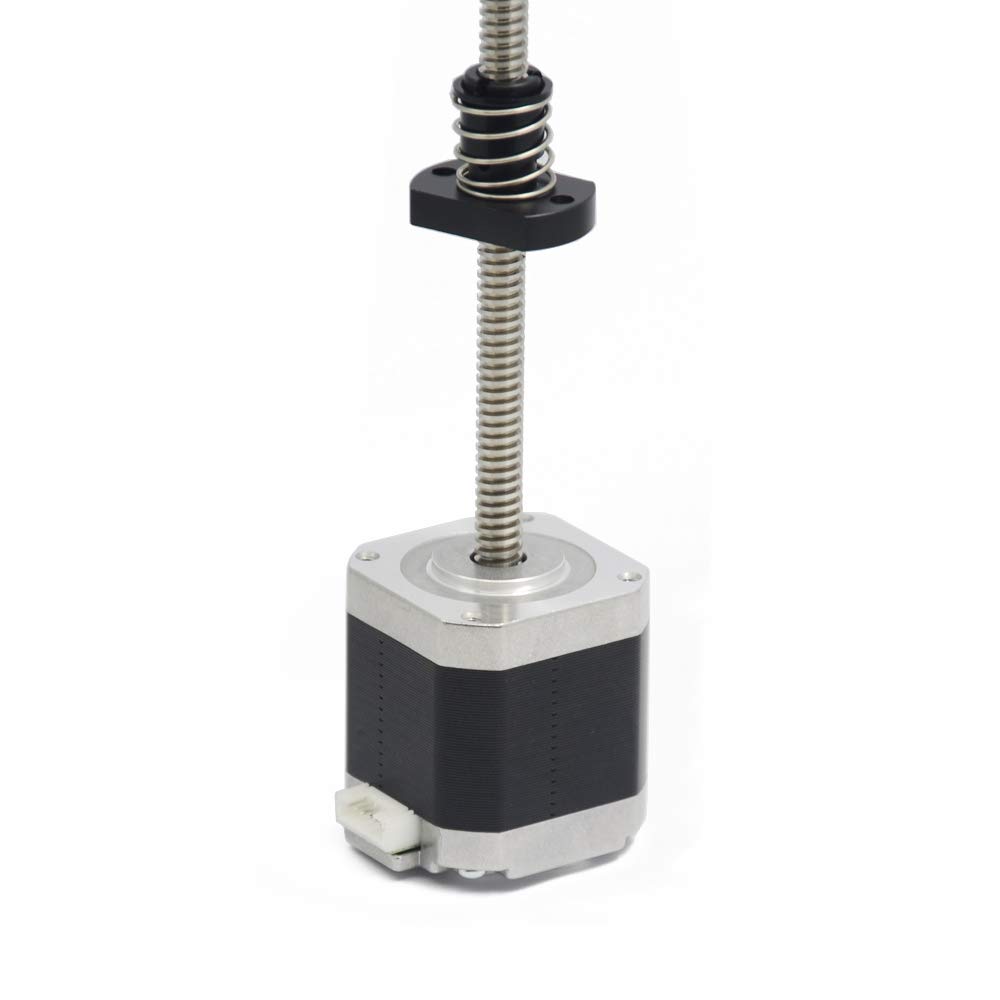

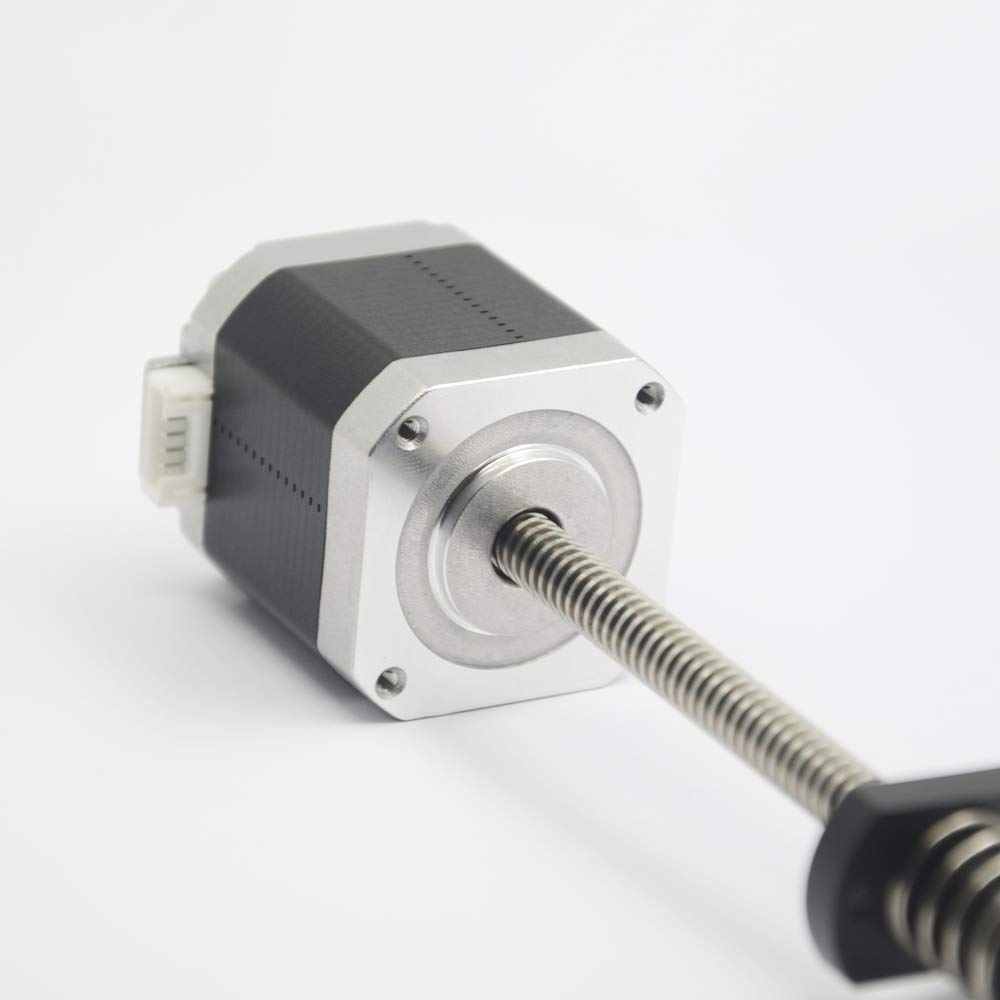

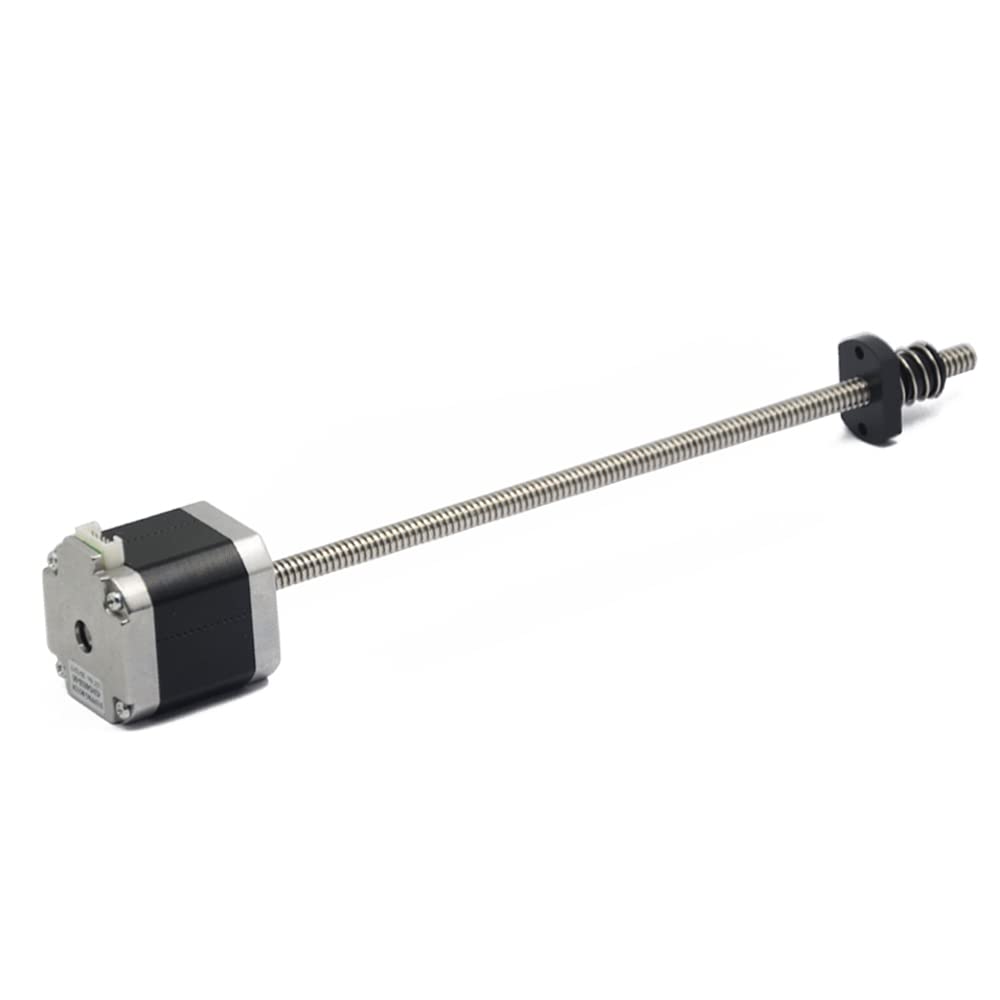

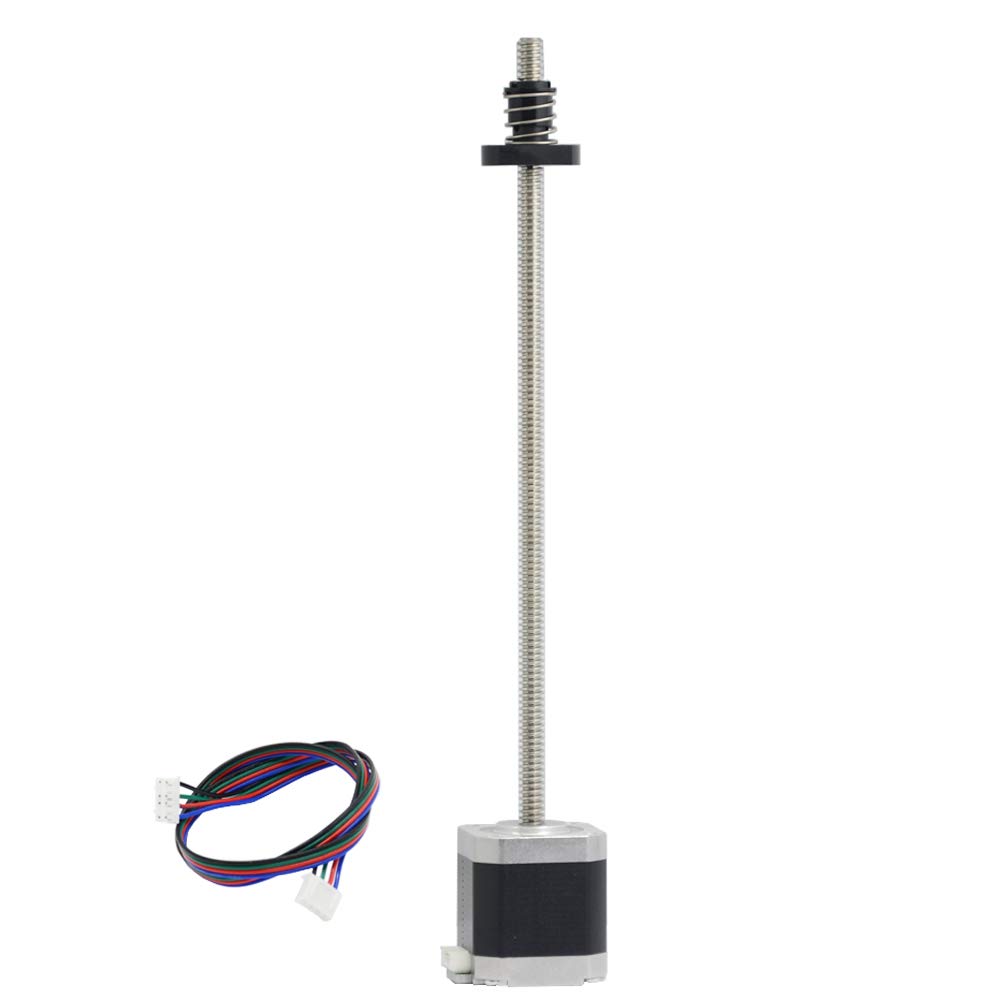

Iverntech NEMA 17 Stepper Motor with Integrated 2mm Lead 240mm T8 Lead Screw for UV Resin 3D Printers Z Axis or CNC Machine
About this item

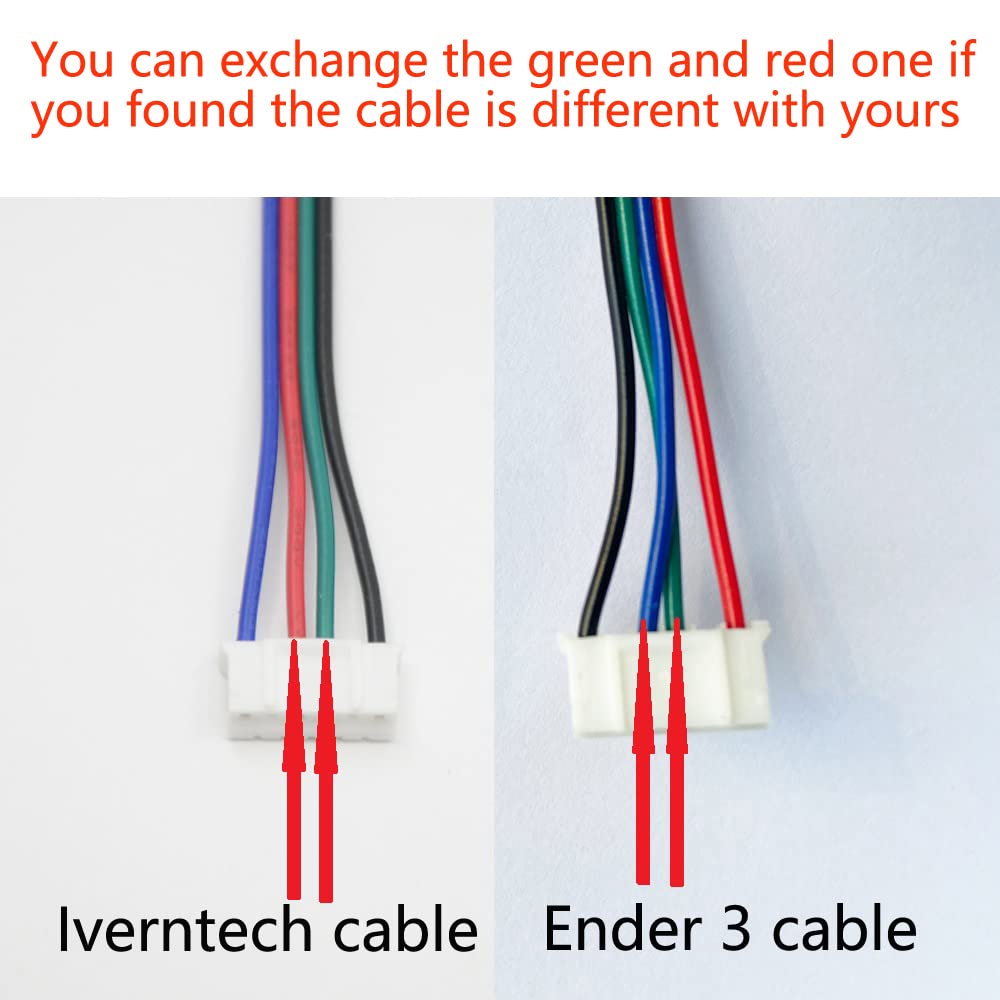

- Please re-pin the wires as your demand, for not all machines are wired in the same way.2mm pitch, 1 starts, 2mm lead
- Iverntech NEMA 17 Stepper Motor with Integrated 240mm Tr8x2 Lead Screw
- High torque nema 17 stepper motor, 500mN.m, 42x42x48mm, 2 phase 4 wires

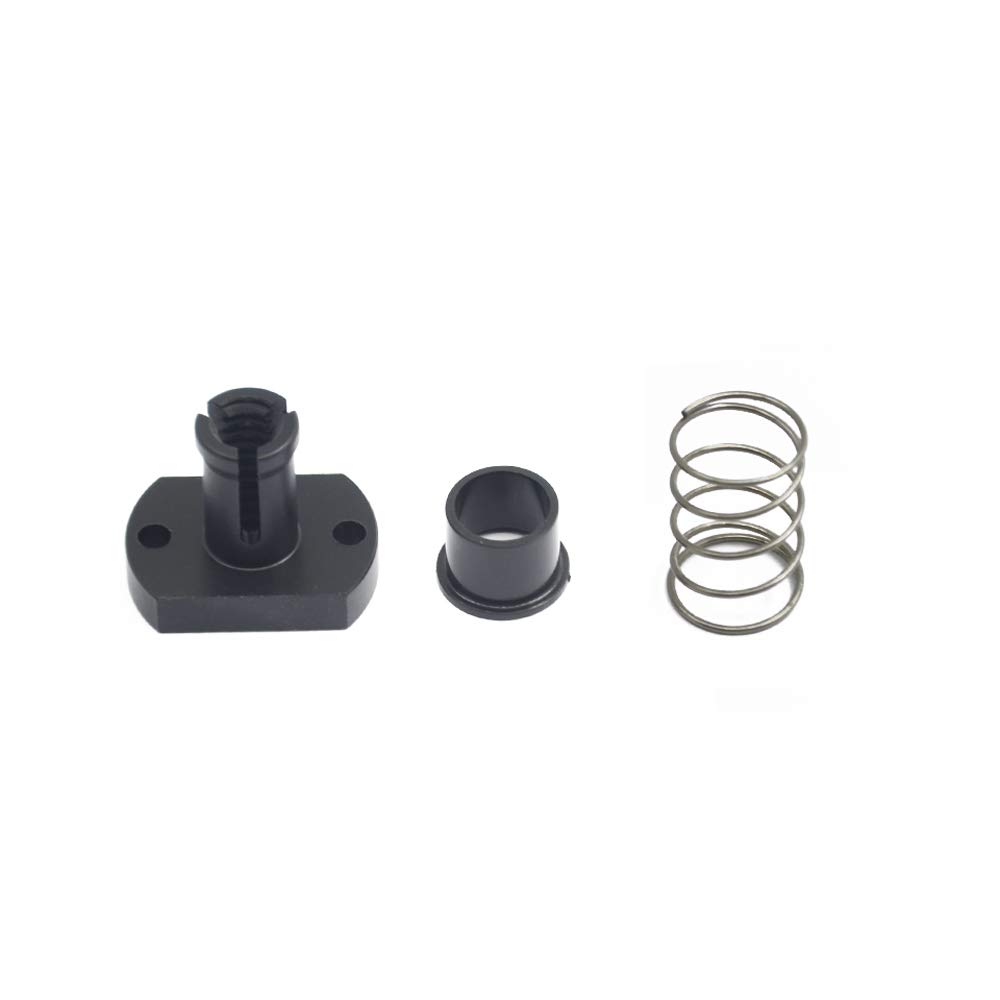

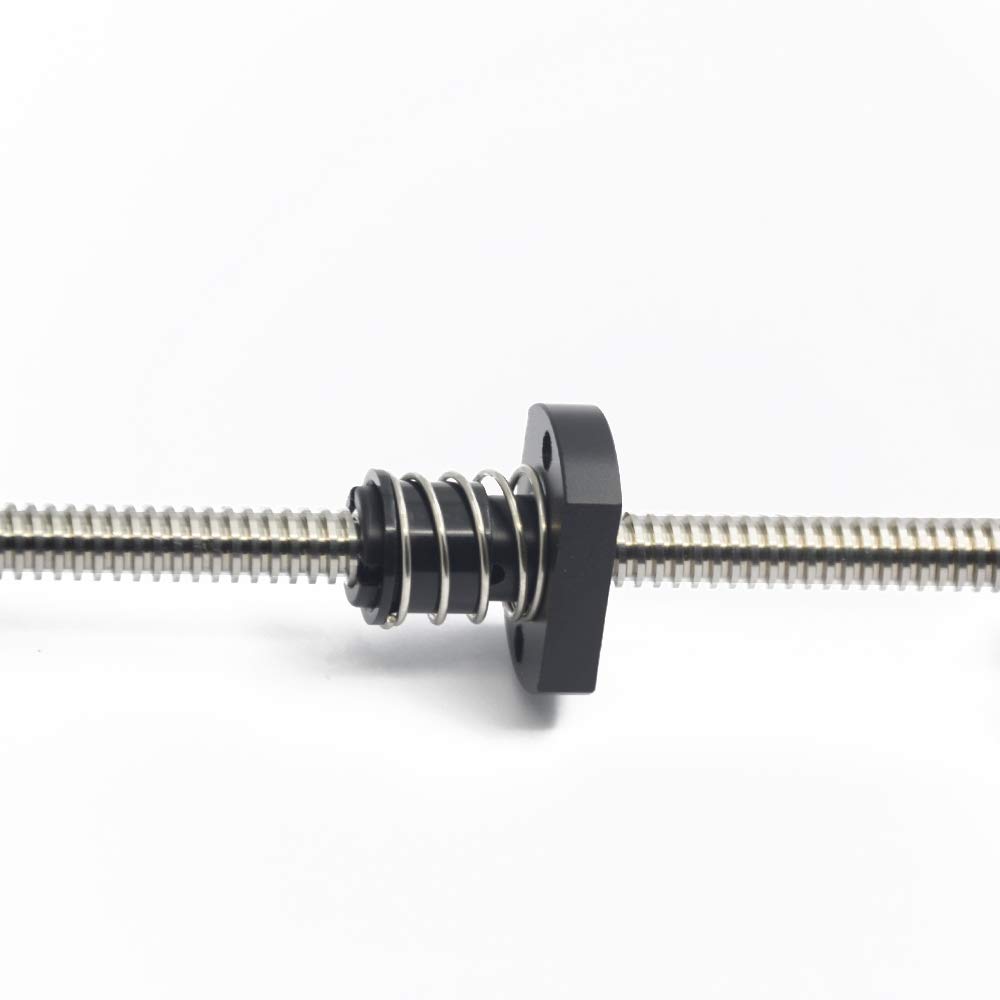

- Come with 1 set anti backlash nut and 1M (39.37") motor wire
- Great replacement for the Z axis of prusa i3 3d printers
Product description
Iverntech NEMA 17 Stepper Motor with Integrated 255mm T8 Lead Screw Specifications: Lead screw Diameter: 8mm. Pitch: 2mm. Starts: 1. Lead: 2mm Lead screw length: 255mm (ยฑ1mm) Motor size: 42 x 42 x 48 mm(L W H) Step angle : 1.8 degree Nut material: Brass Holding Torque: 500mN*m Thrust(full step): 12.5kg Rated Current/Phase: 1.5A Rate Voltage: 2.7v Rated Resistance/Phase: 1.8ohms ยฑ 10% Item Weight: 500g Packing List: 1 x NEMA 17 stepper motor with Integrated 240mm lead screw 1 x 1M motor wire 1 x Anti Backlash Nut Set
