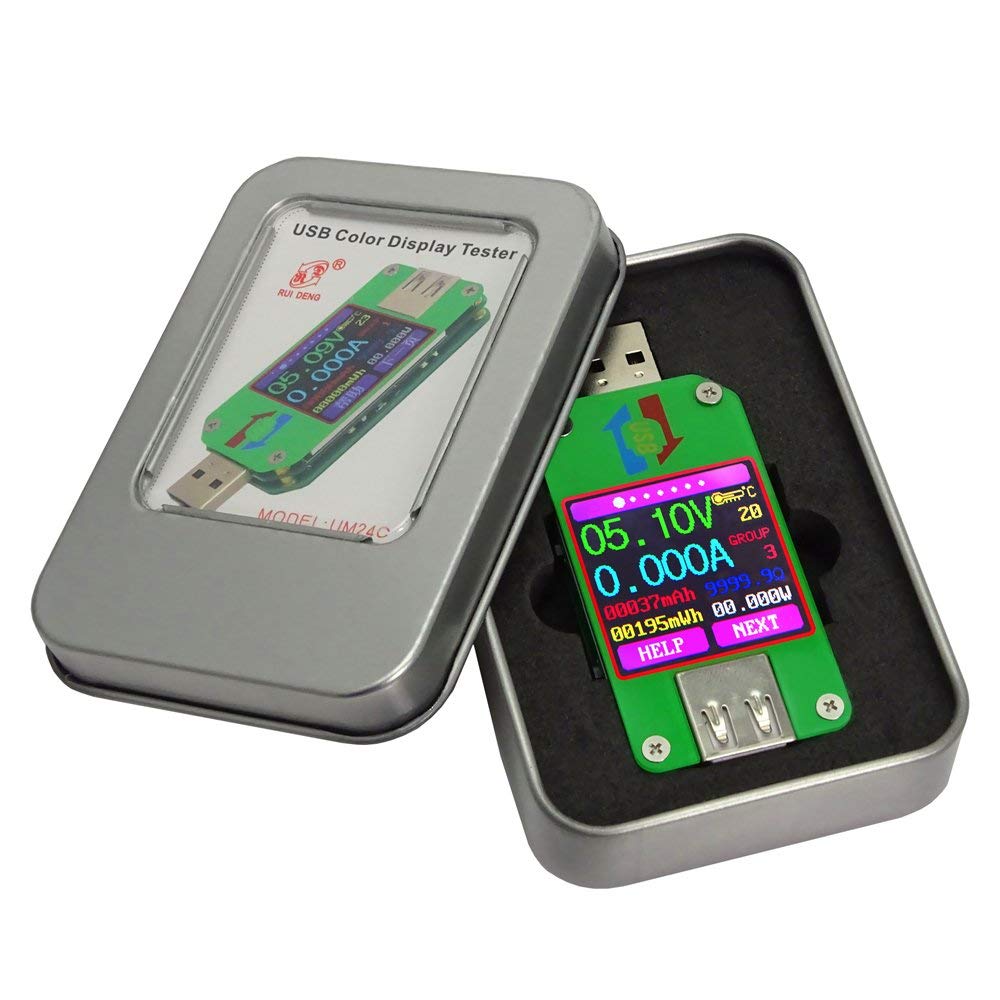

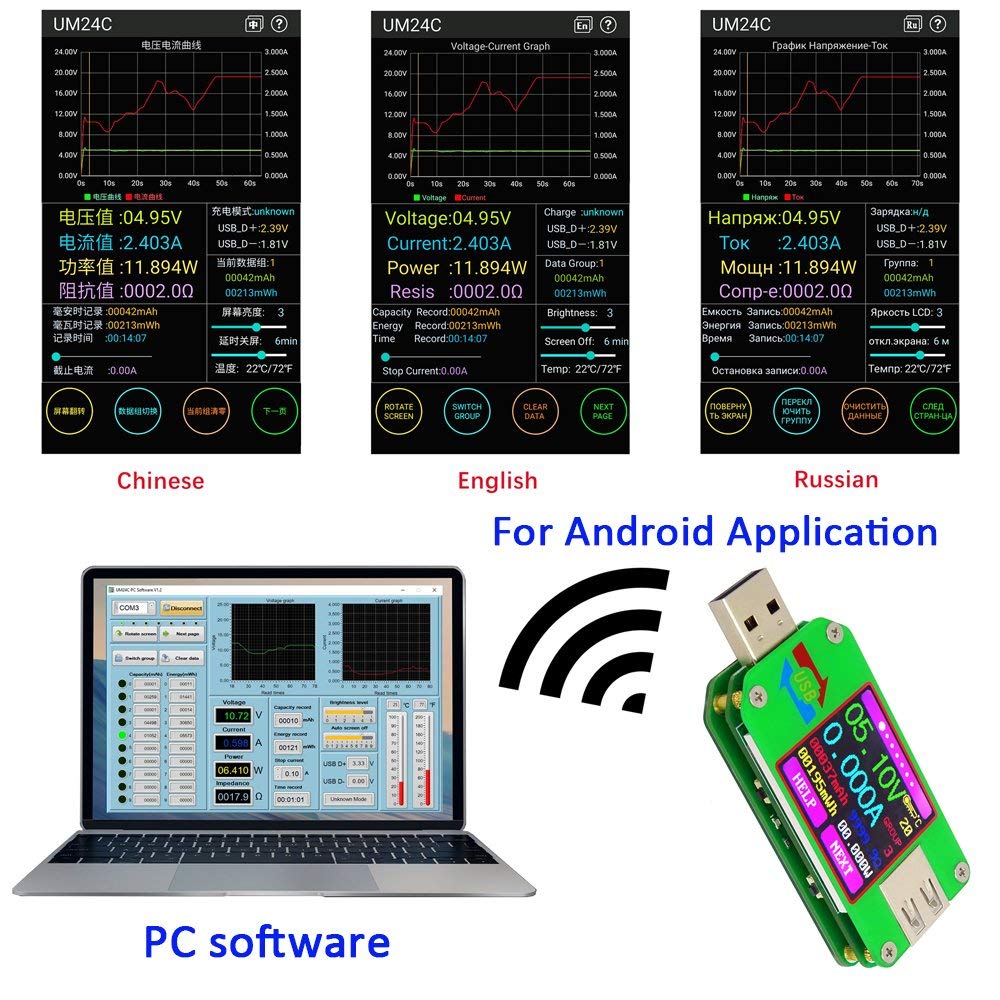

DollaTek UM24C USB 2.0 Power Meter Tester USB Multimeter Color LCD Display Voltage Current Meter Voltmeter Amperimetro Battery Charge Measure Cable Resistance with Bluetooth

• 【COLOR LCD DISPLAY】1.44 Inch color LCD display makes it easy and clear to read.
• 【ADJUSTABLE VIEW】Adjustable multi-angle view, more intelligent and convenient. Mini size and sandwich design structure, durable for use.
• 【Main functions】Voltage/current/power/capacity/energy detection, quick charge recognition, data storage, etc.

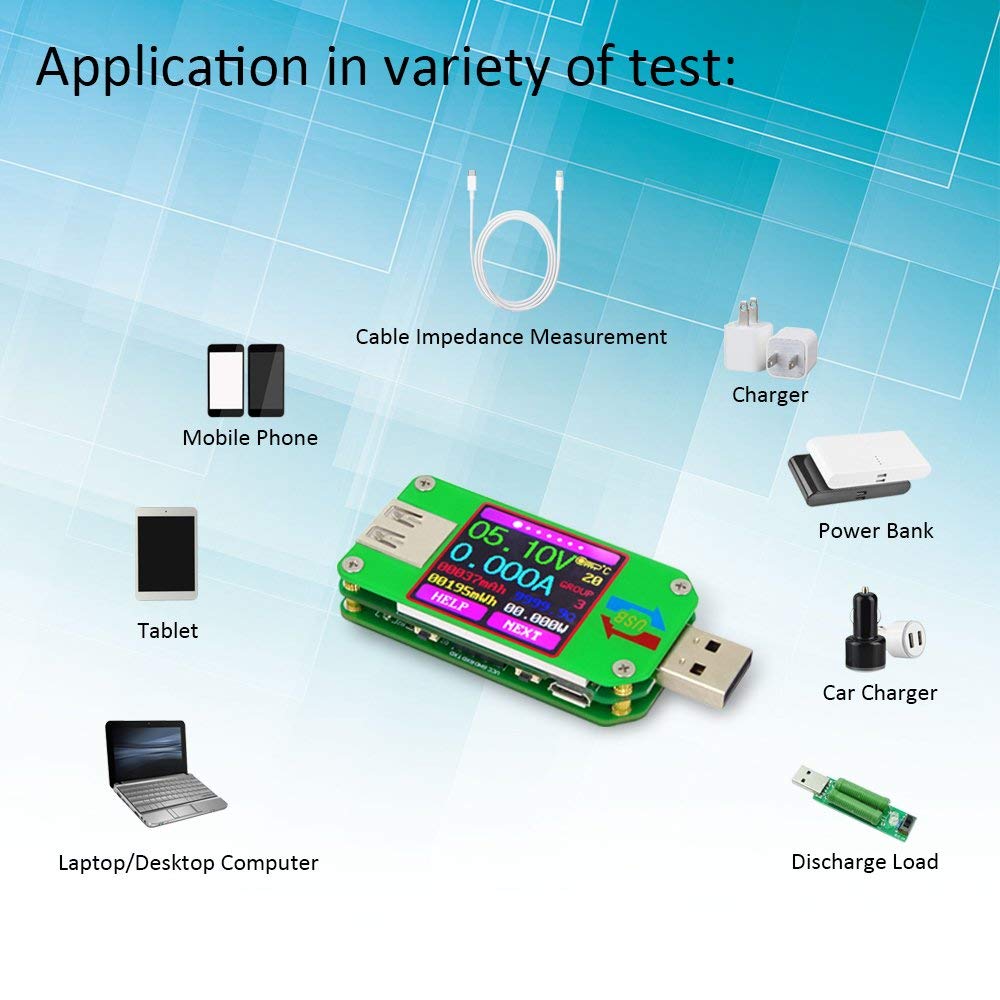

• 【Wide applications】Can be used to test power bank, charger, discharge load, tablet, mobile phone, etc.

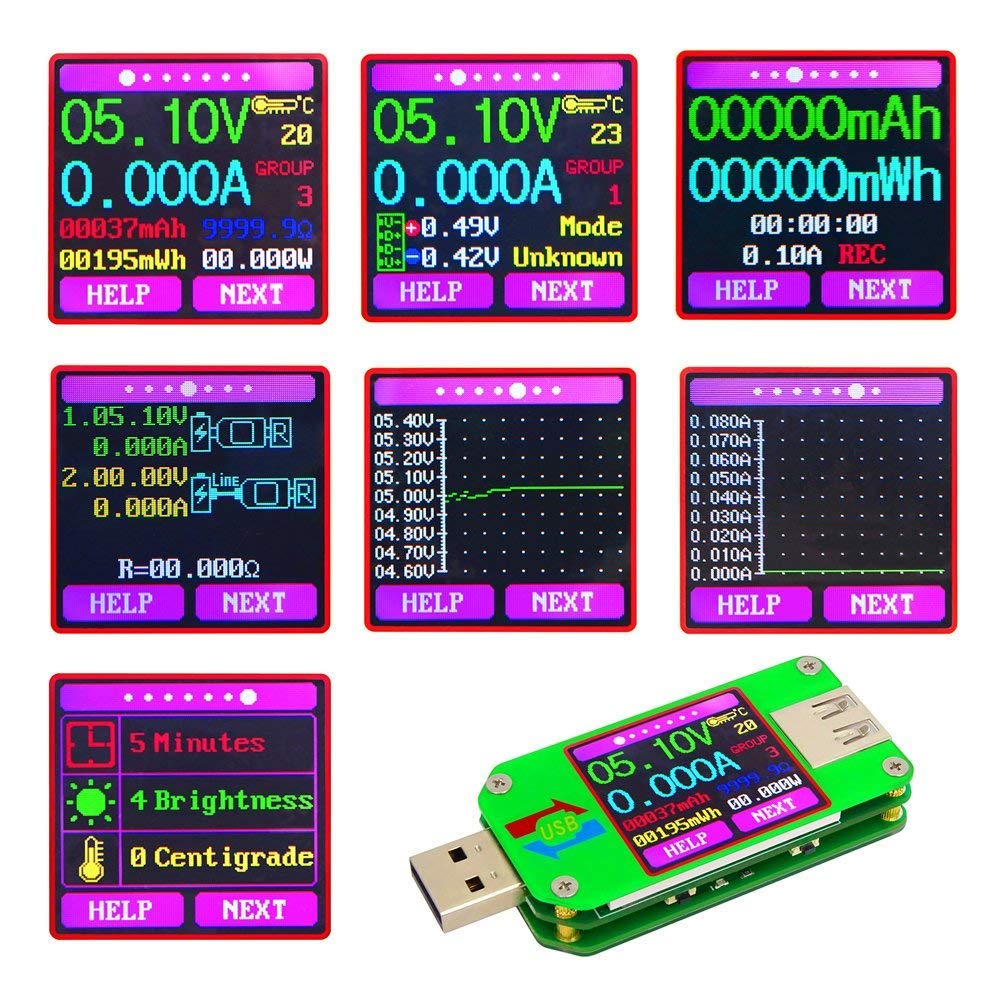

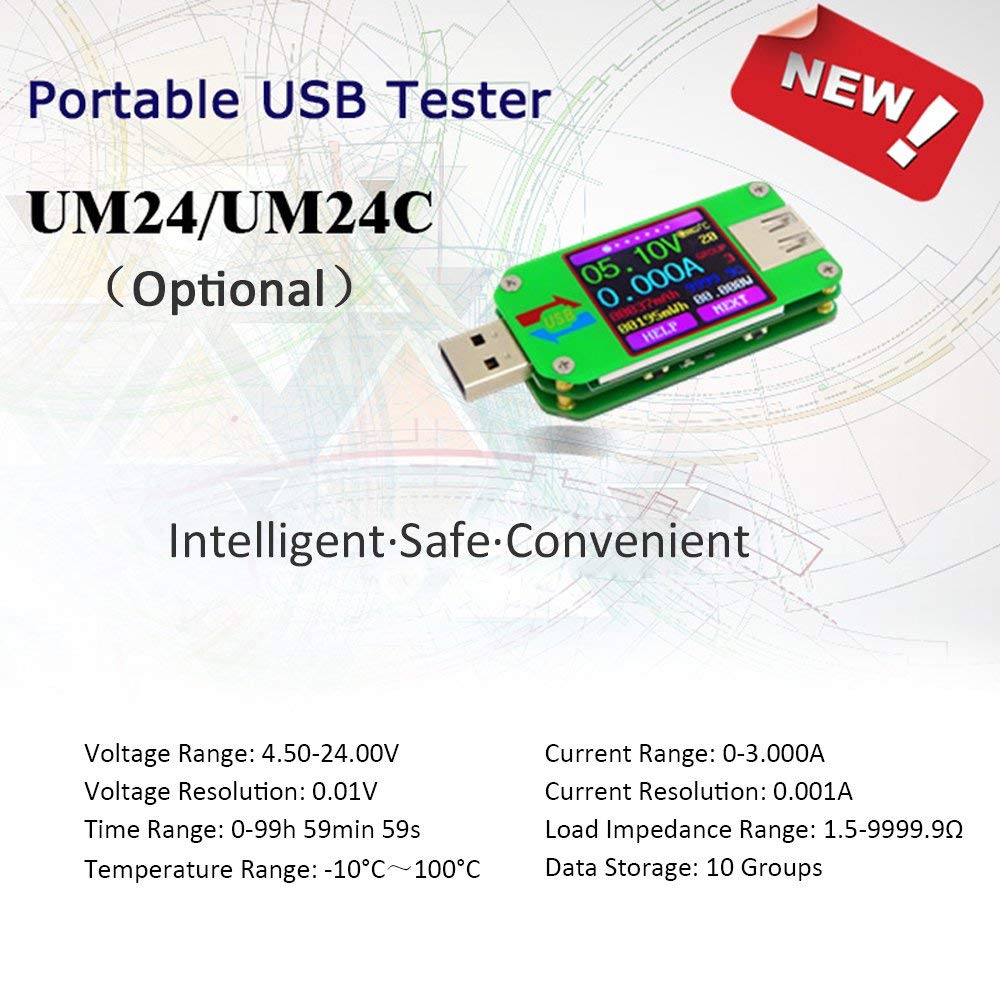

This USB Tester can measure voltage, current, power, temperature and other values and display on the 1.44" color LCD Screen. Features: 1.44 Inch color LCD display makes it easy and clear to read. Adjustable multi-angle view, more intelligent and convenient. Mini size and sandwich design structure, durable for use. Main functions: voltage/current/power/capacity/energy detection, quick charge recognition, data storage, etc. Wide applications: can be used to test power bank, charger, discharge load, tablet, mobile phone, etc. Specifications: Model: UM24C(Optional) Voltage Measurement Range: 4.50-24.00V Voltage Measurement Resolution: 0.01V Voltage Measurement Accuracy: ±(0.2%+1 digit) Current Measurement Range: 0-3.000A Current Measurement Resolution: 0.001A Current Measurement Accuracy: ±(0.8%+3 digit) Capacity Accumulation Rannge: 0-99999mAh Energy Accumulation Range: 0-99999mWh Time Measurement Range: 0-99h 59min 59s Load Impedance Range: 1.5-9999.9Ω Temperature Measurement Range: -10°C～100°C Temperature Measurement Error: ±3°C Screen Brightness Setting: 0-5 Level Auto Screen Off Time: 1-9mins Voltage Graphing Range: 4.5-24.0V Current Graphing Range: 0.00A-3.00A Data Storage: 10 Groups Quick Charge Recognition Mode: QC2.0, QC3.0 Display Screen: 1.44 Inch Color LCD Display Refresh Rate: 2Hz Note: 1. UM24 is no communication version, UM24C is conmmunication version by connection. 2. PC software only supports PC window 7 and above. Package List: 1 x USB Tester
