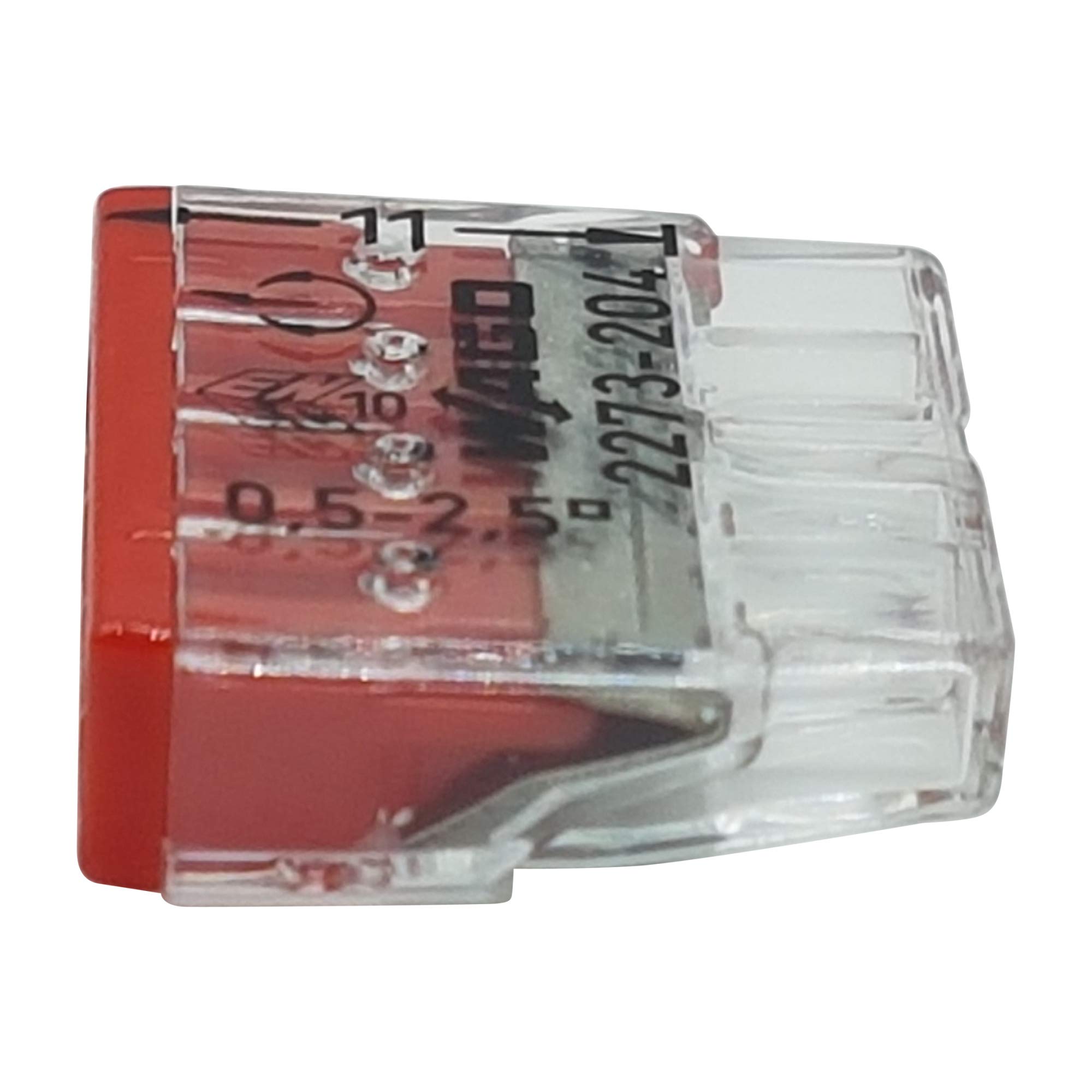

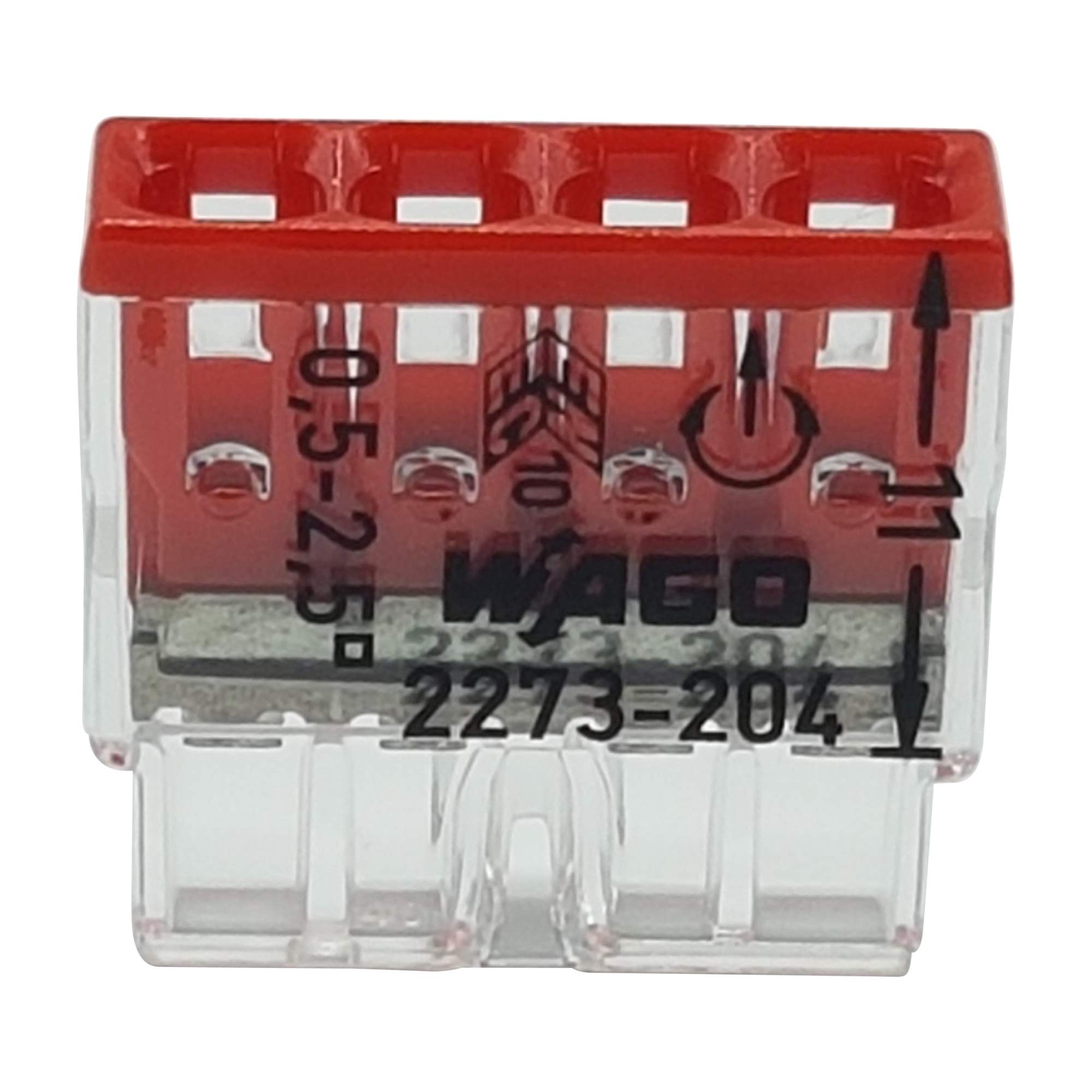

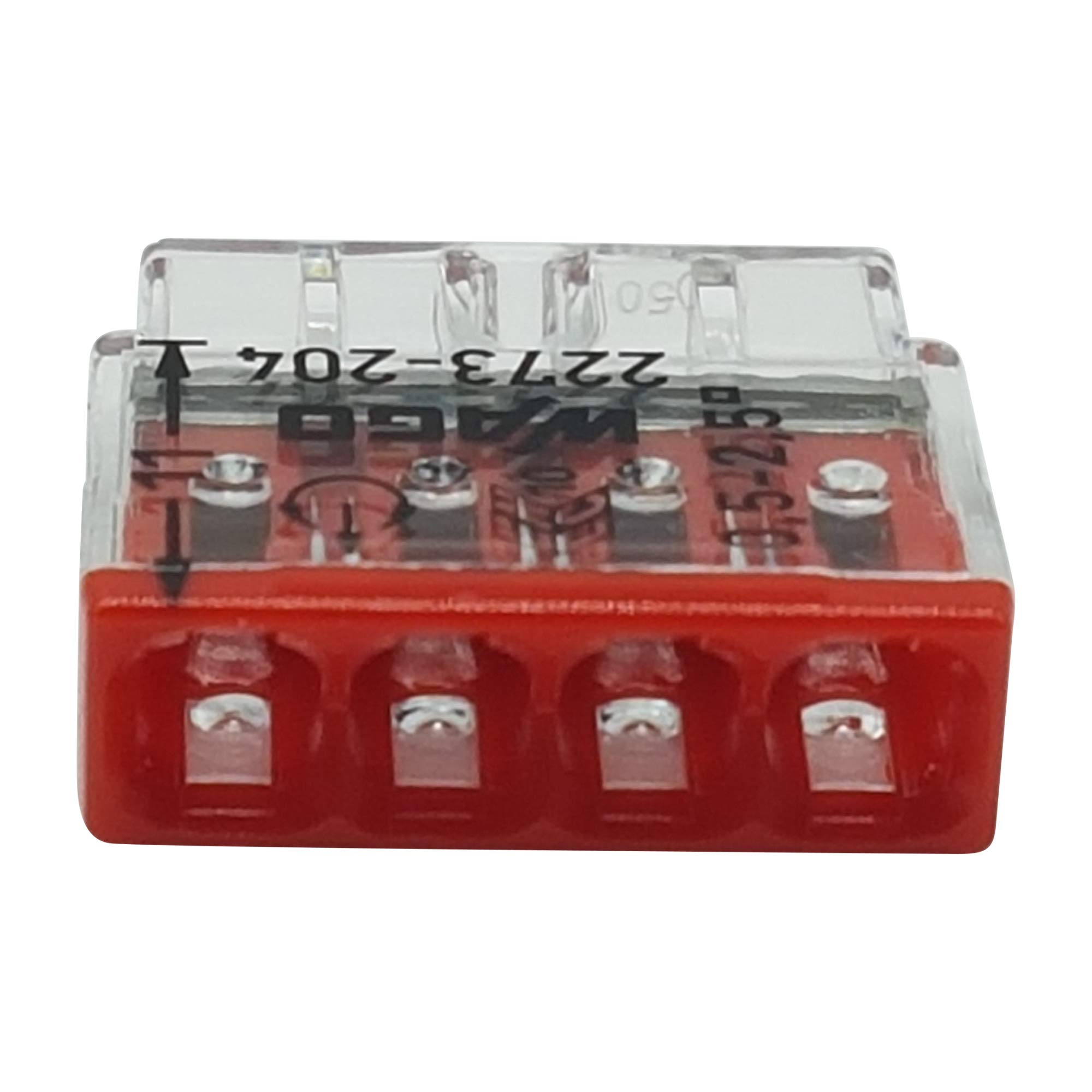

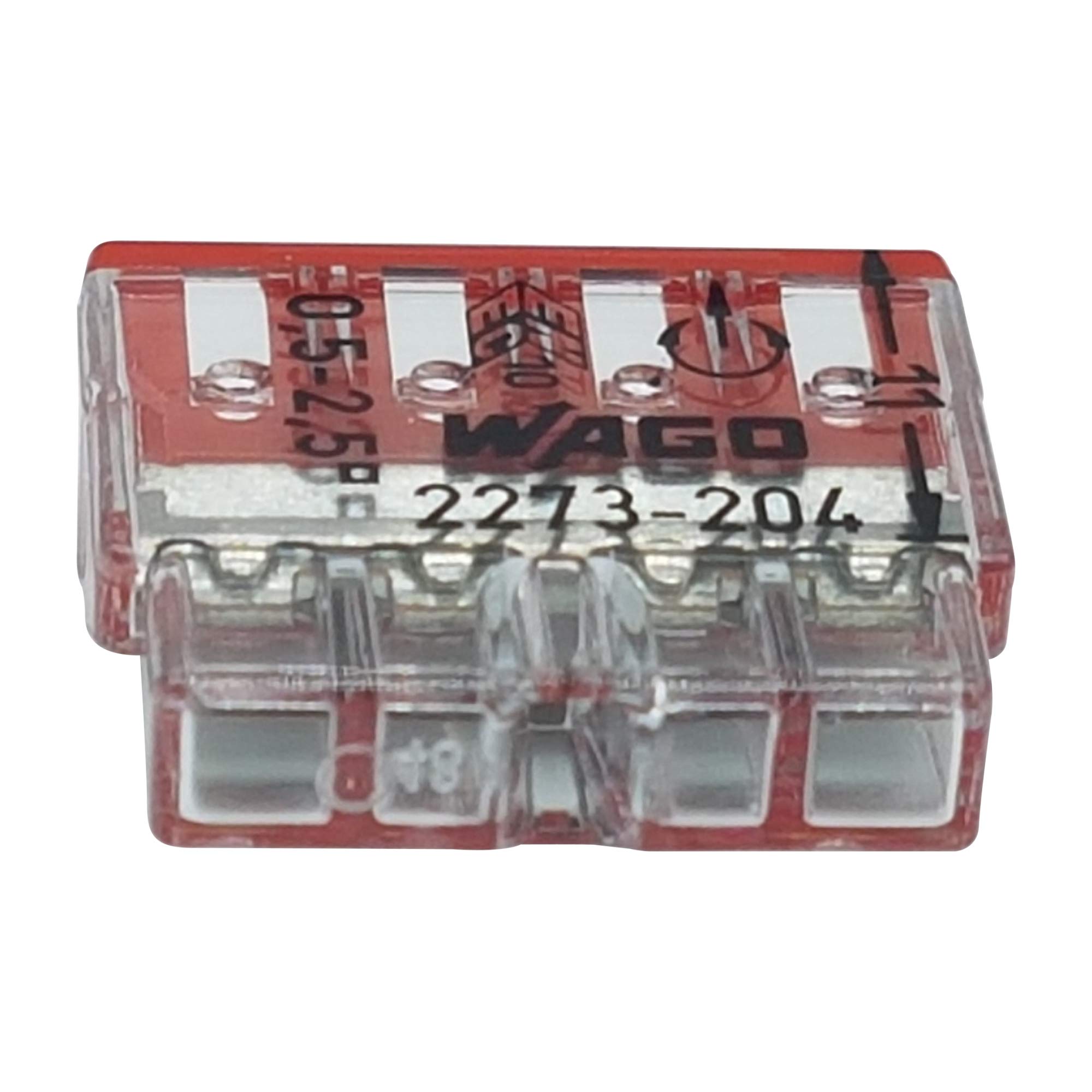

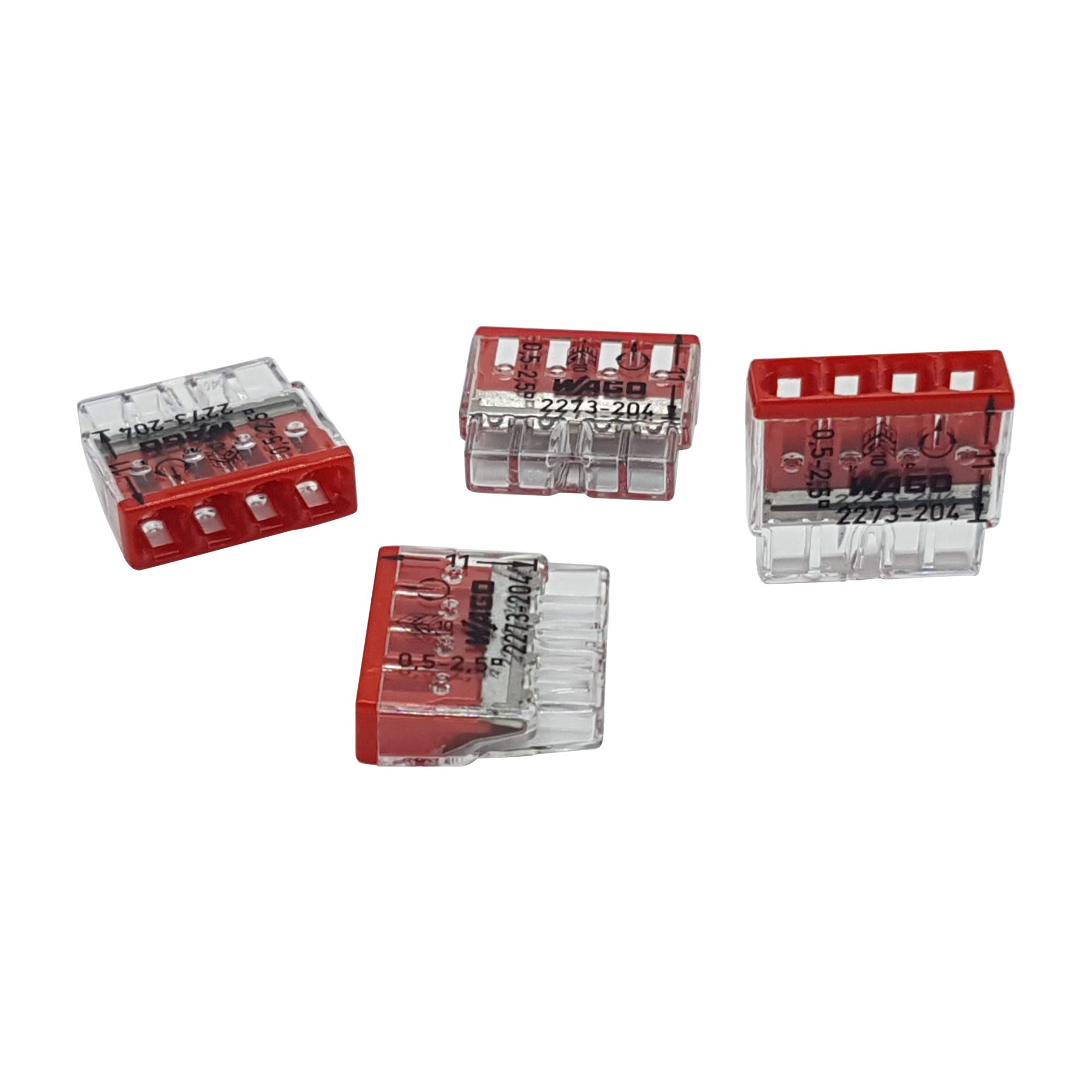

Wago 2273-204 Pack of 50 COMPACT Terminal Terminals Ø 0.5-2.5 mm², 4-Pin, Transparent/Red
Options
3 availableAbout this item
- Number of clamping points: 4
- Nominal cross section: 0.5 - 2.5 mm²
- Rated Voltage: 450V
- Rated current: 24A
- Only suitable for solid conductors and not for flexible conductors
Product description
Electrical data: Data measured according to IEC/EN 60664-1. Rated voltage (II/2): 450V Rated voltage (II/2): 4kV Rated current: 24A Connection data: Connection technology: PUSH WIRE® Actuation type: pusher. Connected conductor materials: copper/aluminum Single wire conductor: 0.5-2.5mm² / 20-14AWG Stripping length: 11 mm. Total number of clamping points: 4. Total number of potentials: 1 Wiring Type: Side Wiring Single strand conductor sections: 0.5 mm² Geometric data. Width: 18 mm. Height: 5.8 mm. Depth: 16.7mm Plug width: 18 mm. Material data: Colour: transparent. Lid colour: red. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.8 g. Environment Continuous use temperature: 105°C Conforms to EN 60998: T60.
