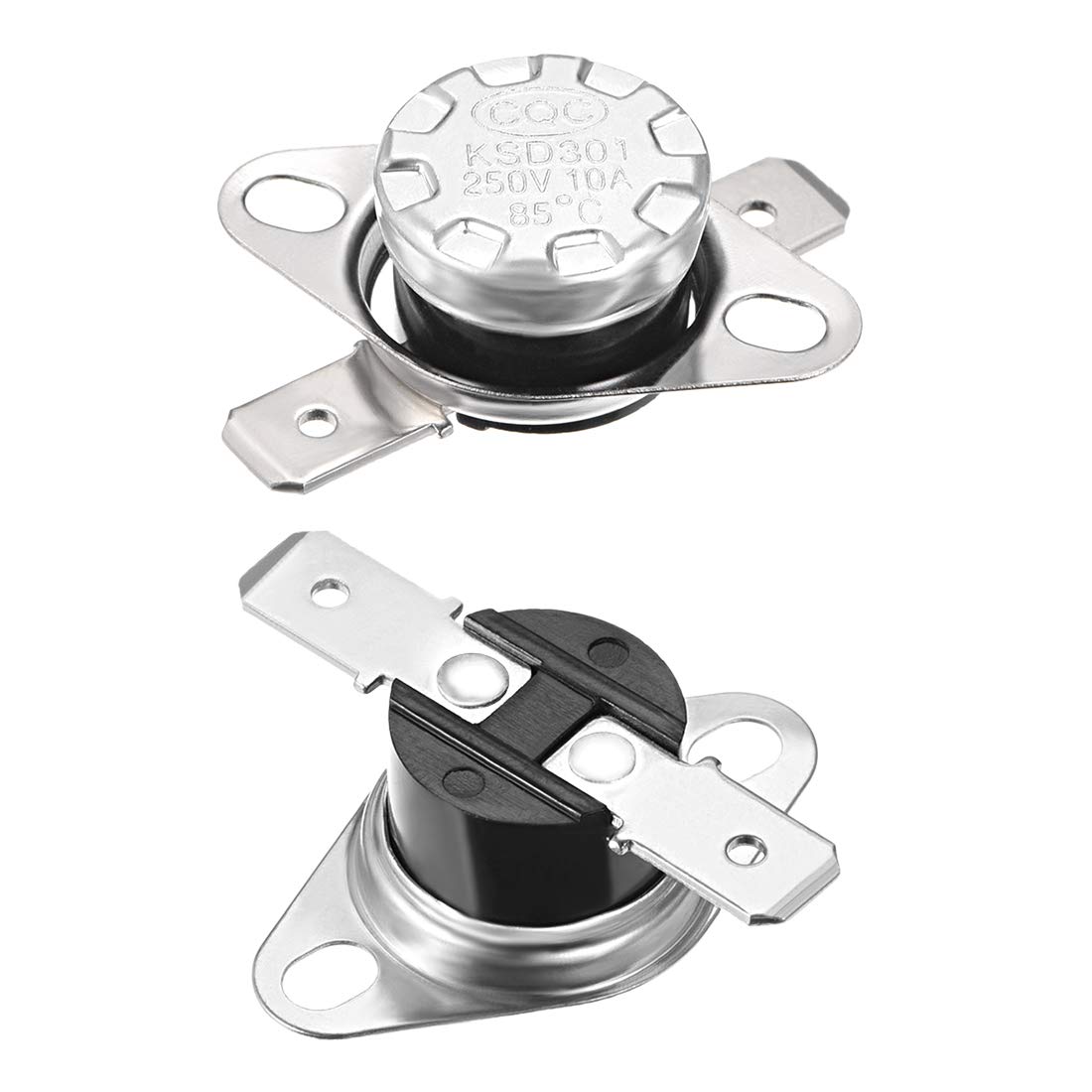

sourcing map KSD301 Thermostat 85°C/185°F 10A Normally Open N.O Adjust Snap Disc Temperature Switch 5pcs,Bakelite Material

• Type: KSD301 85 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NO (Normal Open), 6.3mm pin
• Normally Open: The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature 85 Celsius degree
• Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

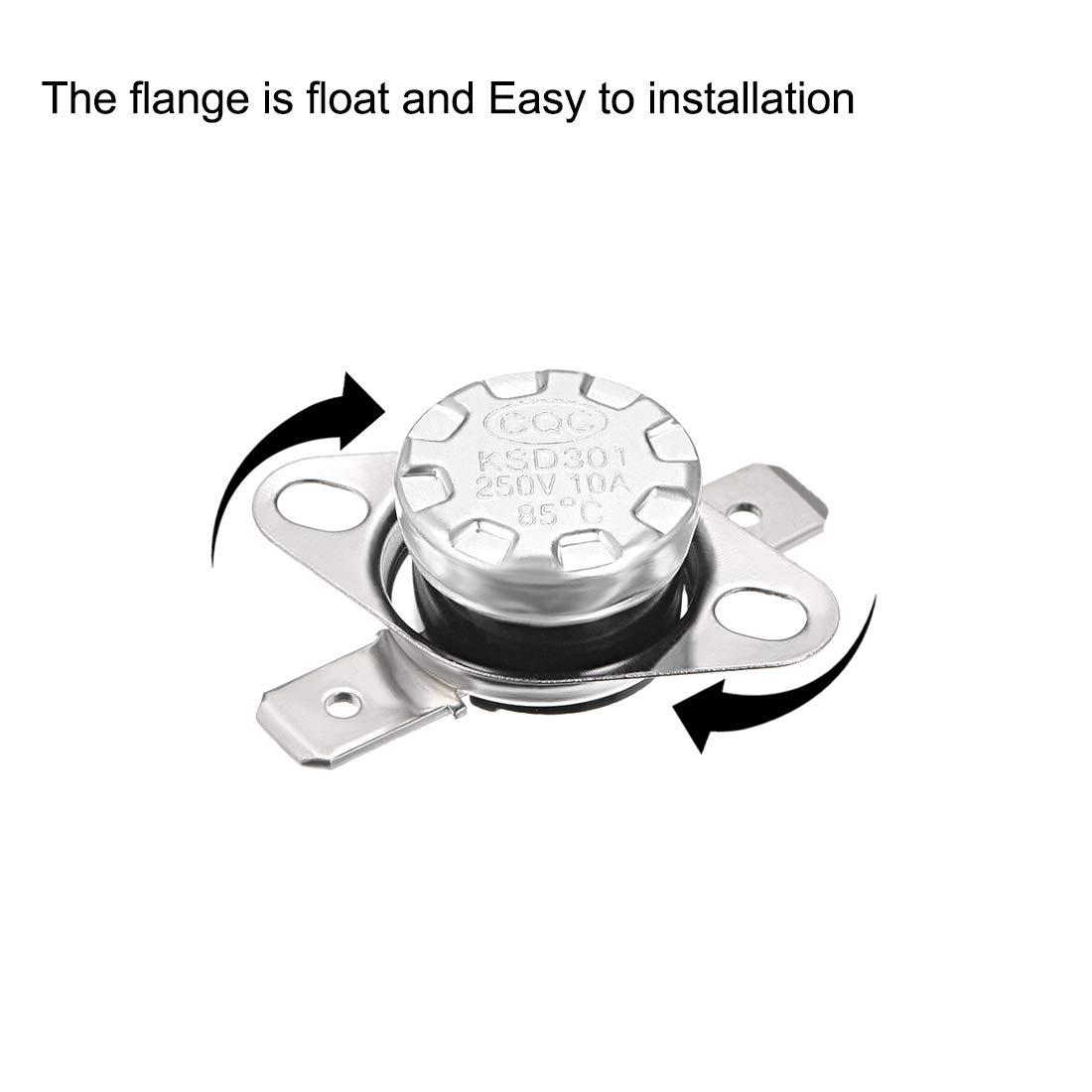

• Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
• Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner

Specification: Product Name : Temperature Control Switch Model: KSD301 Action Temperature: 85°C Action Type: N.O (Normally Open) Rated Voltage/Current : 110V/120V/250V 10A Pin Width : 6.3mm/0.25inch Contact Life: More than 50,000 times (action times) Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon Package Content : 5pcs x Temperature Control Switch Description : 1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature. 2.Feature: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. 3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats. 4.Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
