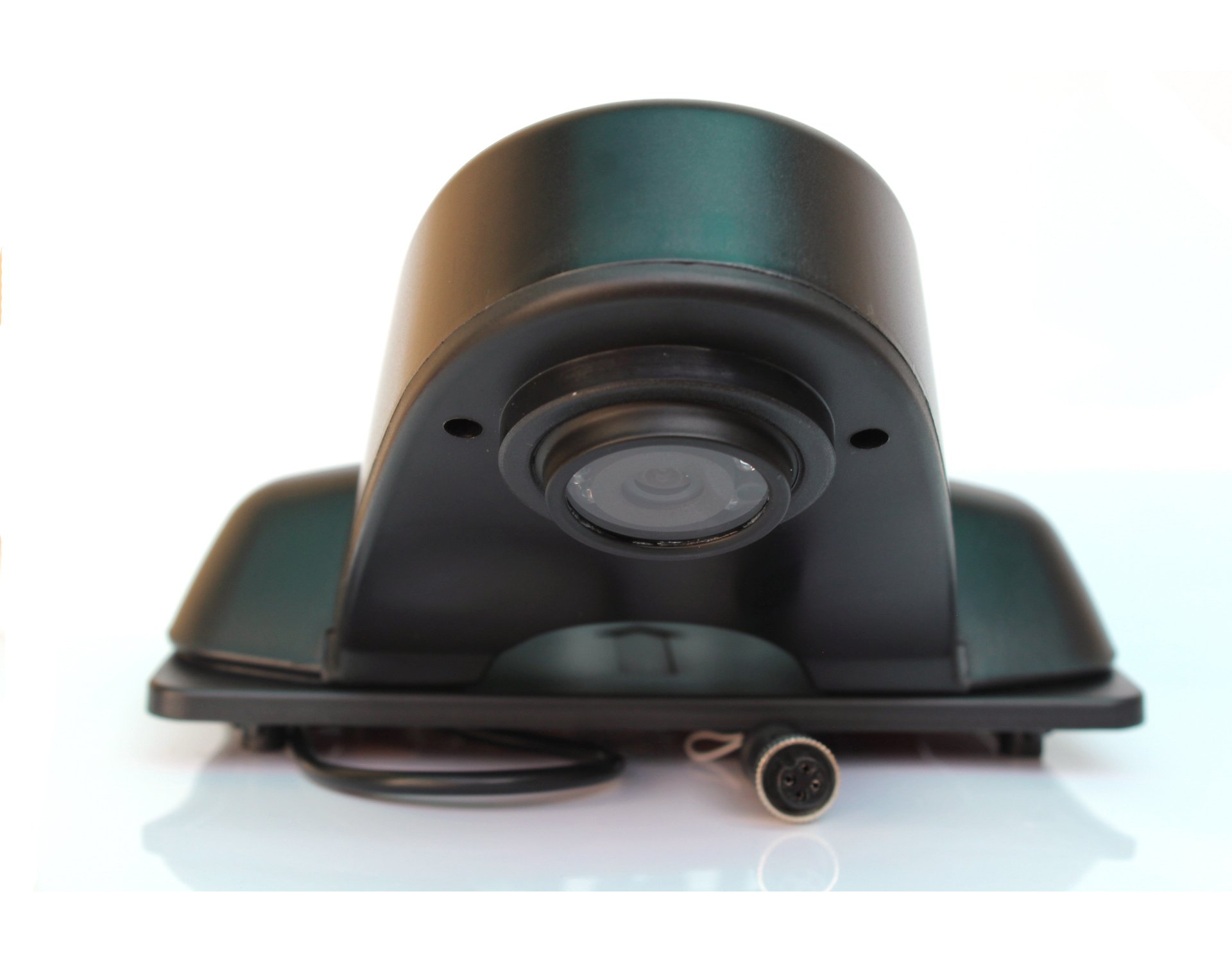

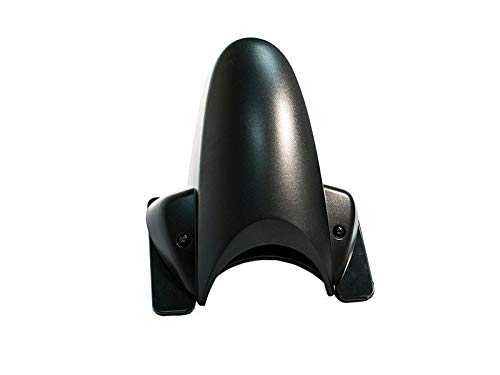

Backup camera for MB Sprinter/VW Crafter Replacement Roof Camera (With Monitor)

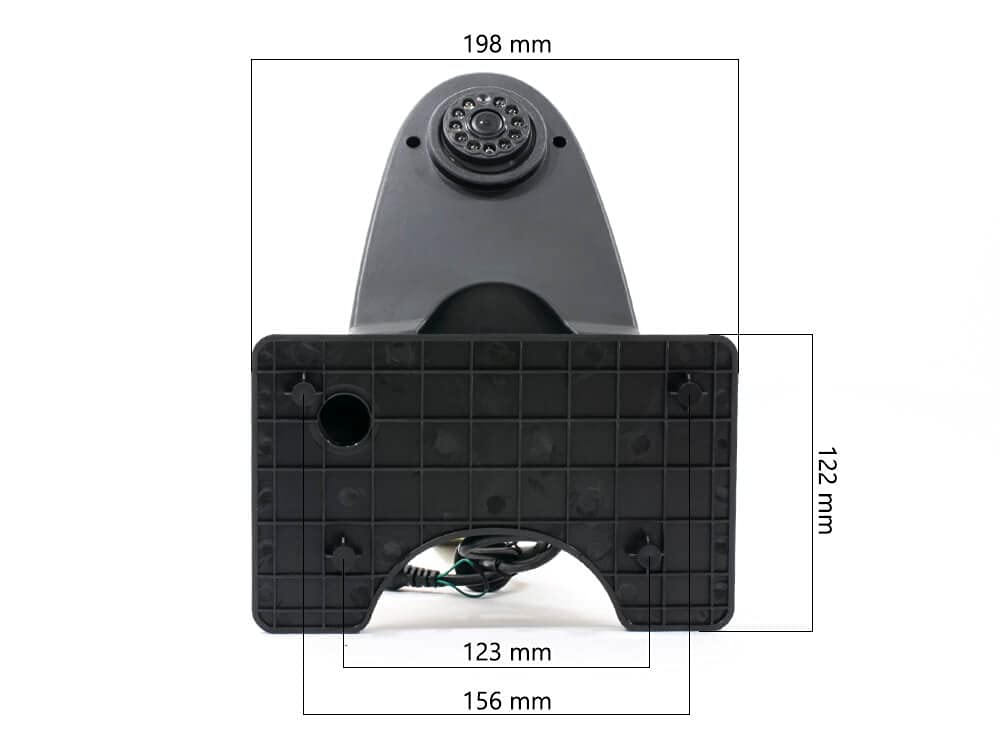

• 【Applicability】Sprinter backup camera is suitable for sprinter W906/V W Crafter with original factory size. you can use directly without extra installation hole.
• 【Sensor】Sprinter Backup camera used 1/3 PC3089 CMOS which have better color Image rather than White-black image
• 【Backup Camera Interface 】backup camera installed medias or screens with RCA/4pin video input only, it is NOT for original Car media directly!You can add camera interface or adapter cable if want to use it with original media.
• 【Night vision&Waterproof 】 12 IR LEDs with light sensor for night mode which you can see clear in the dark，IP68 grade ensure long life time and stable work for years.
• 【Warranty 】We provided a professional instruction in package, Warranty 1 year provide tech support and after-sale service

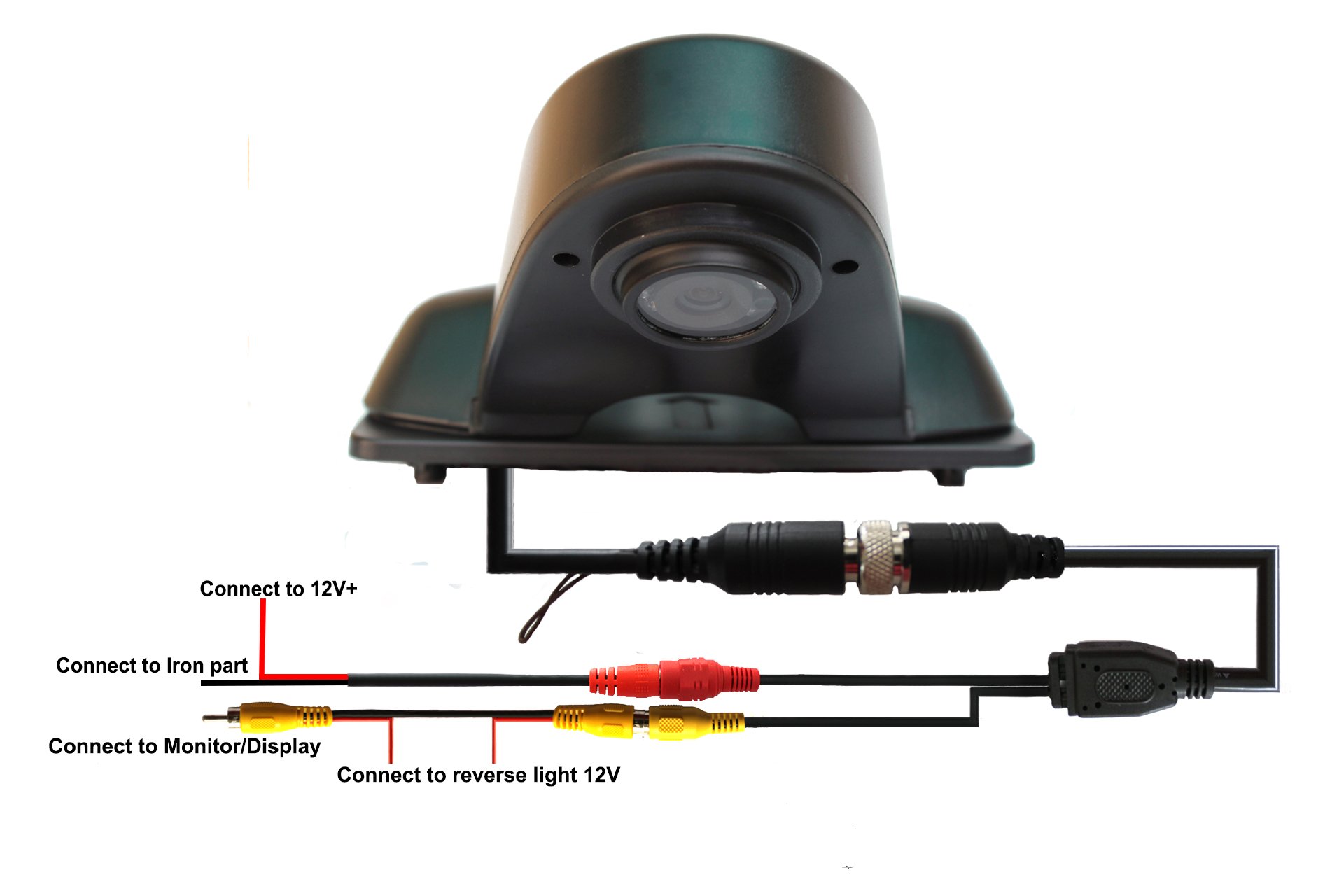

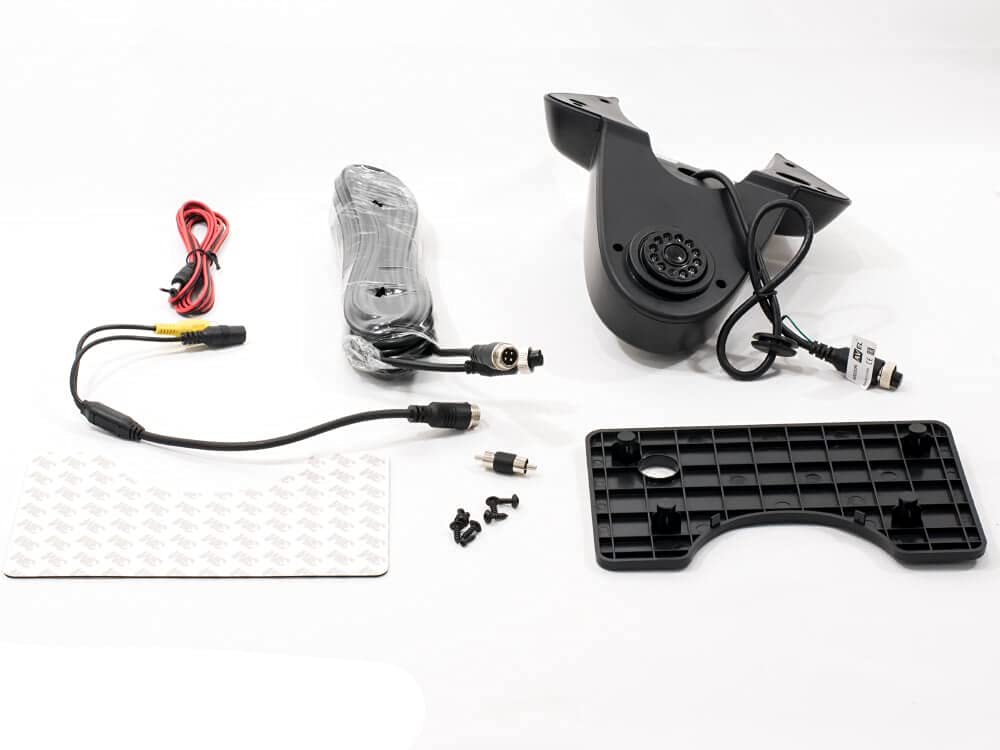

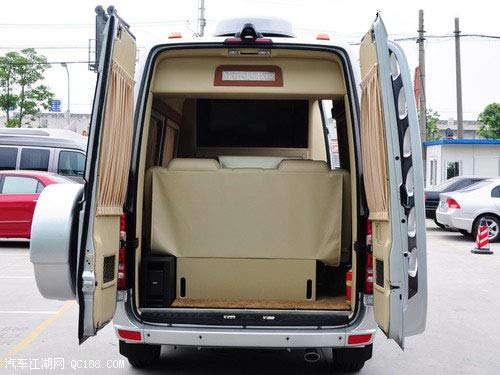

Note: For after installed medias or screens with RCA video input only, it is NOT for orignal Car media directly! You can add camera interface or adapter cable if want to use it with factory display The compact color camera is built into the body of the third tailight housing. Installation is a simple matter of removing the exisitng third tailight and replacing it with the new unit. You will need to run the included wire harness and make connections and you are done. Sensor type: CMOS Video system: NTSC Sensor resolution: 768x494 Dust- Waterproof grade: IP67 Minimum illumination: 0.1 LUX Resolution: 600 TV lines Interface (Video Out): RCA (CVBS), 1.0Vp-p.75 Image orientation: Mirror Working temperature range: -23.8F ~ +167F Power supply: DC 12V Parking line: NO （yes by cut line） What's in the box? 1 pcs backup camera ,1pcs RCA extendsion cable ,1pcs adapter cable ,1 set of screw ,1pcs users' manual
