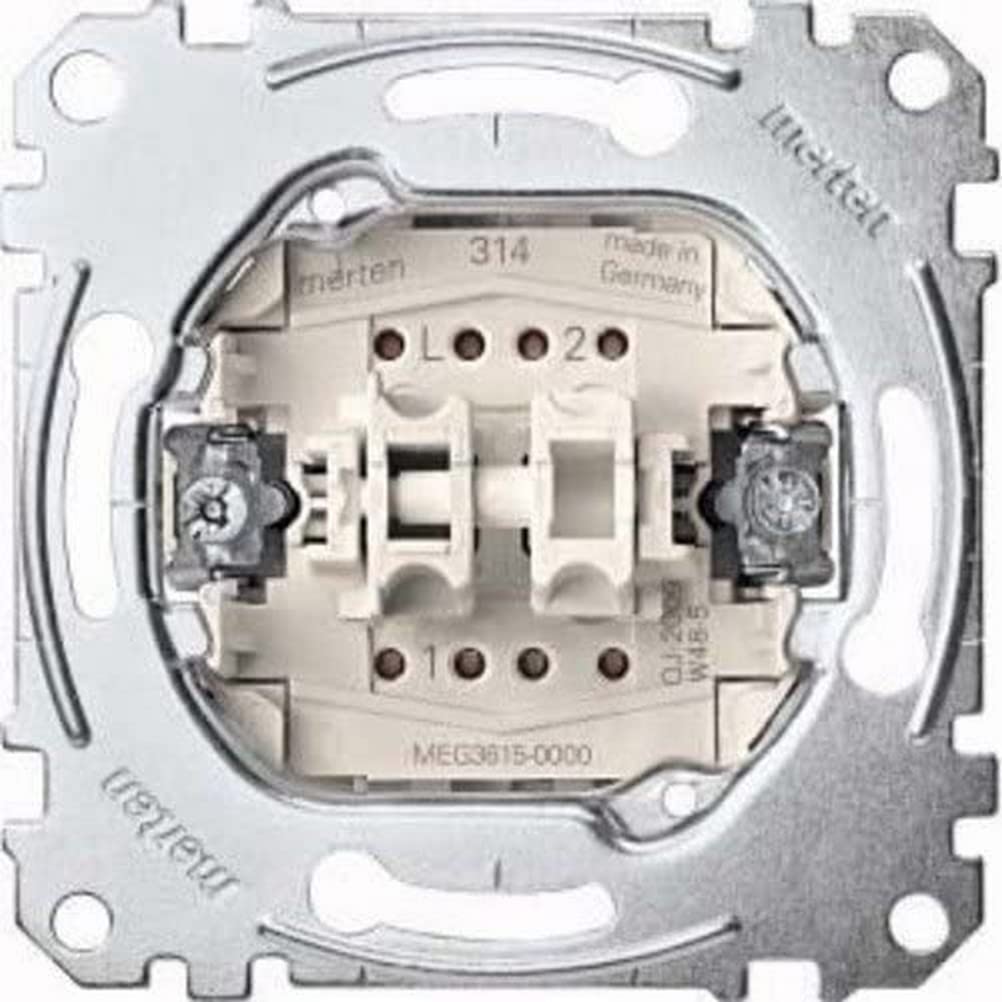

Merten MEG3615-0000, Series Switch Insert, 16 A - AC 250 V - Plug-in Terminals, Made in Germany

• Use: With this series switch, it is possible to control two lights.
• Easy to assemble – Thanks to screws and claws. The visualisation of connection options, as well as alignment markings, markings and the quick thread screws and the long claws allow for easy and simple installation.
• Multifunctional - This on/off and double-throw switch can be equipped with additional modules. The control light shows whether the light is switched on or off, which can be useful for light switches outside the bathroom. The orientation light makes it easier to find the light switch in the dark.
• Easy retrofit - Checking of already installed switches, as well as retrofitting QuickFlex lighting modules is possible without switch disassembly.

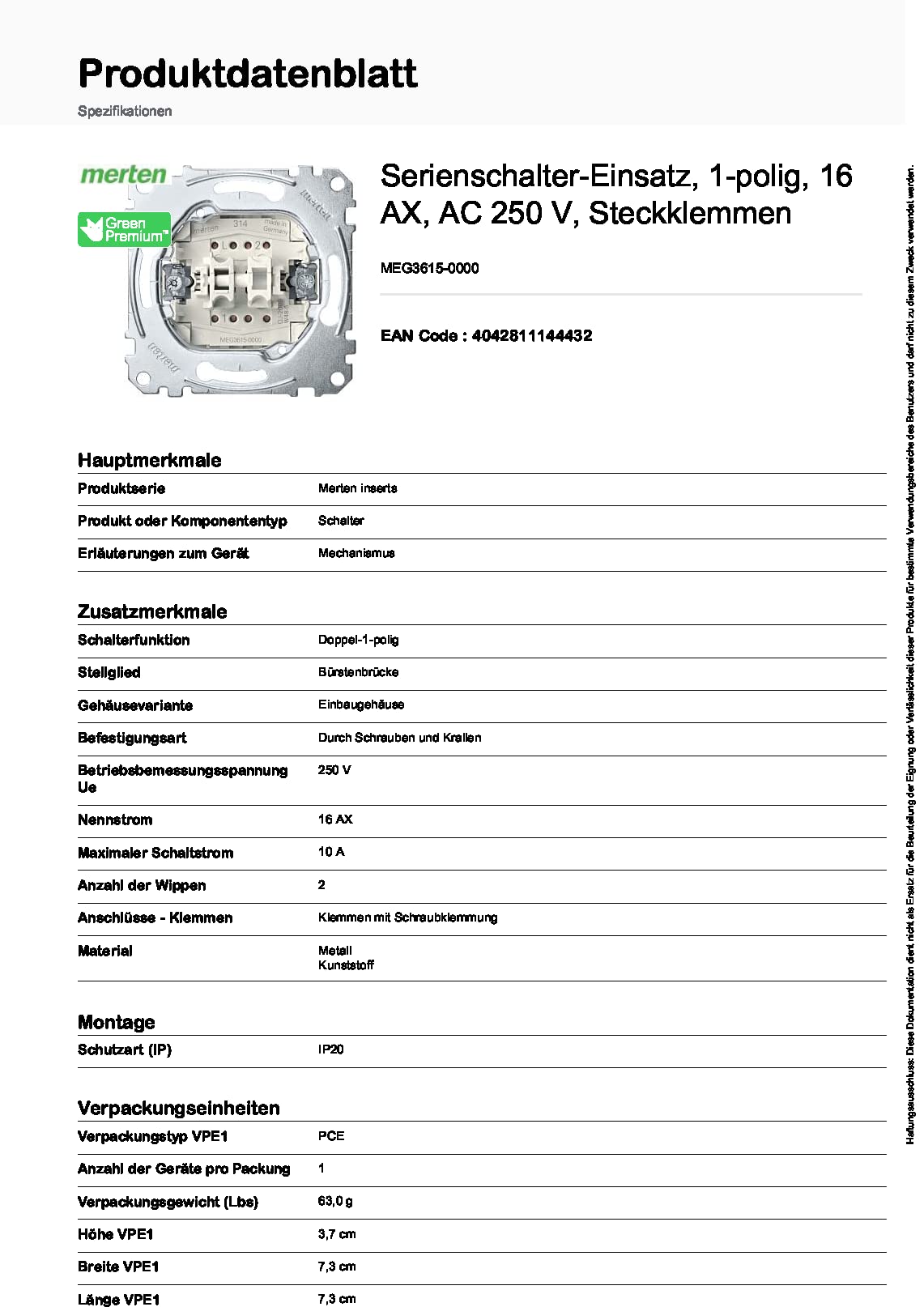

• Specifications: Series switch insert, 1 pole, 16 A, AC 250 V, halogen-free, pierce terminals. Protection class: IP20. Contents: 1 x MEG3615-0000.

Merten MEG3615-0000 | series switch insert - 1 pole - 16 A - AC 250 V - plug-in terminals | Made in Germany QuickFlex switch overview. Connecting made easy: Plug-in terminals with funnel-shaped cable entries ensure easy and quick wiring. Ergonomically useful: The connections are angled at 35° and make installation much easier. The rear diagram provides a secure overview of the wiring. Easy to use, easily accessible release lever. The low installation depth ensures maximum freedom of movement during. Connect quickly and safely. The indestructible 1 mm steel support ring always stays in shape even on uneven walls. Rounded edges make installation even safer. Thanks to the high-gloss galvanised surface, the alignment markings and markings are even more visible. With the proven teeth of the carrying rings, multiple combinations are quickly and easily aligned. Super fast attachment. With three short turns of the quick-thread screws, the base sits firmly in the can. 100% safety thanks to fully insulated retaining ring. 100% countersunk claws ensure easy and safe installation in hollow wall sockets. Easy claw resetting makes assembly changes and realignment a breeze. Comfortable check from the front. Clear and easily recognisable identification of the connections. Test contacts allow convenient testing and measuring from the front - without removing the switch base. Intelligent additional functions can be retrofitted without disassembly. The sockets are pre-equipped for LED lighting modules: Simply plug in - done. The LED lighting modules in red or multi-colour can be used as an indicator light or orientation light. With the proven teeth of the carrying rings, multiple combinations are quickly and easily aligned.
