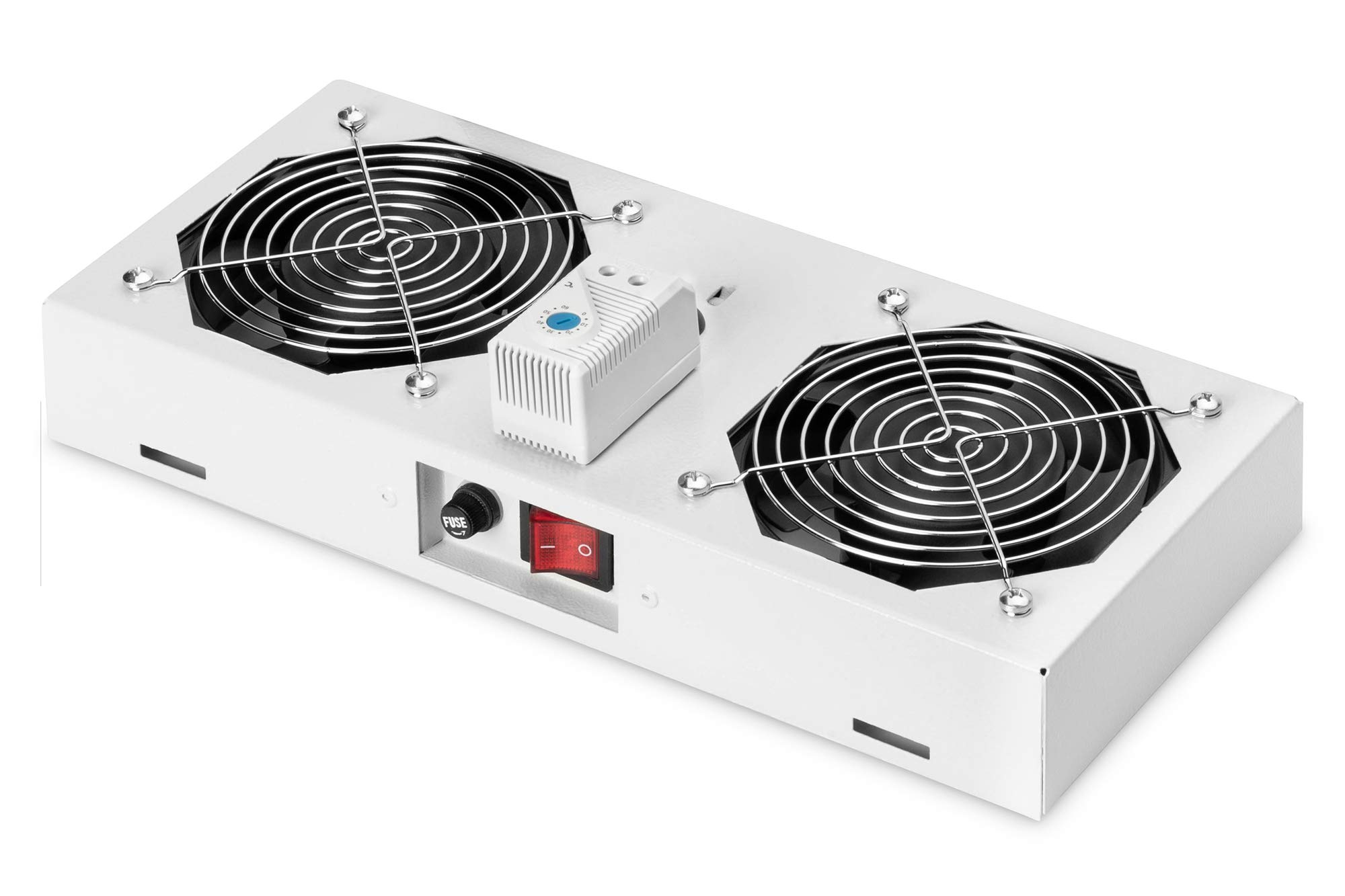

DIGITUS roof-mounted ventilation unit for wall-mounted enclosures – 276 m³/h free-blowing volume flow – 2x fan – thermostat – Grey

• Compatibility: DIGITUS wall-mounted enclosures
• Motageart: Roof fan module - suitable holes in the wall housing available
• Number of fans: 2 | Air flow rate: 4.6 m³/min | Volume flow free blowing: 276 m³/h
• Thermostat: 0 °C to +70 °C | Noise level: 47 dBm | Protection class: IP20
• Rated power: 13.8 W | Input voltage: AC 50 Hz, 240 V / AC 60 Hz, 220 V / DC, 48 V

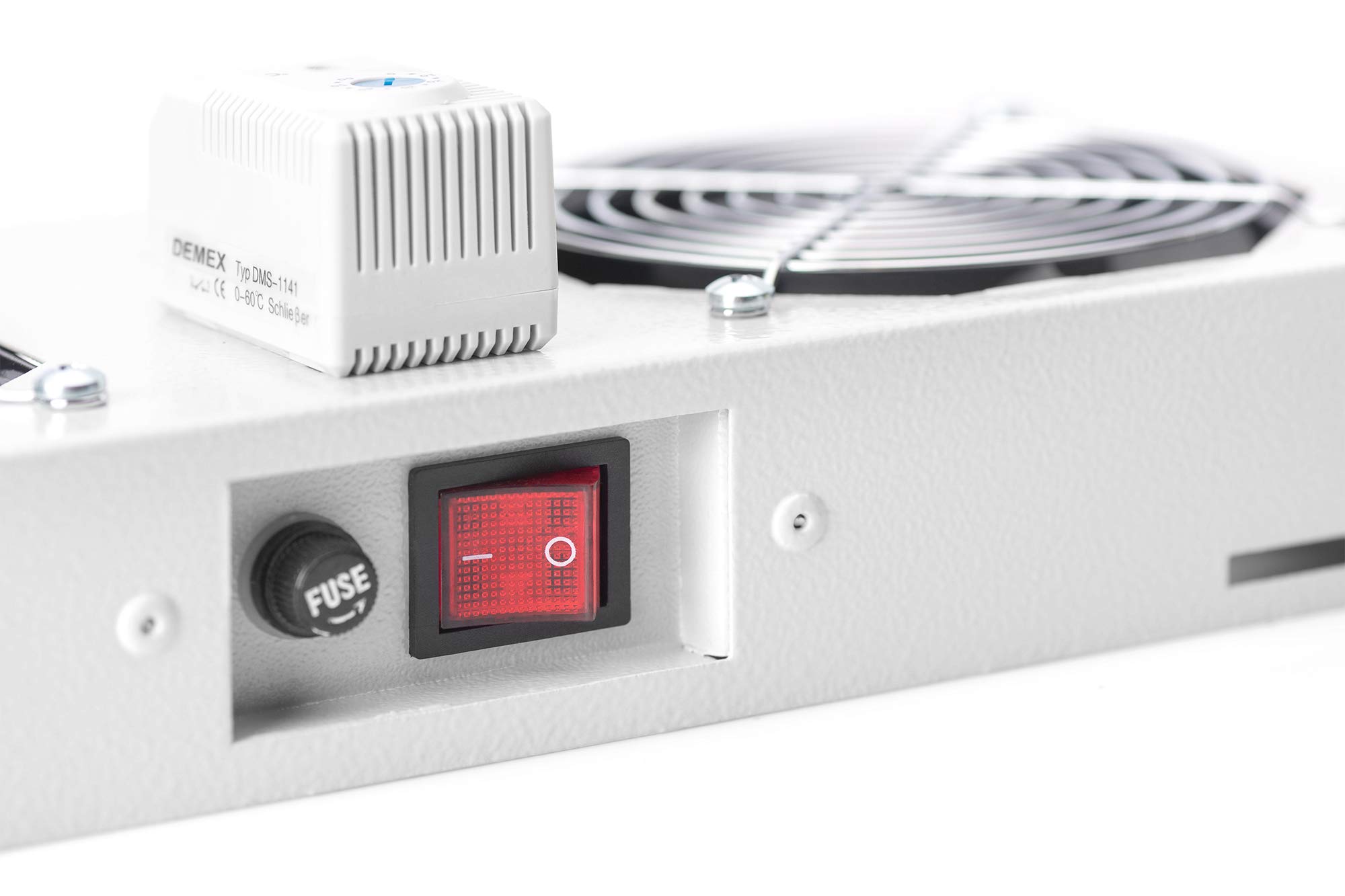

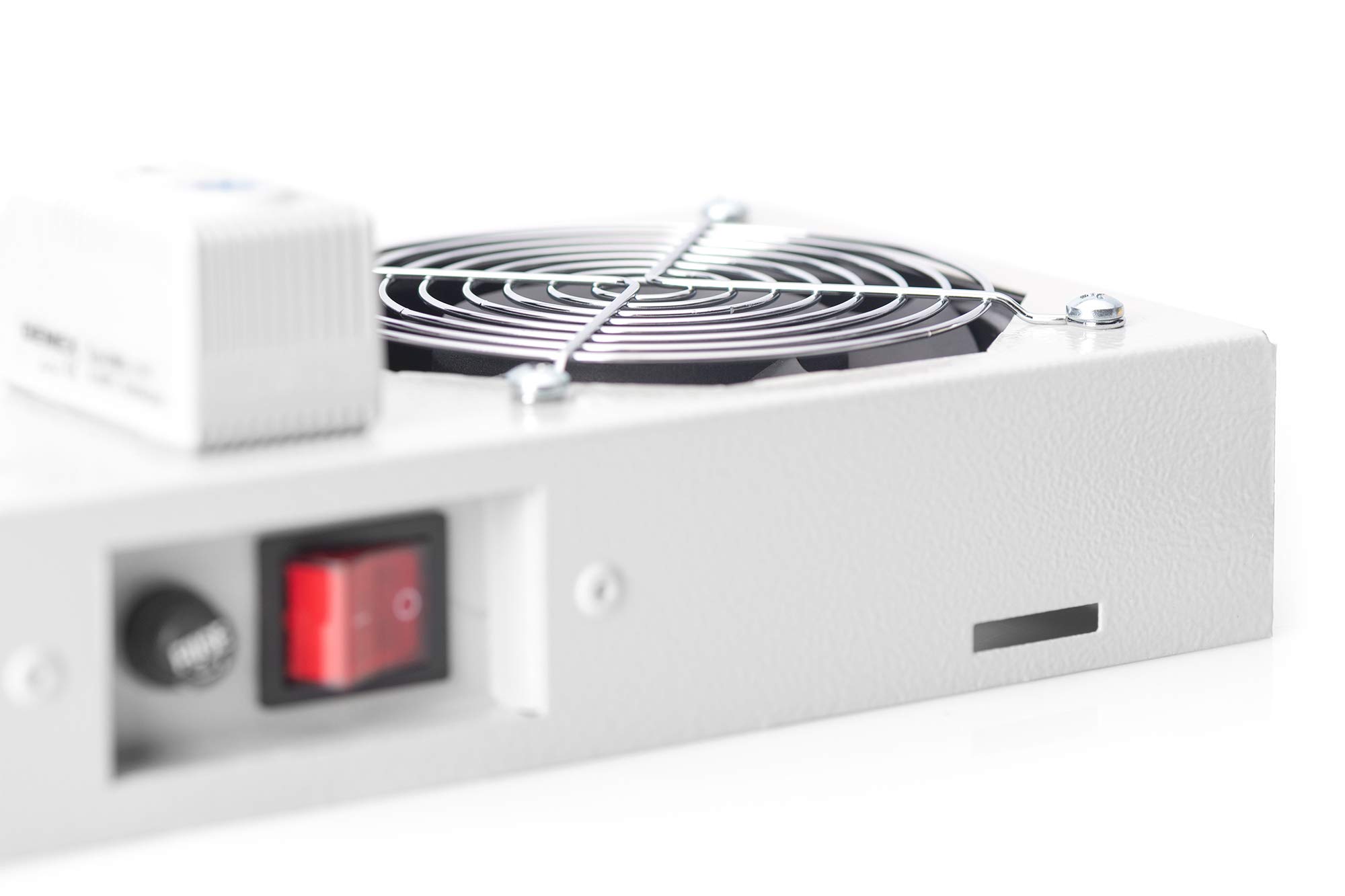

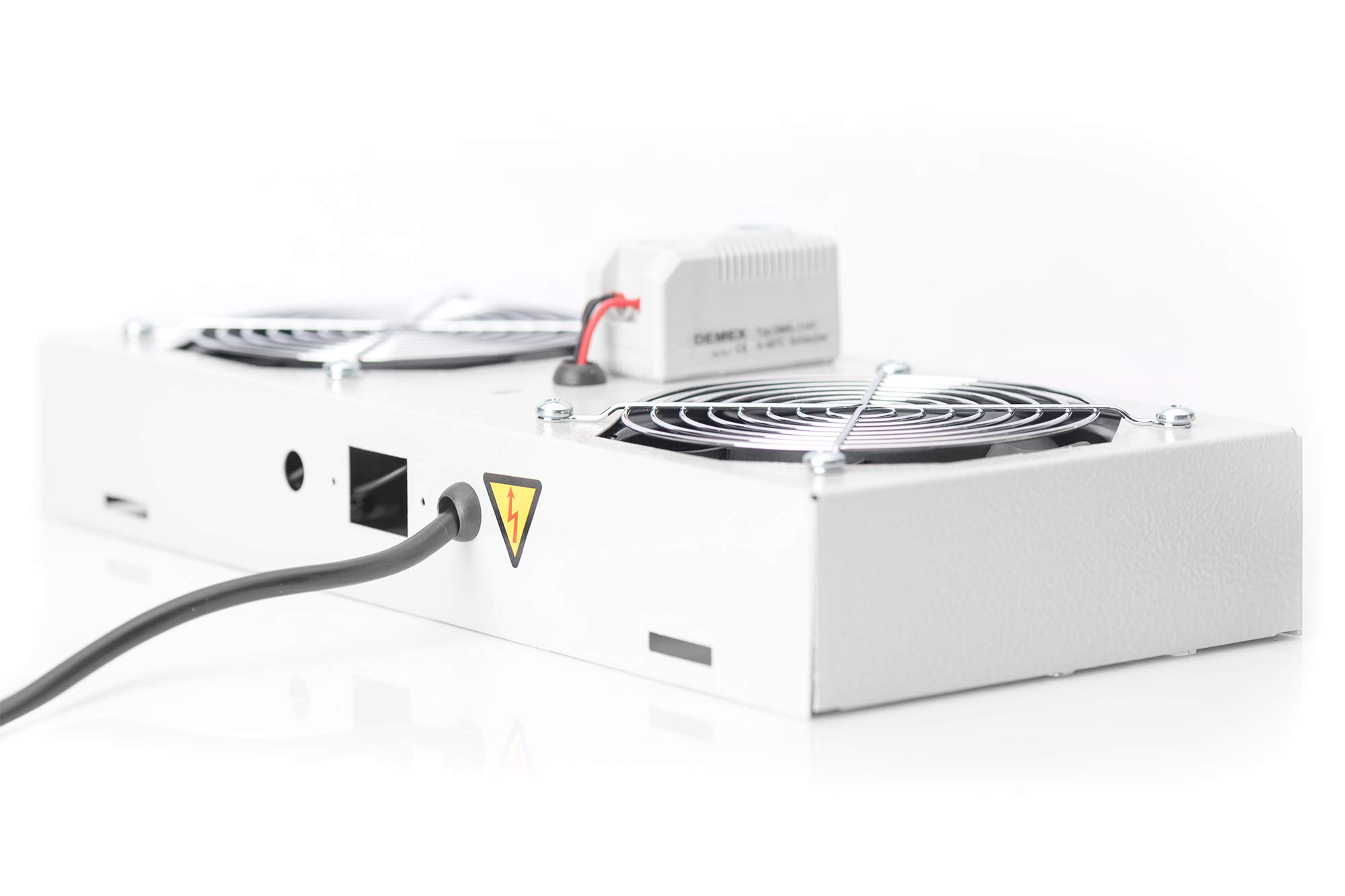

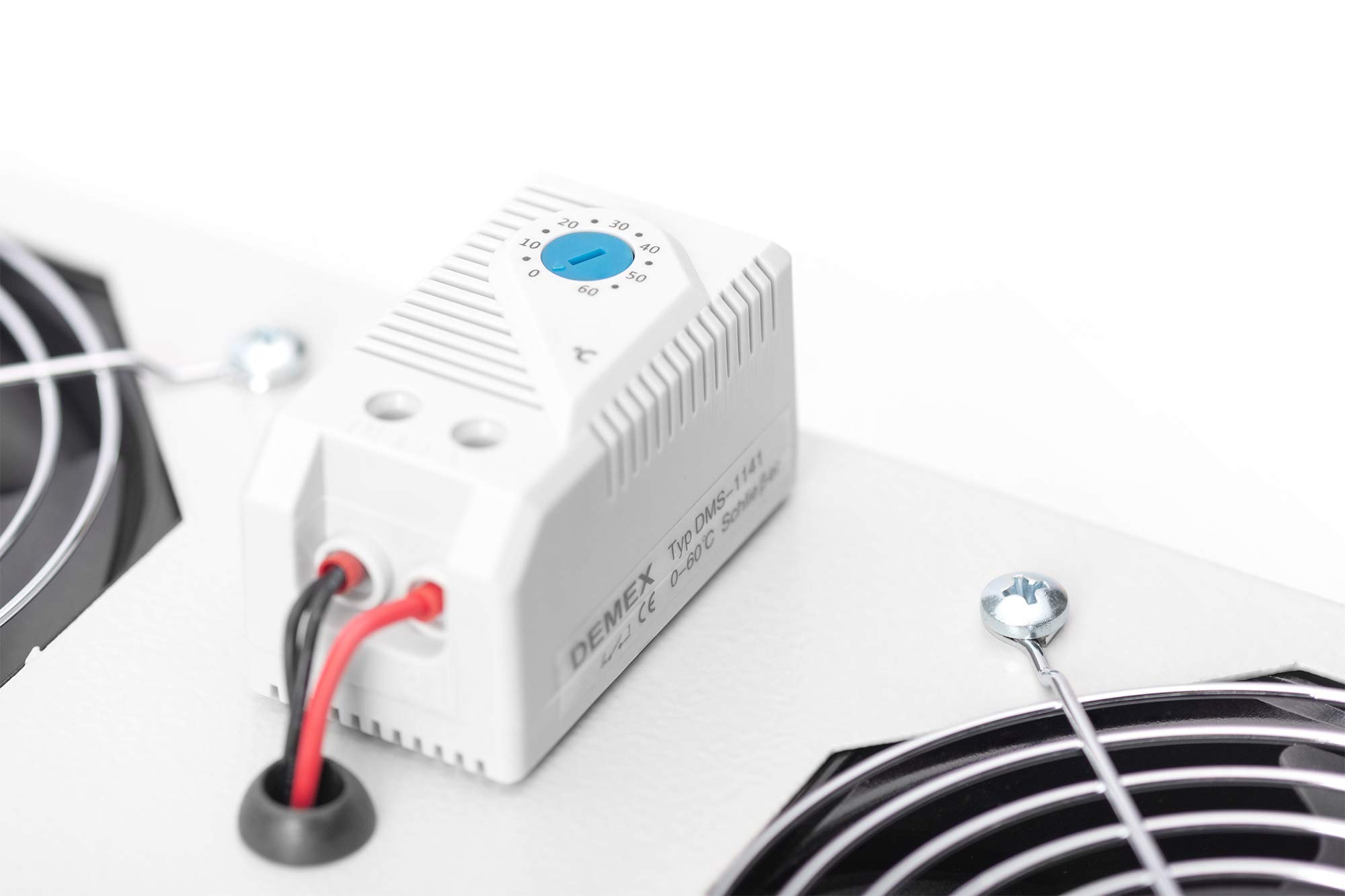

Roof fan unit for wall housing 2 fans, therm., switch, grey (RAL 7035) colour grey (RAL 7035). The DIGITUS 483 mm (19") accessory is developed for the high requirements of IT infrastructure, it is manufactured according to German quality standards. The roof fan units are suitable for all mounted wall enclosures of the Unique and Dynamic Basic series, as well as for all unmounted network and server cabinets. Installation in the roof module can be done quickly and easily. A switch, as well as a shelf thermostat, for optimal adjustment options. The model is available in the standard colours grey (RAL 7035) and black (RAL 9005) with two built-in fans. Technical details: Housing made of robust sheet steel. Fan with grille cover. Noise level: 47 dBm. 2 fans. Includes thermostat, adjustable from 0 °C to +35 °C. On/off switch. Air flow: 4.6 m³/min. 1.8 m cable with CEE 7/7 (type F) plug. Number of fans: 2 Operating voltage at AC 50 Hz: … 240 V. Operating voltage at AC 60 Hz: … 220 V. Operating voltage at DC: 48 V. Voltage type: AC. Wall installation: no. Designed as a slide-in fan: no. Circulator: no. Roof fan: yes. With filter: no. Volume flow, free-blowing: 276 m³/h. Rated power: 13.8 W EMC design: yes. Protection class (IP): IP20. Mounting type: screw mounting. Suitable for 482.6 mm (19 inch) installation: no Colour: grey. RAL number: 7035. Width: 345 mm. Height: 90 mm. Depth: 150 mm.
