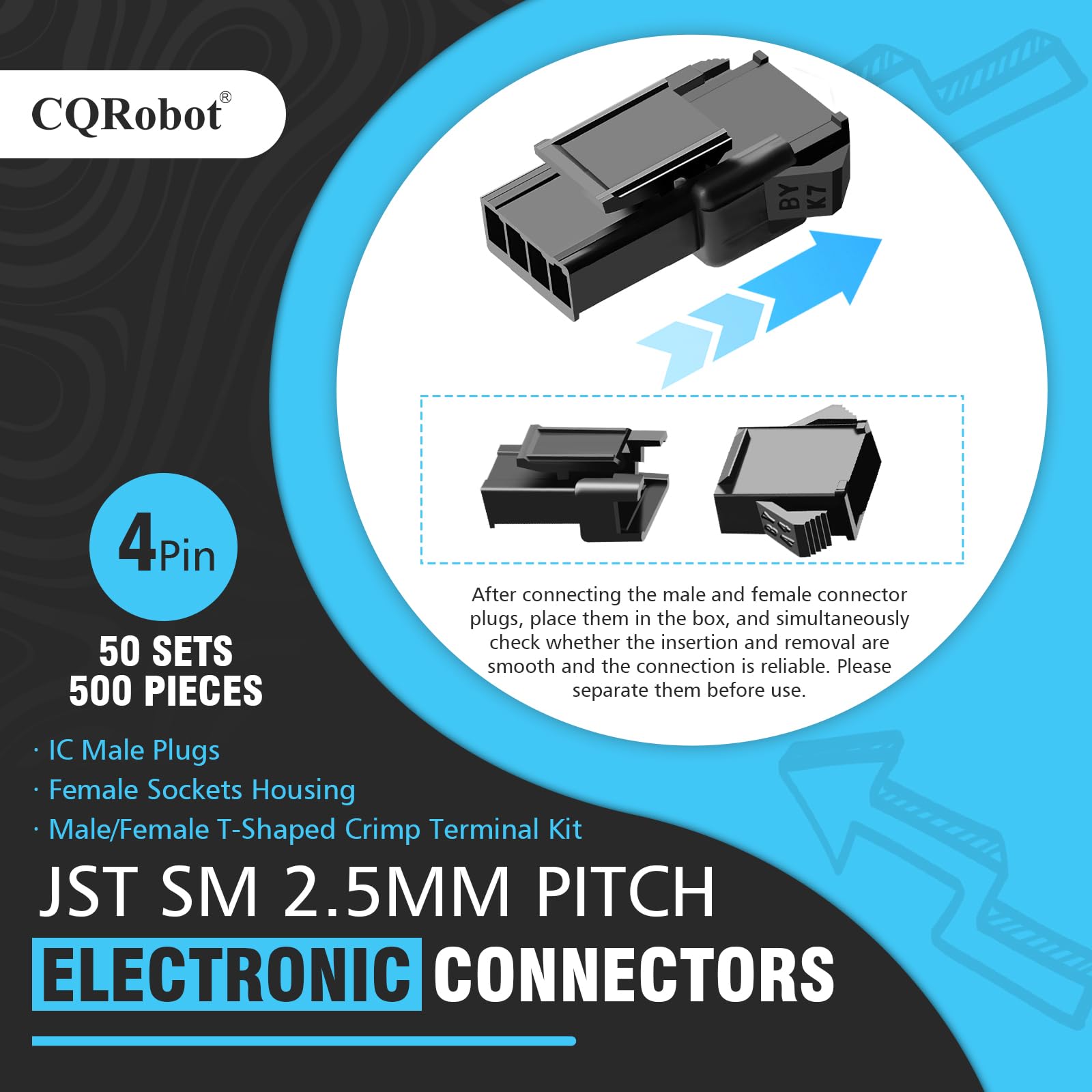

CQRobot JST SM 2.5 mm Pitch 4-Pin Electronic Connector IC Male Plugs, Female Sockets Housing and Male/Female T-Shaped Crimp Terminal Kit. 50 Sets/500 Pieces Wire-Wire Adapter Cable Assembly.

• 50-piece JST SM 2.5mm pitch 4-pin male header connector housing.
• 200 Pieces 2.5 mm pitch JST-SM male T-shaped Crimp Terminal.
• 50-piece JST SM 2.5mm pitch 4-pin female plug connector housing.
• 200 Stück 2,5 mm Tonhöhe JST - SM female T-shaped Crimp Terminal.
• 50 Sets/500 Pieces JST SM 2.5mm Pitch 4 Pin JST Male Plug and Female Receptacle Housing, Male/Female T-Crimp Terminal Kit. Packed in a packaging box made of PP material.

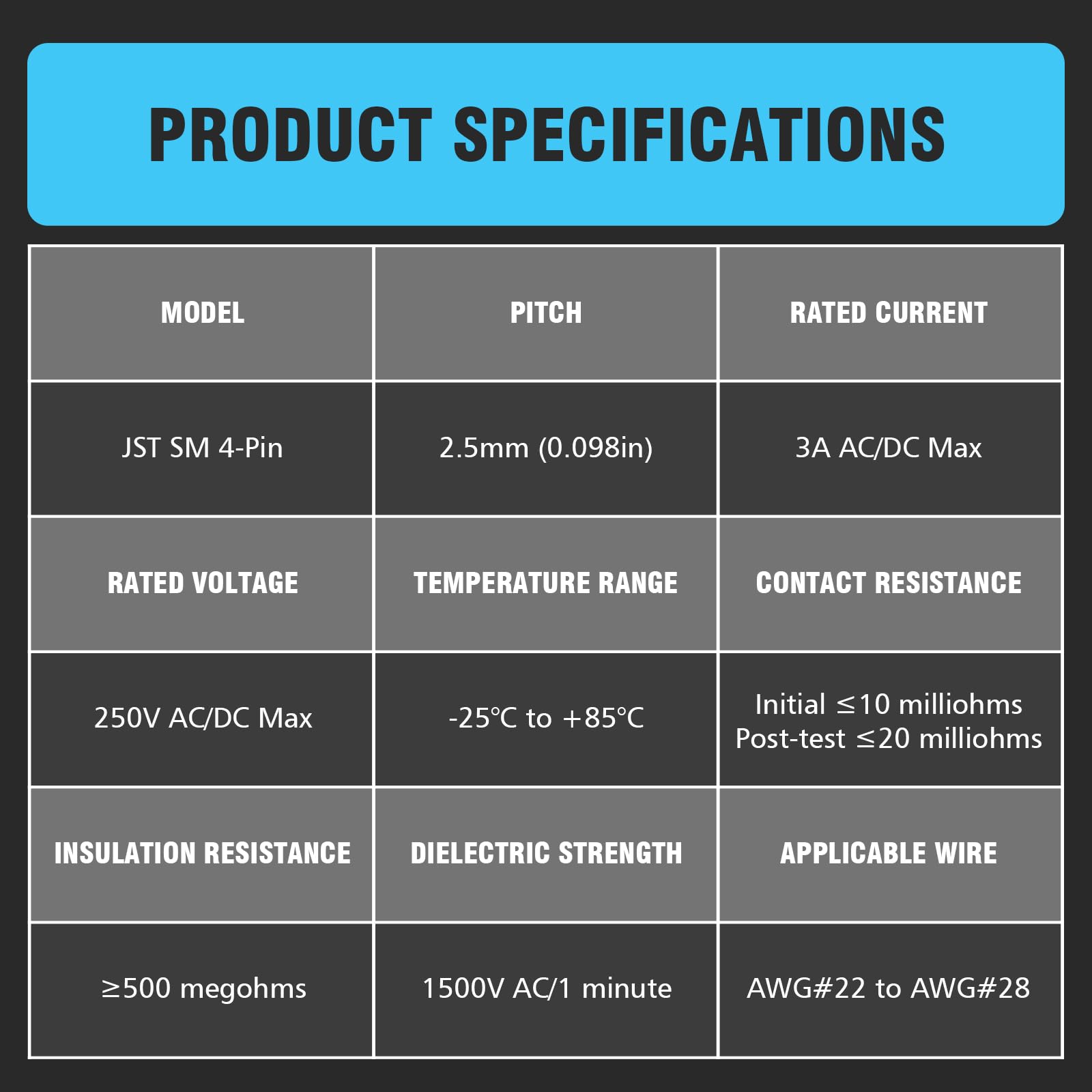

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to defective IC sockets and plug connectors account for more than 37% of all equipment failures. JST connector IC sockets and plugs play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs facilitate specialization, parts replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial Production - Electronic Integration - Computer Application - Medical Equipment SPECIFICATION - Model: JST SM 4 pin - Pitch: 2.5 mm (0.098 inch); - Rated current: 3A AC, DC max - Rated voltage: 250V AC, DC max - Temperature Range: -25 Degree Celsius to +85 Degree Celsius(including temperature rise in applying electrical current); - Contact Resistance: Initial value / 10 Milliohm max; After Environmental Testing / 20 Milliohm max; - Insulation Resistance: 500 Megaohm above; - Withstanding Voltage: 1500V AC/one minute; - Applicable wire: AWG#22 to AWG#28, 0.8mm to 0.33 mm2 - Applicable plate thickness: 0.5mm to 2.0mm DISTRIBUTION LIST 1 * JST SM 2.5 mm Pitch 4-Pin JST Wiring Connecting IC Male Plugs, Female Sockets Housing and T-shaped Crimp Terminal Kit. (50 sets / 500 pieces)
