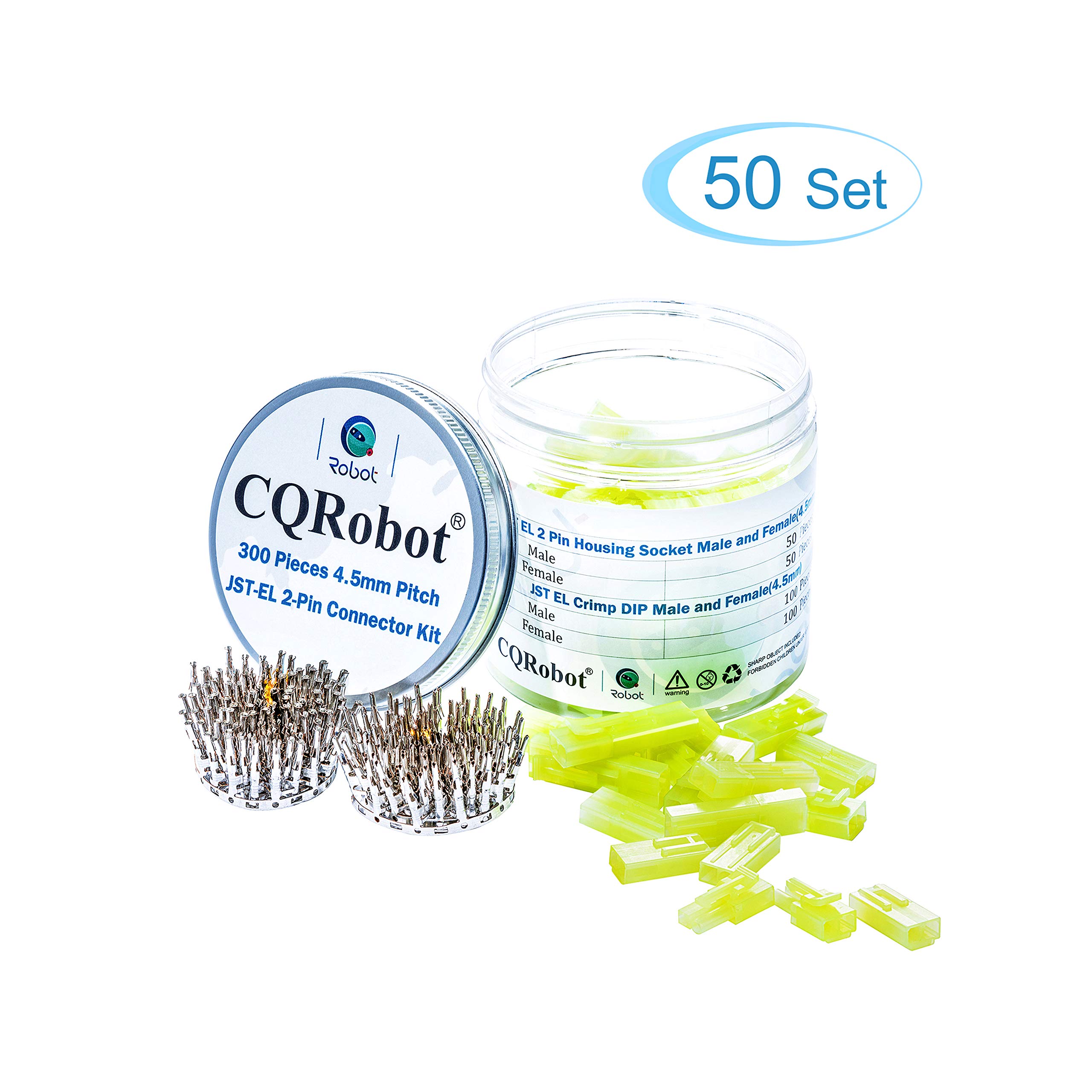

CQRobot JST EL 4.5 mm Pitch 2-Pin Electronic Connector IC Male Plugs, Female Sockets Housing and Male/Female T-Shaped Crimp Terminal Kit. 50 Sets/300 Pieces Wire-Wire Adapter Cable Assembly.

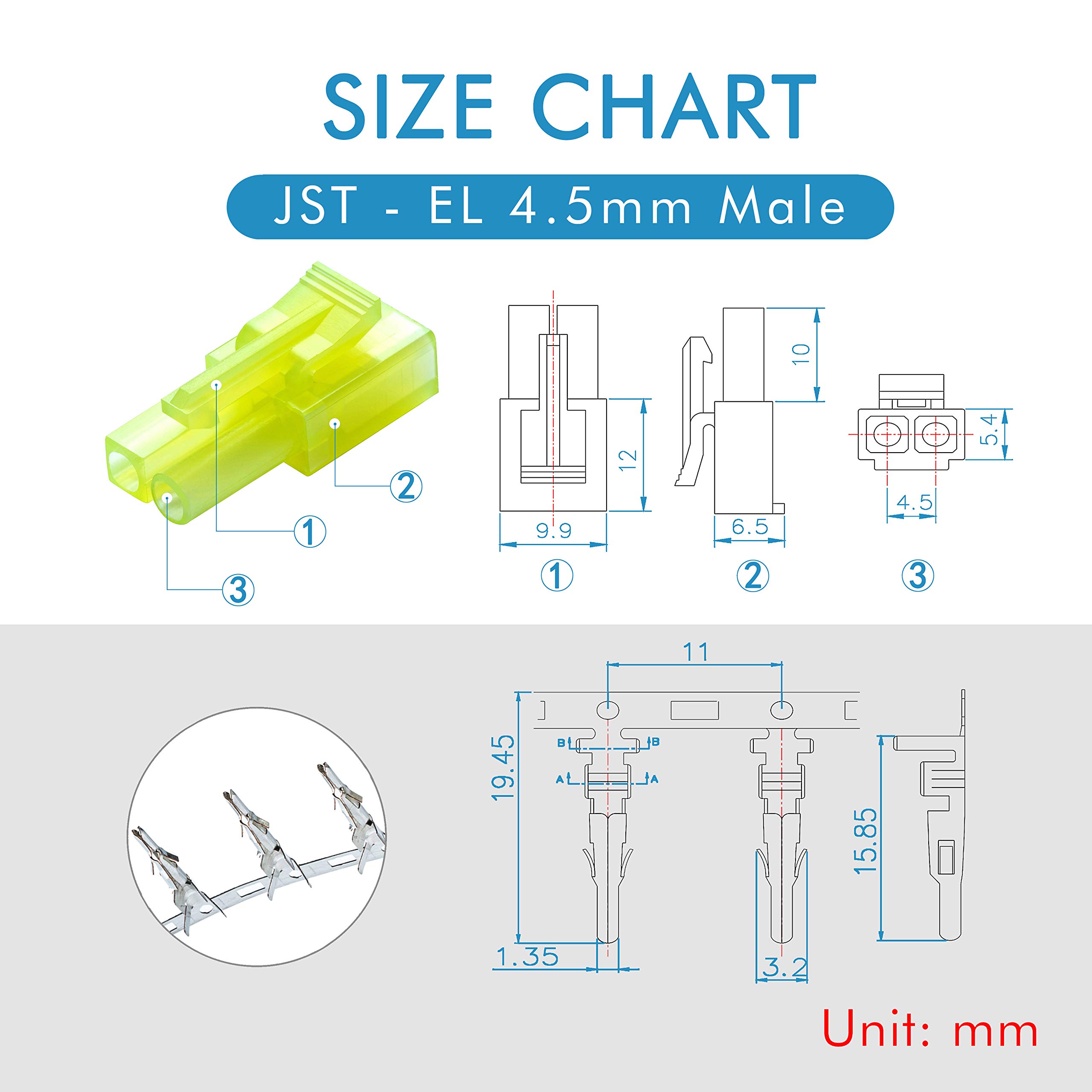

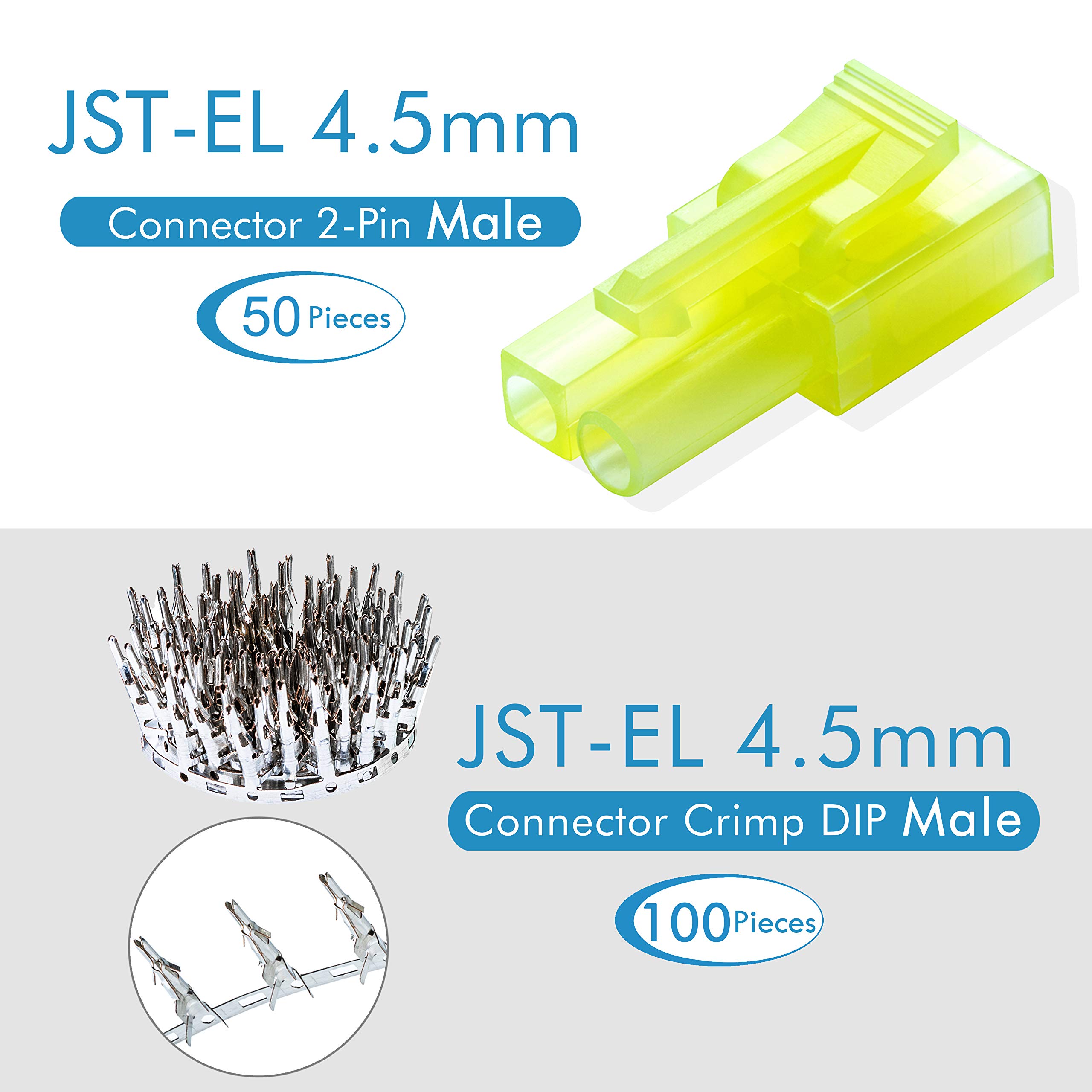

• 50-piece JST EL 4.5mm pitch 2-pin male header connector housing.
• 100 Pieces 4.5 mm pitch JST-EL male T-shaped Crimp Terminal.

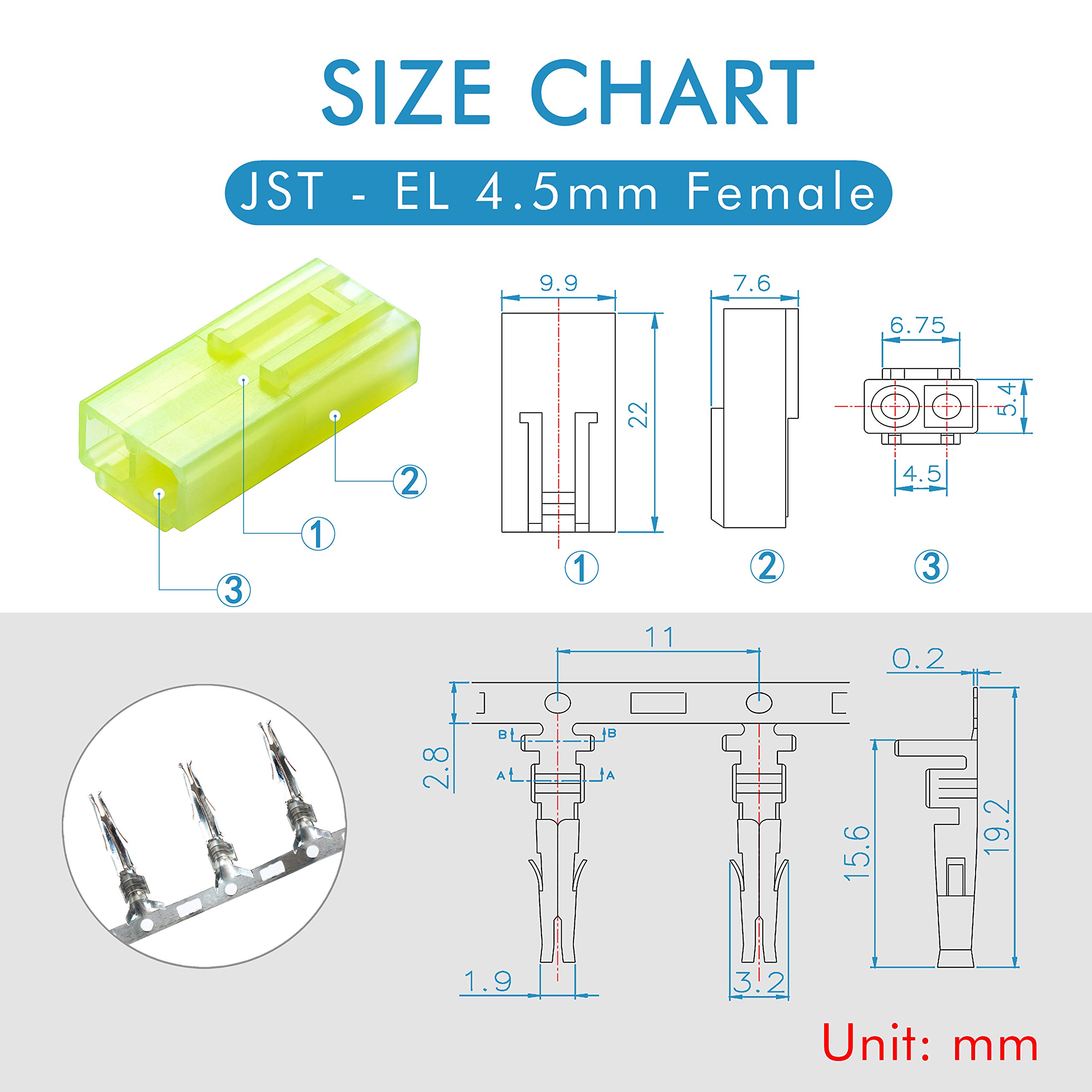

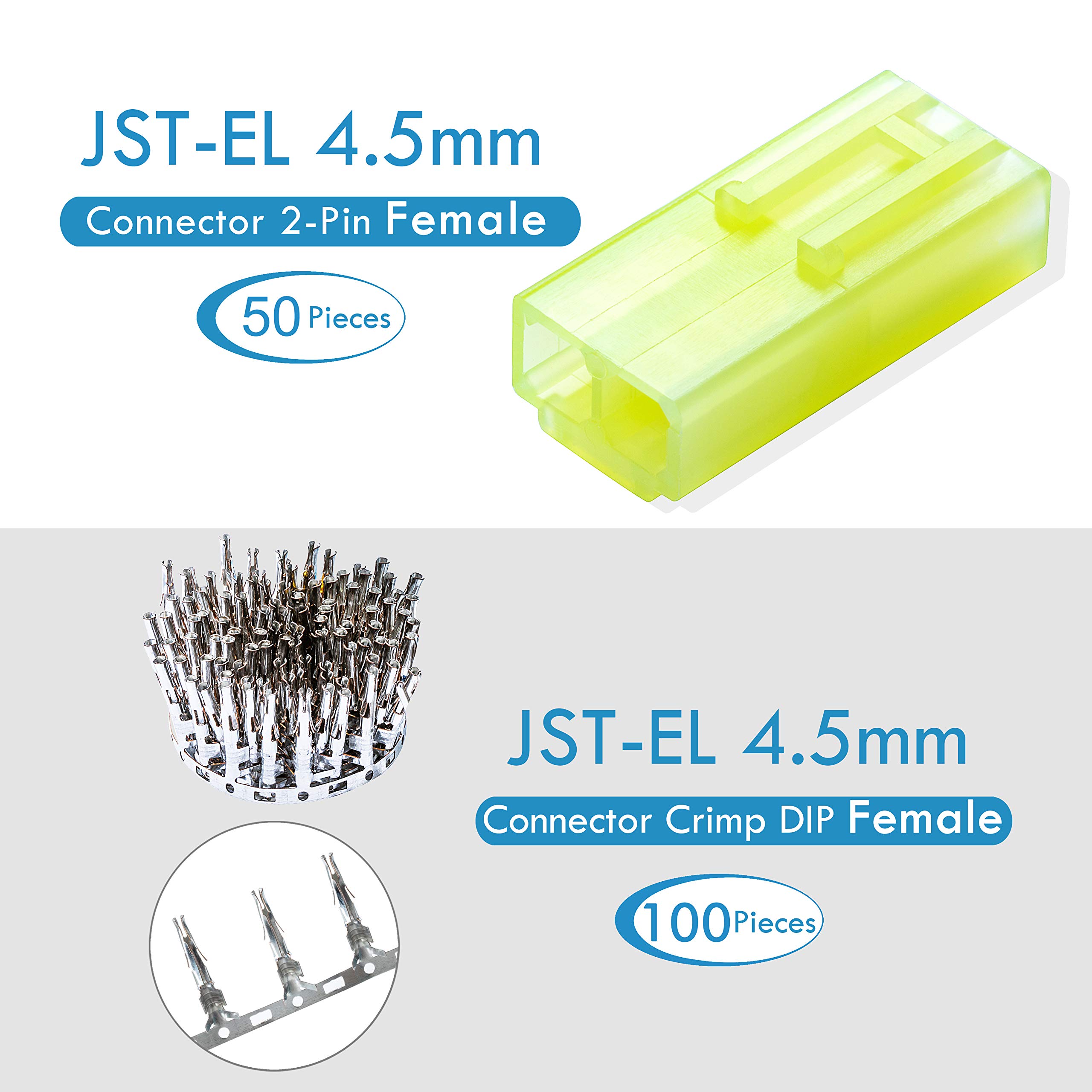

• 50-piece JST EL 4.5mm pitch 2-pin female plug connector housing.
• 100 Stück 2,5 mm Tonhöhe JST - EL female T-shaped Crimp Terminal.

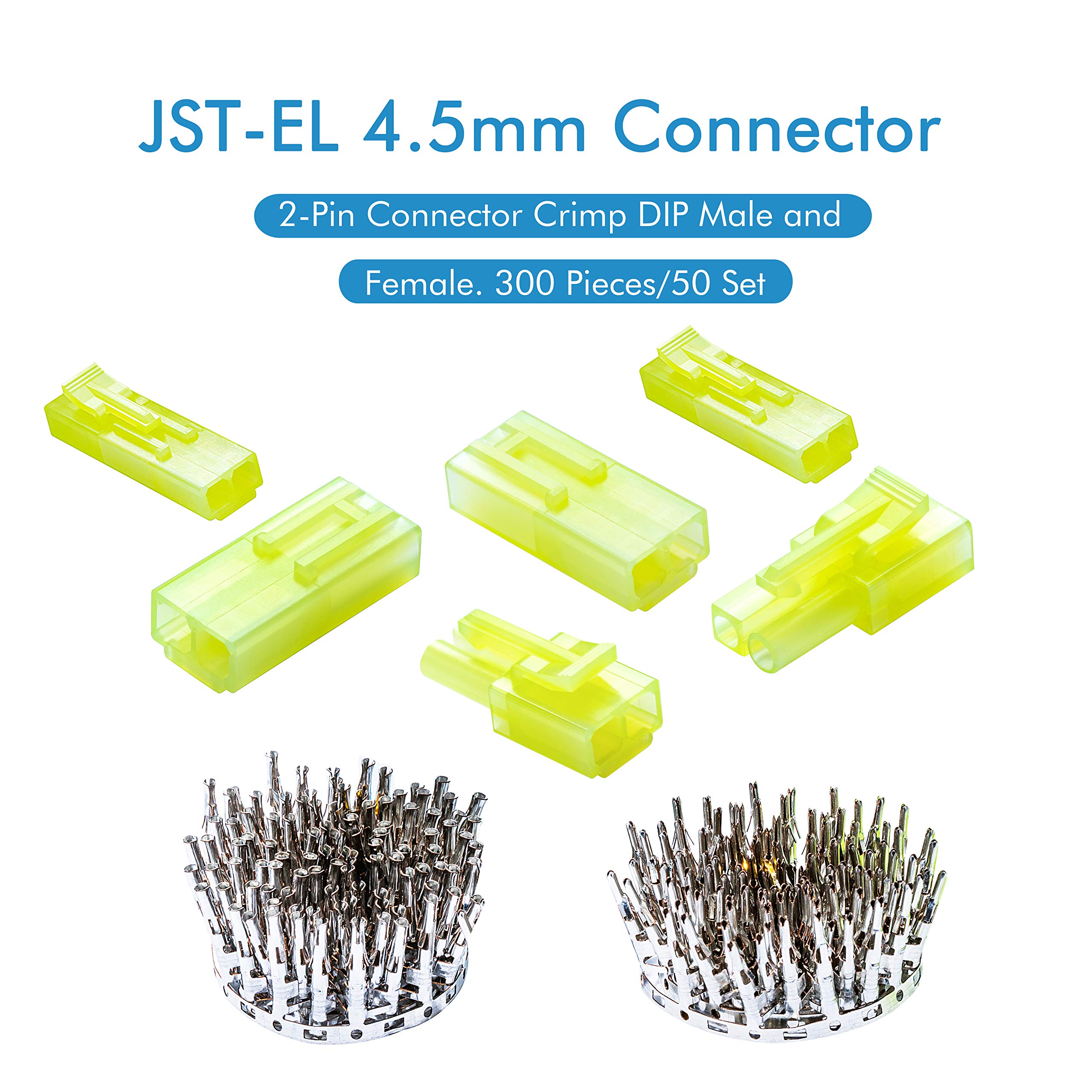

• 50 Sets/300 Pieces JST EL 4.5mm Pitch 2 Pin JST Male Plug and Female Receptacle Housing, Male/Female T-Crimp Terminal Kit. Packed in a packaging box made of PP material.

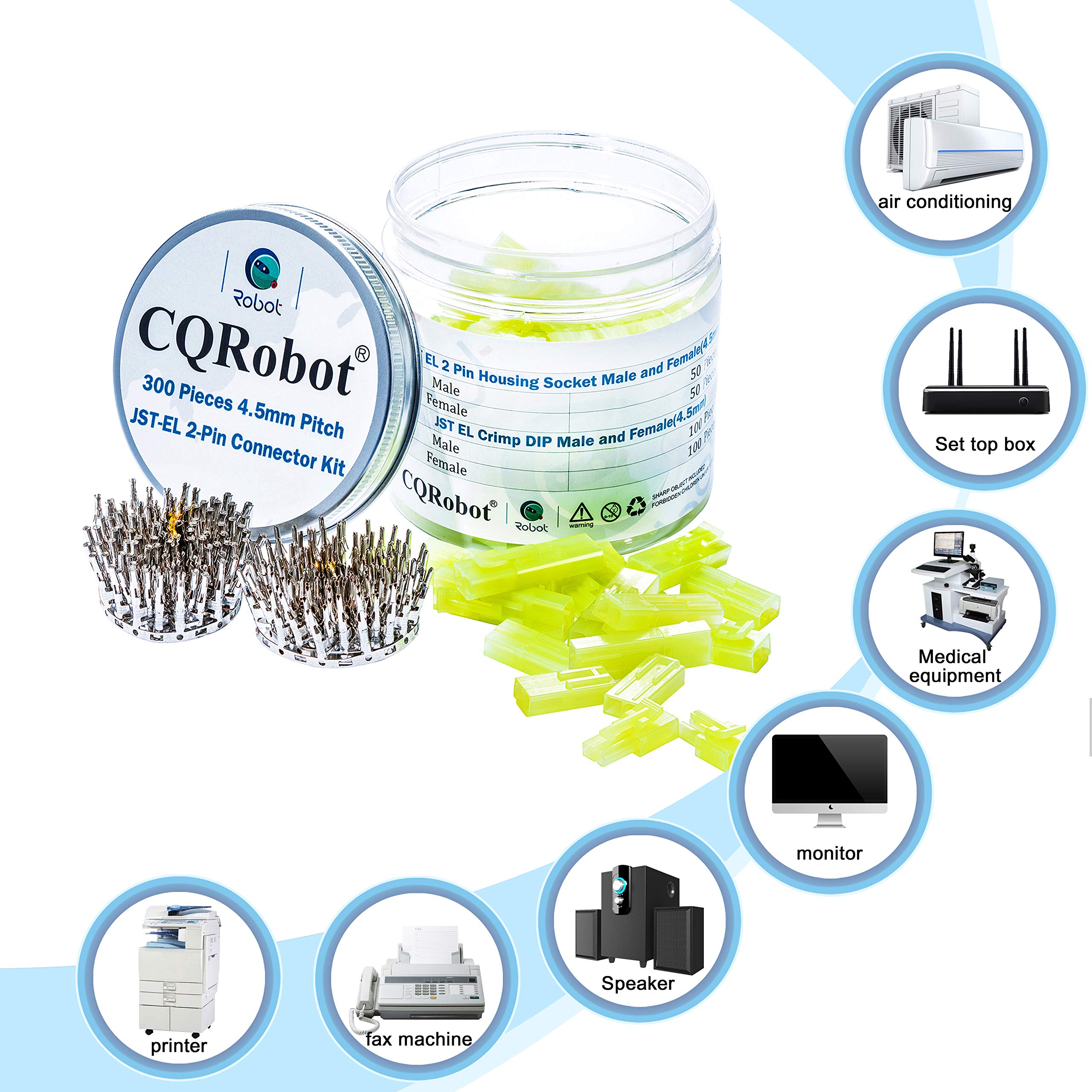

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to defective IC sockets and plug connectors account for more than 37% of all equipment failures. JST connector IC sockets and plugs play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs facilitate specialization, parts replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial Production - Electronic Integration - Computer Application - Medical Equipment SPECIFICATION - Model: JST EL 2 pin - Pitch: 4.5 mm (0.177 inch); - Rated current: MAX10A AC/DC - Rated voltage: MAX300V AC/DC - Temperature Range: -25 Degree Celsius to +90 Degree Celsius(including temperature rise in applying electrical current); - Contact Resistance: Initial value / 7 Milliohm max; After Environmental Testing / 10 Milliohm max; - Insulation Resistance: 1000 Megaohm above; - Withstanding Voltage: 1500V AC/one minute; - Applicable wire: AWG#26 to AWG#16, 0.8mm to 0.33 mm2 - Applicable plate thickness: 0.8mm to 2.0mm DISTRIBUTION LIST 1 * JST EL 4.5 mm Pitch 2-Pin JST Wiring Connecting IC Male Plugs, Female Sockets Housing and T-shaped Crimp Terminal Kit. (50 sets / 300 pieces)
