2pcs NRF24L01+ 2.4GHz Wireless RF Transceiver Module + 2pcs Nano Atmega328 CH340 mit USB cable + Jumper Wires + Detailed Tutorials for Arduino

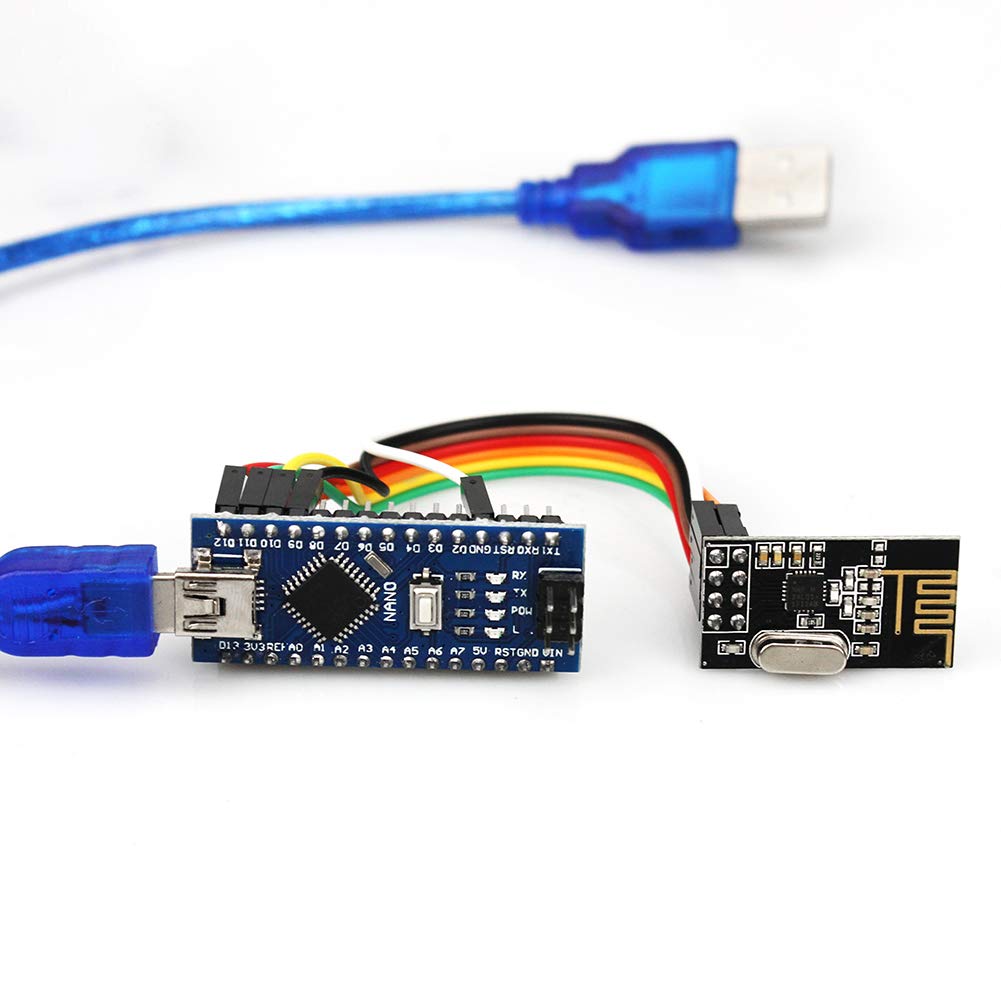

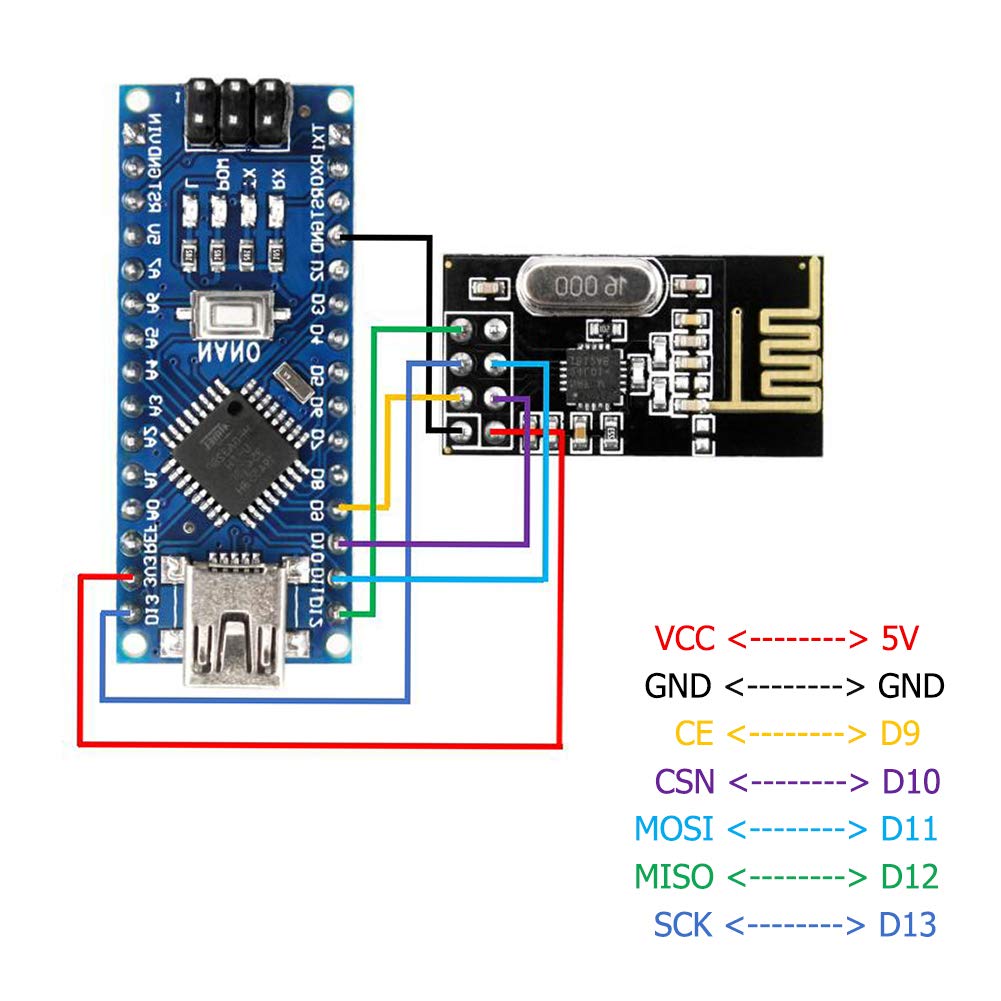

• 【Perfect Partner】The combination of Nano module and NRF24L01 wireless module can realize wireless communication between modules, and make wireless communication products such as wireless remote control. such as: wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation and so on.

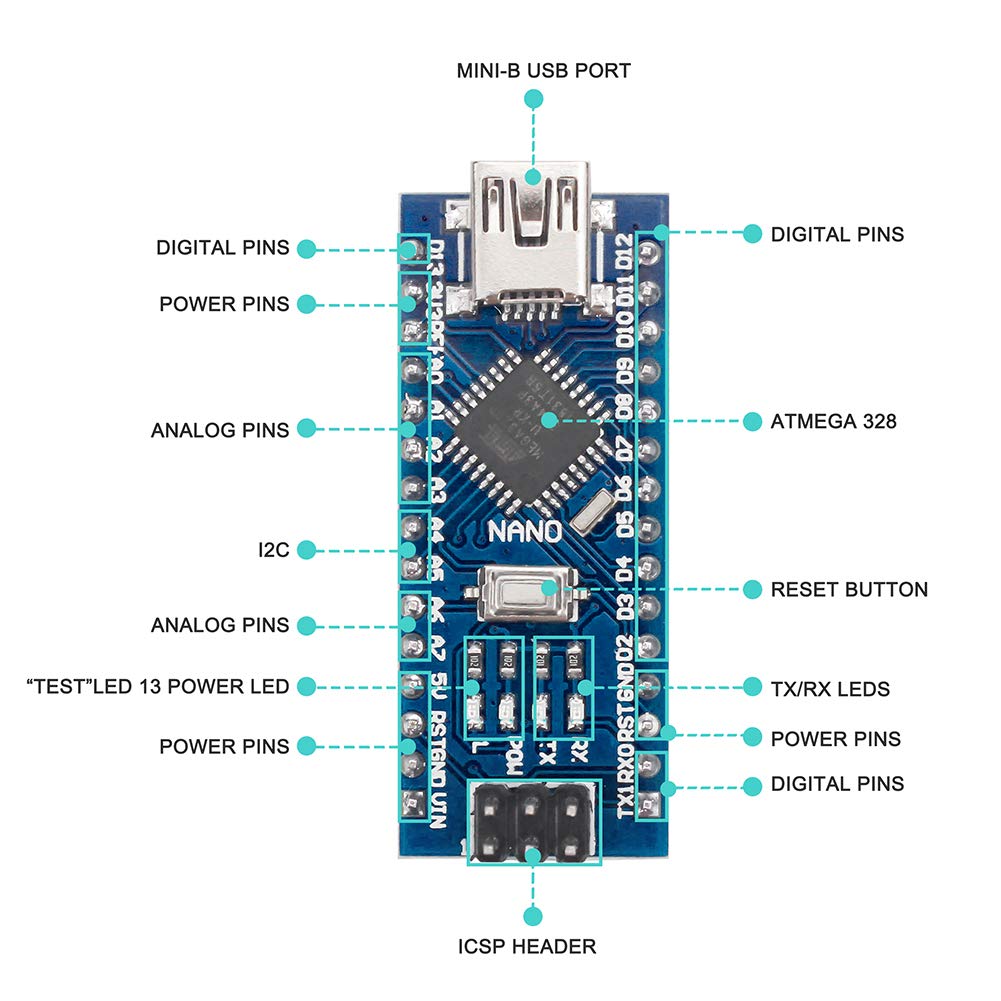

• 【Nano Board】Original ATmega328P CH340 chip is used. Improved new version CH340G Replace FT232RL. Nano card fully compatible with Windows, Mac and Linux operating system. Works the same as original Nano, runs perfectly on programming software. Support ISP download; Support USB download and Power.
• 【High rate】About 2Mbps. Because the air transmission time is very short, the collision phenomenon in wireless transmission is greatly reduced (software sets the air transmission rate of 1Mbps or 2Mbps)

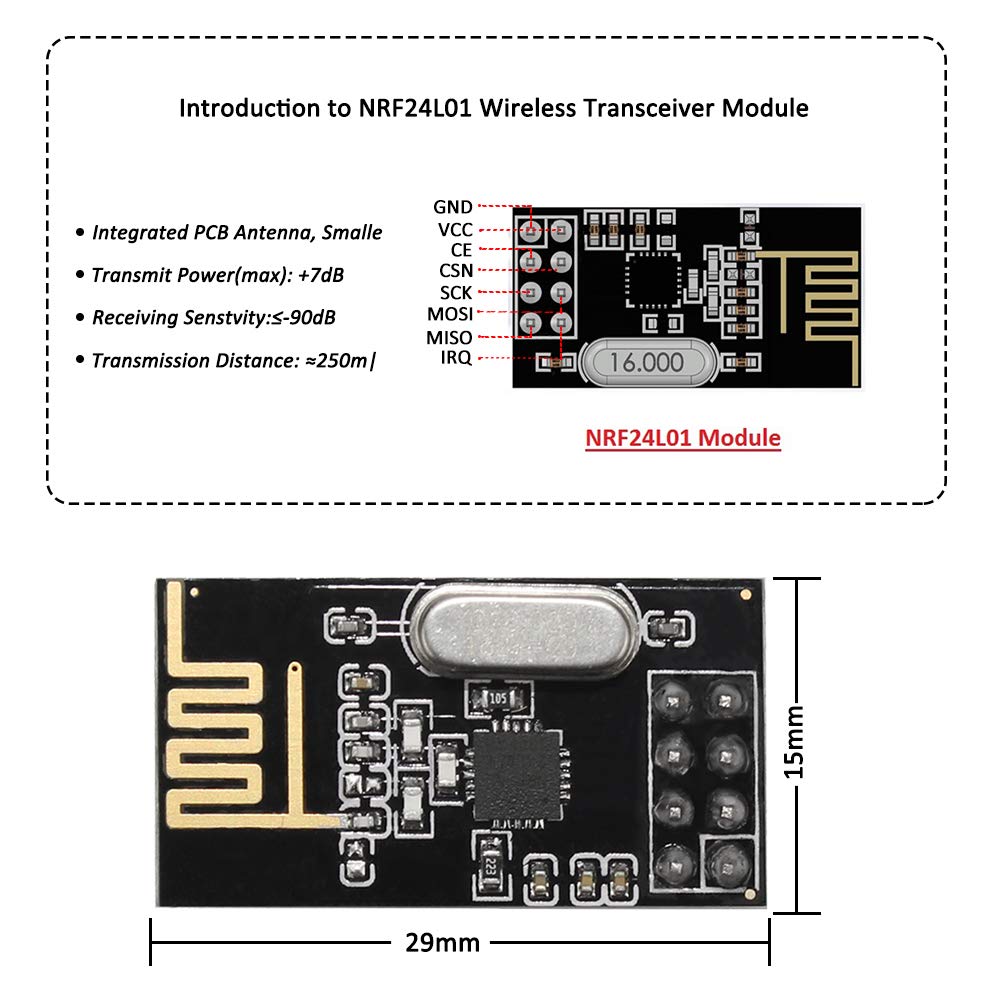

• 【Multi-frequency point】 125 frequency points, meeting the needs of multi-point communication and frequency hopping communication. About 15 * 29mm (including Built-in 2.4GHz antenna). This antenna is suitable for the worldwide 2.4-2.5 GHz ISM band. Compatible with Arduino and Raspberry Pi.

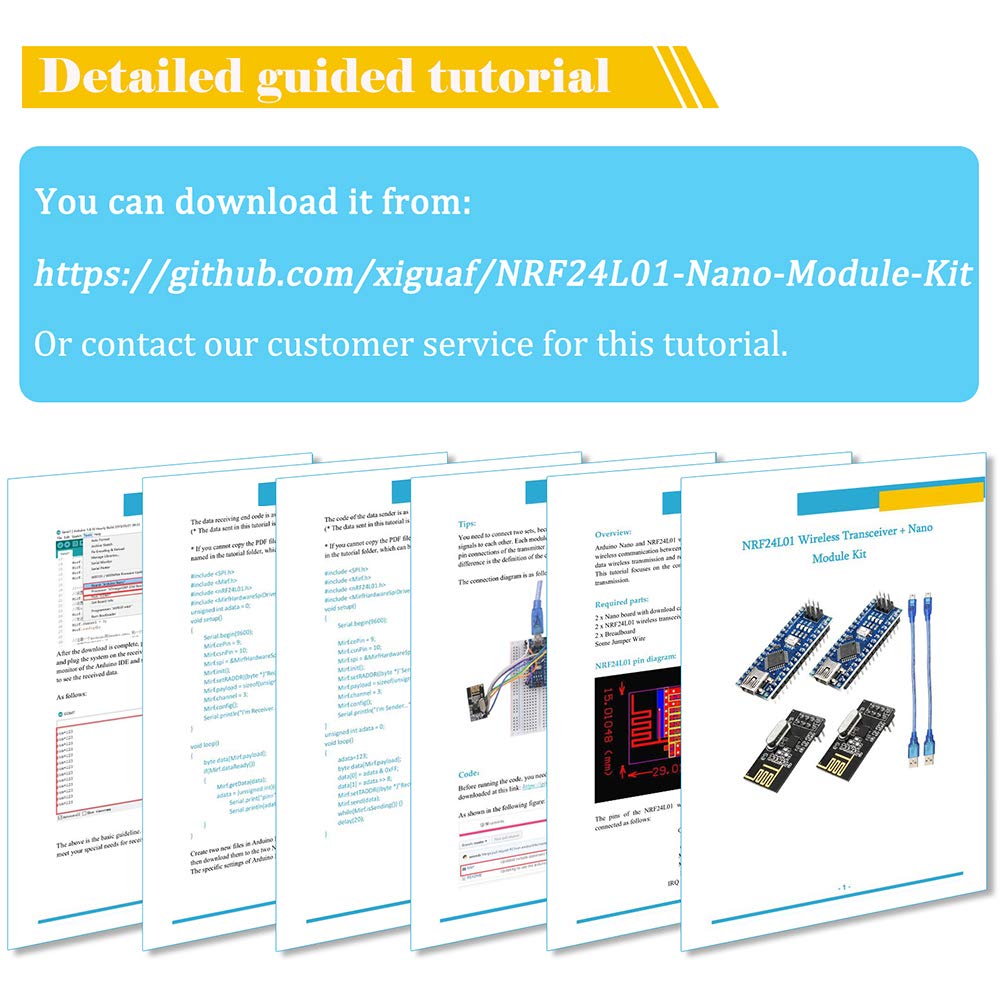

• 【Detailed Tutorials】You can download it from: https://github.com/xiguaf/NRF24L01-Nano-Module-Kit . Or please contact us via Amazon for this e-tutorial. Our technical service team is always ready to answer your questions. If you have any questions, please feel free to contact us.

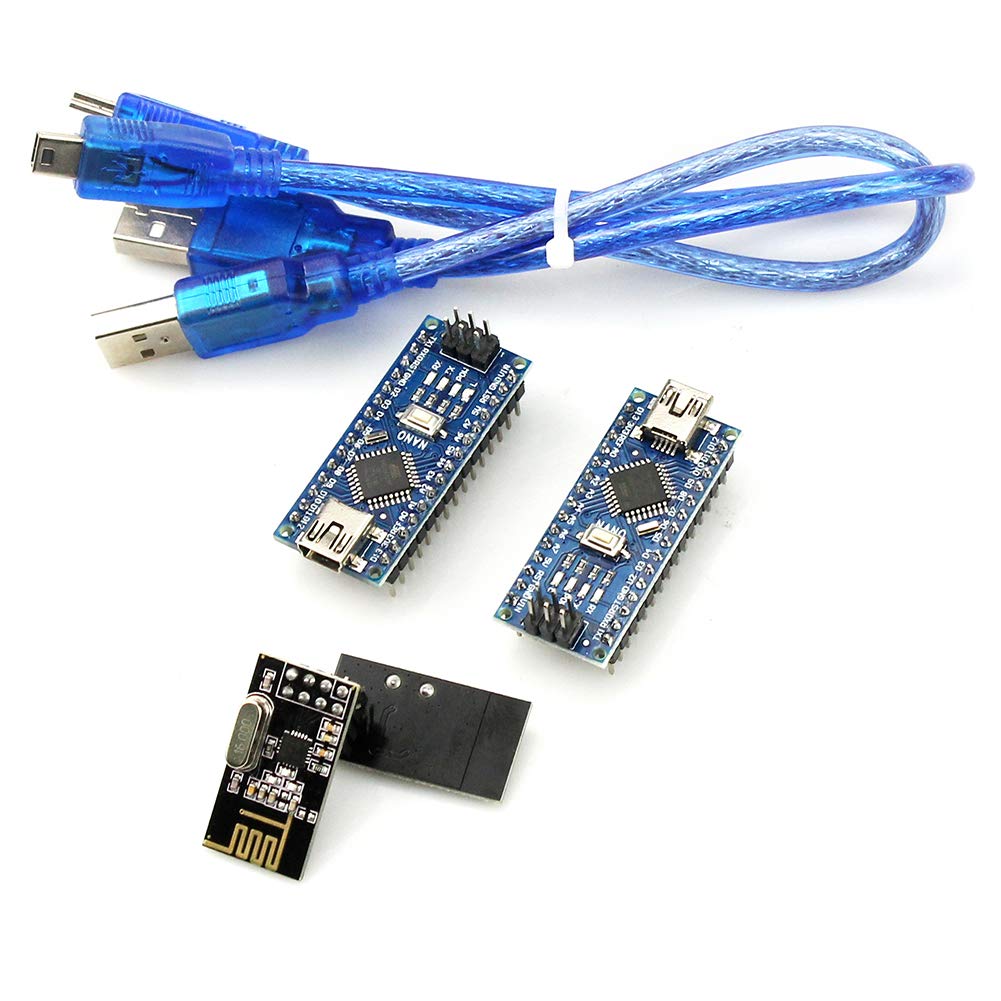

NRF24L01 Wireless Transceiver Module: Operating Voltage: 1.9 ~ 3.6V Maximum speeds: 2 Mbps 125 Communication channels Integrated 2.4 Ghz antenna. Integrated hardware CRC error detection Nano Module: Microcontroller: ATmega328P Operating Voltage: 5V Input Voltage (recommended): 7V-12V Input Voltage (limits): 6V-20V Digital I/O Pins 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader SRAM 2 KB EEPROM 1 KB Clock Speed 16 MHz USB Cable Length: 27cm Jumper Wires: Typ: Female to Female Length: 20cm Package Included: 2 x NRF24L01 Wireless Transceiver Modules 2 x Nano Module 1 x Female to Female Jumper Wires
