Seamuing LoRa GPS Module LoRaWAN 868 915mHz Development Board LoRa Kit Ultra Low Power Design SX1262 ASR6502 Chip with 0.96 inch OLED Display and Antenna for Arduino and Intelligent Scene

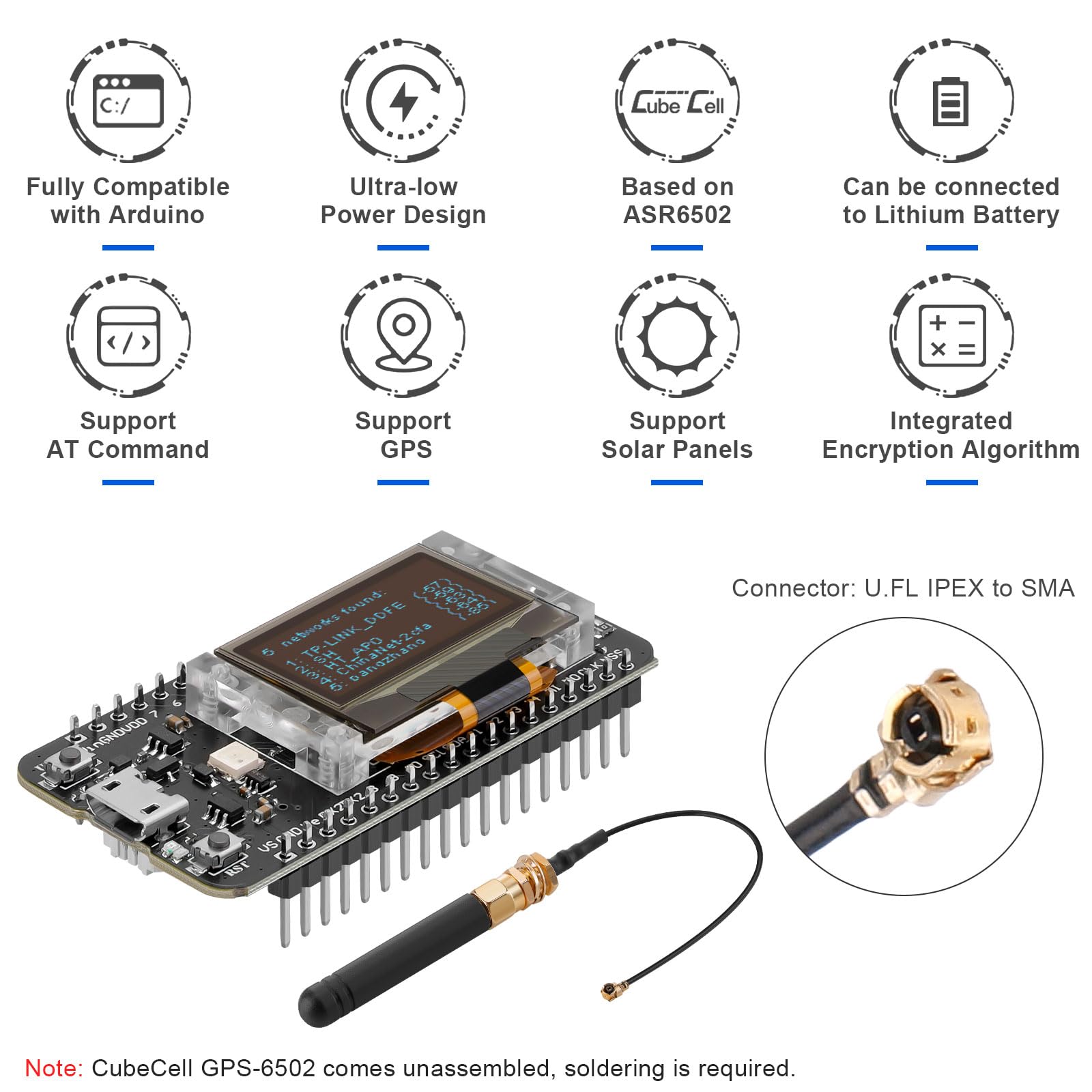

• Ultra Low Power Design and Application: 50uA in deep sleep; Compatible with Arduino, AT command and GPS, Integrated encryption algorithm.
• IoT Board: Based on ASR6052, those chips are already integrated the MCU and SX1262.
• User Manual: Pls download the User Manual from Product guides and documents

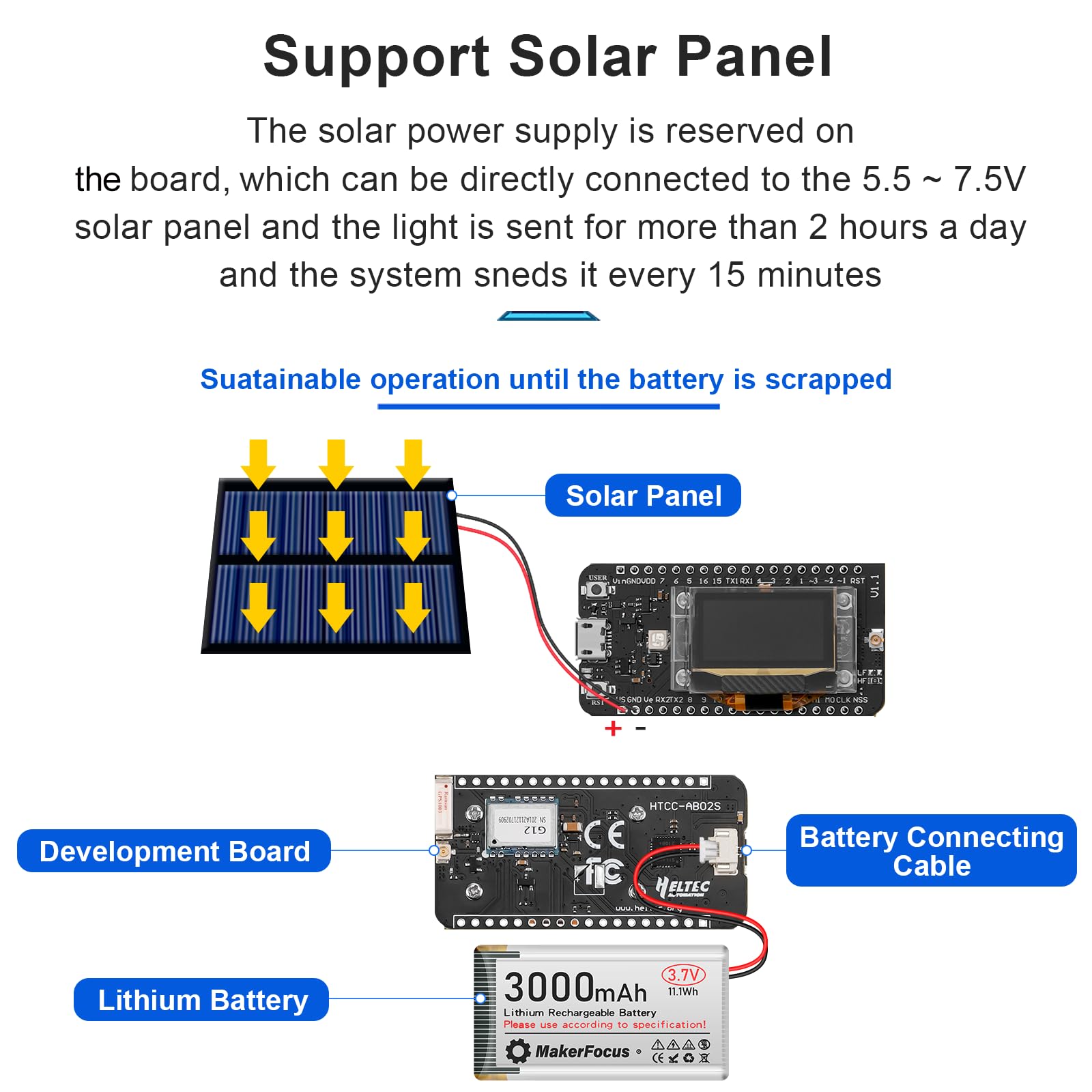

• Onboard Solar Energy management System and Lithium Battery Management System: It can directly connect with a 5.5~7V solar panel; Onboard SH1.25-2 battery interface, charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching.

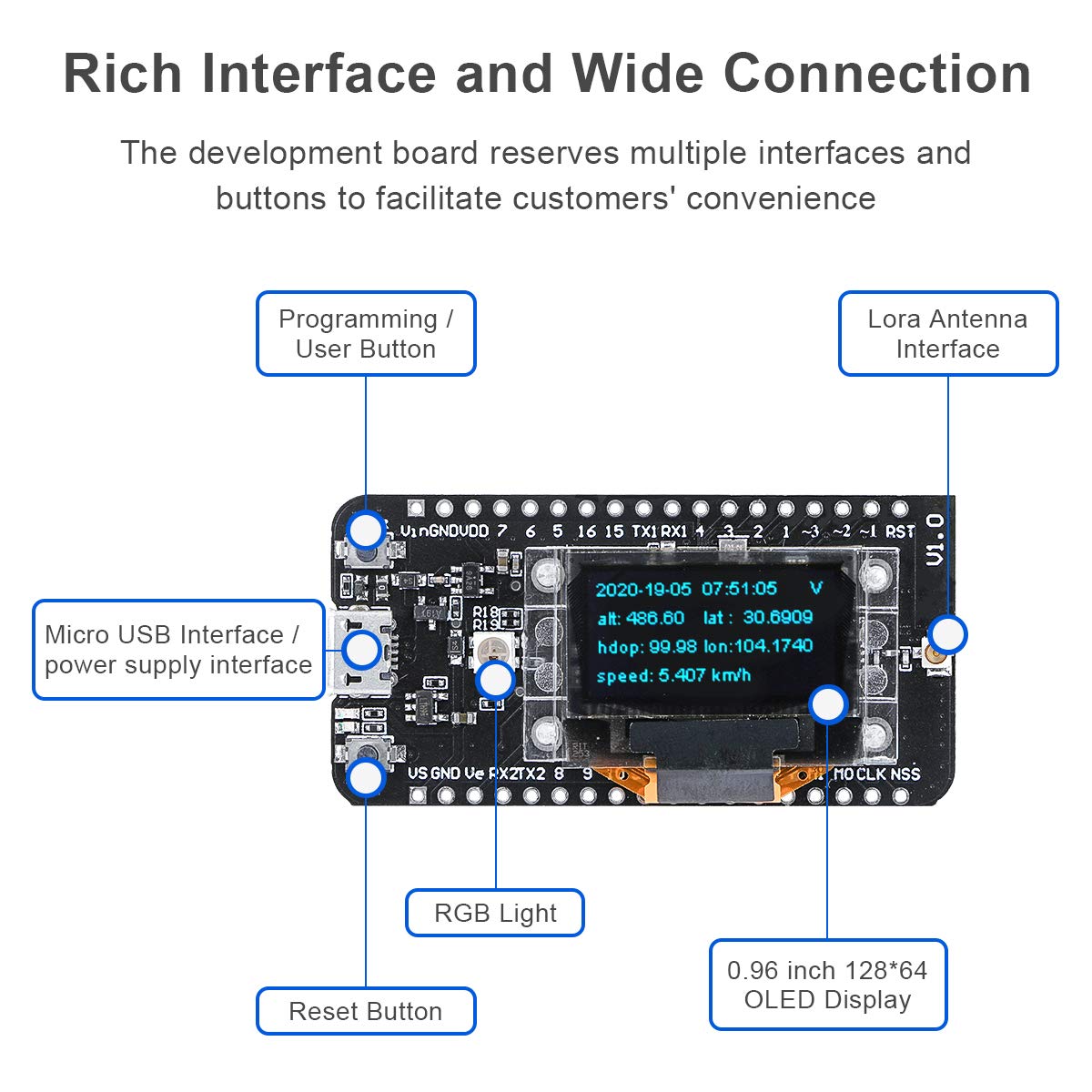

• OLED Display Screen: Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.

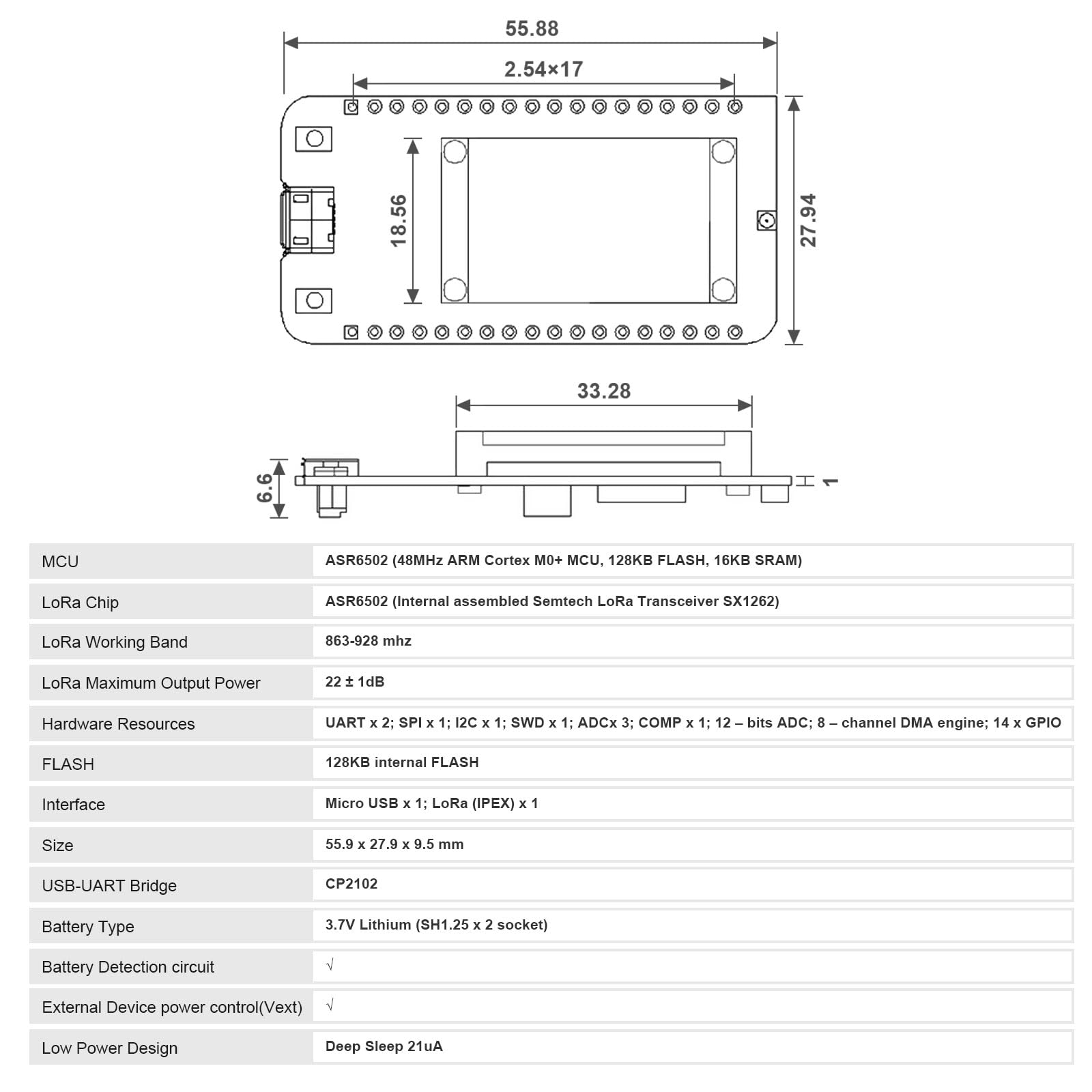

Description: HTCC-AB02S is a Dev Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions. Feature: 1. Compatible with Arduino 2. LoRaWAN 1.0.2 support; 3. On-board solar energy management system, can directly connect with a 5.5~7 V solar panel; 4. On-board SH 1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); 5. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; 6. Integrated CP 2102 USB to serial port chip, convenient for program downloading, debugging information printing; 7. Good impedance matching and long communication distance; Use Air530 GPS module, GPS / Beidou Dual-mode position system support; 8. On-board 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information. Parameter: MCU: ASR6502 (128KB FLASH, 16KB SRAM ) LoRa Chip: ASR6502 (Transceiver SX1262) LoRa working band: 868-915 LoRa maximum output power: 22 ± 1dB Hardware resources: UART x 2; SPI x 1; I2C x 1; SWD x 1; ADC x 3; COMP x 1; 12 - bits ADC; 8 - channel DMA engine; 14 x GPIO FLASH: 128KB internal FLASH Interface: Micro USB x 1; LoRa (IPEX) x 1 Size: 55.9 x 27.9 x 9.5 mm USB-UART Bridge: CP 2102 Battery Type: 3.7 V Lithium (SH1.25 x 2 socket) Package Including 1 * LoRa GPS LoRaWAN Development Board (868-915mHz) 1 * IPEX Antenna (Connector: UFL IPEX to SMA)
