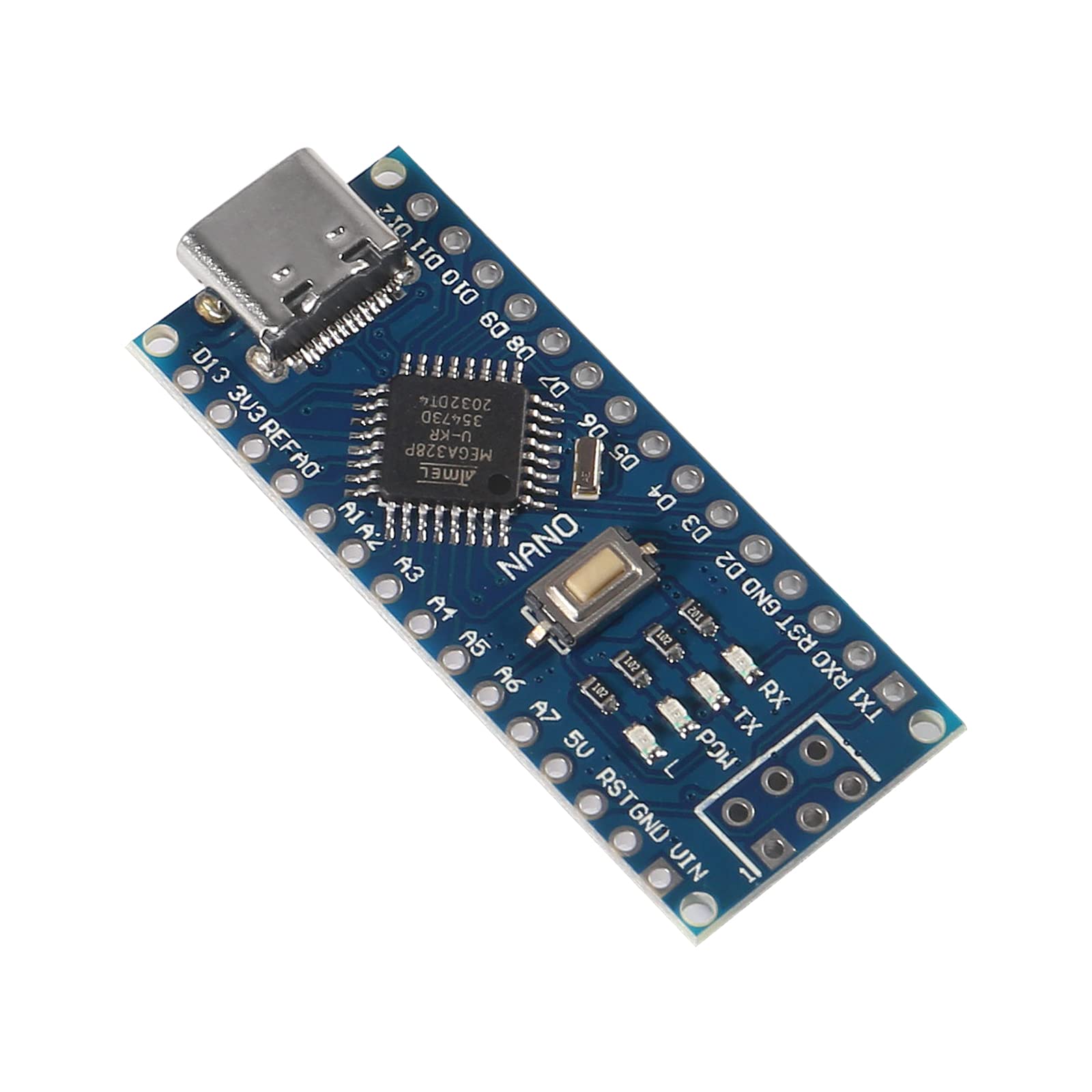

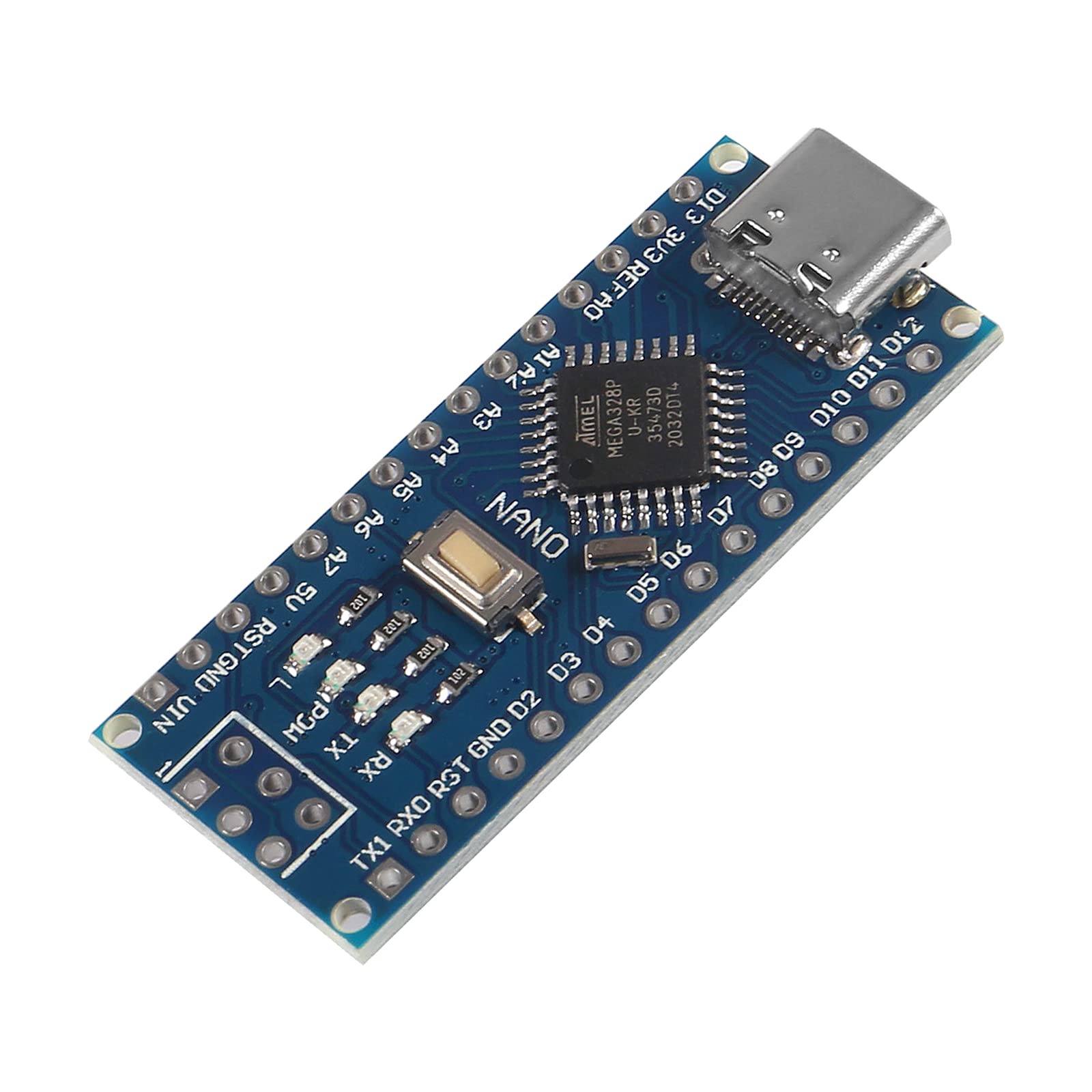

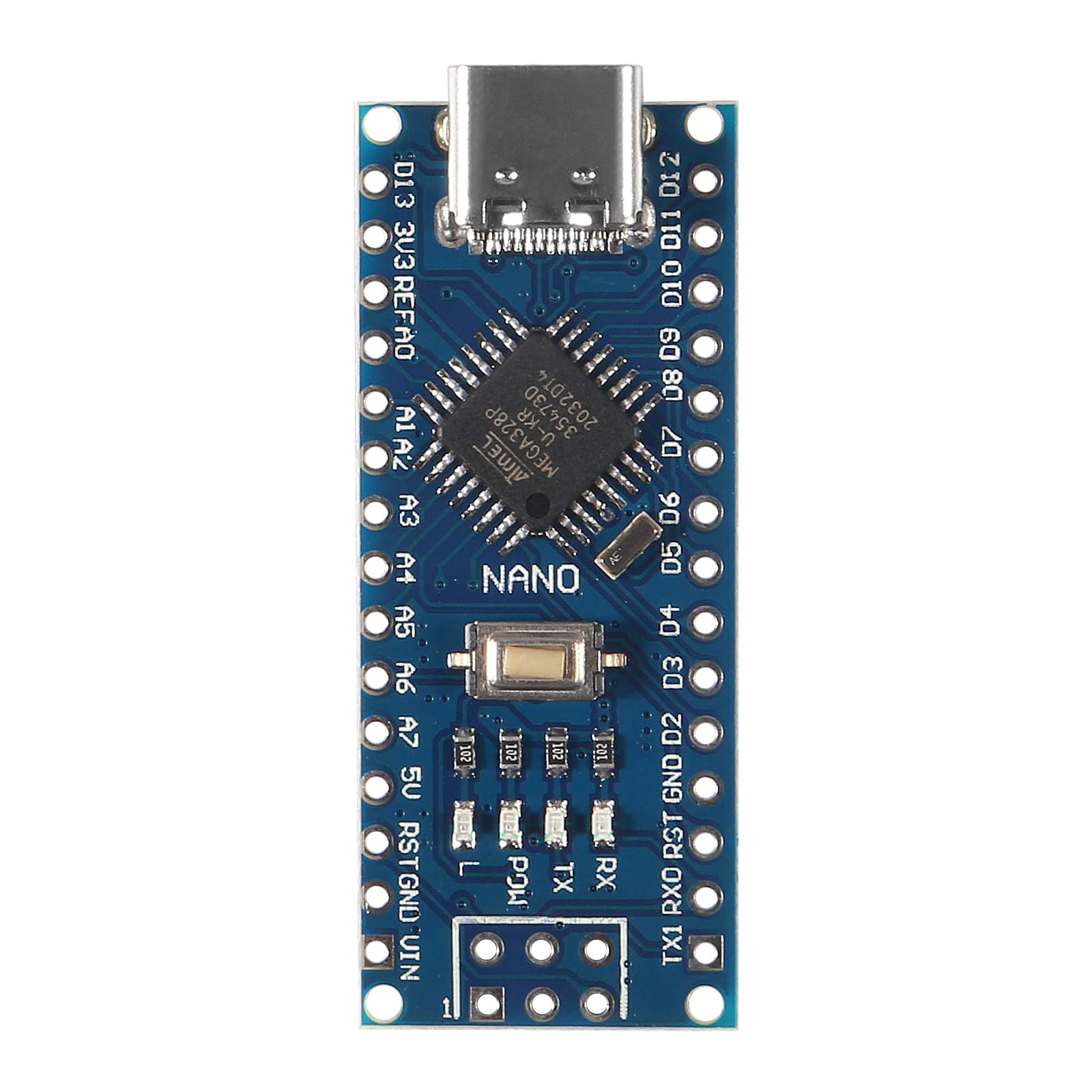

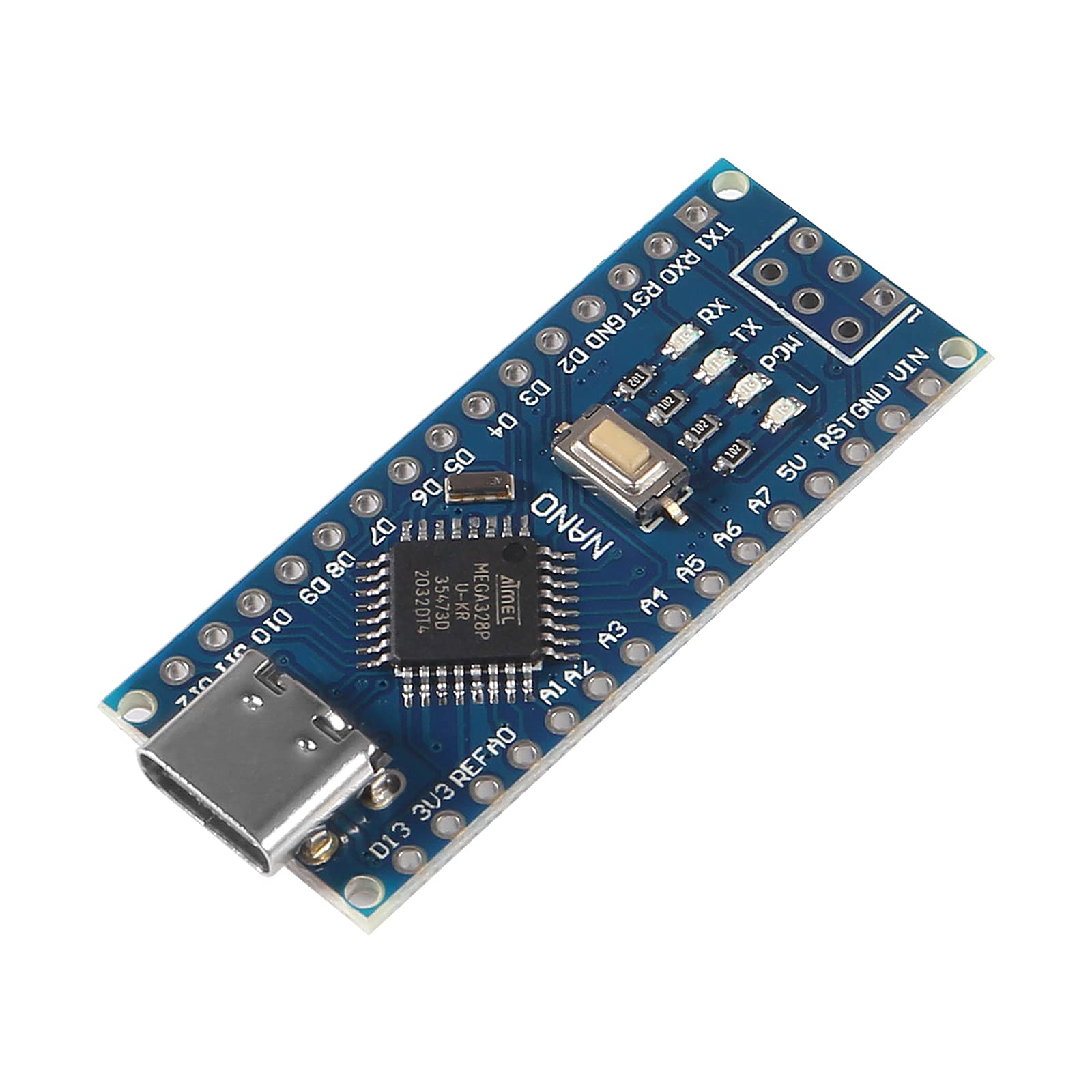

2PCS for Nano Board ATmega328P CH340 5V 16M Microcontroller Board, for Arduino Electronics Development Board Nano 328P Nano 3.0，Type-C Connection Compatible with Arduino for Nano

• The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
• Support for external 5V~12V DC power supply, Support power supply by 9V battery. has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a USB C power socket, an ICSP port and a reset button.

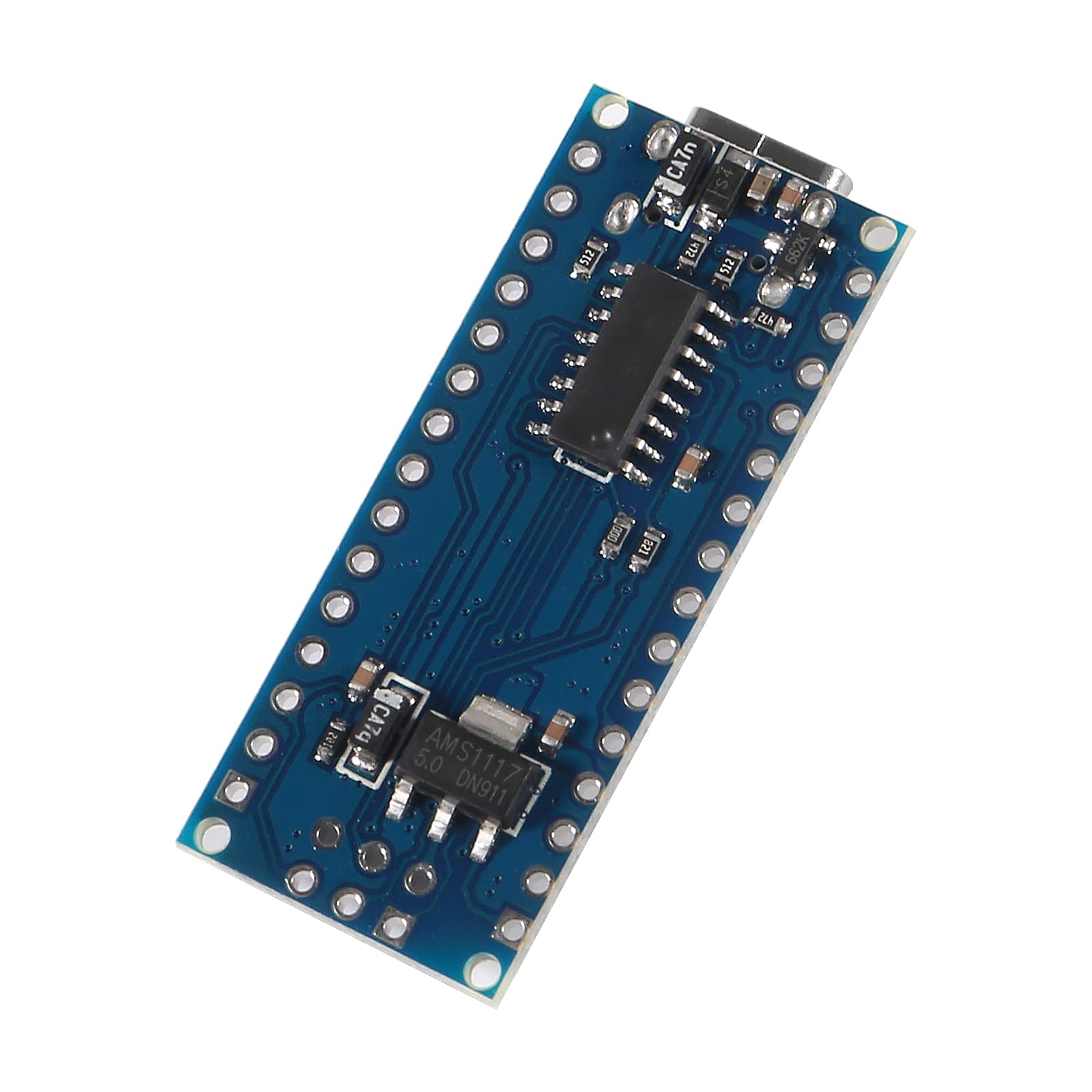

• Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).
• The Nano board has numerous possibilities for communication with a PC or other microcontrollers and is fully compatible with the operating systems Windows, Mac and Linux. This board is particularly breadboard friendly and the connections are very easy to handle
• 2PCS Nano V3 Module with Mega328 CH340 Chip 5V 16M Compatible with Arduino (Type C Port)

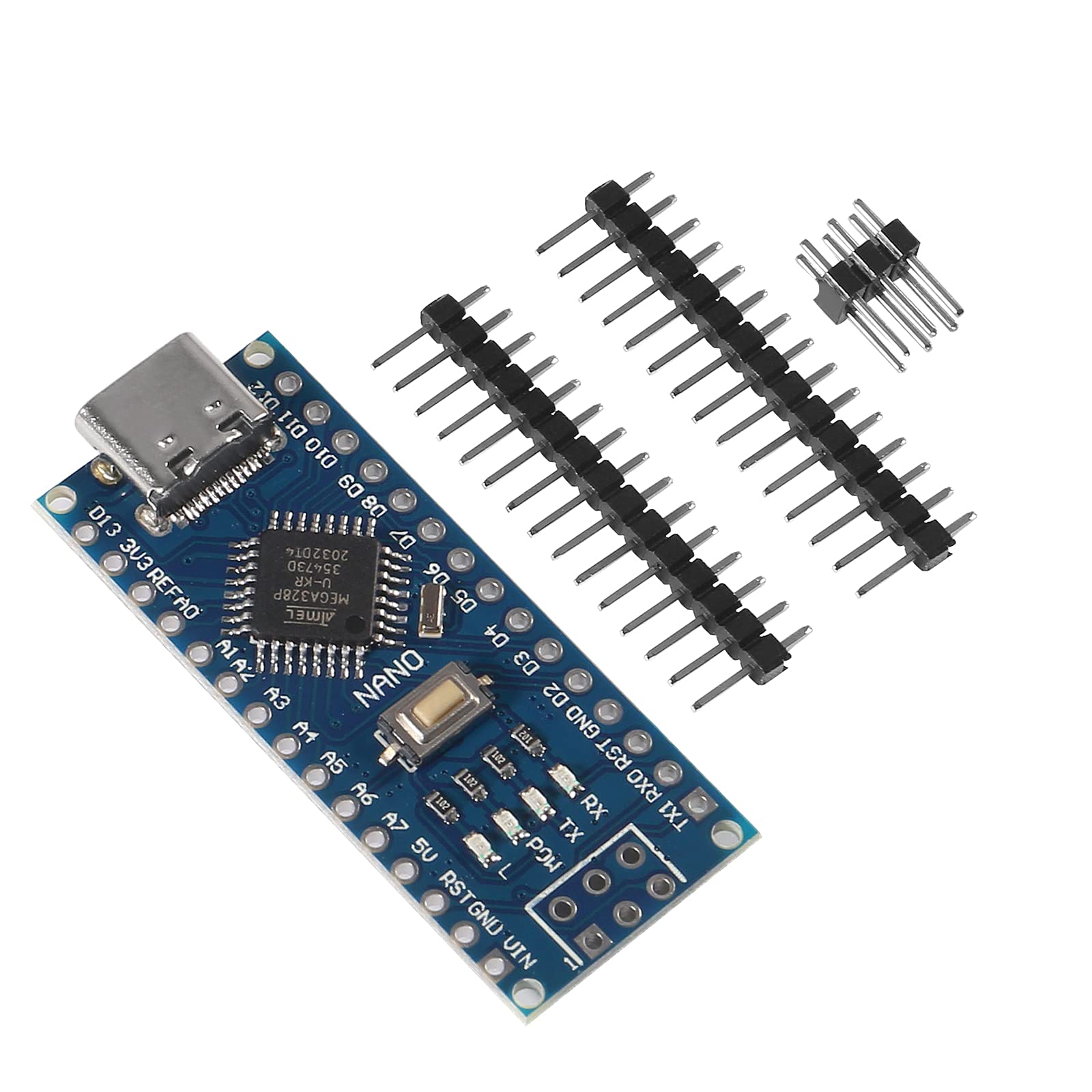

Features: Replace FT232RL Operating Voltage(logic level):5V 8 analog input ports: A0 ~ A7 14 Digital input/output ports: TX, RX, D2 ~ D13 6 PWM ports:D3, D5, D6, D9, D10, D11 1 pair of TTL level serial transceiver ports RX / TX Using Atmel mega328P-AU MCU Support USB download and Power; external 5V ~ 12V DC power supply;power supply by 9V battery; Support ISP download Package included: 2 X Nano Module
