【2020 VERSION】LINOVISION POE IP Extender over Coax Max 3000ft Power and Data Transmission Over RG59 Coaxial Cable for Upgrading Analog Surveillance System to IP Surveillance System(EOC Converter)

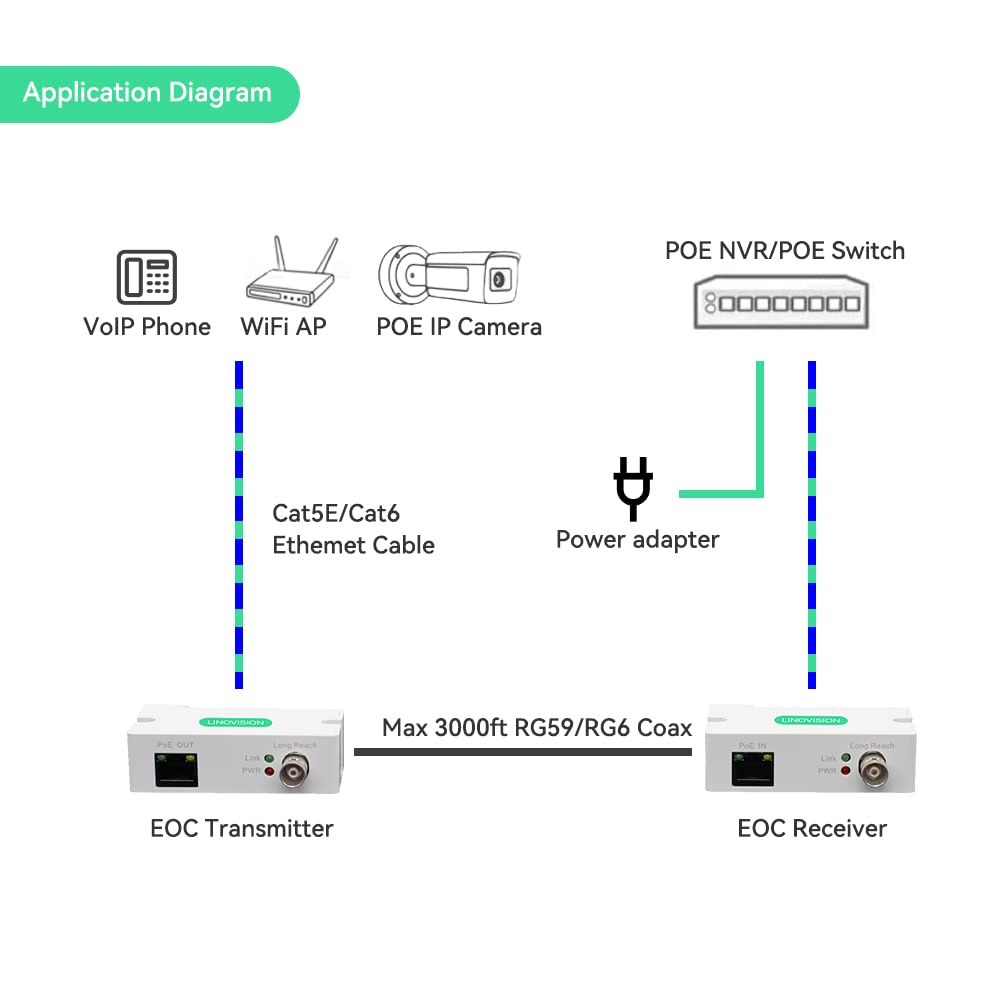

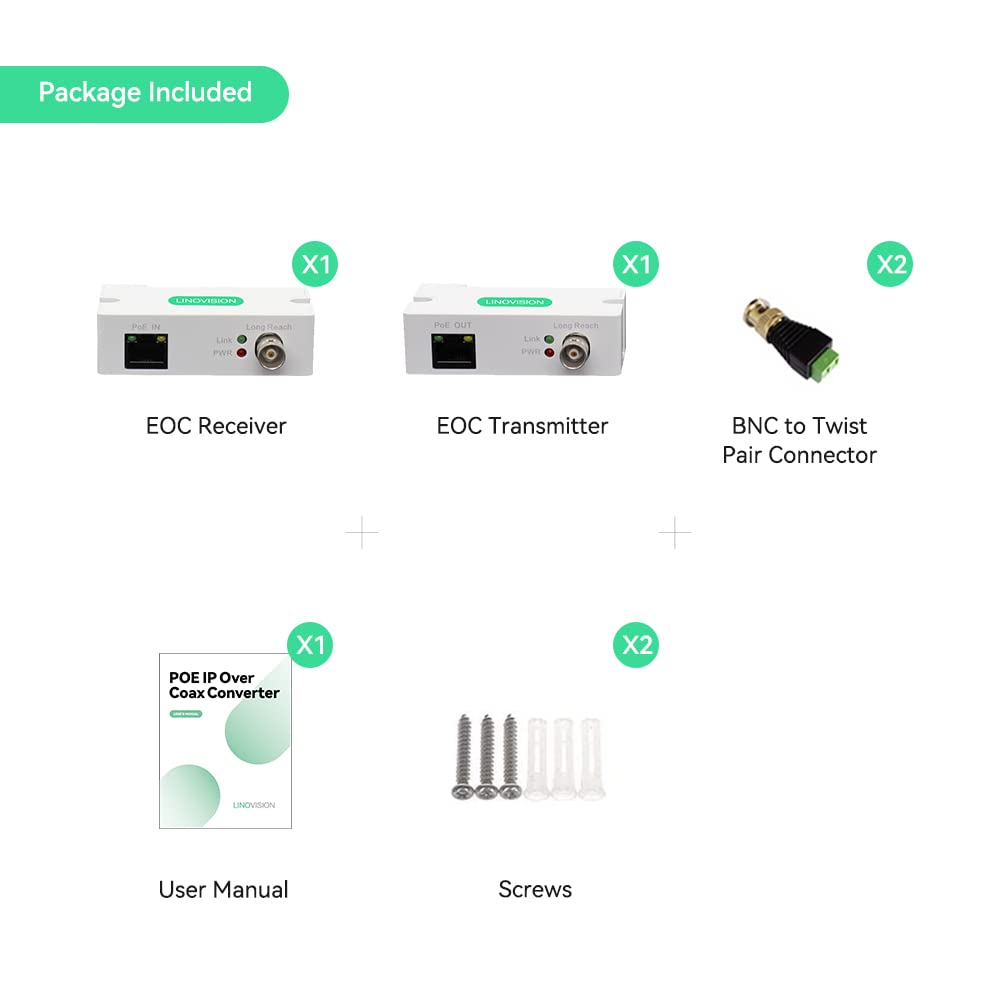

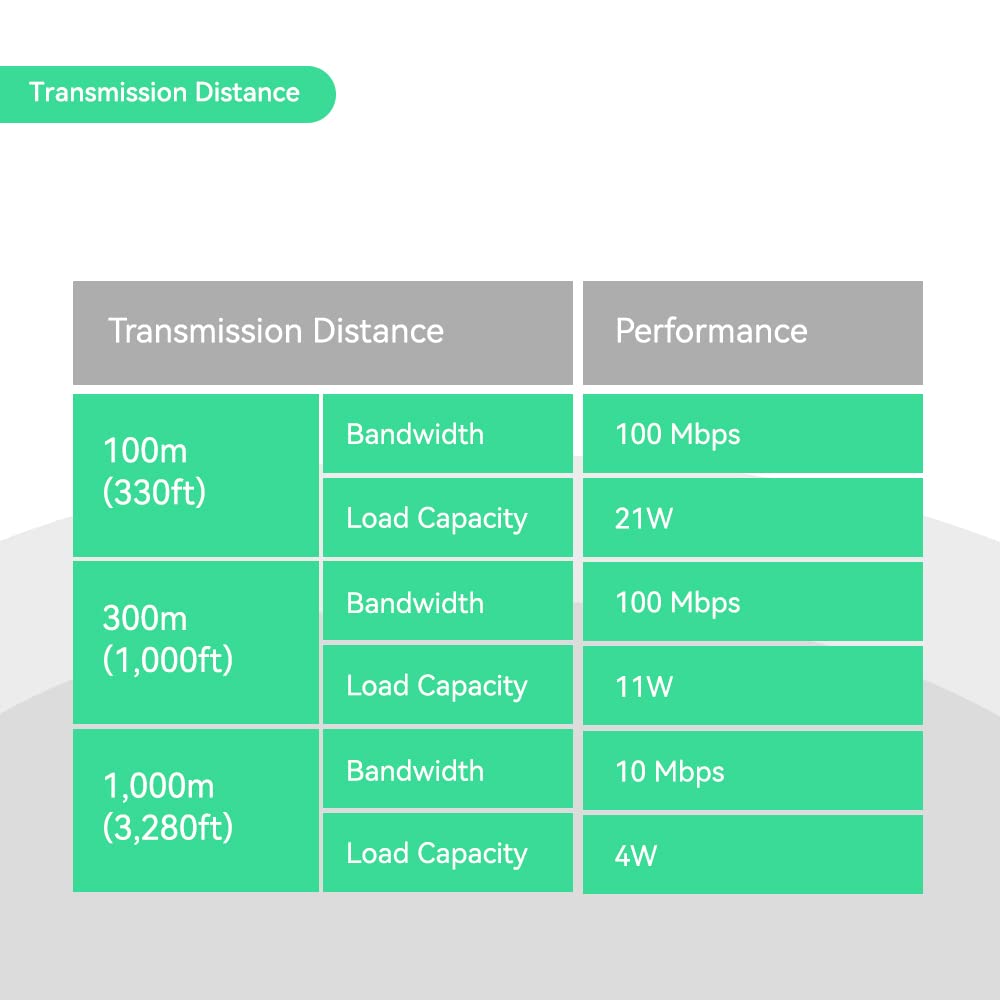

EOC (Ethernet Over Coax, also known as IP over Coax) Converter is used to transmit Video & Audio & Data over existing coaxial cables. Features with POE & IP data transmission, LINOVISION EOC converter is designed to upgrade traditional analogue video surveillance system to IP surveillance system without replacing coaxial cables. It is working with POE IP cameras, POE Wi-Fi AP, VoIP phones, etc. <br><br> <b>Application</b><br><br> Ideal for Security Video Systems, Video Switching system, Home Automation, Multi-media , Education systems, Access Control system, Information Diffusion system, etc;<br> Compatible to IEEE802.3af / IEEE802.3at POE protocol, max 21W POE load capacity in 100m (330ft), or 11W POE load capacity in 300m (1000ft)<br><br> <b>Noted:</b><br> <br> ● EOC transmitter has to be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE injectors. The reverse connection will not work.<br><br> ● It is used for point-to-point coax cable direct connection only, no BNC repeater/T-connect/splitter in the middle.<br><br> <b>Package Included</b><br><br> ● 1 * Pair EOC Converter  (Transmitter and Receiver Included) <br><br> ● 1 * User Manual<br> <br><b>Warranty & Technical Support</b><br><br> ● 24/7 Global technical support<br><br> ● Free return in 30 days
