BNC Connector, 8CH HD Passive Video Balun Transceiver BNC Male To UTP Cable Transceiver Adapter CCTV Passive Video Balun for Camera System Converter Transmission

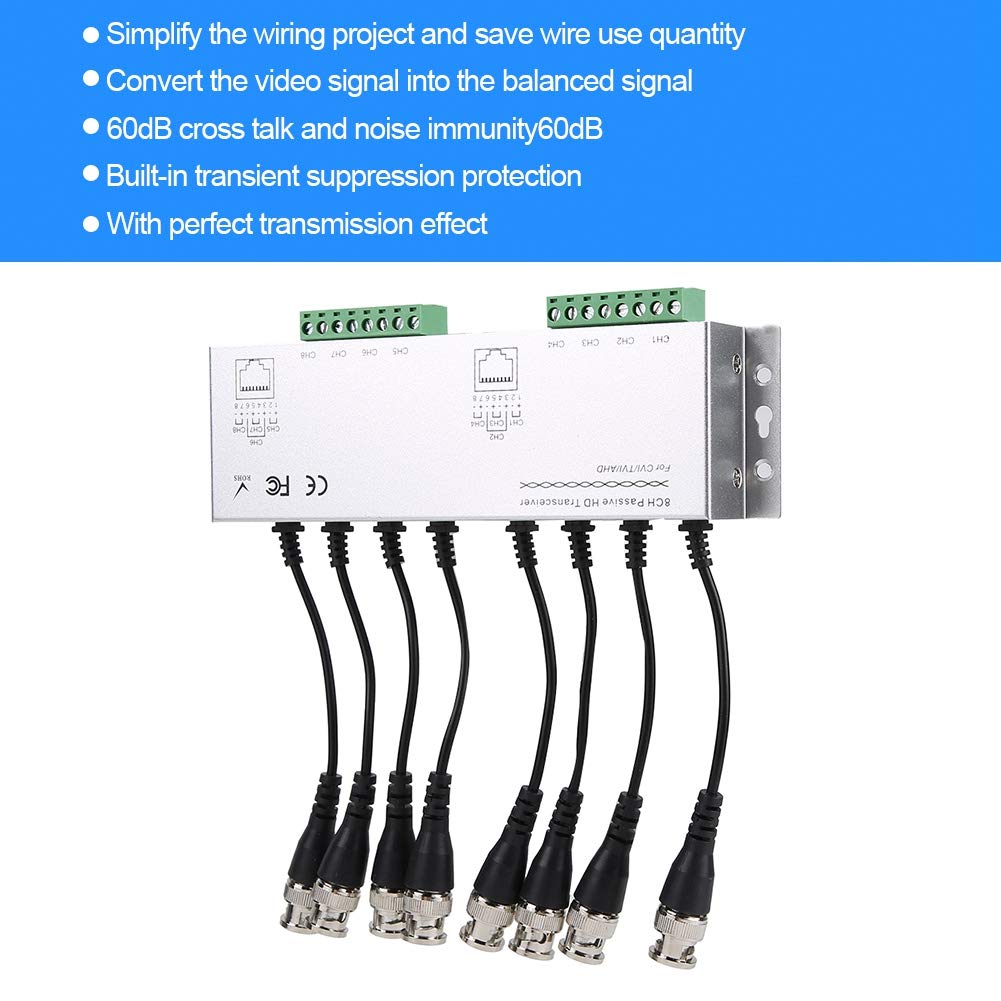

• 【Wire saving】BNC connector can simplify the wiring project and save the amount of wire used.
• 【Usage】Video balun has perfect transmission effect and can be used in video surveillance, video conference, etc.
• 【Transmission】Passive video balun can transmit four video images simultaneously on 8-core Cat-5 twisted pair cable.

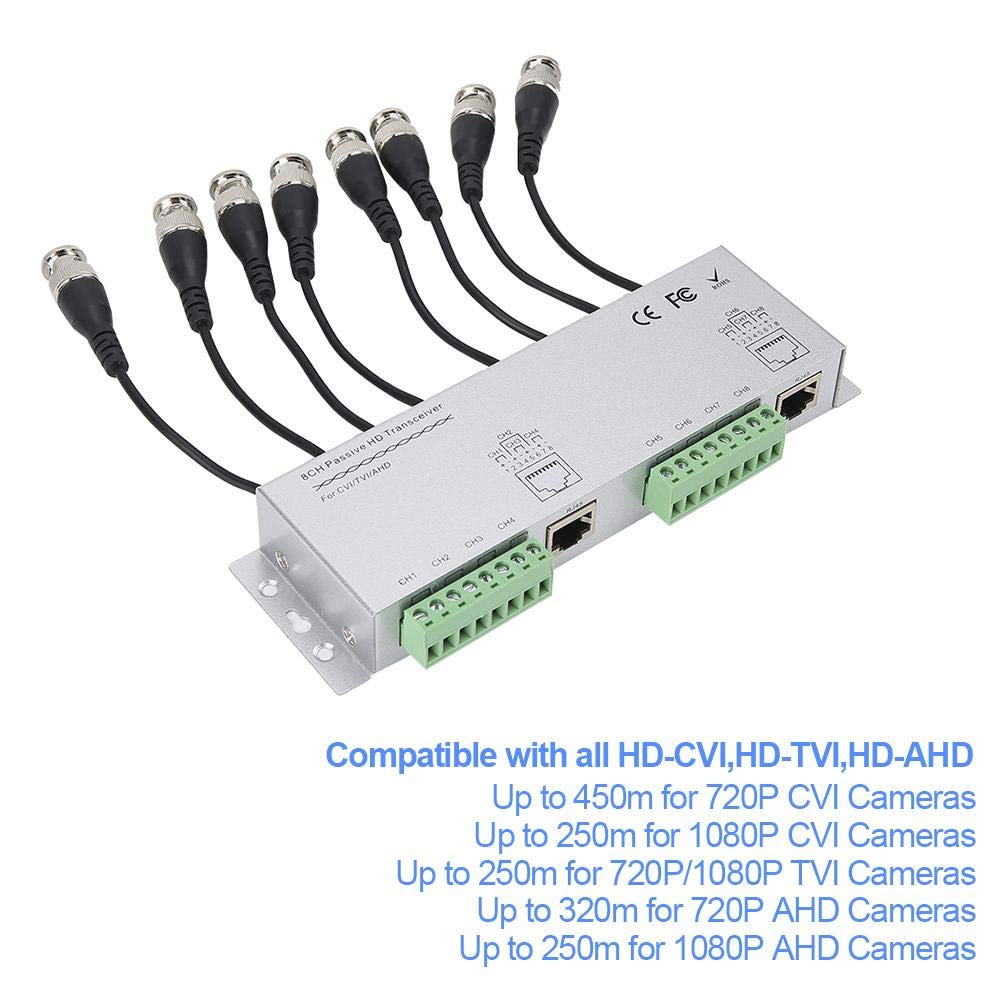

• 【Compatible】CCTV video balun cable converter is compatible with all HD-CVI,HD-TVI,HD-AHD. 1080P AHD cameras can be transmitted up to 250m.
• 【Signal Conversion】HD video balun converts video signal to balanced signal for common Cat-5 unshielded twisted pair transmission.

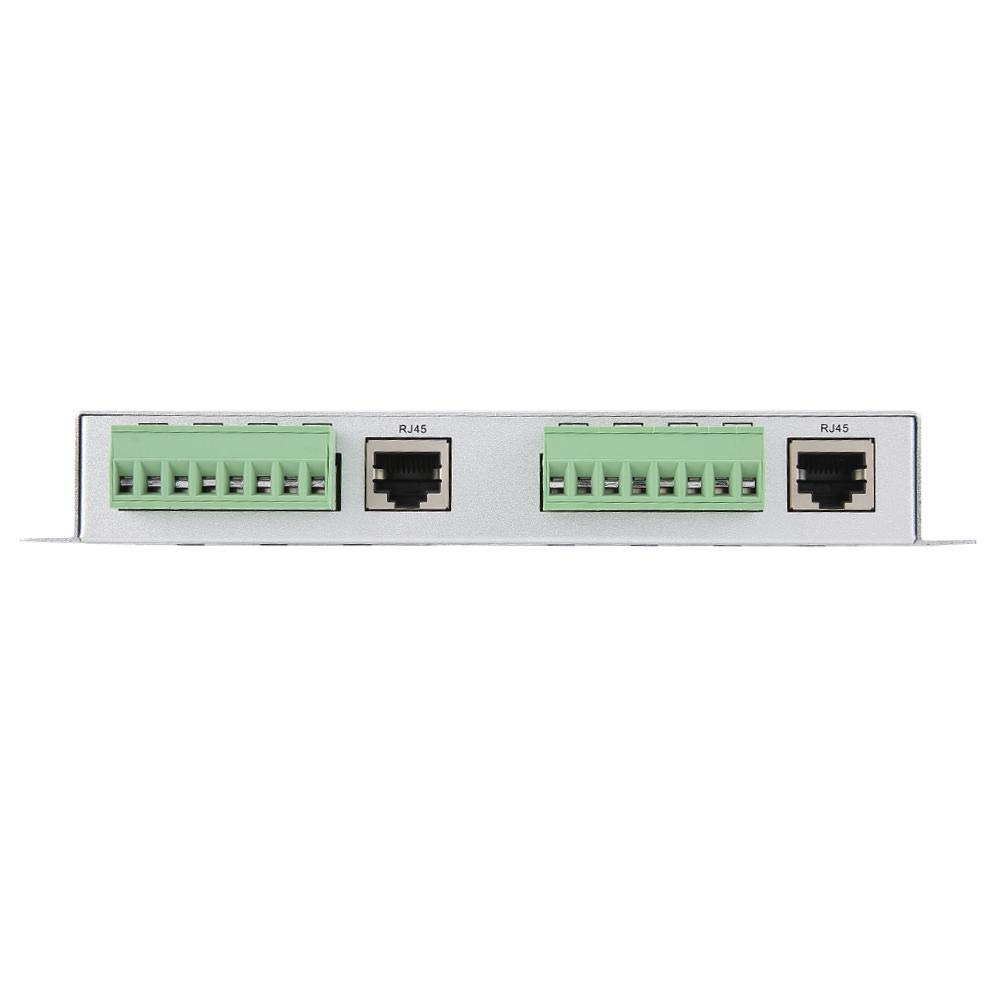

Features: HD video balun converts video signals into balanced signals for normal Cat-5 unshielded twisted pair transmission. With perfect transmission effect, it can be applied to video surveillance, video conferencing, etc. Can transmit four channels of video image simultaneous on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity. Compatible with all HD-CVI,HD-TVI,HD-AHD. Up to 250m for 1080P AHD Cameras. Specification: Condition: Brand New Item Type: Video Balun Color: Shown as Picture Material: Metal Compatible: HD-CVI,HD-TVI,HD-AHD Video Formats: NTSC,PAL, SECAM Frequency Response: DC to 60Mhz Attenuation: 0.5dB Type CMRR: 60dB Surge Protection: 4KV ESD: 8KV Impedance: BNC: 75ohms, RJ45: 100ohms Working Temperature: -10℃ -70℃ Storage Temperature: -30℃ -70℃ Humidity: 0-95% Connection Method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC. Package List: 1 x 8ch Passive Video Balun 1 x Manual
