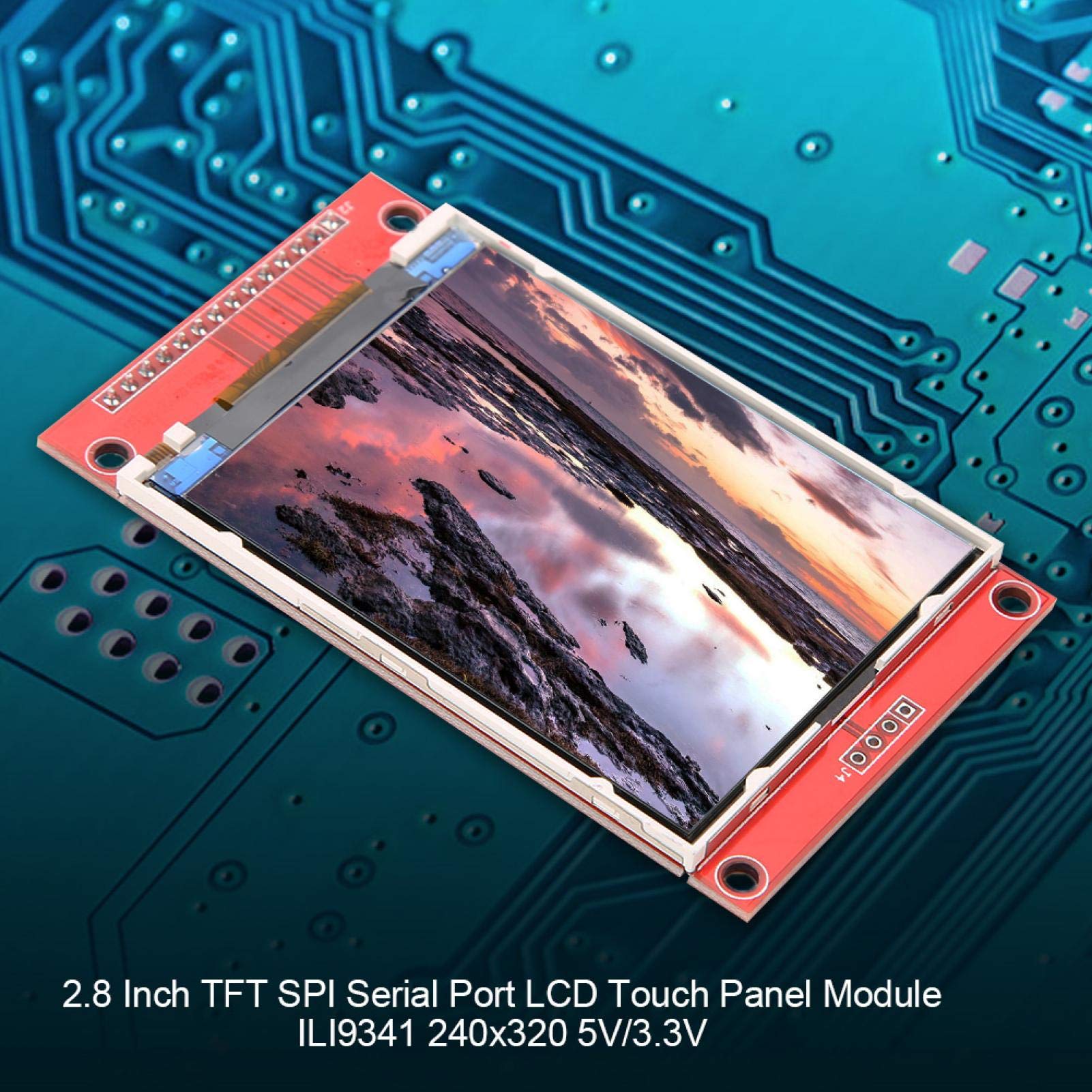

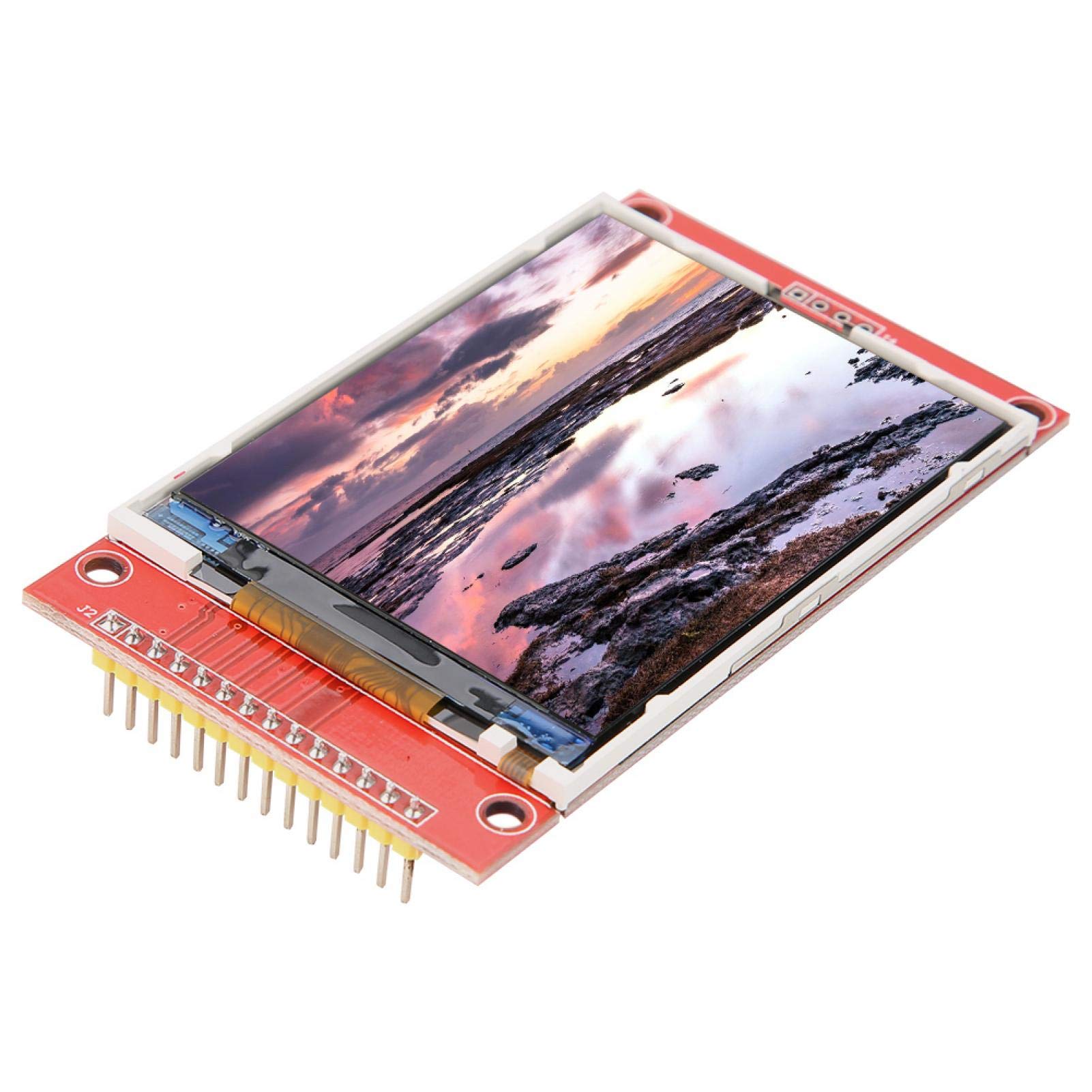

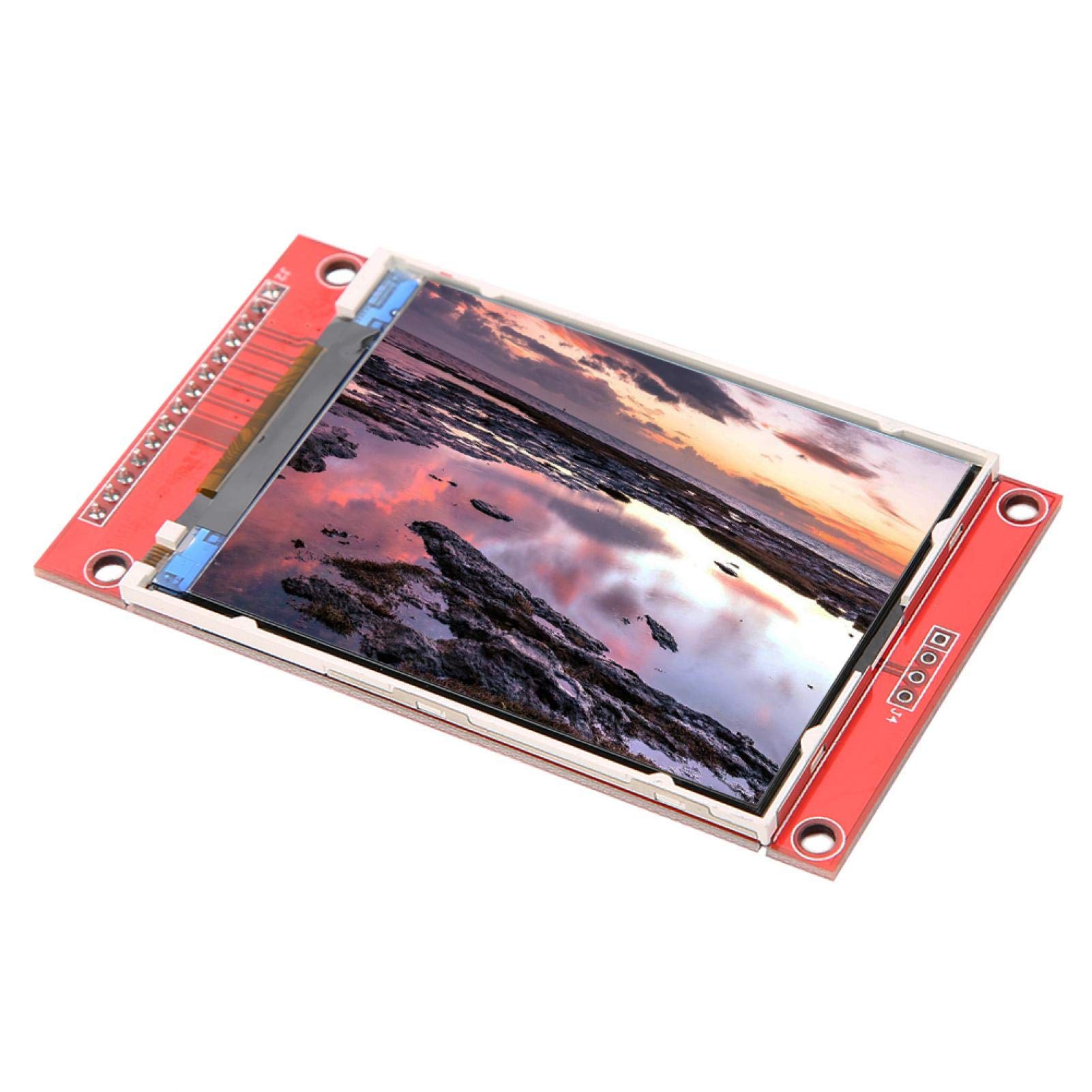

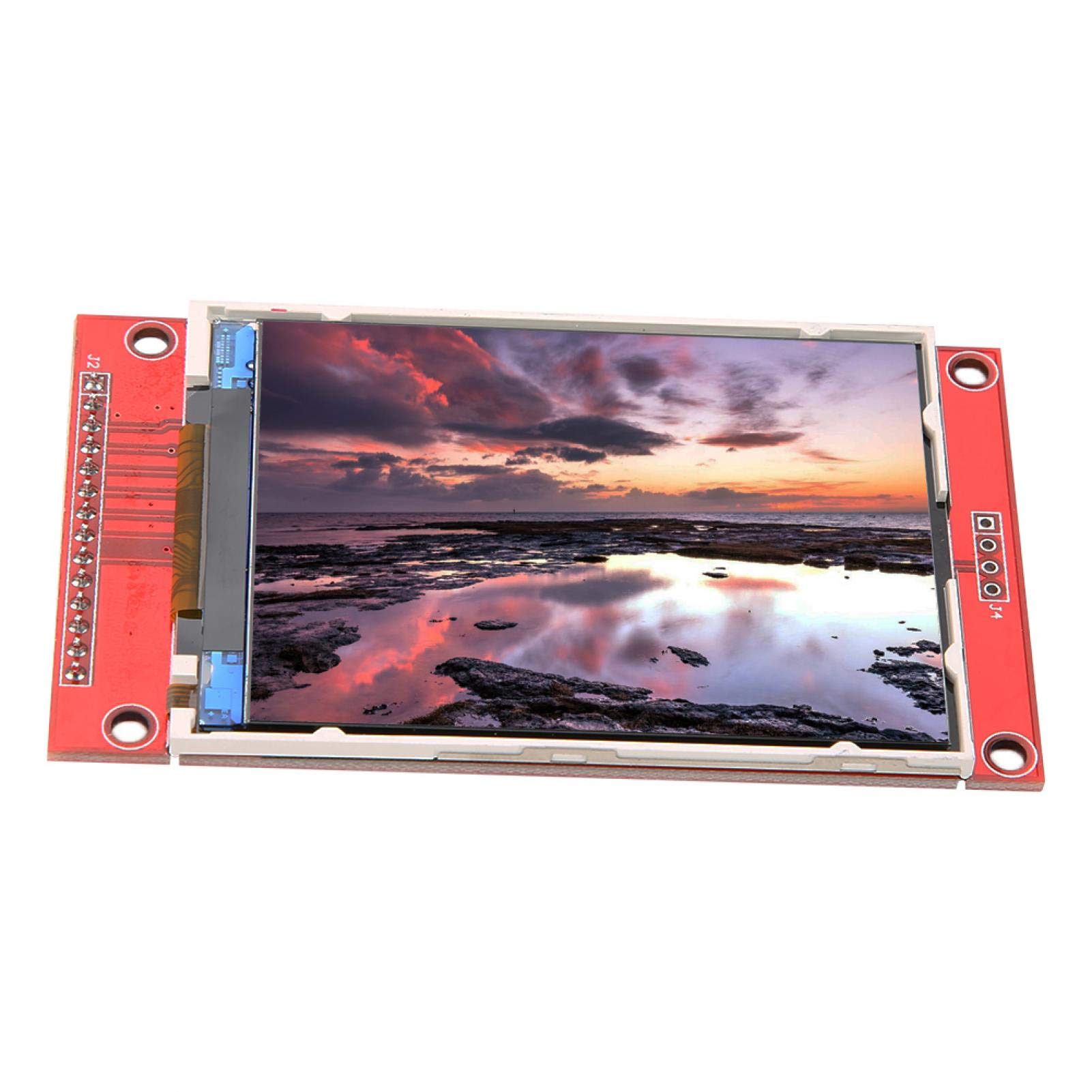

2.8 Inch ILI9341 240x320 5V/3.3V TFT SPI LCD Display Module Serial Port LCD Touch Panel Module Color Screen, Support 65K Color Display(with touch)

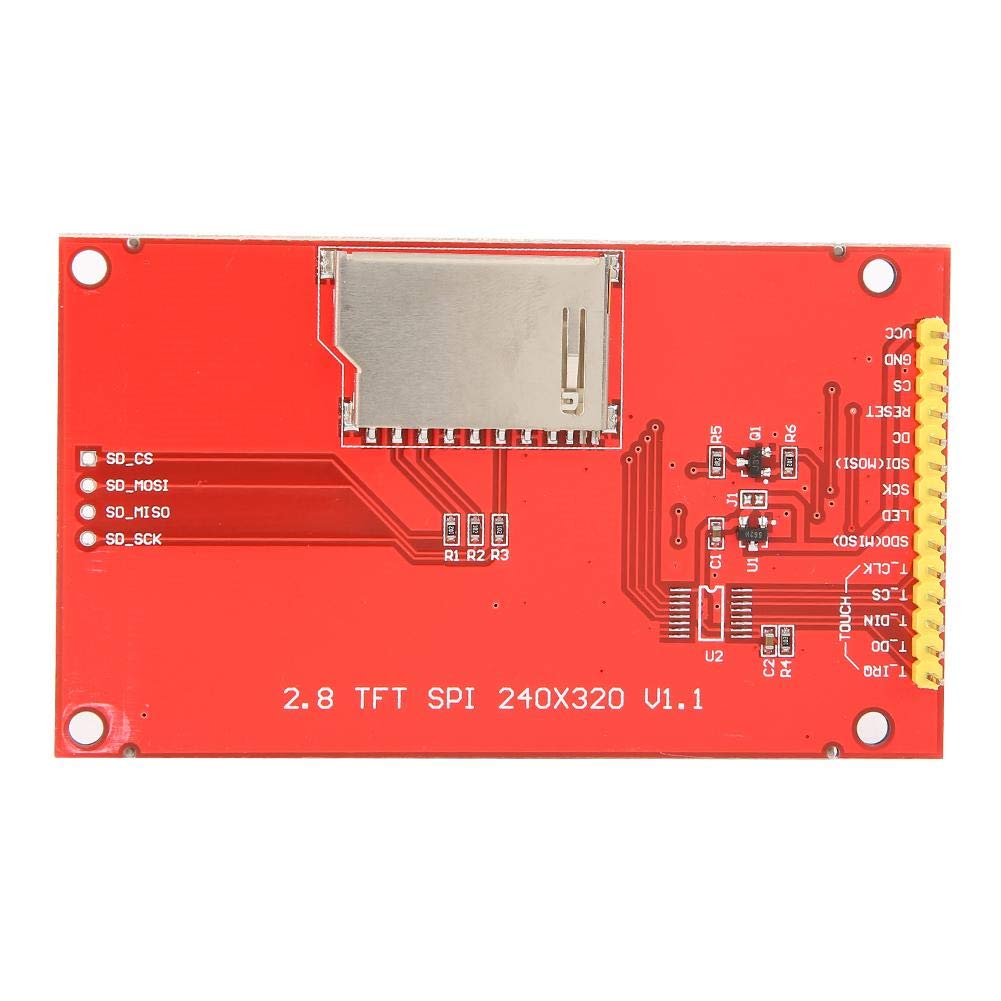

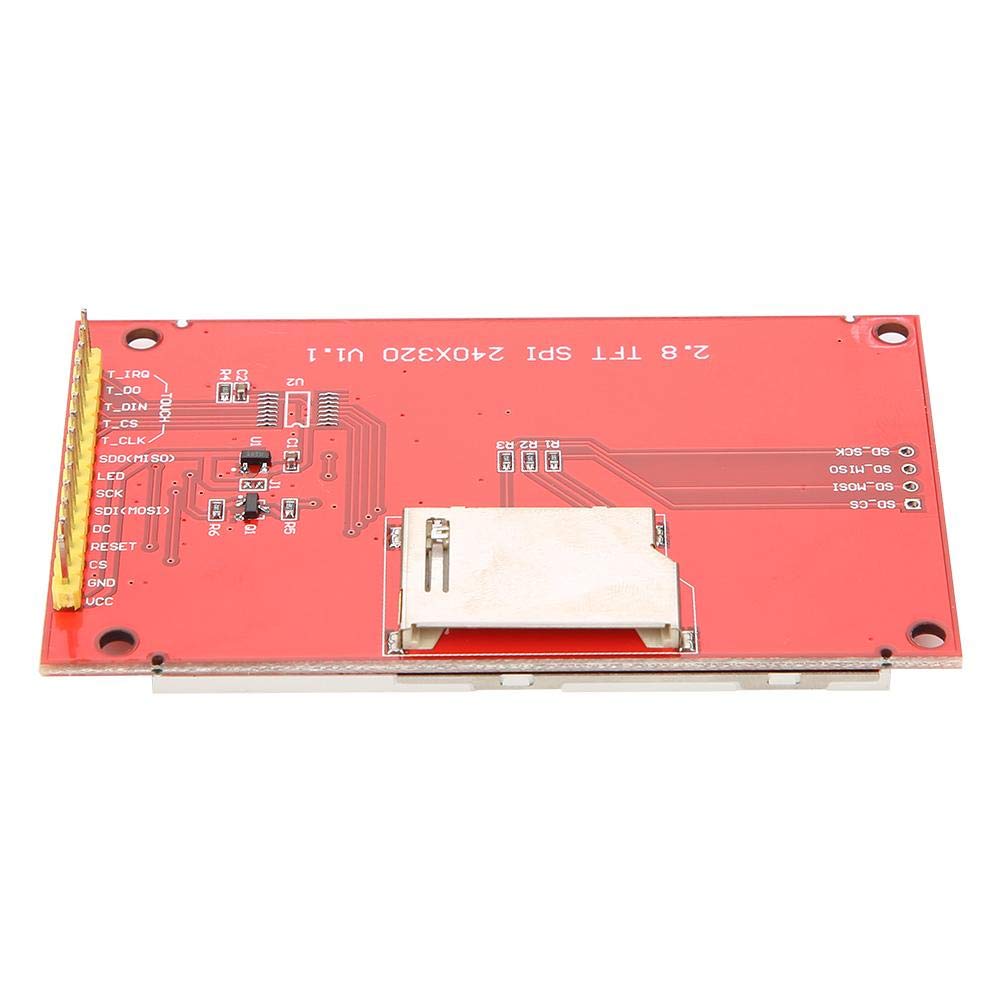

• ✪✪✪✪✪ [Interface] With PCB board (including power supply IC, touch IC, memory card box) interface 5110 compatible.

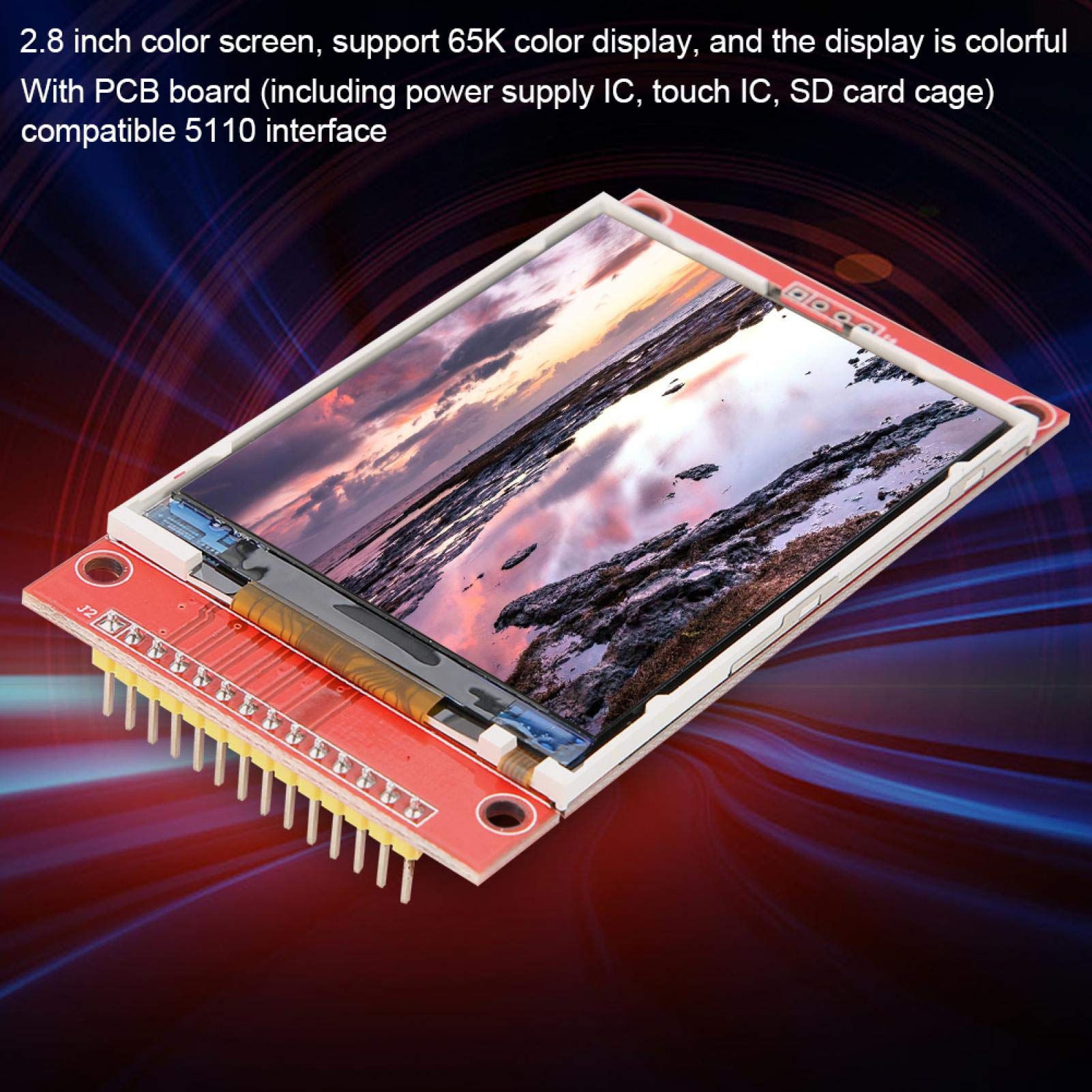

• ✪✪✪✪✪ [Screen] 2.8 inch color screen, compatible with 65K color screen, and the screen is colorful.
• ✪✪✪✪✪ [Controller] You need at least 4 IO controllers (no touch), you need at least 9 IO controllers (with touch).
• ✪✪✪✪✪ [Regulation configuration design] The module is equipped with voltage stabilized IC to support a 3.3V/5V power supply.
• ✪✪✪✪✪ [Chip] This 2.8 inch LCD module uses the ILI9341 unit chip to drive 240 * 320 points, with a resolution of 240 * 320.

Features: 2.8 inch color display, support color display and nbsp; 65K, and the display is colorful with PCB board (including power supply IC, touch IC, SD card compartment) 5110 compatible interface You need at least 4 IO drivers (non-touching) , at least 9 IO drivers are required (touch) This 2.8 inch LCD module uses the unit chip ILI9341 to handle 240 x 320 points, with 240 x 320 resolution. The module is equipped with a voltage stabilised IC to support a 3.2 V/5 V power supply. Specification: Controller IC: ILI9341 Type (Optional): Touchless (4 IO controller), Touch (9 IO unit) Input voltage: 5 V / 3.3 V. Resolution: 240 x 320. Colour: 65K colour. Interface: analog serial port/direct serial peripheral interface mode. Weight: approximately 34 g / 1.2 ounces. Package List: 1 x LCD display module.
