DollaTek 1.3 inch TFT LCD Screen Display Module 240 x 240 IPS 65K Full Color 3.3V with SPI Interface ST7789 IC Driver for 51 STM32

• Sources for demo firmware for STM32: https://bitbucket.org/nadyrshin_ryu/st77xx_stm32/downloads/
• 1.3inch TFT LCD Screen Display Module: The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled.
• Dot Size: 240 x 240 ( There are two display way: horizontal display and vertical display, you can adjust the display direction. )

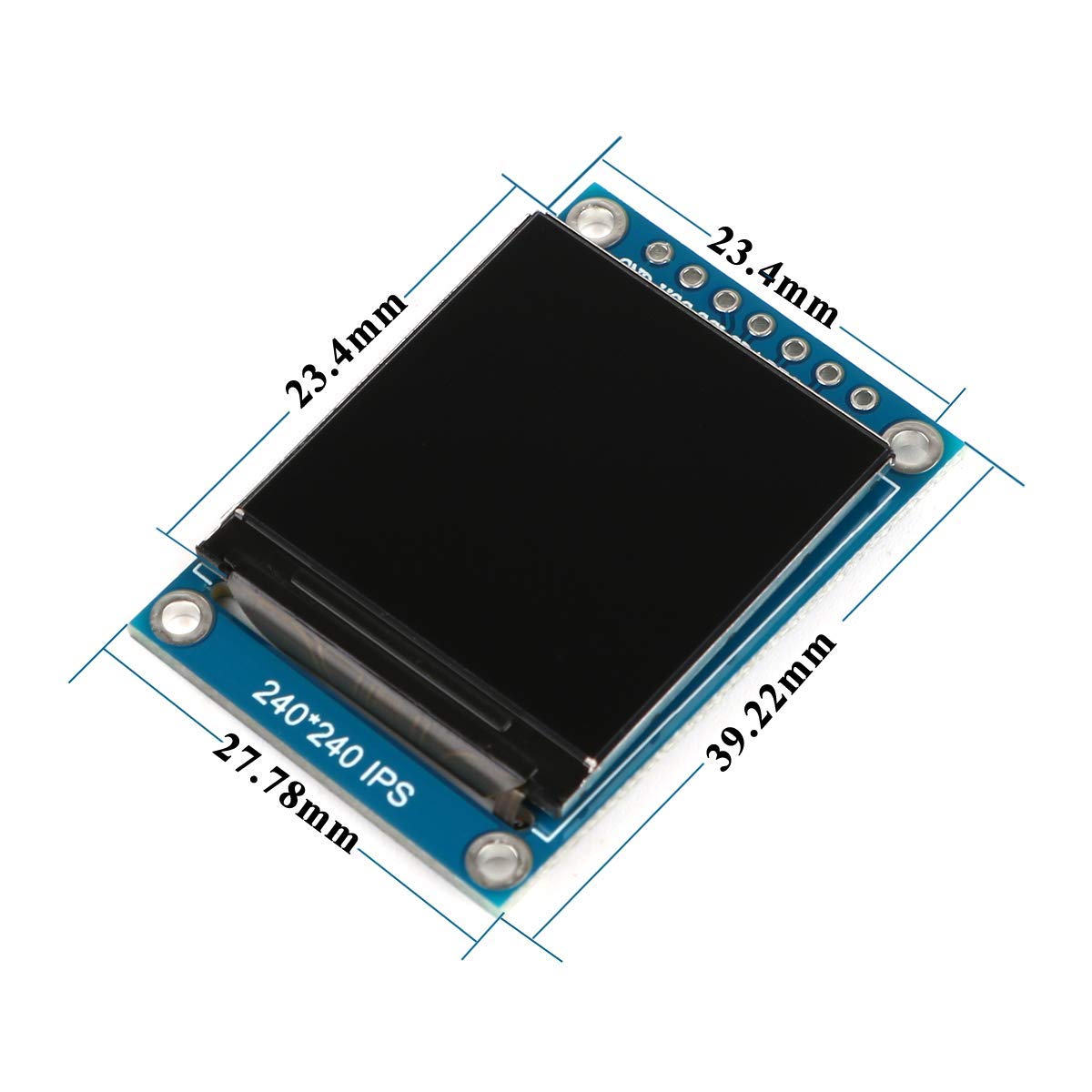

• Working Voltage: 3.3V; Working temperature: -20-70℃; Interface: SPI Interface; IC Driver: ST7789; Viewing direction: IPS; Display area Size: 23.4 x 23.4mm; TFT Module Size: 27.78 x 39.22mm

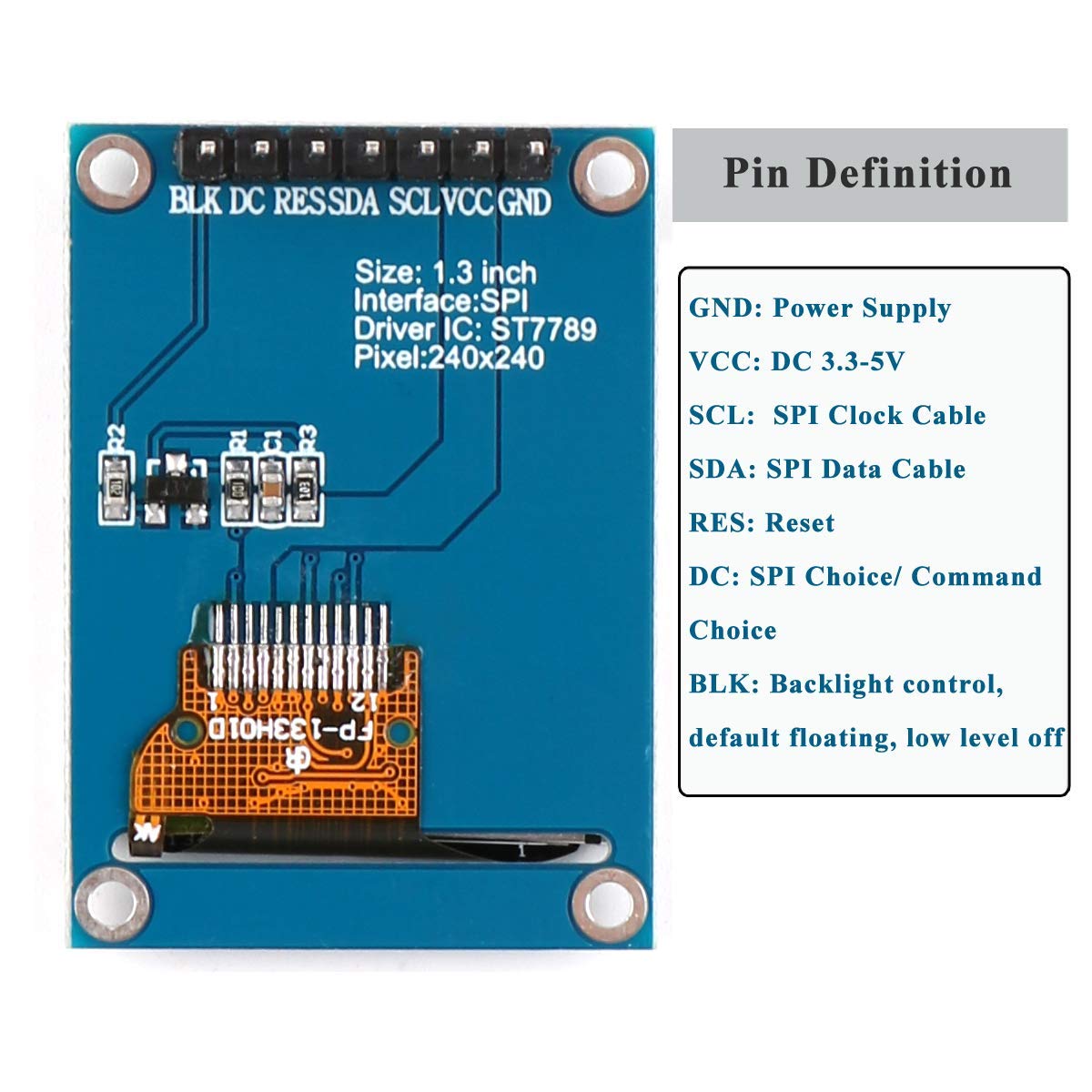

Description: The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled. The color level is displayed to make the TFT LCD color more realistic, the brightness is good, the contrast is high, the layering is strong and the color is bright. Specification: Viewing direction: IPS LCD Size: 1.3inch Dot Size: 240*240 ( There are two display way: horizontal display and vertical display, you can adjust the display direction. ) Interface: SPI Interface, 7PIN LED color: 65K full color IC Driver: ST7789 Working temperature: -20-70℃ Working Voltage: 3.3V Display area Size: 23.4*23.4mm TFT Module Size: 27.78* 39.22mm Pin: GND: power supply VCC: DC 3.3-5V SCL: SPI Clock Cable SDA:SPI Data Cable RES: Reset DC: SPI Choice/ Command Choice BLK:Backlight control, default floating, low level off Package Including: 1 x 1.3inch TFT LCD Display Module
