1Pcs 12V(50W) 24V(350W) 48V(500W) DC 30A PWM Motor Speed Controller Governor, with Digital Display Panel, Supports Soft Start and Soft Stop

• 【Scope of application】 DC Motor Speed ​​Controller is suitable for 12V motors with power less than 50W, 24V motors with power less than 350W and 48V motors with power less than 500W, please pay attention.
• 【Compatibility】 The motor speed controller supports soft start and soft stop, thereby reducing the mechanical stress on the motor and shaft. You can control this speed controller according to your needs.
• 【Input DC power】 The input of the DC motor controller is connected to DC power, and cannot be connected to AC power, otherwise it will be burned. Please pay attention to the input current when using it.

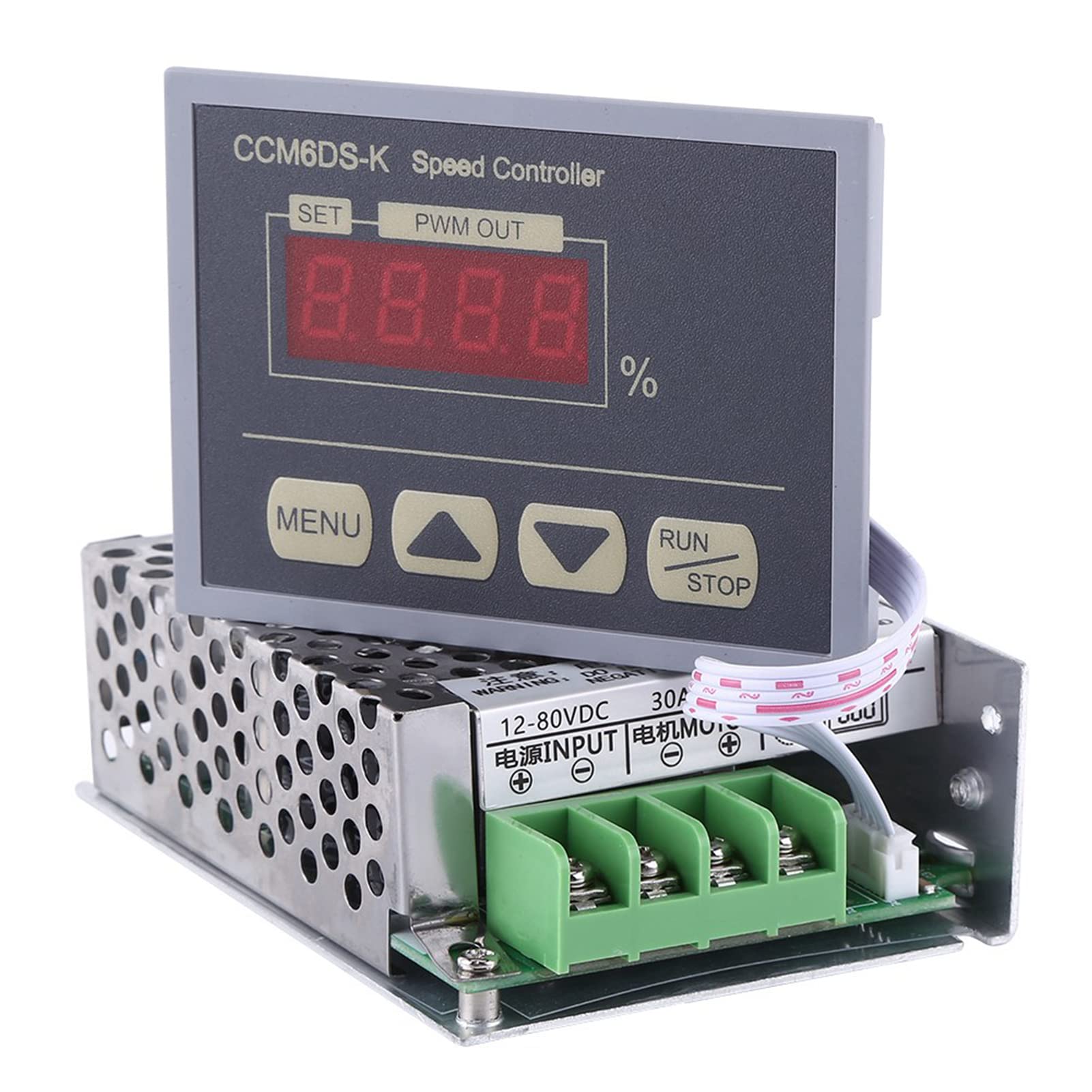

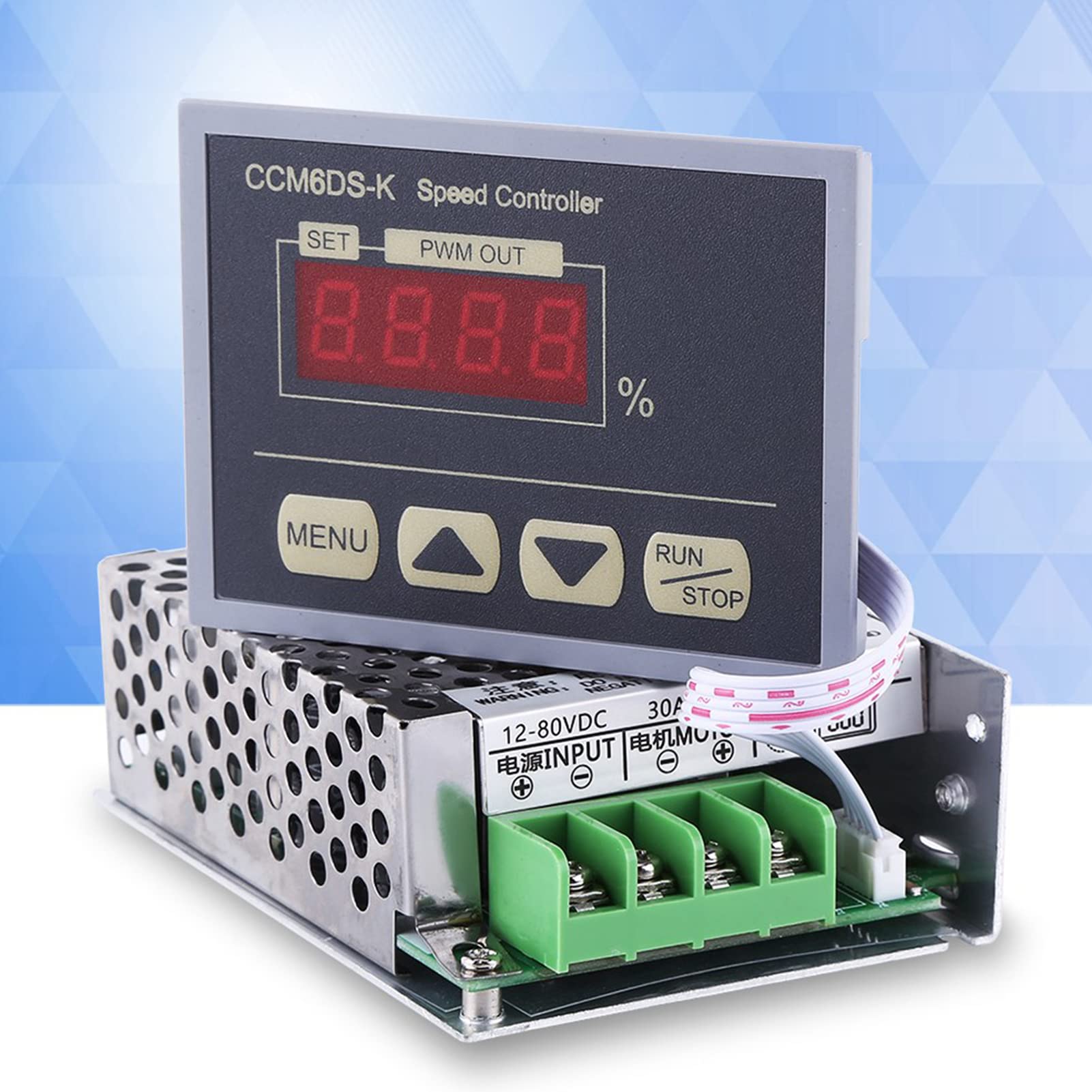

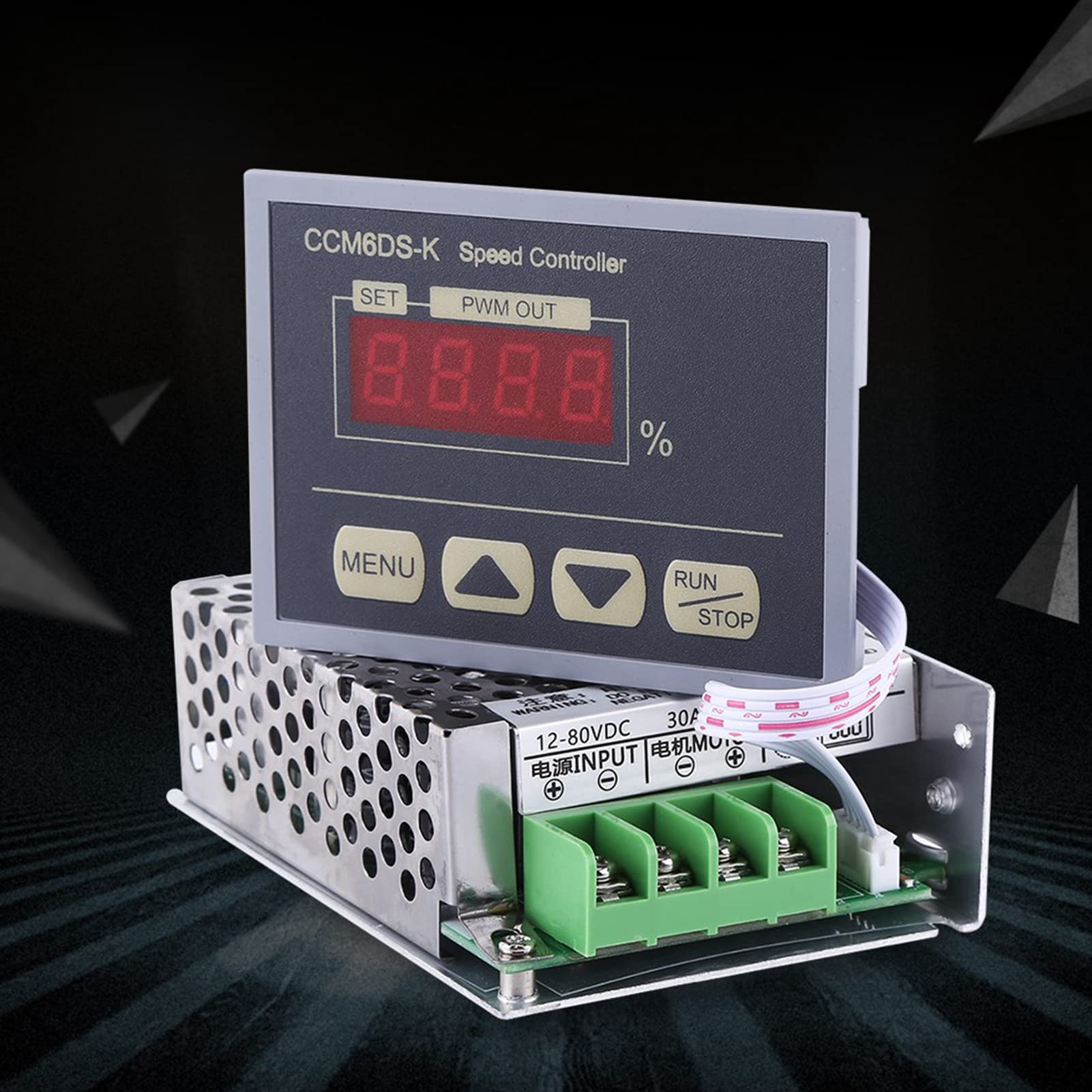

• 【With digital display panel】 The PWM controller is designed with a digital display panel for easy reading and quick adjustment of the speed setting, very user-friendly design.
• 【Precautions】 To avoid other damages, please make sure that the positive and negative poles of the PWM Motor Speed ​​Controller Governor are correctly connected when using the Motor Governor, otherwise the controller will be damaged.

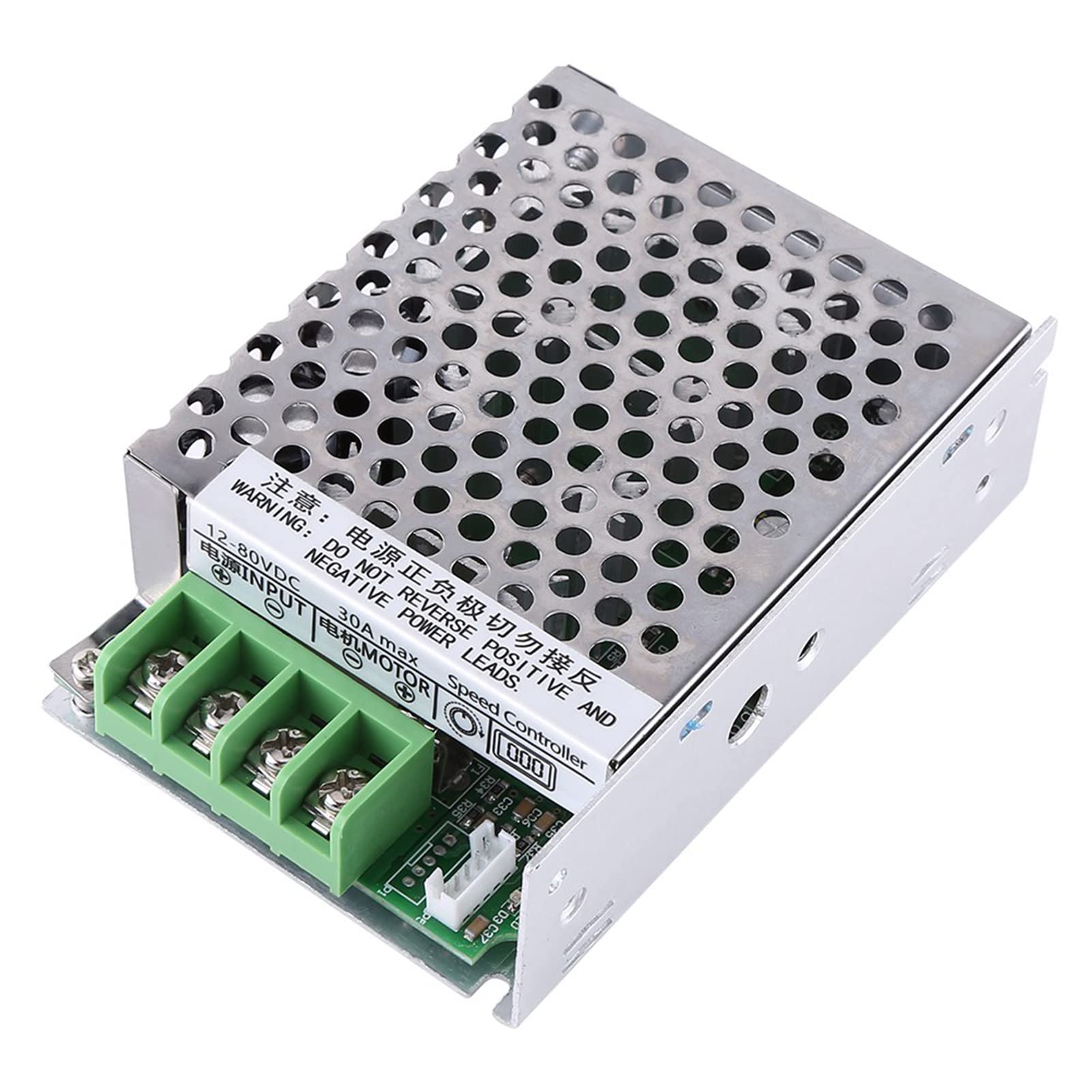

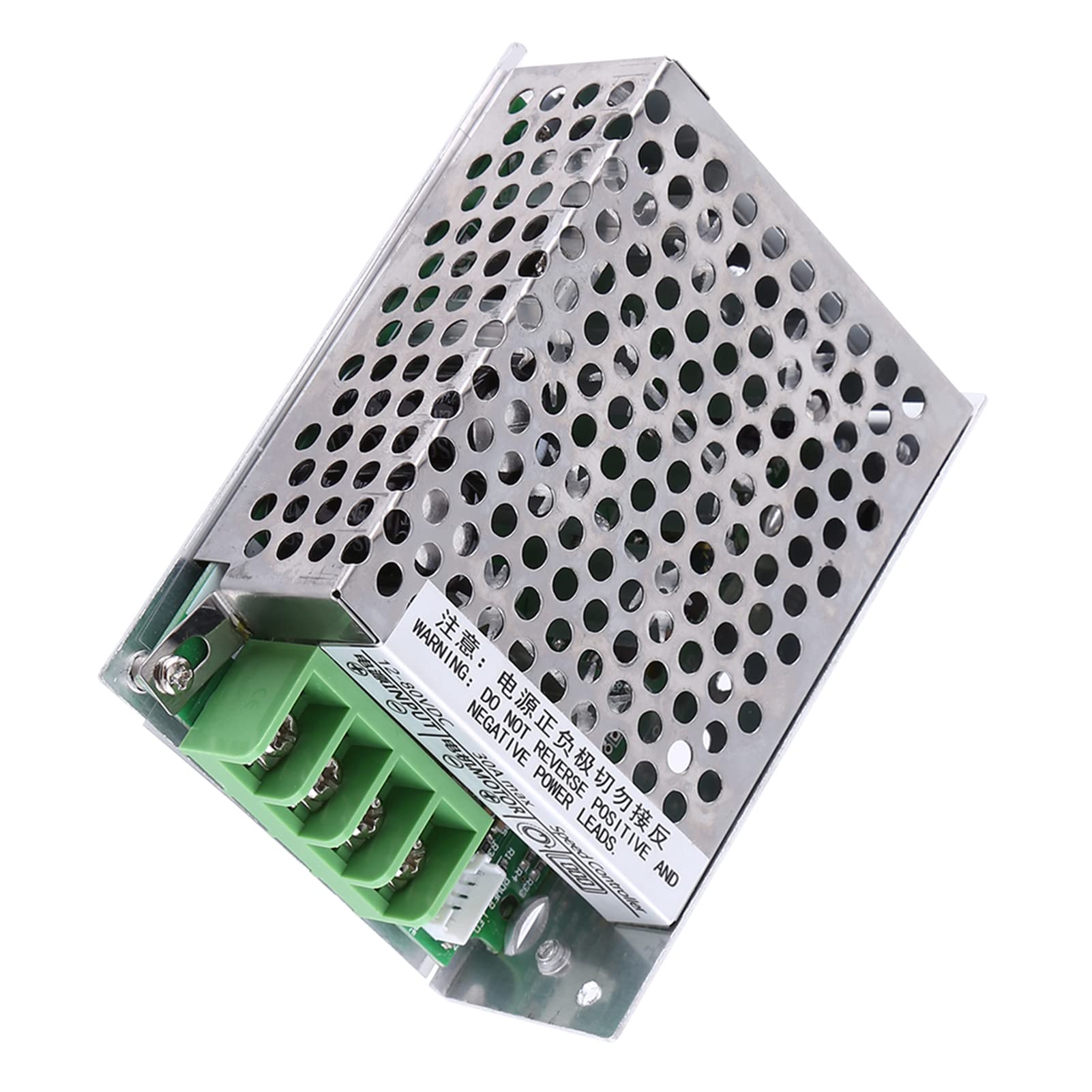

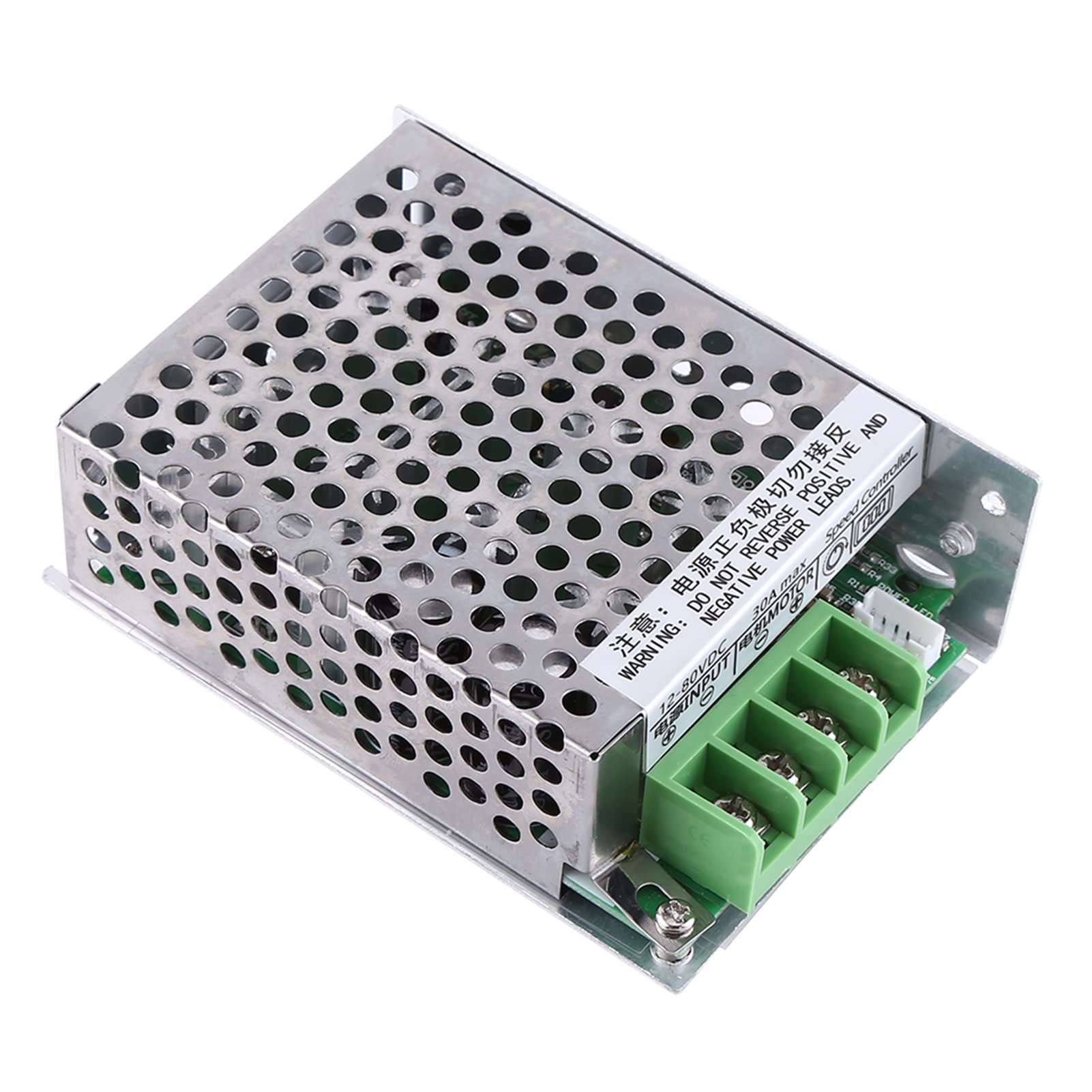

Description: This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 12V to 80V and output voltage is 0-100% of the input voltage. This speed controller support soft start and soft stop, which is quite convenient to set. Specifications: Input Voltage: DC 12V-80V Output Voltage: 0-100% of the input voltage Maximum Current: 30A Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less Speed range: 0~100% PWM frequency: 21kHz Controller Size: 110 x 77 x 36mm / 4.37 x 3.03 x 1.41" Panel Size: 92 x 69x x13mm / 3.62 x 2.71 x 0.51" Instruction: Set 1: "000"-"100", Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. Set 2: "000"-"100", Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. Set 3: "000"-"080", The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value, the default is 0. Set 4: "000"-"100", The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025", The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% each time you press the up or down button. Package Includes: 1 x Speed Controller
