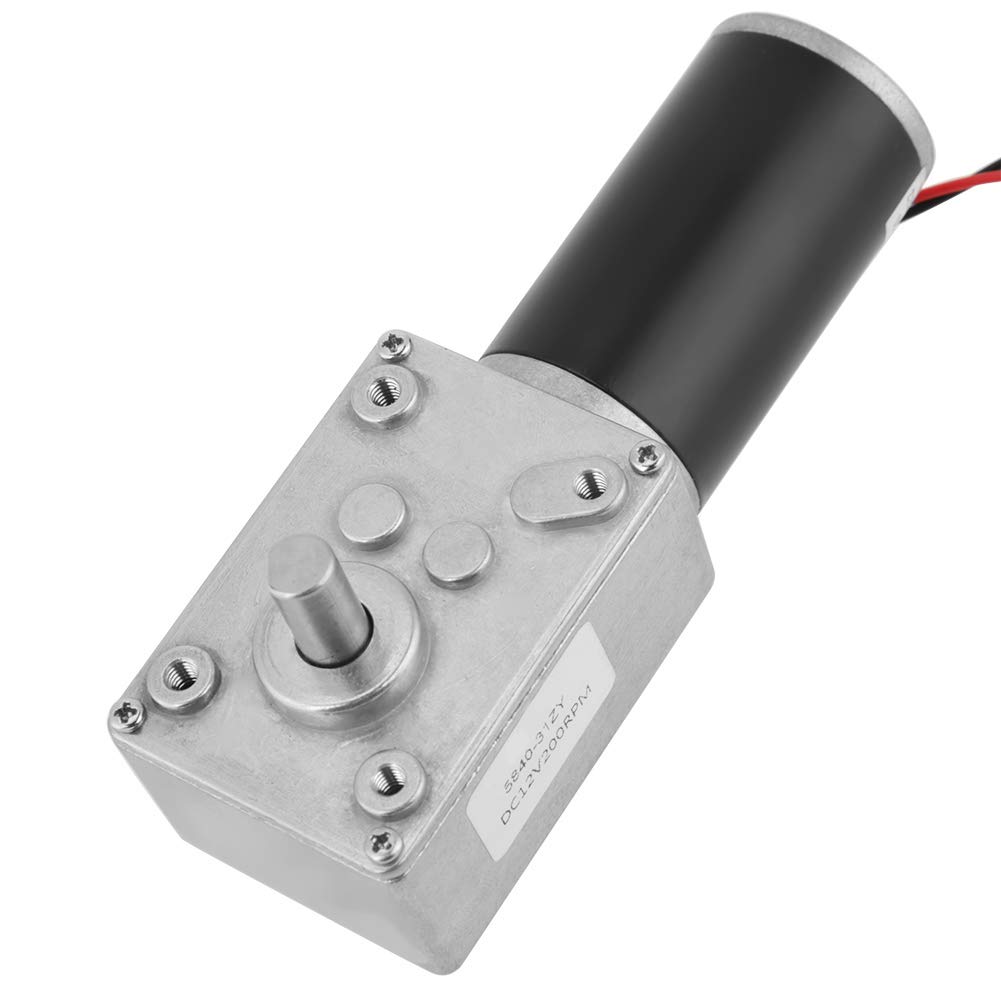

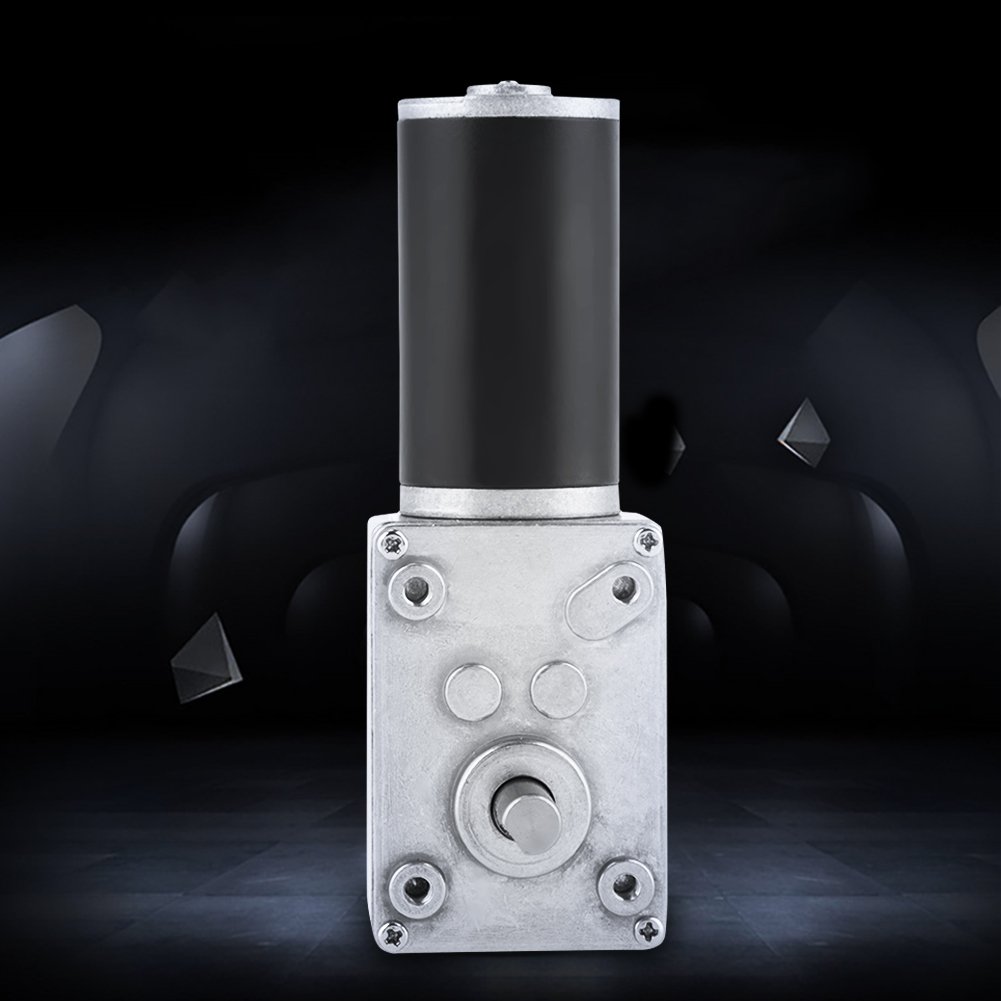

12V DC Magnet Worm Gear Motor, 5840-31ZY P 200RPM Mini Permanent Magnet DC Turbo Turbine Worm Gear Motor

• Self-locking -- Self-locking worm gear motor, that is, in the case of non-electric motor, the output shaft is fixed, self-locking.
• Versatile -- The output shaft of the reducer arranged vertically with the motor shaft, the total output of the motor is relatively short, it can be widely used in various occasions that require special installation size.

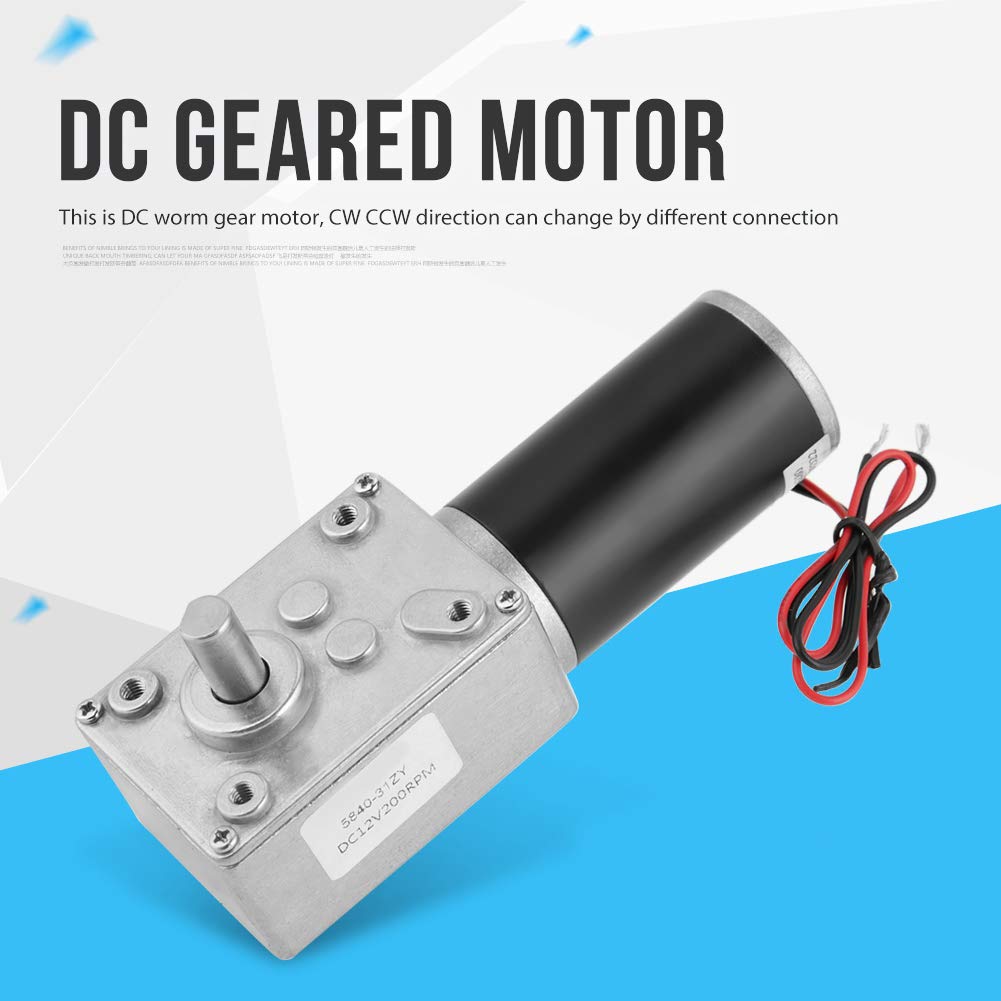

• CW CCW Gear Motor -- This is a DC worm gear motor, the CW CCW direction can change by different connection.
• Specs -- Rated power: 21W, Nominal voltage: 12V, Rated speed: 200RPM, Nominal force moment: 0.8NM, Efficiency: 80%, Rated current: 2A.
• Application -- Used in electrical appliances including remote control curtains, shredders, and photocopiers.

Specifications: Model: 5840-31ZY Rated power: 21 W Nominal voltage: 12V Rated current: 2A Rated speed: 200 RPM Nominal force moment: 0.8 NM Wiring method: CW: red: "+", black: "-" CCW: red: "-", black: "+" Efficiency: 80% Motor length: 11.5 cm/4.53 inches Weight: 364 g Package included: 1 x gear motor
