1/2 Round Throat Pebble Diameter 16 mm – Folded/Drilled Bracket Diameter 90 – 1 Roll

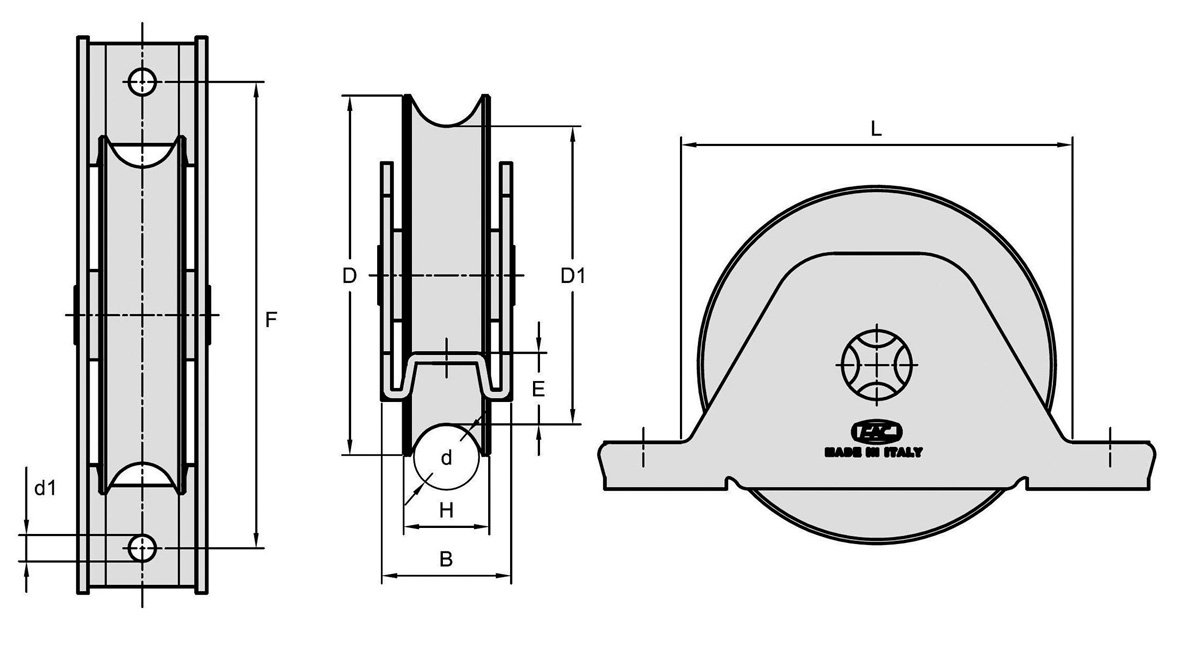

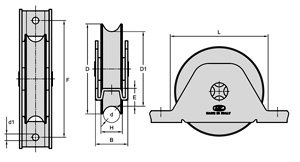

• [ D(mm)=90 ] [ D1=73 ] [ d=16 ] [ B(mm)=33 ] [ H(mm)=20 ] [ E(mm)=17 ] [ L(mm)=97 ] [ F=115 ] [ d1=6.5 ] [ Load (kg)=200 ] [ RL=1 ]
• All our pebbles have an anti-corrosion electro-zincing treatment and are on ball bearings. The model is to be determined according to the load it will bear
• Datasheet
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

Sliding gate wheels Carefully manufactured and professionally graded. Standard size, to replace check the shape and size of the throat, which must fit the rail, as well as the diameter of the pebble. [ D(mm)=90 ] [ D1=73 ] [ d=16 ] [ B(mm)=33 ] [ H(mm)=20 ] [ E(mm)=17 ] [ L(mm)=97 ] [ F=115 ] [ d1=6.5 ] [ Load (kg)=200 ] [ RL=1 ]. All of our pebbles have an anti-corrosion electro-zincing treatment and are on ball bearings. The model is to be determined according to the load it will hold.
