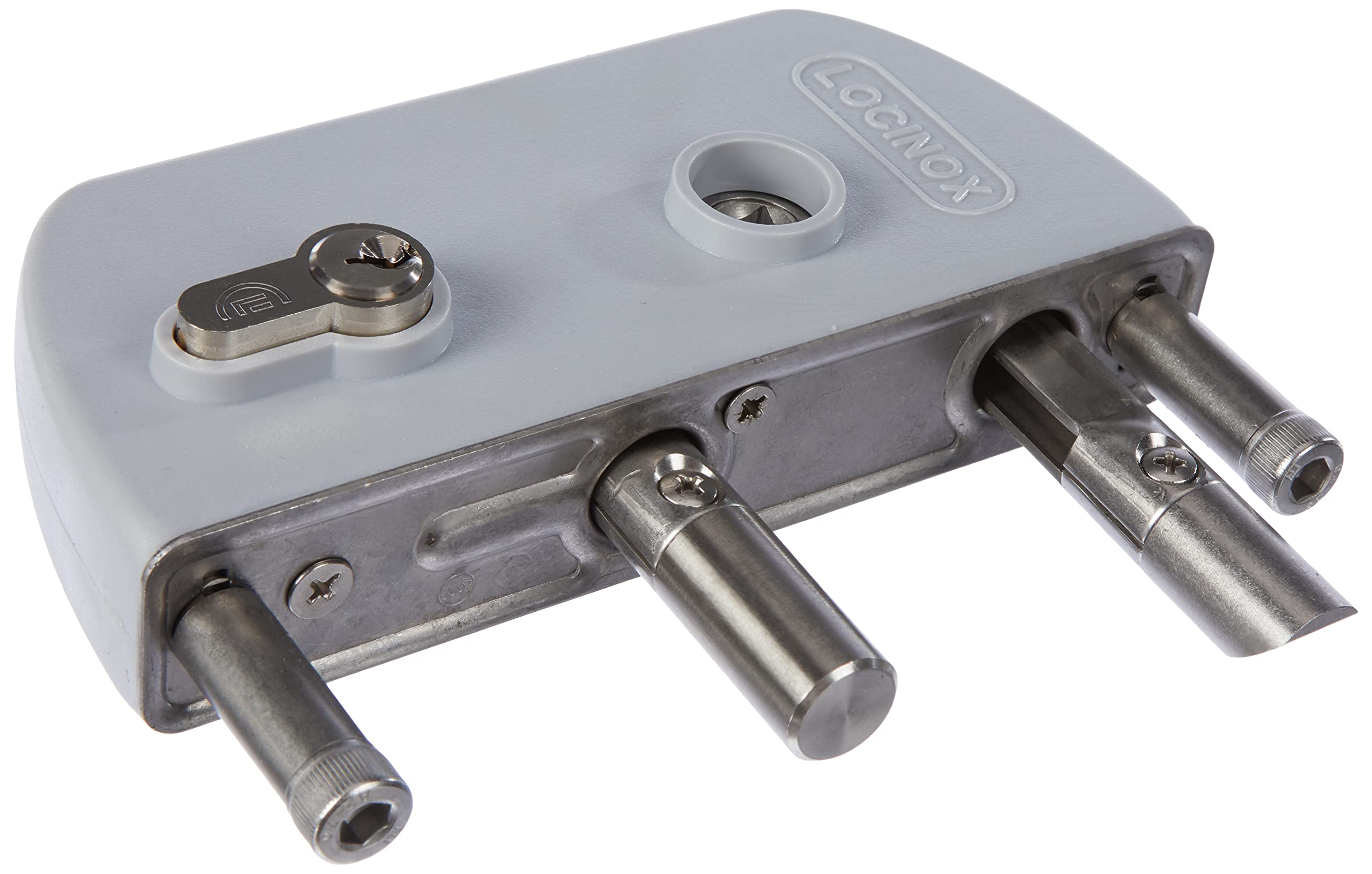

Locinox LAKZ4040P1L7040VCAP Lattice Gate Lock LAKZ4040 P1L, for 40 mm Square Tubes, Aluminium RAL7040, Silver

• Garden gate lock with polyamide housing and stainless steel mechanism
• Only suitable for 40 mm gate profiles
• Simple left/right adjustment of the locking trap.
• No key operation
• Material: aluminium window grey RAL 7040

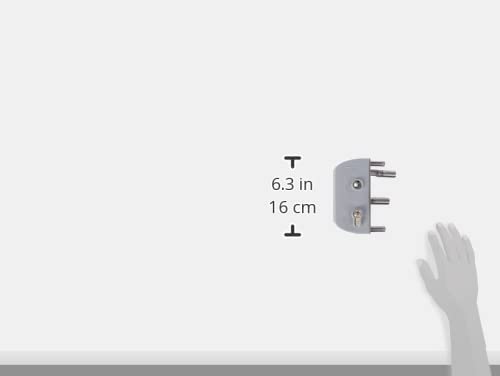

Garden gate lock with polyamide housing and stainless steel mechanism. A solid stainless steel lock with a 23 mm depth lock guarantees a secure lock. For a quick and precise installation we recommend the Drill-Fix drilling template. Only suitable for 40 mm door profiles; easy left/right conversion of the locking trap; 1-tourist locking bolt with 23 mm stroke; 4-hole assembly with 2 Allen screws; housing and handle made of polyamide; bar spacing: 60 mm; no key operation of the trap; tested for 500,000 movements; box contents: lock with box, push button, installation double cylinder 27 / 27 mm with 3 keys. Direction: universal; box height (mm): 160; box width (mm): 75; box thickness (mm): 31; material: aluminium window grey RAL 7040; backset (mm): 30; nut (mm): 8; design: for square profile 40 mm; bolt diameter (mm): 16; distance (mm): 60.
