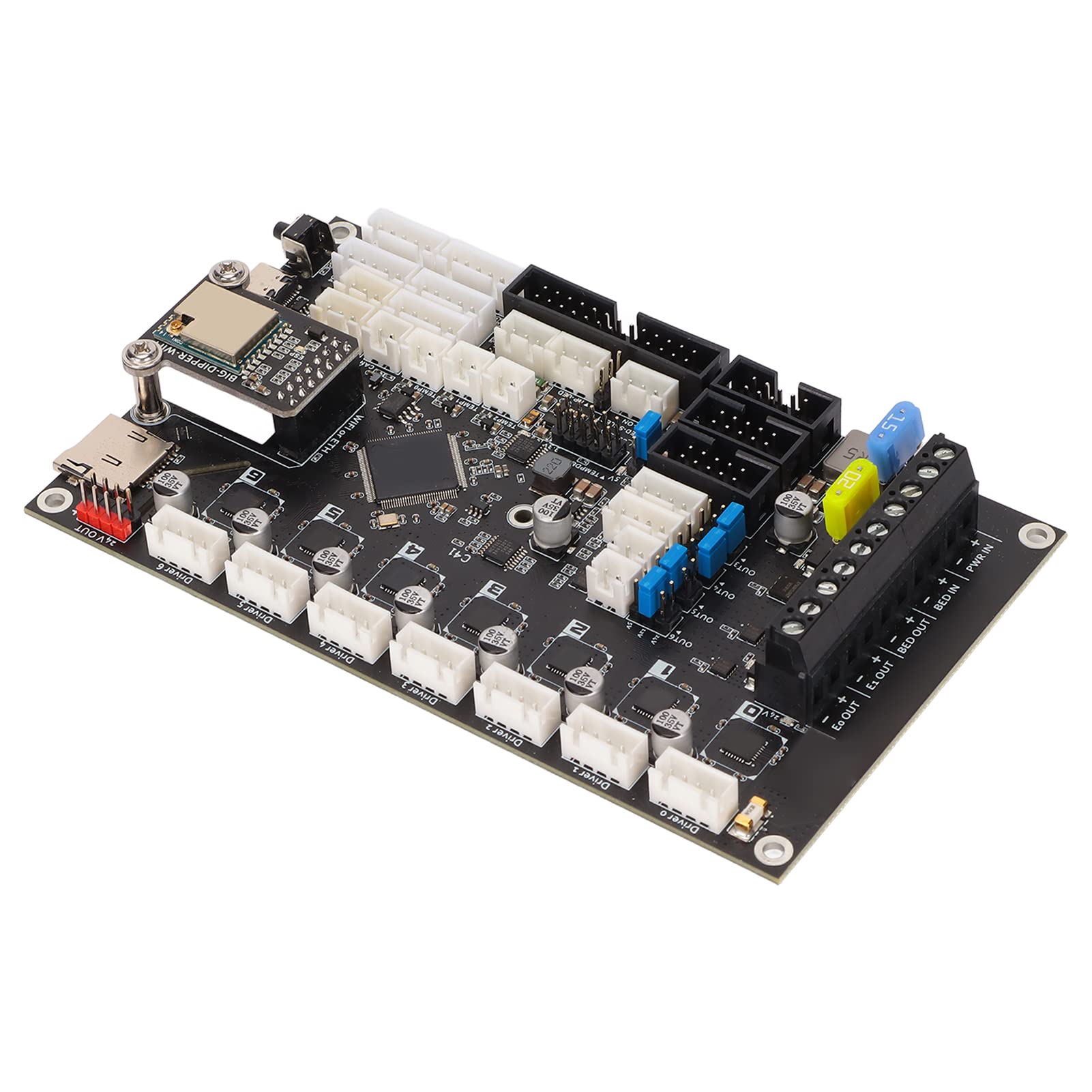

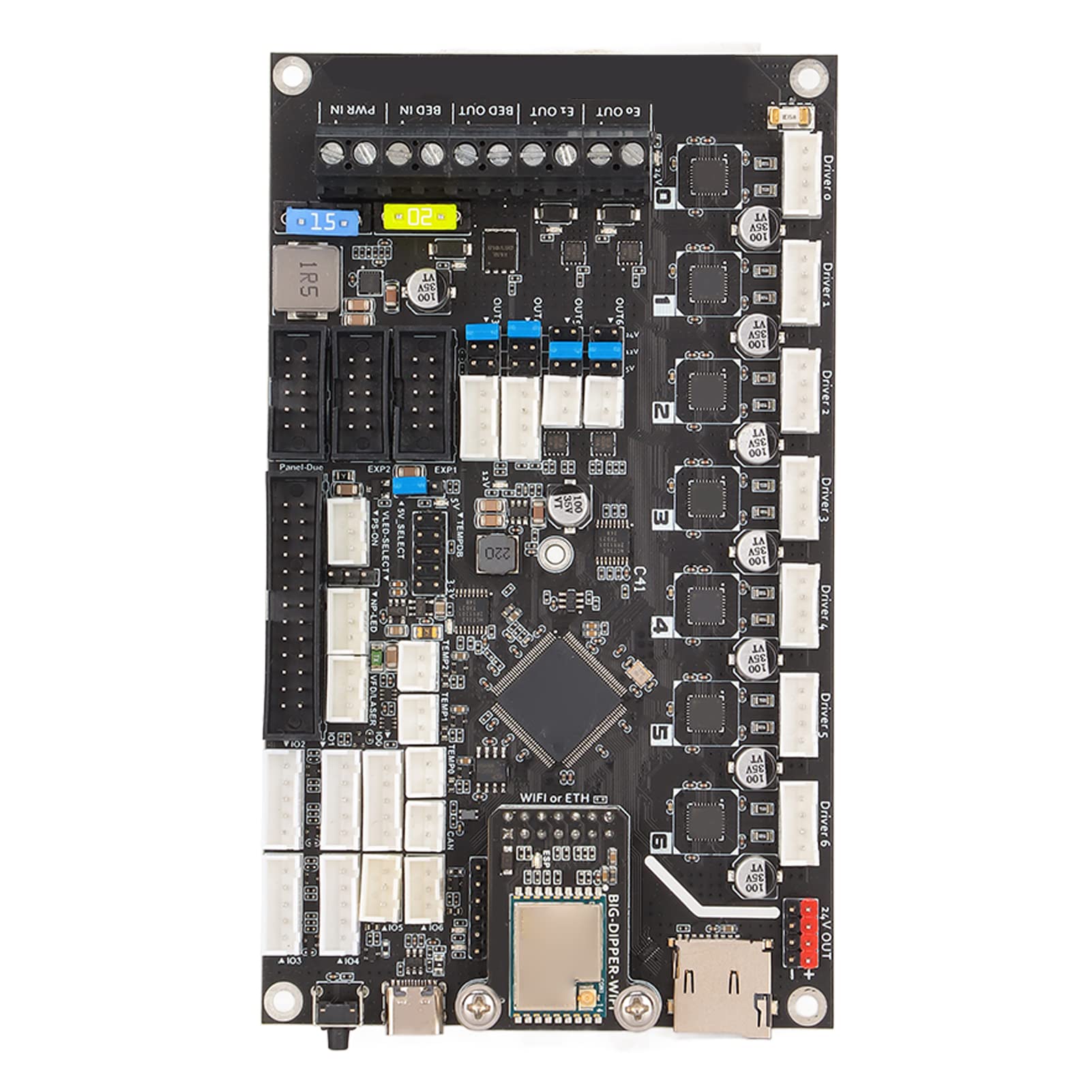

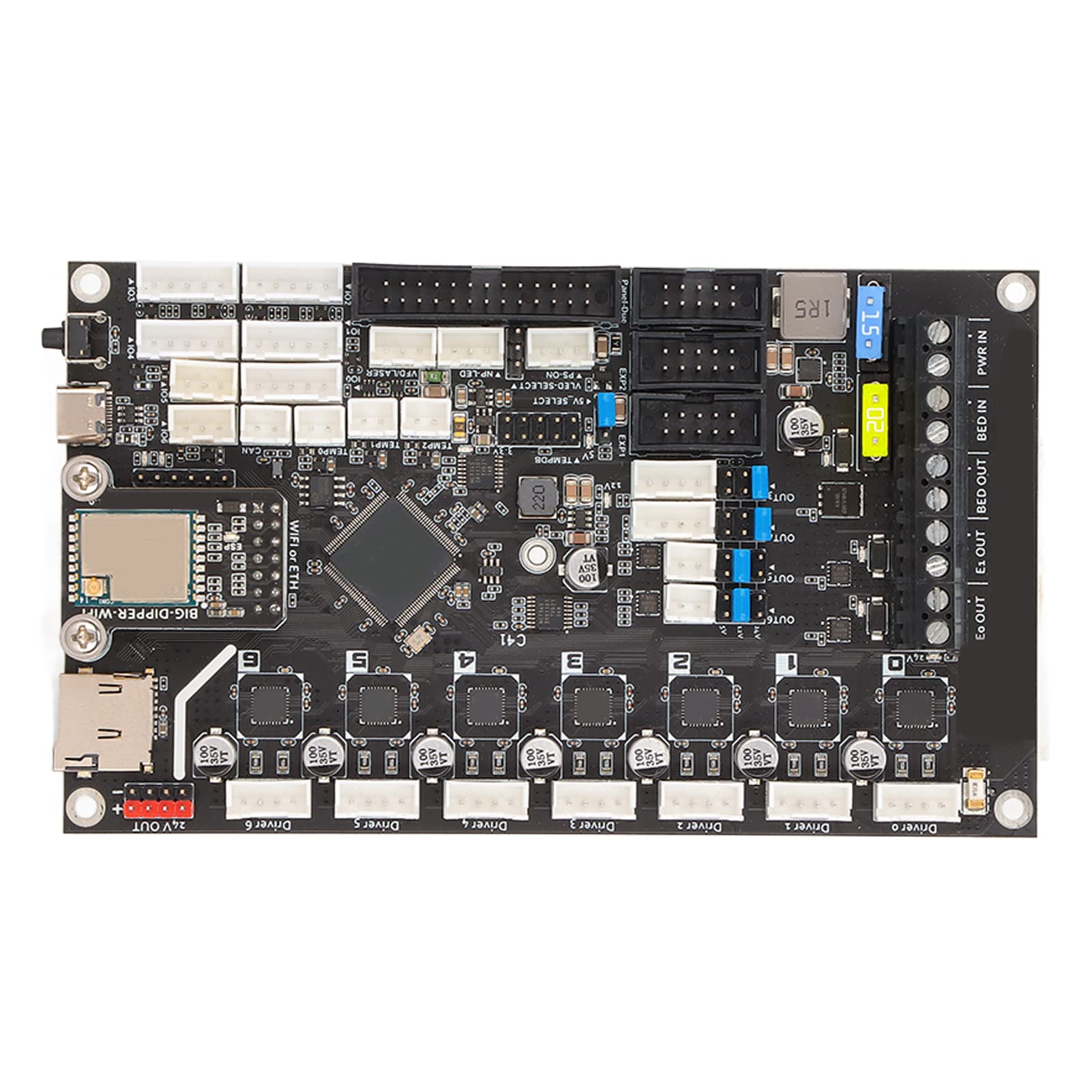

Zunate VORON 2.4 BIG-DIPPER Duet3 mini5+wifi upgrade motherboard with original mini12864 display, 3D Printer Motherboard, 7 Way TMC2209 Stepper Motor Driver

• WIFI AND DUET3D SUPPORTED: CAN FD bus supporting generation Duet3D expansion boards, smart tools and custom plug ins, switching between WiFi and Ethernet versions can be achieved by replacing modules. WiFi supports external antennas to set up your printer
• POWER SUPPLY: 28V maximum input, 12V at 2A DC‑DC (12V fan power supply), 5V at 8A DC‑DC ( and system power supply), two 3 3V at 0.6A LDOs (for MCU and 3.3V peripherals respectively) powered by).
• POWER: 7x PWM power MOSFET outputs (1 for hotbed, 2 for hotend, 4 for fan).

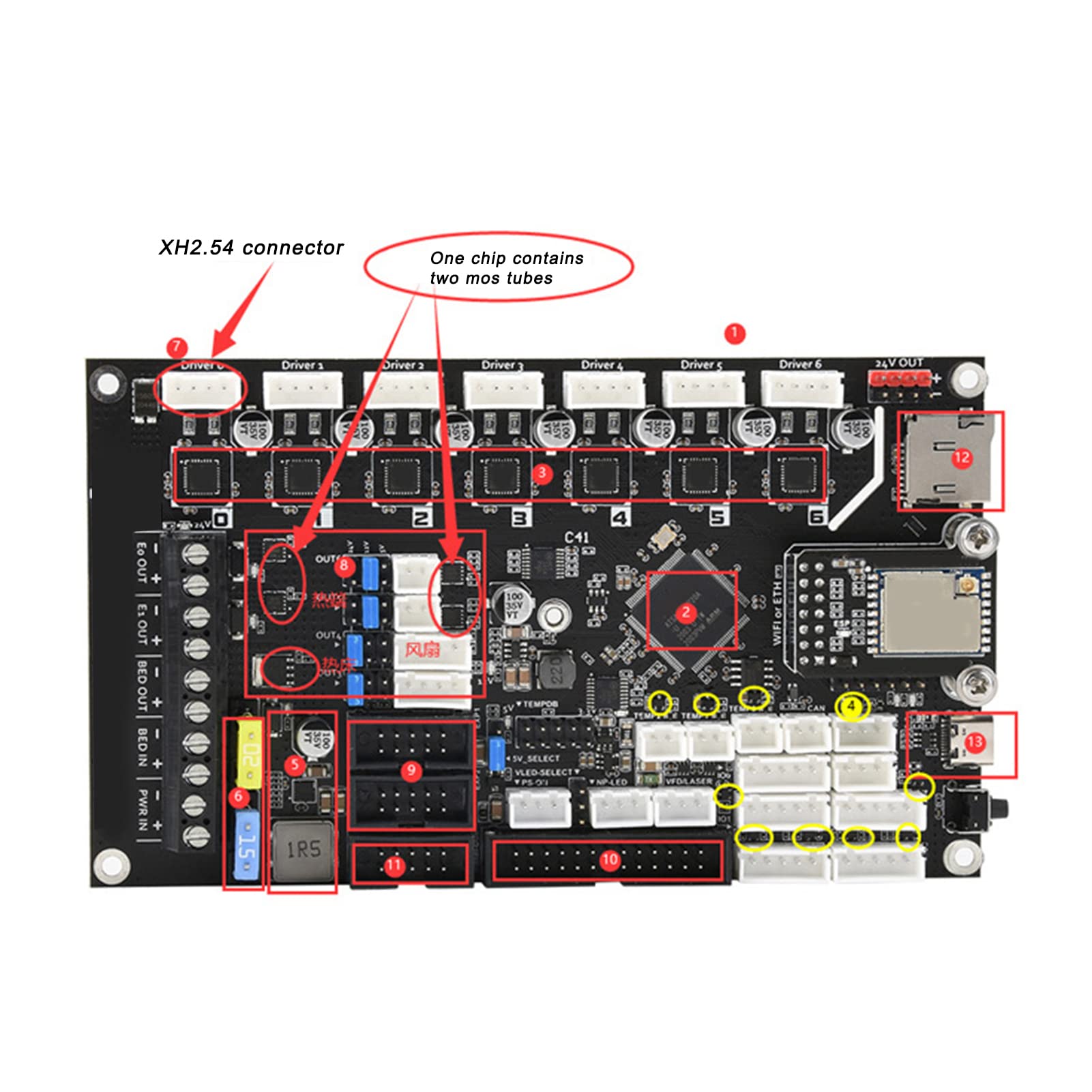

• CONNECTOR: Xh2.54 connector is adopted, and the functions of each interface are exactly the same as mini5+.
• Applicability: Based on the good ecology of RRF firmware and the onboard 7 axes (7xtmc2209), the board can be easily configured with a variety of models, such as Voron series, multi z axes models, dual x models, etc.

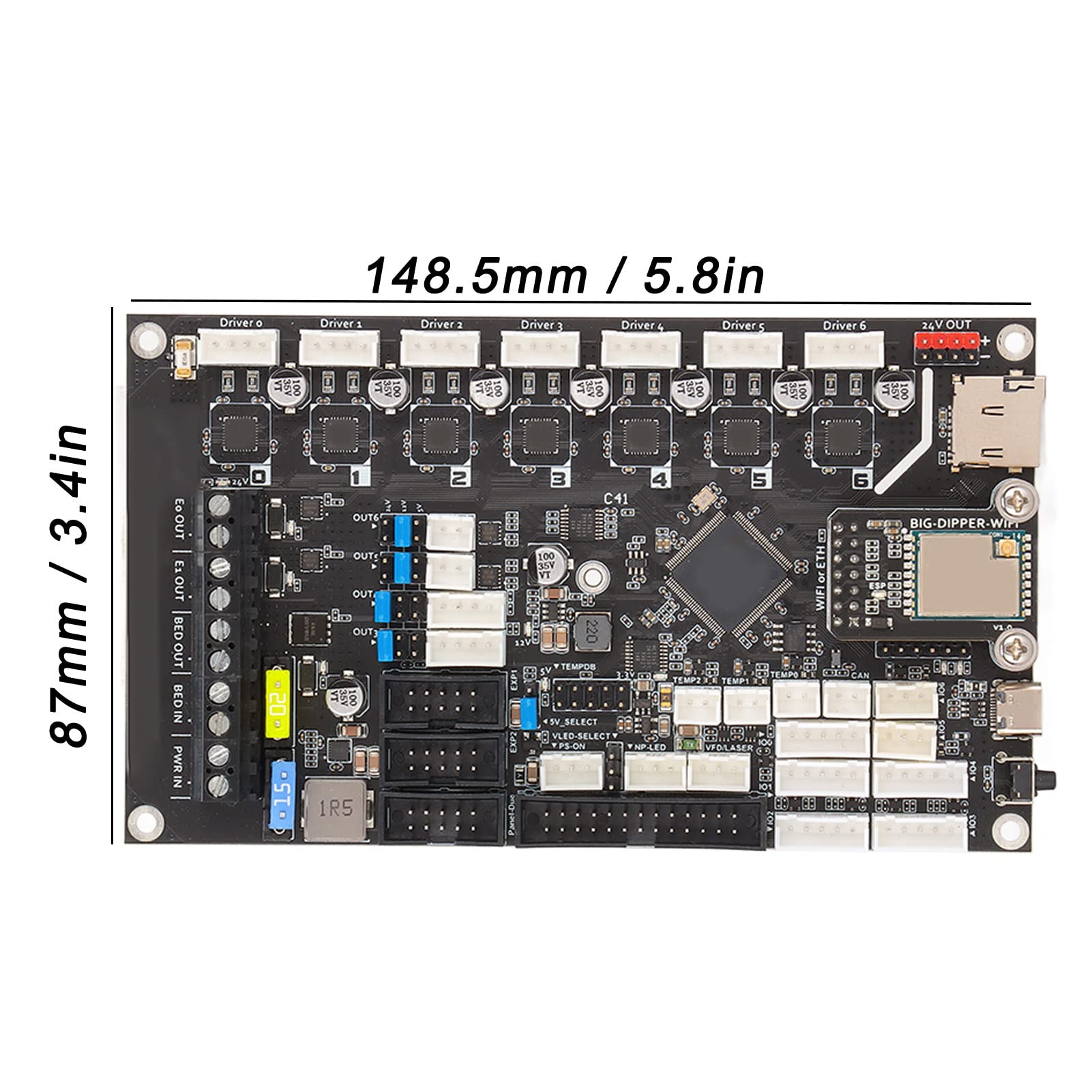

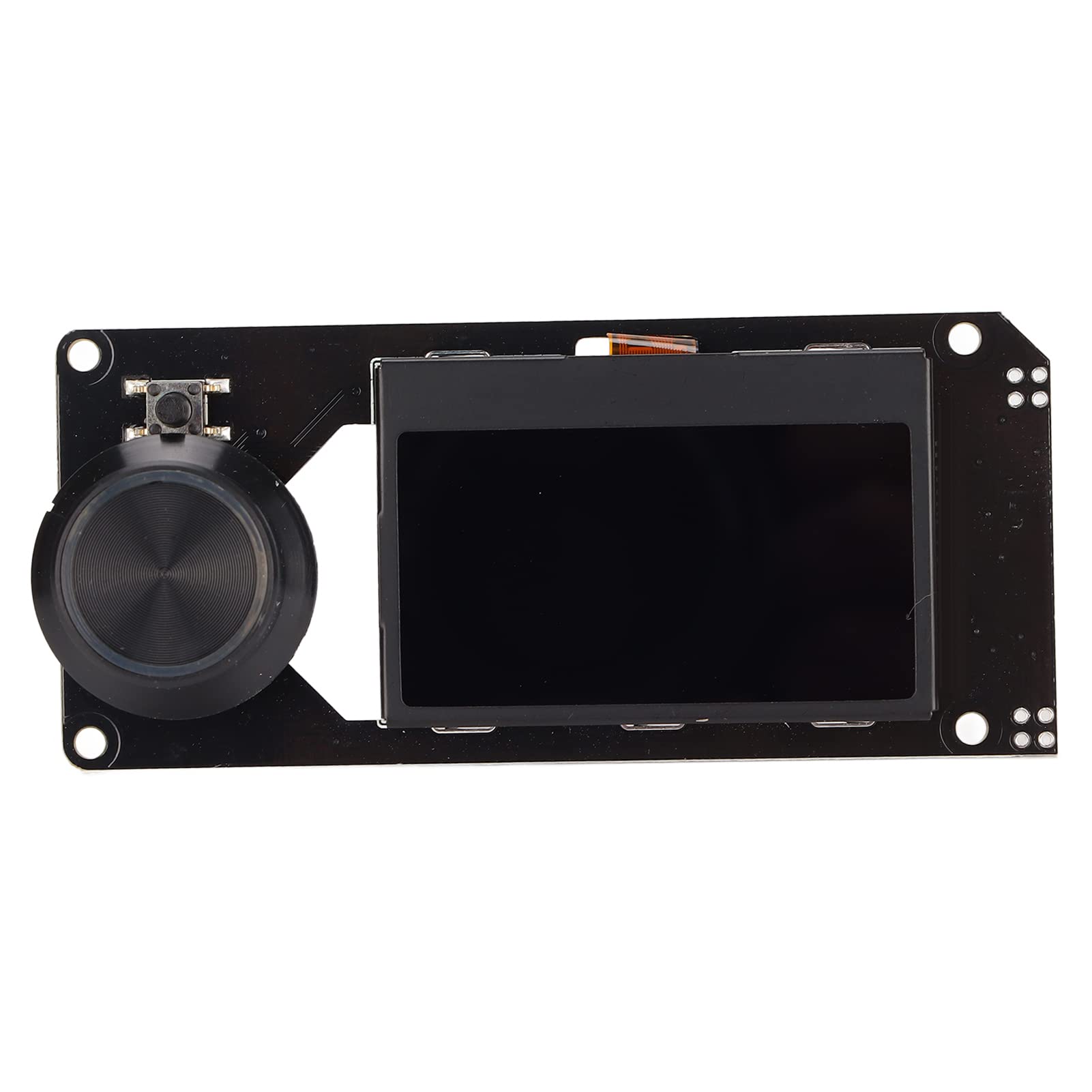

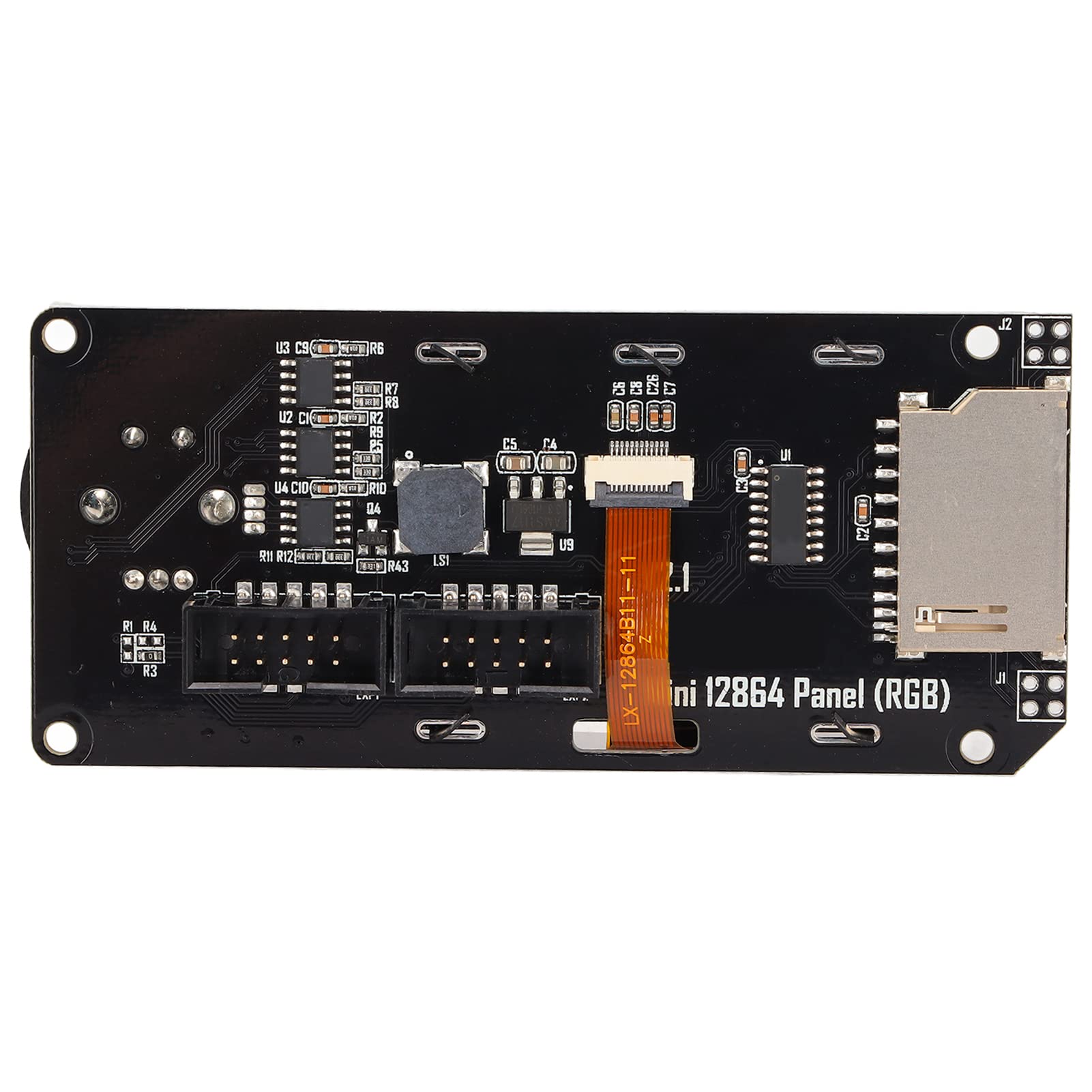

VORON 2.4 BIG-DIPPER Duet3 mini5+wifi upgrade motherboard with original mini12864 display, 3D Printer Motherboard, 7 Way TMC2209 Stepper Motor Driver Specification: Item Type: 3DPrinterMotherboard Material: PCB, LCD Master: SAME54P20(Arm Cortex M4 at 120mhz) Onboard: 7 Way TMC2209 Stepper Motor Driver Motherboard Input Voltage: 28V(Max) Adapter Display: Mini 12864 Ender Original 12864 Compatible: Duet3 Mini5+ Product Size: Approx.148.5 x 87mm / 5.8 x 3.4in How to Use: Installtouse Package List: 1 x Motherboard 1 x Display 1 x Antenna 1 x Receiver Stick 3 x Cable 7 x Heat Sink 1 x Plastic Knob
