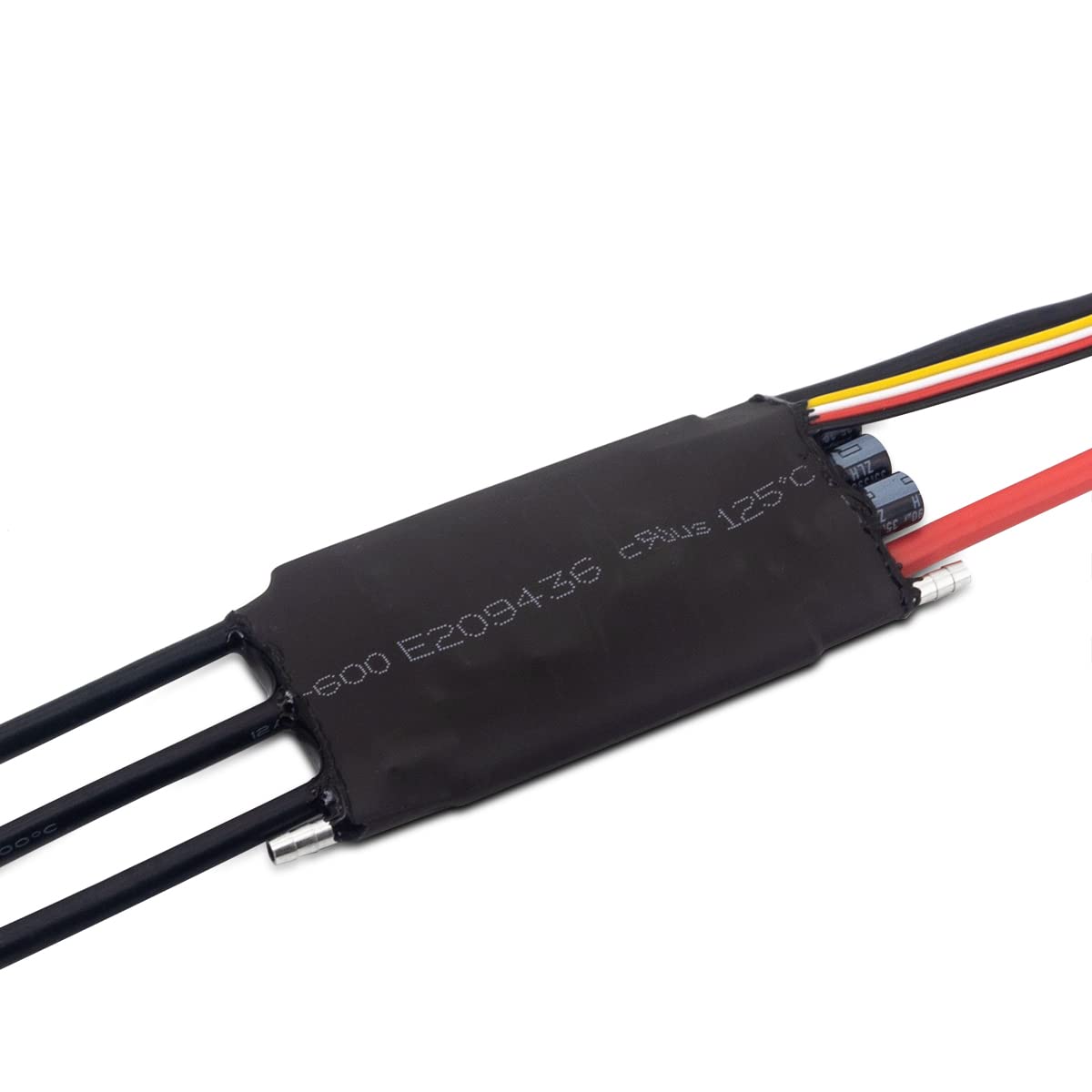

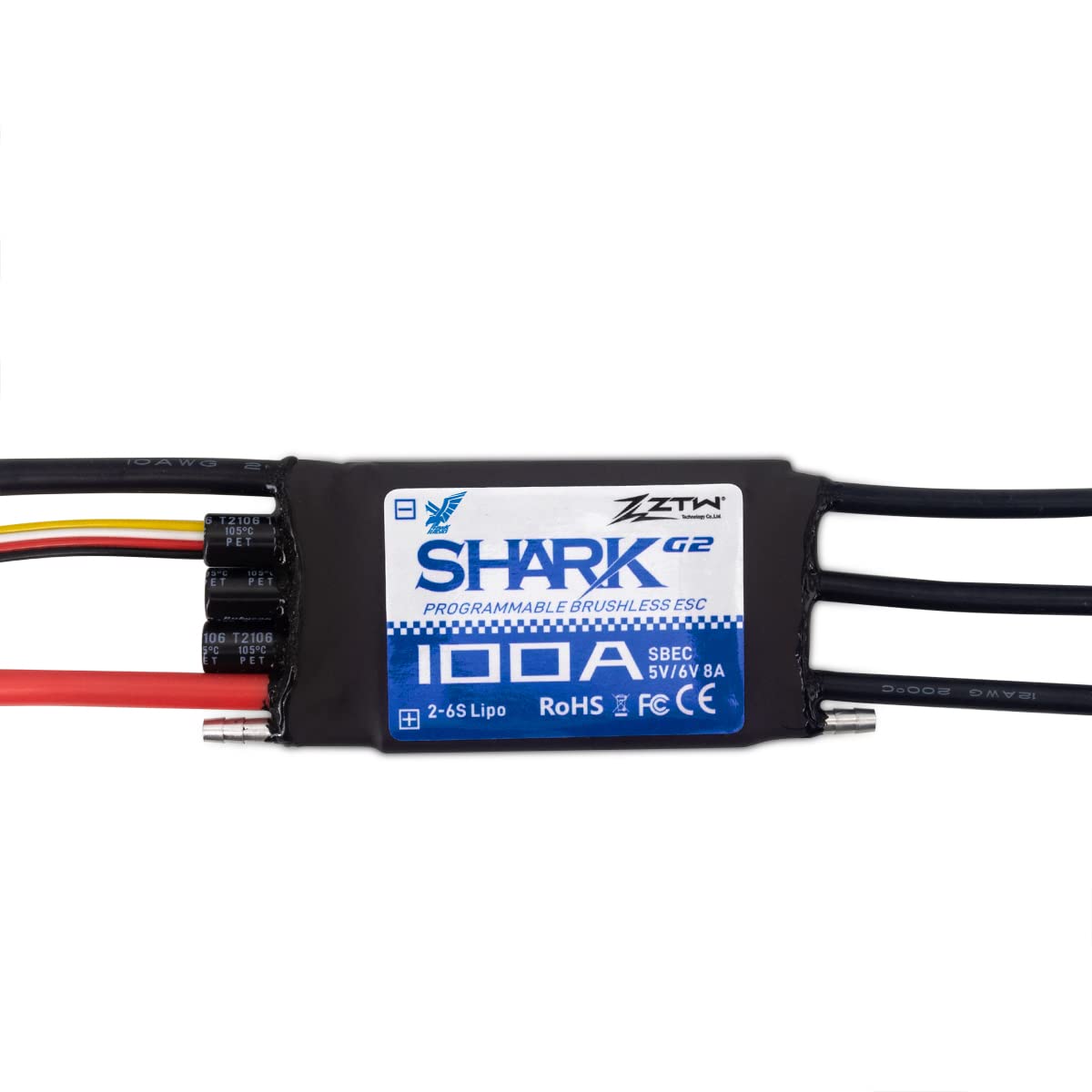

ZTW Shark G2 Series 100A Bi-Direction Water Cooling Brushless ESC with SBEC 8A/5V for RC Boat and Other DIY Project

• Super smooth, accurate and programmable throttle linearity and throttle response.
• Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
• Strong BEC output 8A/5V continuous and peak to 10A.
• Supporting high RPM motors and programmable by programming card and transmitter.
• High performance 32bit microprocessor,stronger computing ability and faster running speed.

Product description Description: Size:96mm x 44mm x 13mm / 3.8in x1.73 in x 0.51in (LxWxH). Battery: 2-6S Lipo / 5-18NC. Voltage: 7.6V-24V. Current:100A ,peak 120A for 10 seconds. BEC output: 8A/5V, peak 10A Weight:100g. Motor Rotation:Bi-Direction Motor Type: Brushless (no brushed) RPM support：200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P. Package includes: ESC x 1 User Manual x 1 Application: 1>Work with RC boat inrunner motor. 2>Cooperate with Underwater thruster engine for RC Bait Tug Boat ROV Submarine. Note !! Q :How to make the throttle calibration : A :If need reverse/bidirection , first put sticker in natural position ,then power on ESC , After beep ,put sticker to MAX position,after beep again ,to MINIMAN position.then power off esc and restart it. B : If do not need reverse ,how to make the throttle calibration : Firstly ,put sticker in MAX position ,power on ESC ,after beep , Put sticker to MINIMUN position ,after beep again,repower ESC. Please do make the throttle calibration for the first time using or changed the TX. ZTW and HAWK HOBBY have 100% free warranty for this ESC. Directions 1. If need reverse/bidirection, first put sticker in natural position, then power on ESC. After beep, put sticker to MAX position, after beep again, to MINIMUM position. Then power off ESC and restart it. 2. If do not need reverse, how to make the throttle calibration: Firstly, put sticker in MAX position, power on ESC. After beep, put sticker to MINIMUM position, after beep again, repower ESC. Please do make the throttle calibration for the first time using or changed the TX.
