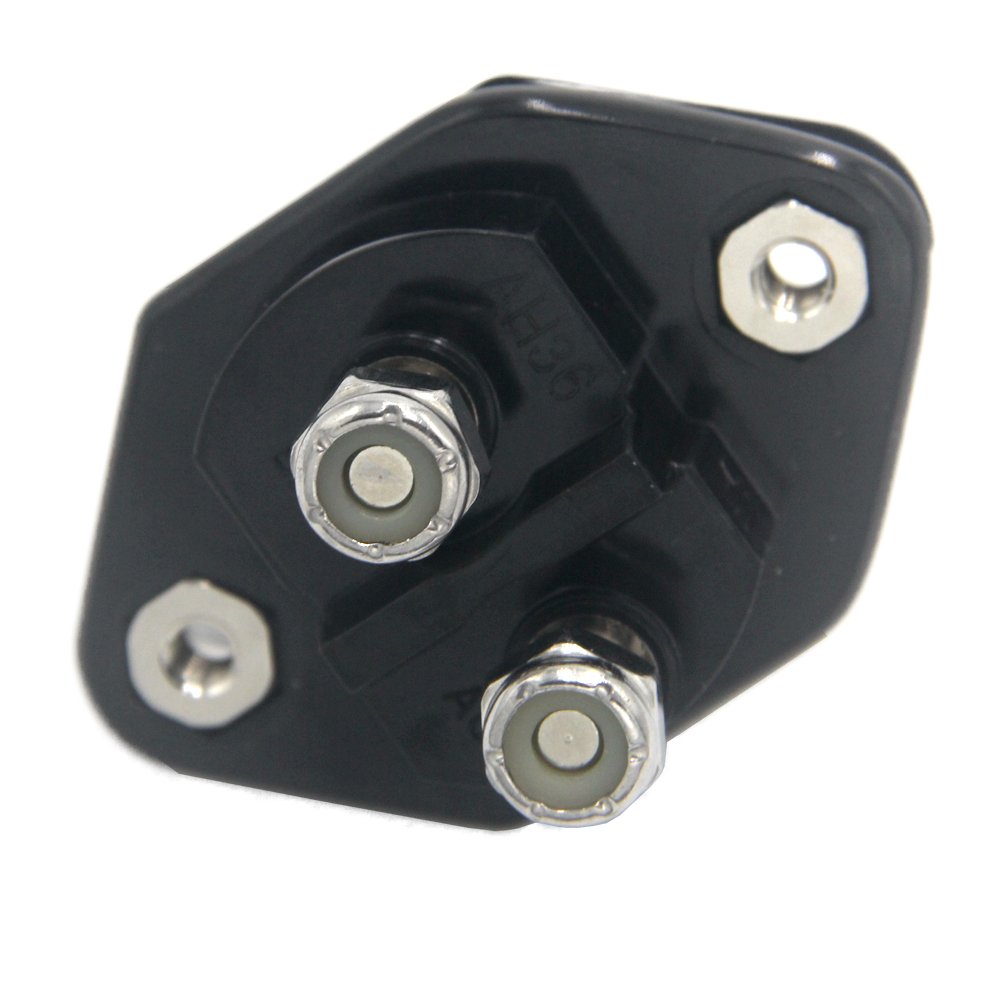

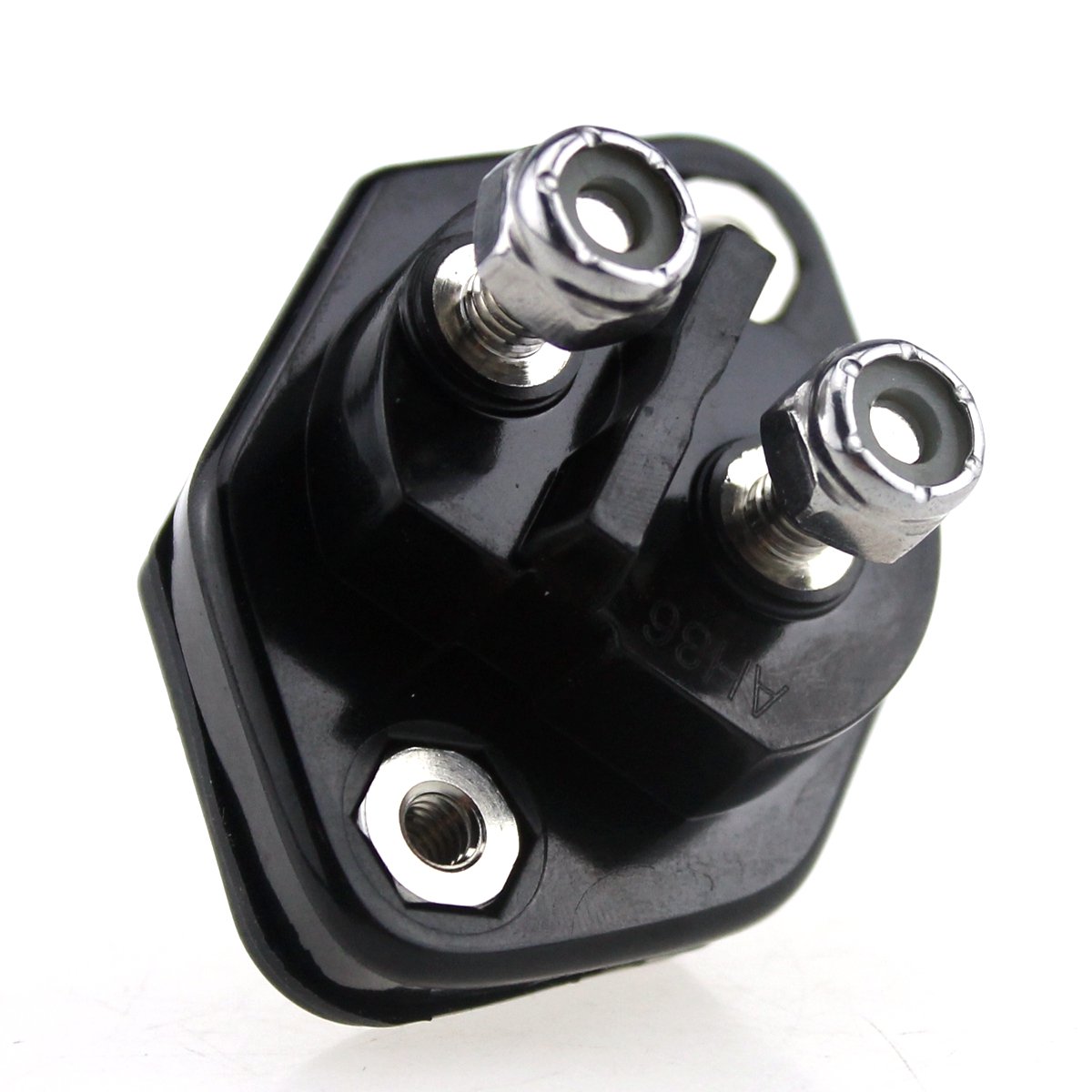

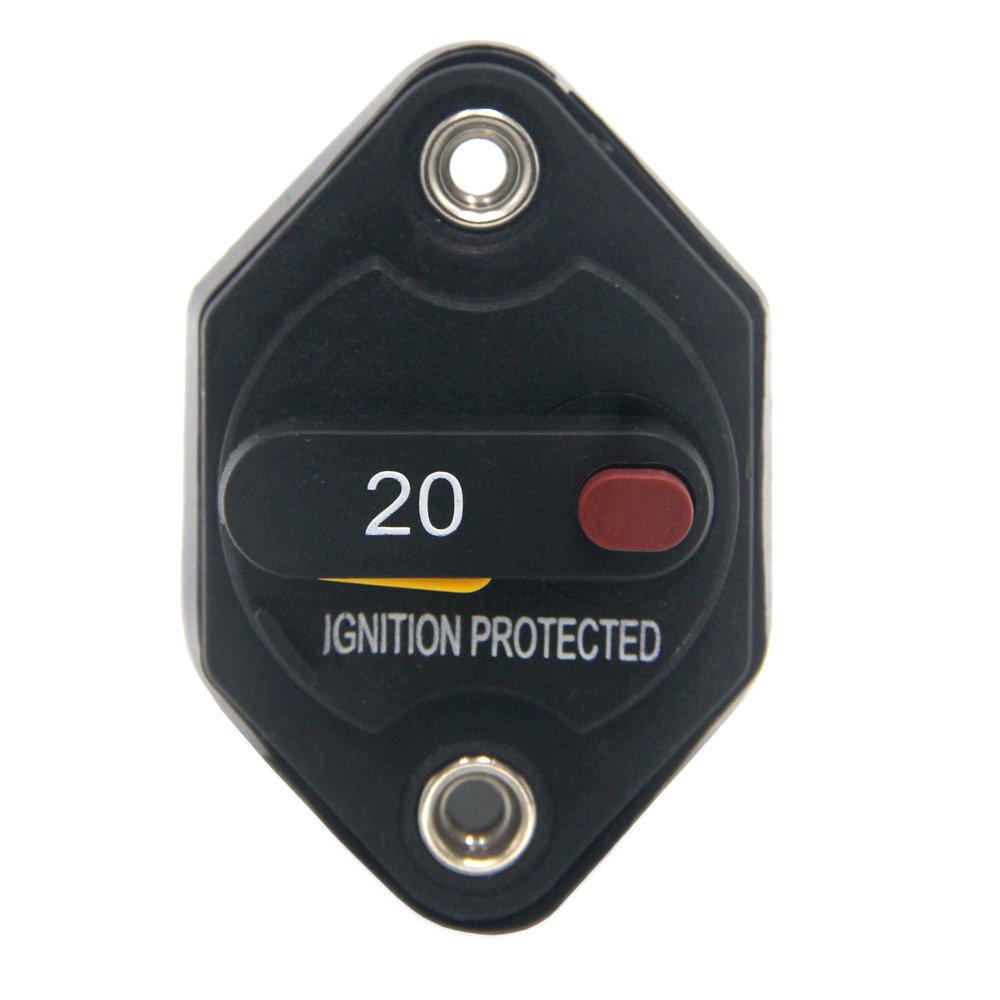

ZOOKOTO 20A Circuit Breaker Fuse Inverter with Manual Reset Button for Auto Truck RV Marine Trailer Waterproof 12V-32V DC 20 Amps

• Power Rating: Drop in replacement for 20A Mid-Range Thermal Circuit Breaker

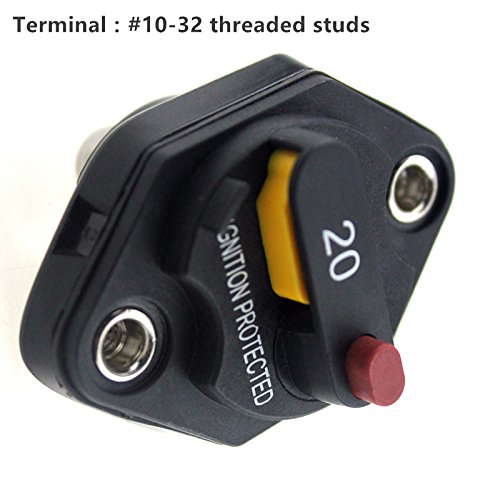

• Terminal Size: #10-32 threaded studs, Dimension: 2.19"x1.46"x1.33" (inch)
• Reset Type: Type III Manual Reset (Switchable), Visible reset lever shows open condition
• Max Voltage: 32V DC, Interrupt Capacity: 2500A per ABYC E-11
• Sepcification: SAE J553; SAE J1171 (Ignition Protected); ABYC E-11; UL1500. Combines switching and circuit protection into a single device

Features: Circuit breaker stops surges from damaging your amps. Unique red push button reset manually. Panel mount and protective stud insulators included. Easy to install, Manual Reset Circuit Breaker, Mount on panel or firewall. Water resistant housing. Splash and dust proof. Typically used in DC systems in marine applications (as a main or branch circuit breaker), truck, bus and RV systems, add-on protection for accessories. Specifications: Material: Metal and plastic Mounting: Panel Mount Main Color: Black Rated Current: 20A Voltage: 32V DC Waterproof Rate: IP67 Reset Type: Type III, Manual Reset Termination: #10-32 threaded studs SAE Standard: SAEJ553 SAEJ1171 Interrupt Capacity: 2500A @ 14Vdc Operating Temperature: -32°C to 82 °C(-25°F to 180 °F) Wire Connection: BAT LINE SHI for input wire, AUX LOAD for output wire Package included: 1 x 20 Amps Circuit Breaker
