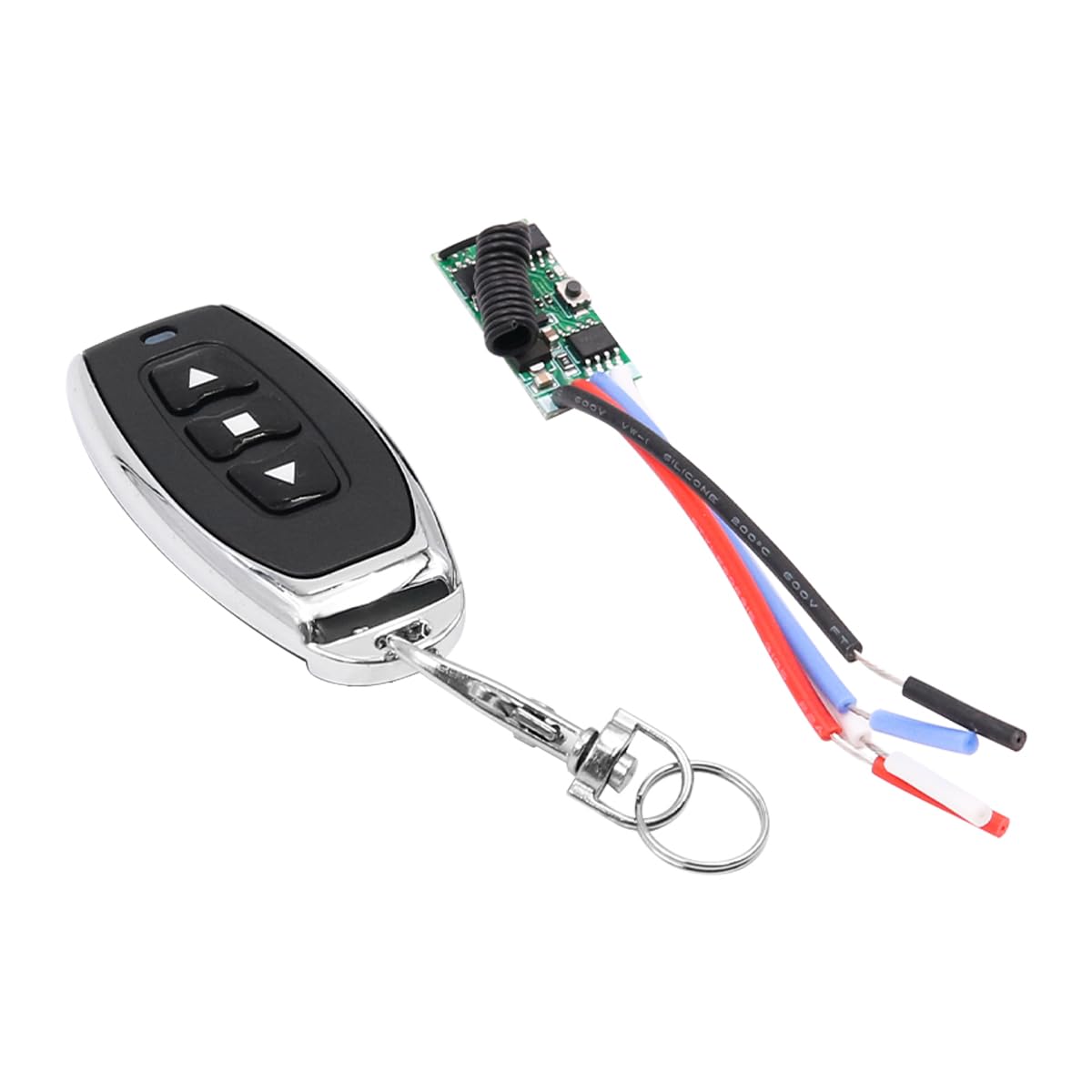

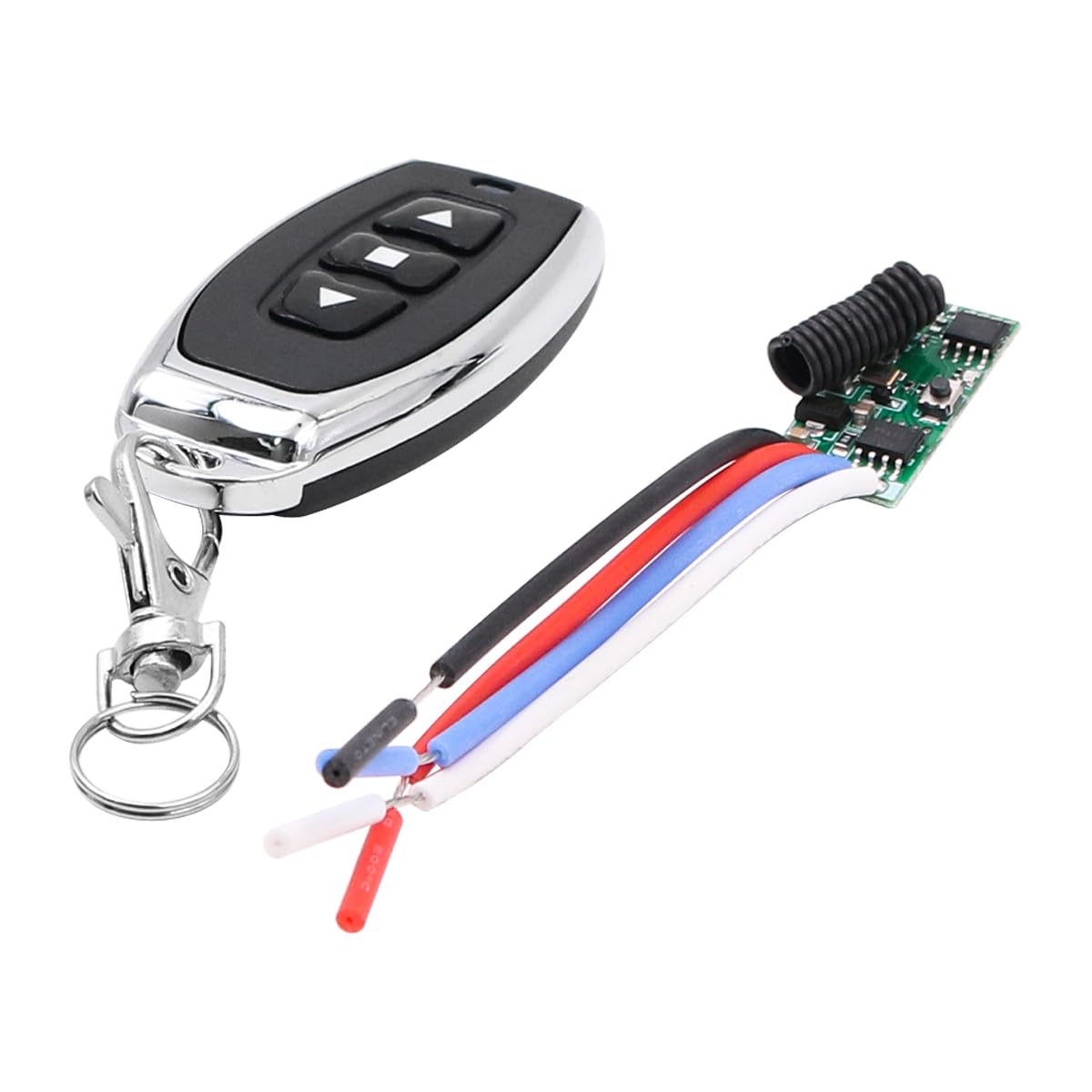

ZONADAH Mini Relay Remote Control Switch DC 3.6V12V24V Button Wireless Switch Kit 433MHz Remote Control DC Motor Forward and Reverse Module

• Extended Range and Penetration: Utilizing advanced radio frequency technology, this remote switch can penetrate walls, floors, and doors, allowing you to control the receiver from virtually anywhere within a reliable distance.
• Direct Wiring Design: The module features a user-friendly wiring design, enabling direct connection to the positive and negative poles of the power source and the motor. This simplifies the installation process, making it ideal for confined spaces like canopies, junction boxes, and electrical enclosures.
• DIY and Versatility: Empowering DIY enthusiasts and professionals alike, this kit finds applications in a broad range of scenarios, including LED lights, light strings, Christmas tree lights, and light-sensitive switches. Its adaptability makes it a versatile choice for diverse control needs.

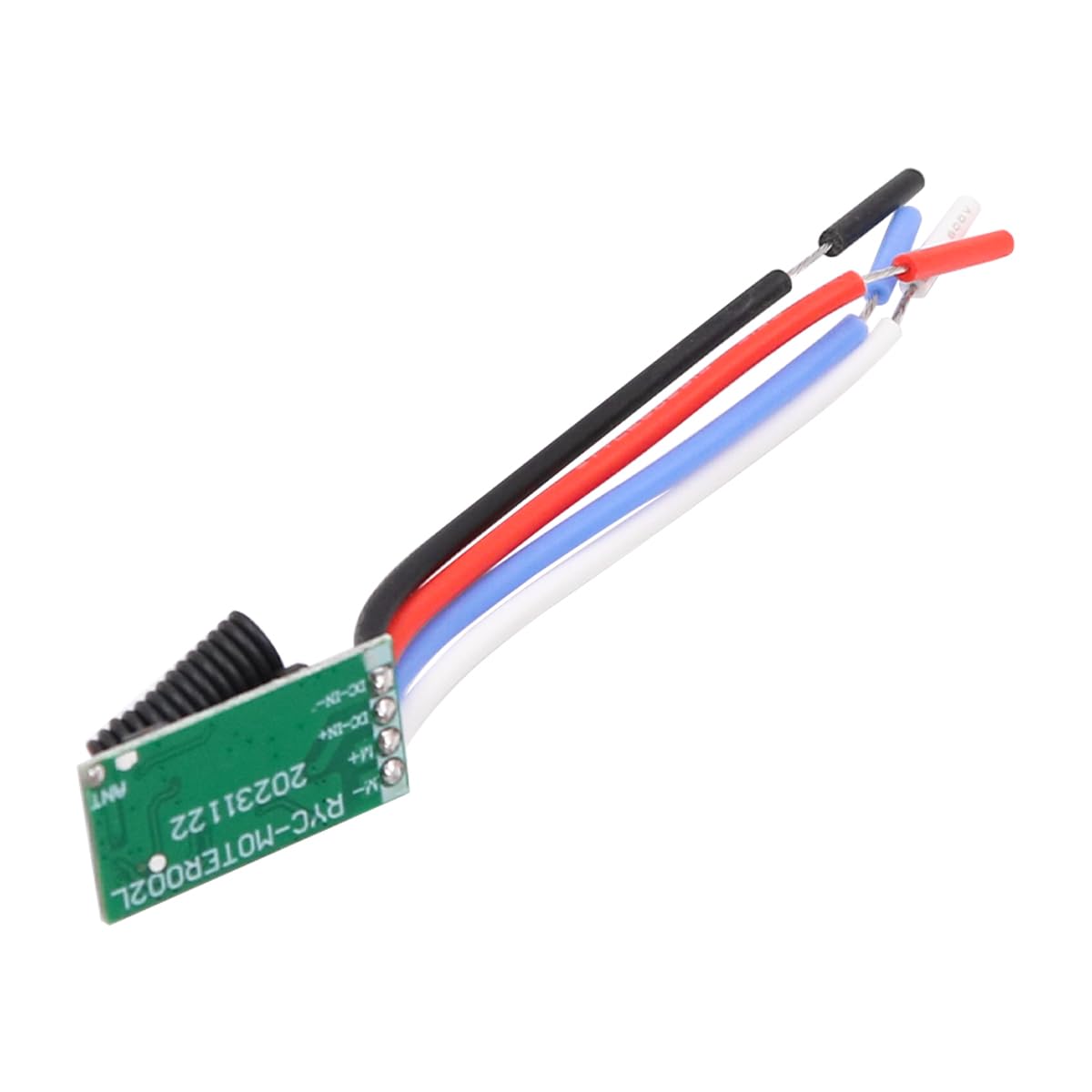

• Compact and High Sensitivity: With dimensions of 30 mm x 13 mm x 4 mm, the receiver boasts a miniaturized form factor that fits into limited spaces. Its compact size doesn't compromise sensitivity, ensuring efficient and responsive control.
• Motor-Specific Design: Tailored for motor control, the module allows you to command the motor in forward, reverse, and stop modes. Ideal for DC-powered devices like cars, electric curtains, water pumps, garage doors, and rolling shutters.

Specifications: - Material: ABS+PC Plastic - Operating Voltage: DC 3.6V~24V - Maximum Load Current: 3A - Static Current: 3.6mA ~ 5.5mA - Operating Frequency: 433MHz - Receiver Sensitivity: ≥-107dBm - Output Voltage: DC 3.6V~24V - Modulation Mode: ASK (Superheterodyne) - Dimensions: 30 mm x 13 mm x 4 mm - Supported Encoding Format: 1527 Learning Code - Remote Controller Storage: ≤4 units - Operating Modes: Momentary, Self-locking, Interlocking + Stop Function, Code Clearing - Learning Method: Button Learning - Operating Temperature: -20~80°C Elevate your motor control experience with the ZONADAH Motor Forward and Reverse Drive Control Module Kit, where innovation meets efficiency for a wide range of applications. Operation method: Clear code: (Clear code before switching mode) Press the learning code button 8 times, LED goes out. LED flashes 5 times, clear OK. (If you need to change the working mode of the same remote control, please clear the code first and then learn) Learning code: 1. Inching: Press the learning button once, the module LED light turns on and off, enters the learning state, the LED light turns on, press the button on the remote control to pair, the LED light flashes three times and turns on (it will not light up in the learning state), continue to press the second button to pair, the LED light flashes three times and turns off, and the inching code is successful. (The first button is for forward jog, and the second button is for reverse jog) 2. Self-locking: Press the learning button twice, the module LED light turns on and off twice, and the LED light turns on after entering the learning state. Use the remote control to press the button to pair the code, and the LED light flashes three times and lights up (it will not light up in the learning state). Continue to press the second button to pair the code, and the LED light flashes three times and turns off. The self-locking code is successful (the first button is for forward self-locking (press the second button to stop), and the second button is for reverse self-locking) 3. Interlock + stop function: Press the learning button three times, the module LED light turns on and off three times, and the LED light turns on after entering the learning state. Use the remote control to press the button to pair the code. The first button learns forward, the second button learns reverse, and the third button learns stop. After learning, the LED light flashes three times and turns off, and the interlocking code is successful (the first button is for forward, the second button is for reverse, and the third button is for stop). 4. Clear code: Press 8 times to clear the code.
