ZHITING XY-T01 Electronic Thermostat Controller,DC 6-30V 24V LCD Digital Temperature Control Board -50~110℃ Temp Control Switch Module with Waterproof Sensor Probe

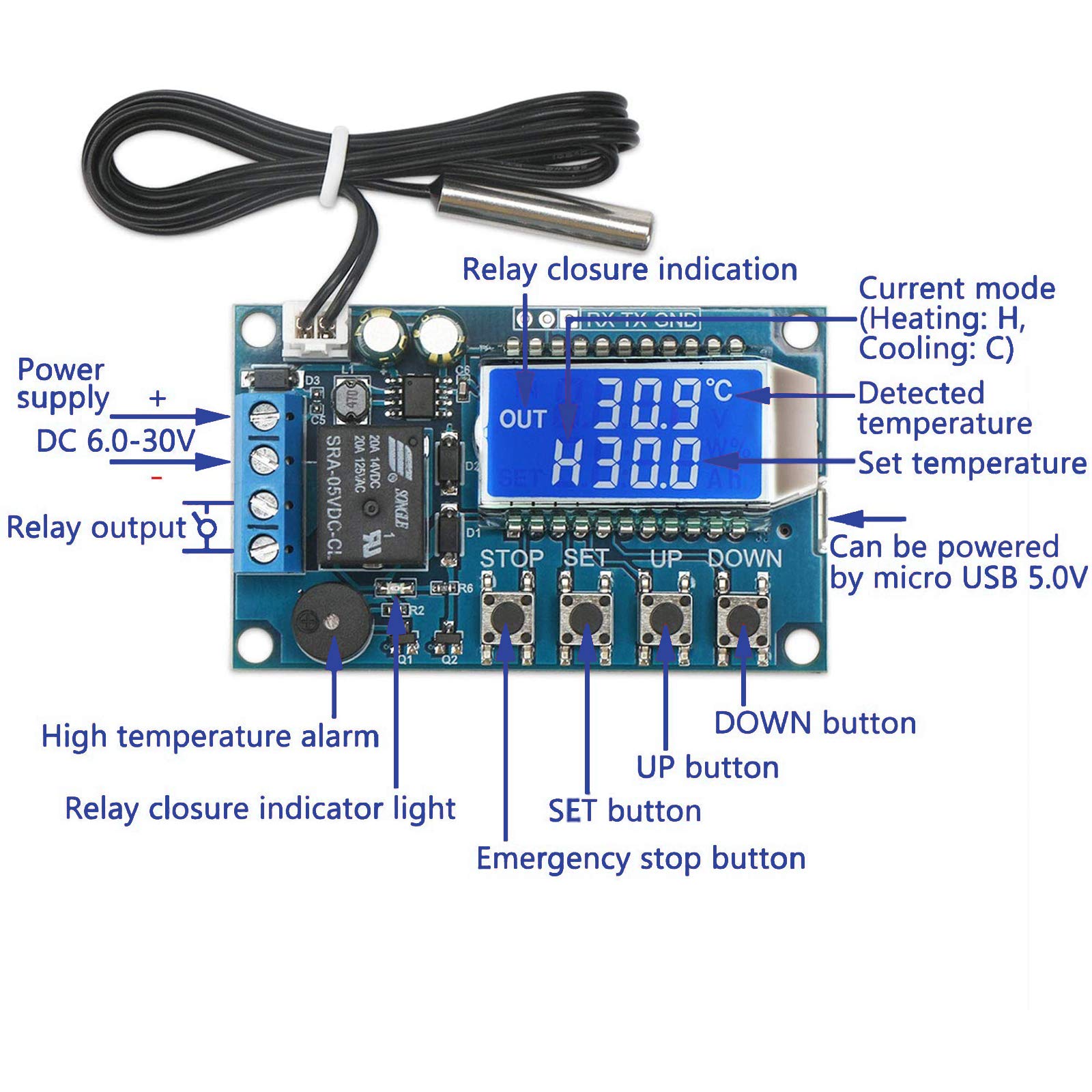

• ★Feature :Electronic thermostat controller power supply is DC 6-30V or 5V micro USB; control load current is 10A (Max); test temperature is -50~110℃; sensor length is 0.5 meter.
• ★High current: Our digital temperature control board adopts high density PC board installation technology, the switch capacity can be up to 10A in spite of the small size.
• ★LCD display: Designed with bright LCD display, people can check the temperature clearly from any angle.

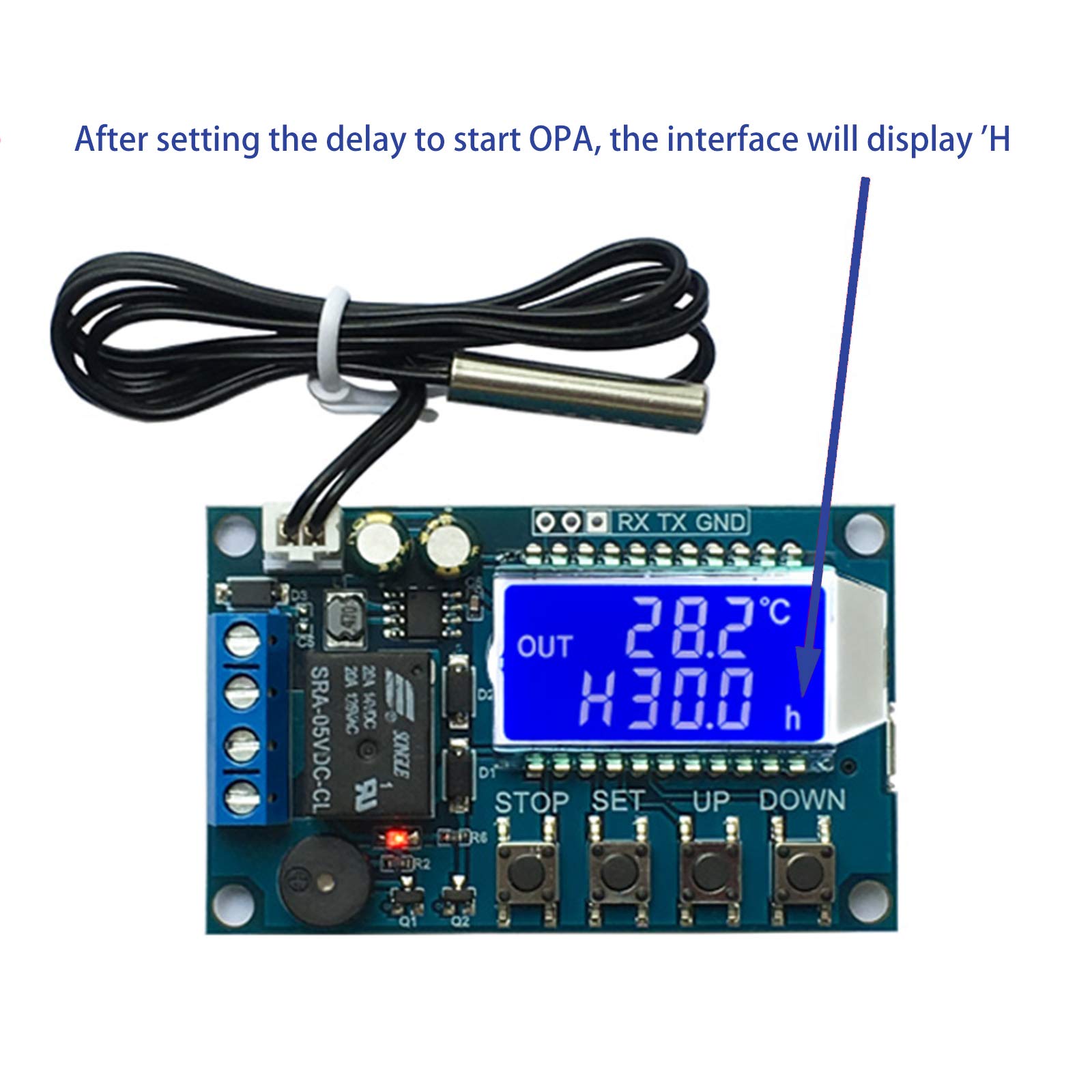

• ★Delay start OPH:After finishing a normal heating or cooling work, the system starts timing T, only after T≥OPH, the system can perform the next round of heating or cooling work
• ★Applications: With waterproof temperature sensor probe, it can be widely used for domestic appliance, office machine, audio, equipment, automobile, etc.

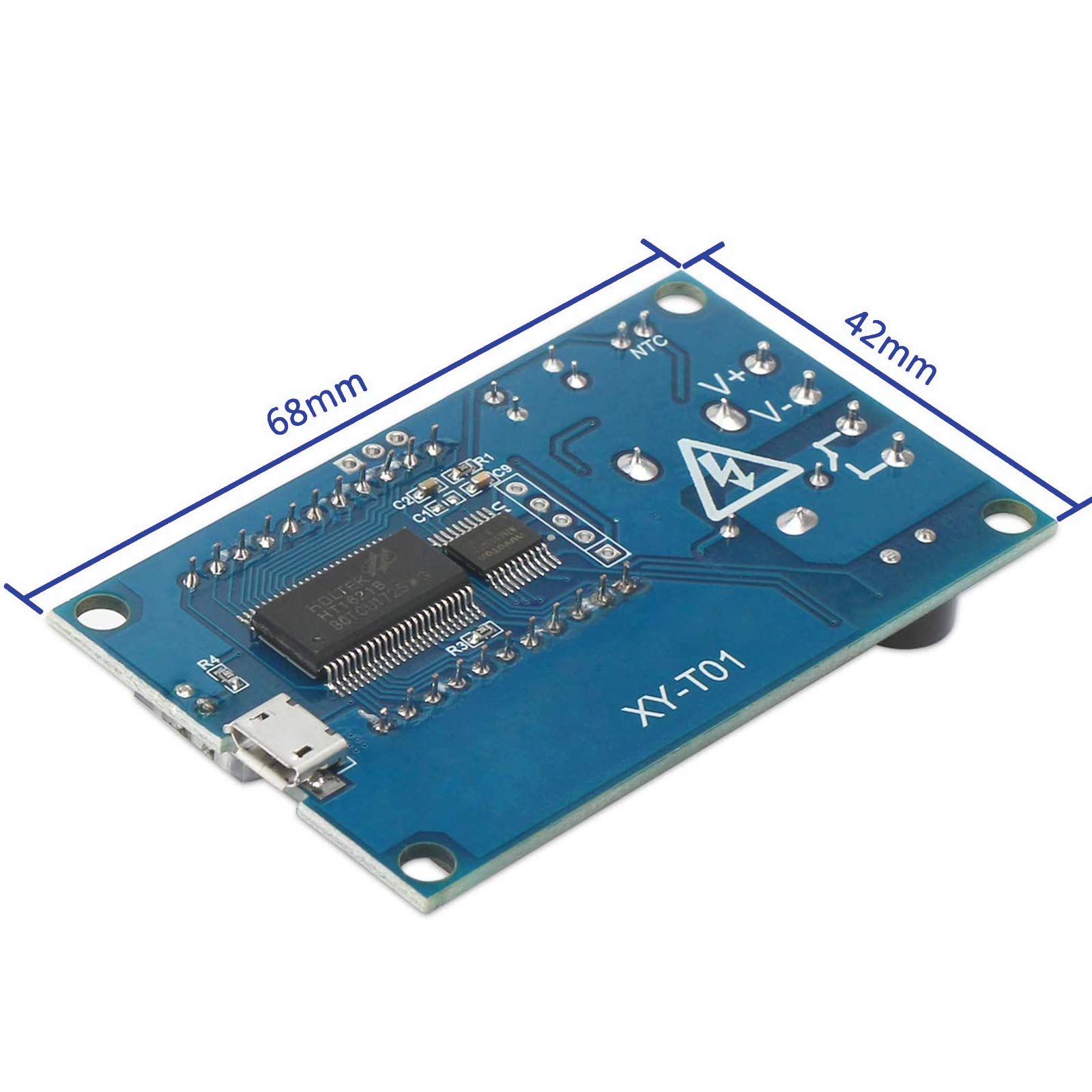

Description Description : Model: XY-T01 digital thermostat Power supply: DC6.0~30V or 5V Micro USB Temperature control range: -50℃~110℃ Temperature control precision: 0.1℃ Measuring input: NTC10K/B3950 Refresh rate: 0.5 second Output type: relay output 10A Probe type: waterproof probe, L: 0.5m Control type: temperature Control mode: intelligent temperature control regulator Measuring object: temperature Temperature range: -50-110 (℃) Temperature measurement error: 1 (℃) Appearance size: 68*42*15mm User-friendly functions: The thermostat module has the function of real-time temperature reporting, temperature correction function, high-temperature alarm, emergency stop function and support UART Set, which make the module reliable and easy to use. How to turn on the high temperature alarm (default off): Enter the parameter setting interface, switch to the alarm parameter ALA interface, and turn on or off the high temperature alarm function by short pressing the STOP button; if the high temperature alarm function is turned off, ALA will display ‘----’ as a reminder; How to enable delayed start (default off): Enter the parameter setting interface, switch to the alarm parameter OPH interface, turn on or off the high temperature alarm function by short pressing the STOP button; if the high temperature alarm function is off, OPH displays ‘----’ as a reminder; Package Including: 1x Electronic Thermostat Controller
