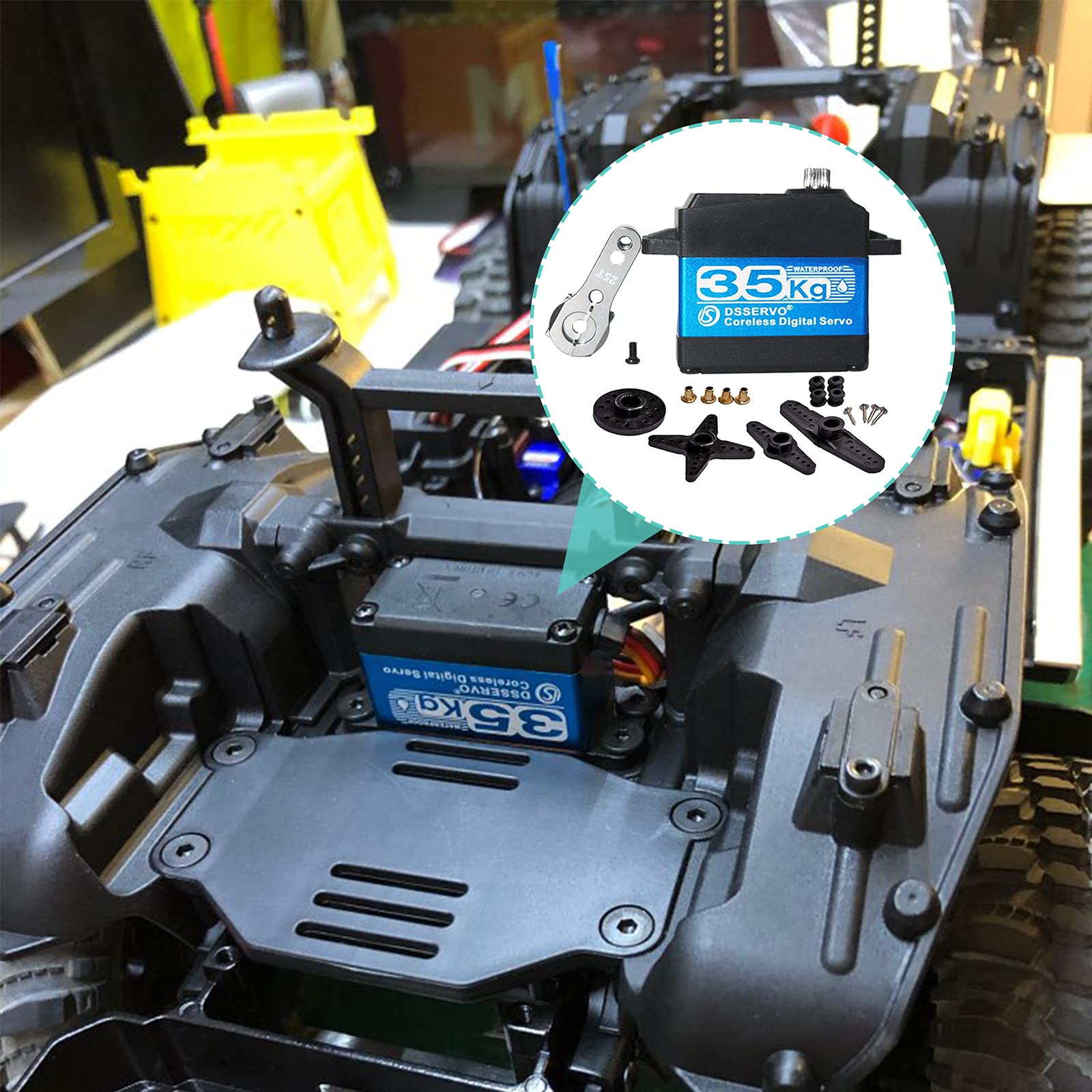

ZHITING 35KG Coreless Digital Servo Motor Stainless Steel Gear 7.4V High Torque Waterproof DS3235 with 25T Servo Arm for RC Car Robot (180°

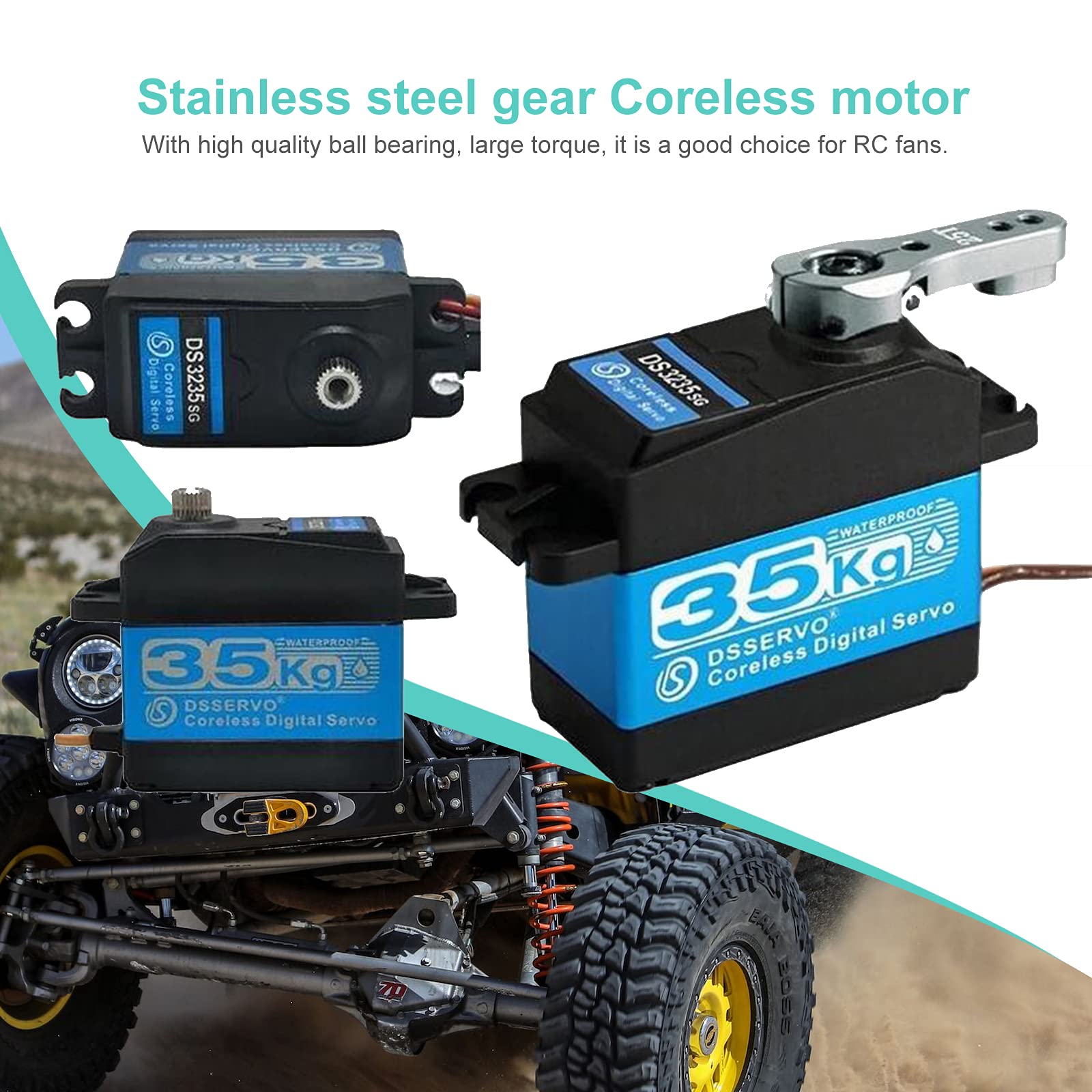

• ❀Model:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo.

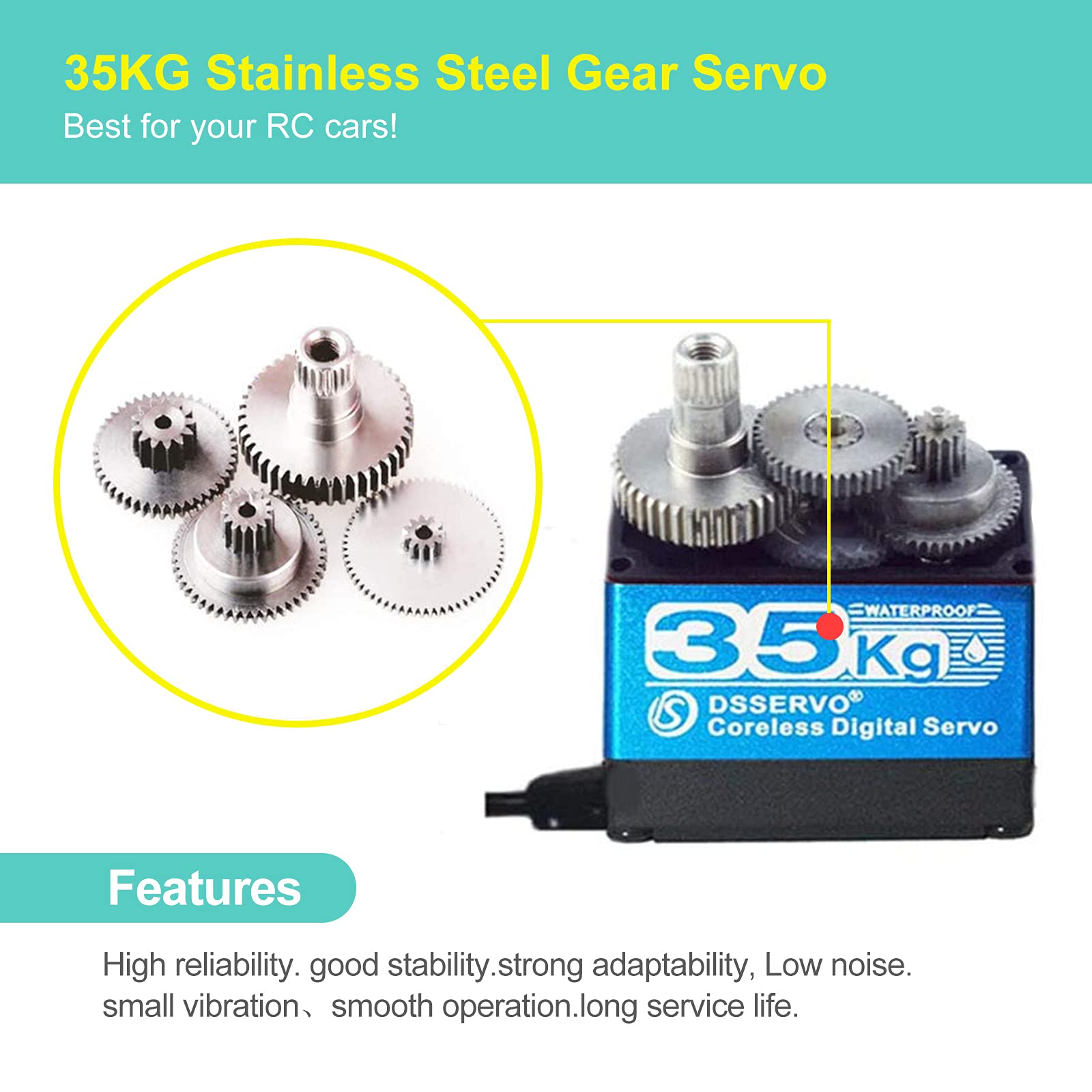

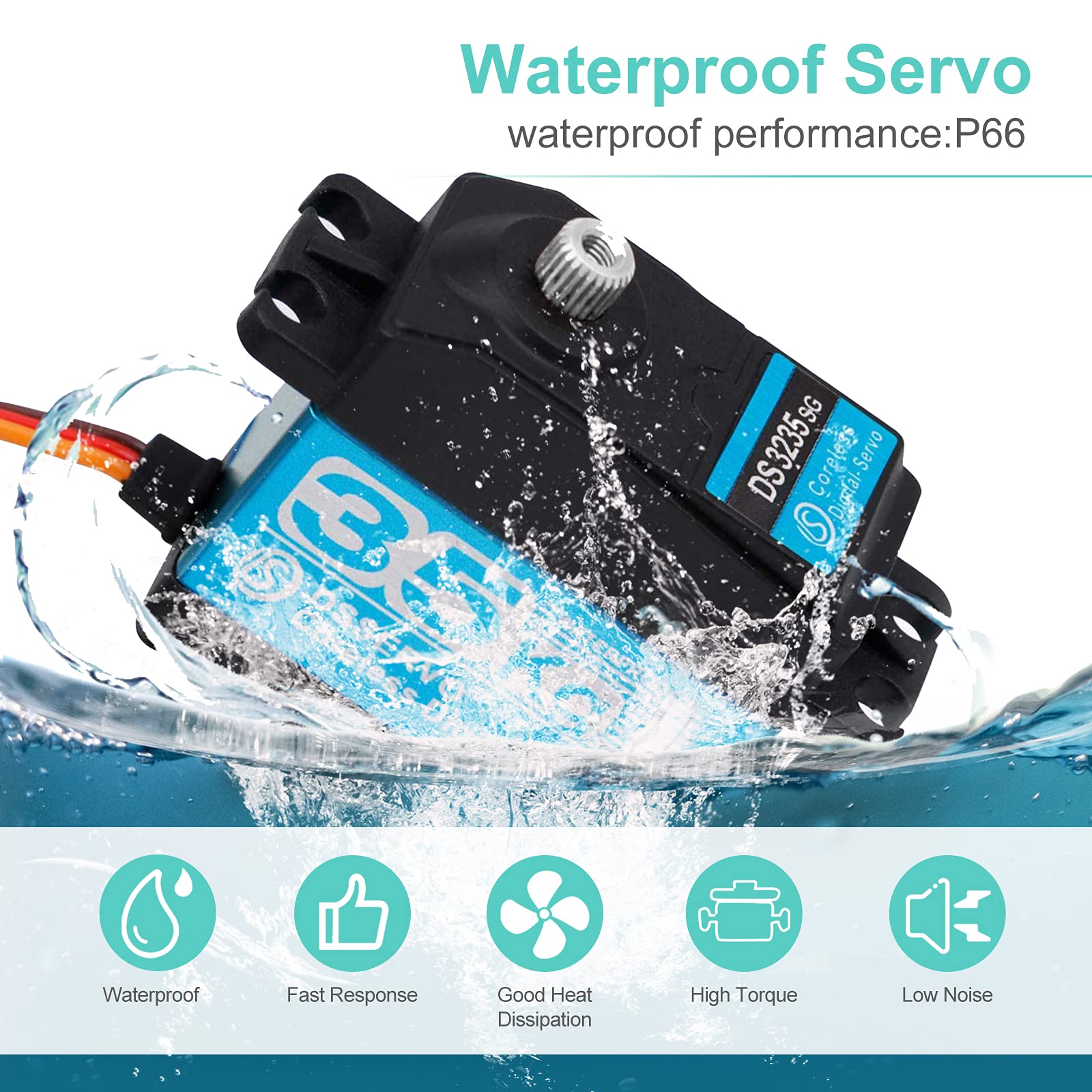

• ❀Waterproof:waterproof performance for worry free operation;extremely strong unique stainless steel & Aluminum gears ensure long life and durability.
• ❀High Performance:High reliability、good stability、strong adaptability, low noise、small vibration、smooth operation、long life.

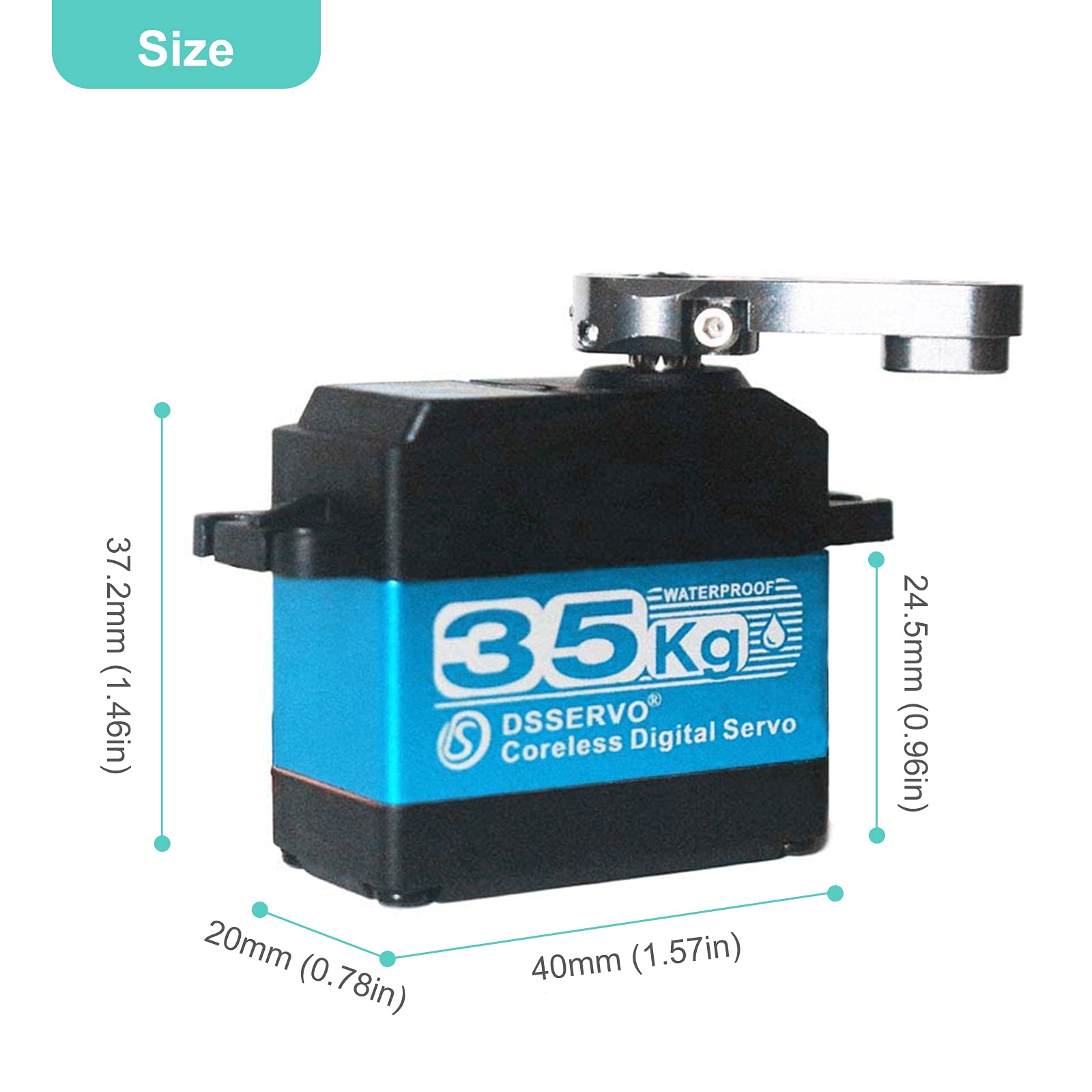

• ❀Small：Super light-weight,small size but strong.Dimensions: 40x20x38.5mm, Weight: 60g.
• ❀High Rotation: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control.

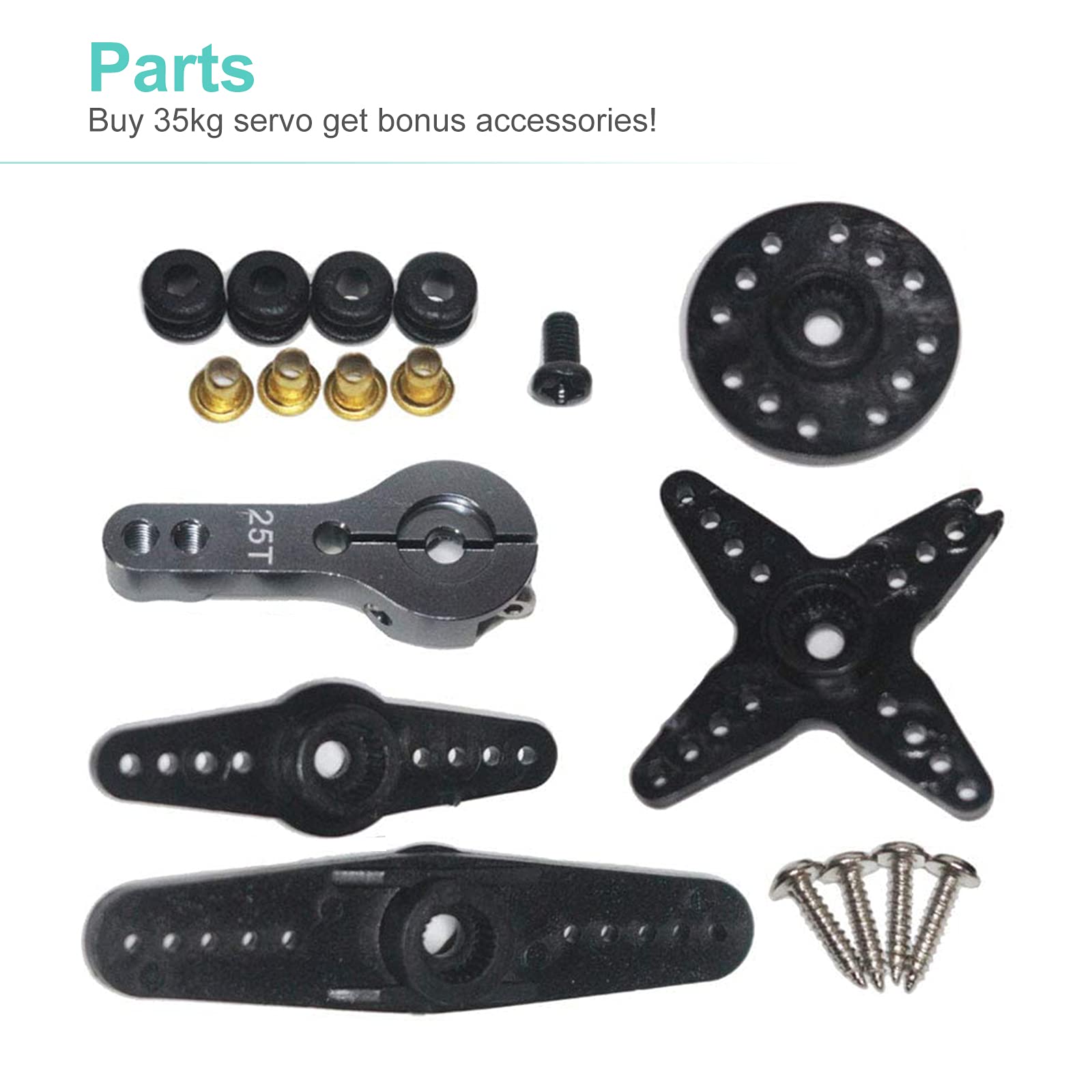

Features: - High performance digital standard servo - High-precision metal gears （Stainless steel gear）with hard anodizing - CNC aluminium middle Shell - Dual ball bearings Electrical Specification: -Operating voltage range: 5-7.4V -Operating speed ( 5.0V ): 0.1 3sec/60 degree -Operating speed ( 6.0V ): 0.12 sec/60 degree -Operating speed ( 7.4V ): 0.11 sec/60 degree -Stall torque ( 5.0V ): 29kg/cm -Stall torque ( 6.0V ): 32kg/cm -Stall torque ( 7.4V ): 35kg/cm Control Specification: -Control System: PWM(Pulse width modification) -Pulse width range: 500~2500 μsec -Neutral position: 1500μsec -Running degree: 180° (when 500~2500 μsec) -Dead band width: 3 μsec -Operating frequency: 50-330Hz -Rotating direction: Counterclockwise (when 500~2500 μsec) Mechanical Specification: -Gear ratio: 373 -Weight: 60g -Bearing: Double bearing -Connector wire: 17.7inches(450mm) -Motor: 3-pole(s) -Waterproof performance: IP66 -Size: 40x20x38.5mm (1.58x0.79x1.50 in) Package: -1 x DS3235SSG Coreless Servo -1 x 25T Adjustable metal servo arm -One set of accessories Note: Thank you for visiting Benxiaodian. If you have any questions, please contact us in time, thank you
