ZHITING 2Pcs Analog Servo Gear Servo 20KG High Speed Torque Digital Servo Motor for Smart Car Robot Boat RC Helicopter(Control Angle 180)

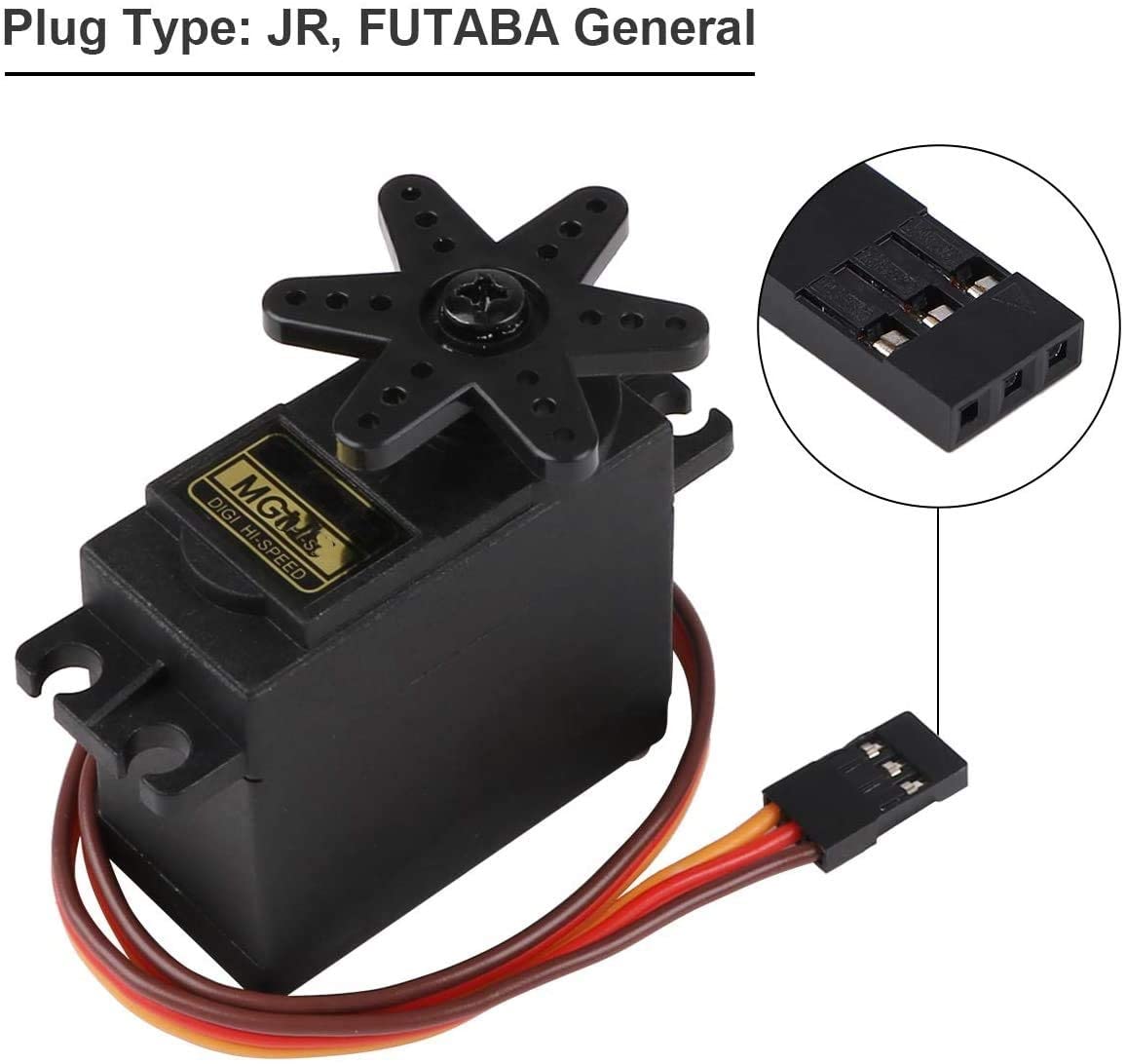

• Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc

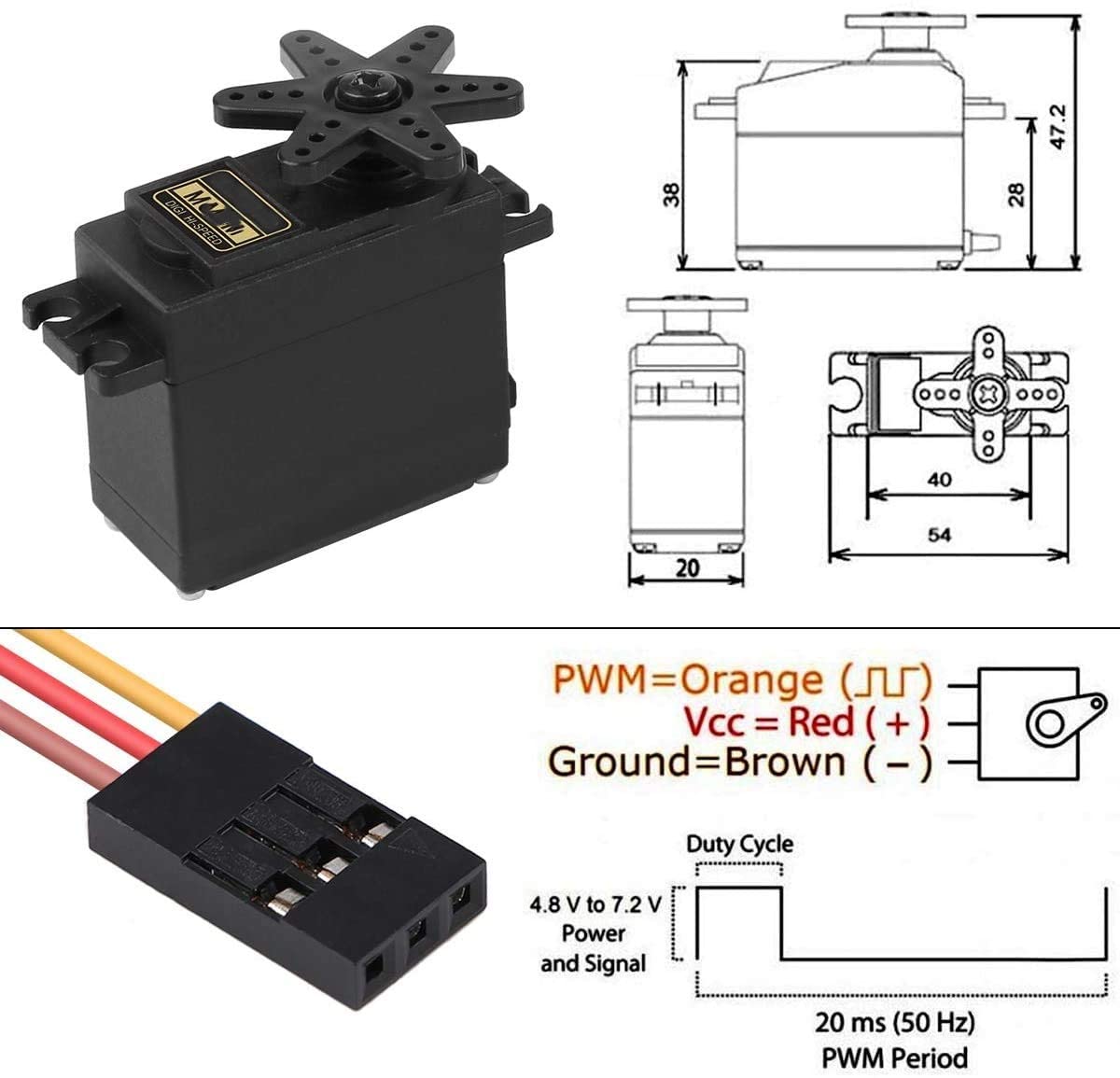

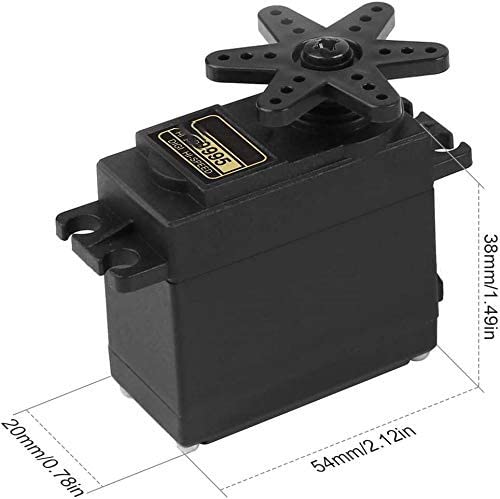

• Dimension:40.7*19.7*42.9mm(1.6*0.78*1.69inch).
• Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc

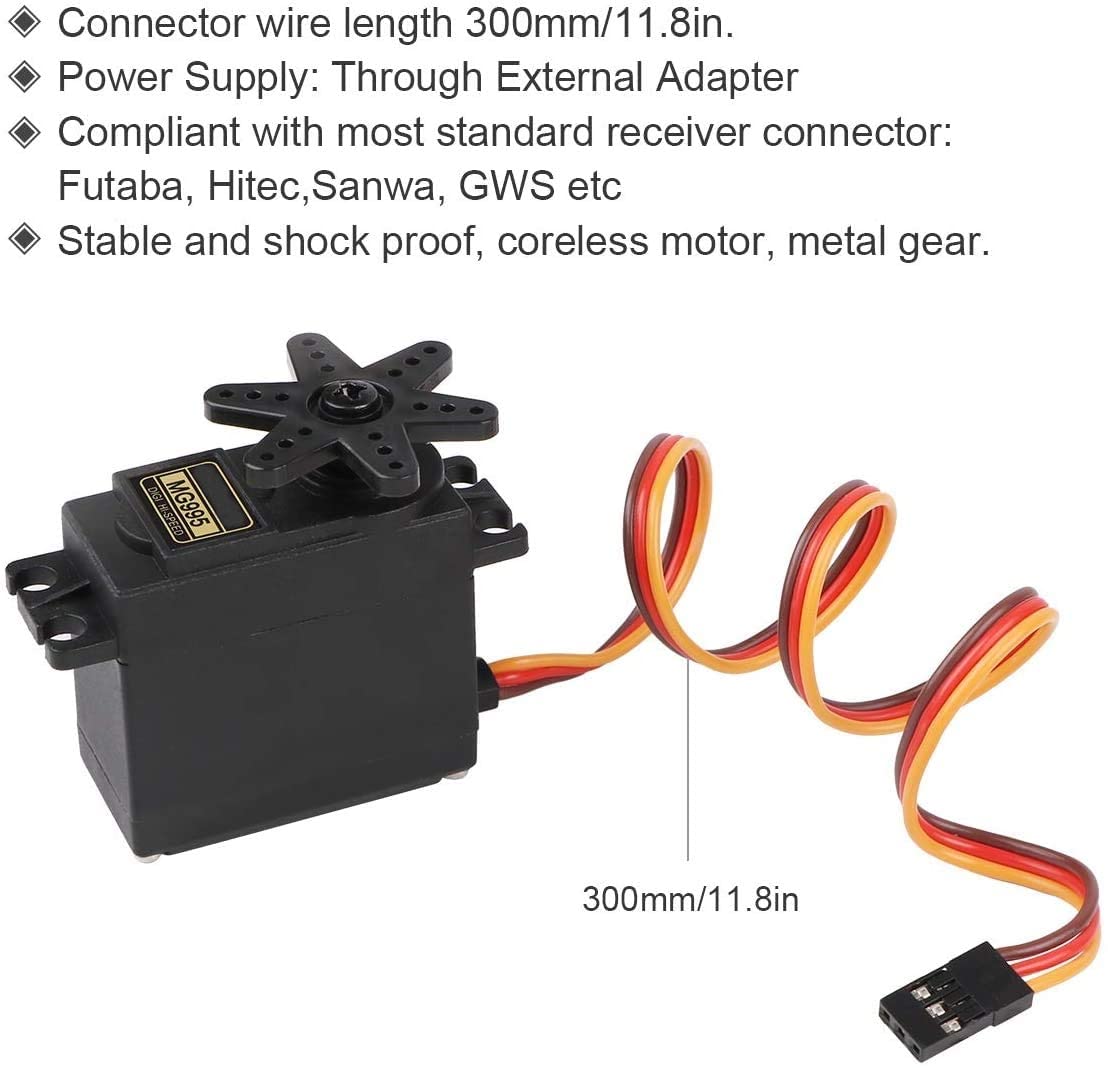

• Power Supply: Through external adapter, connector wire length 300mm. Stable and shock proof, coreless motor.

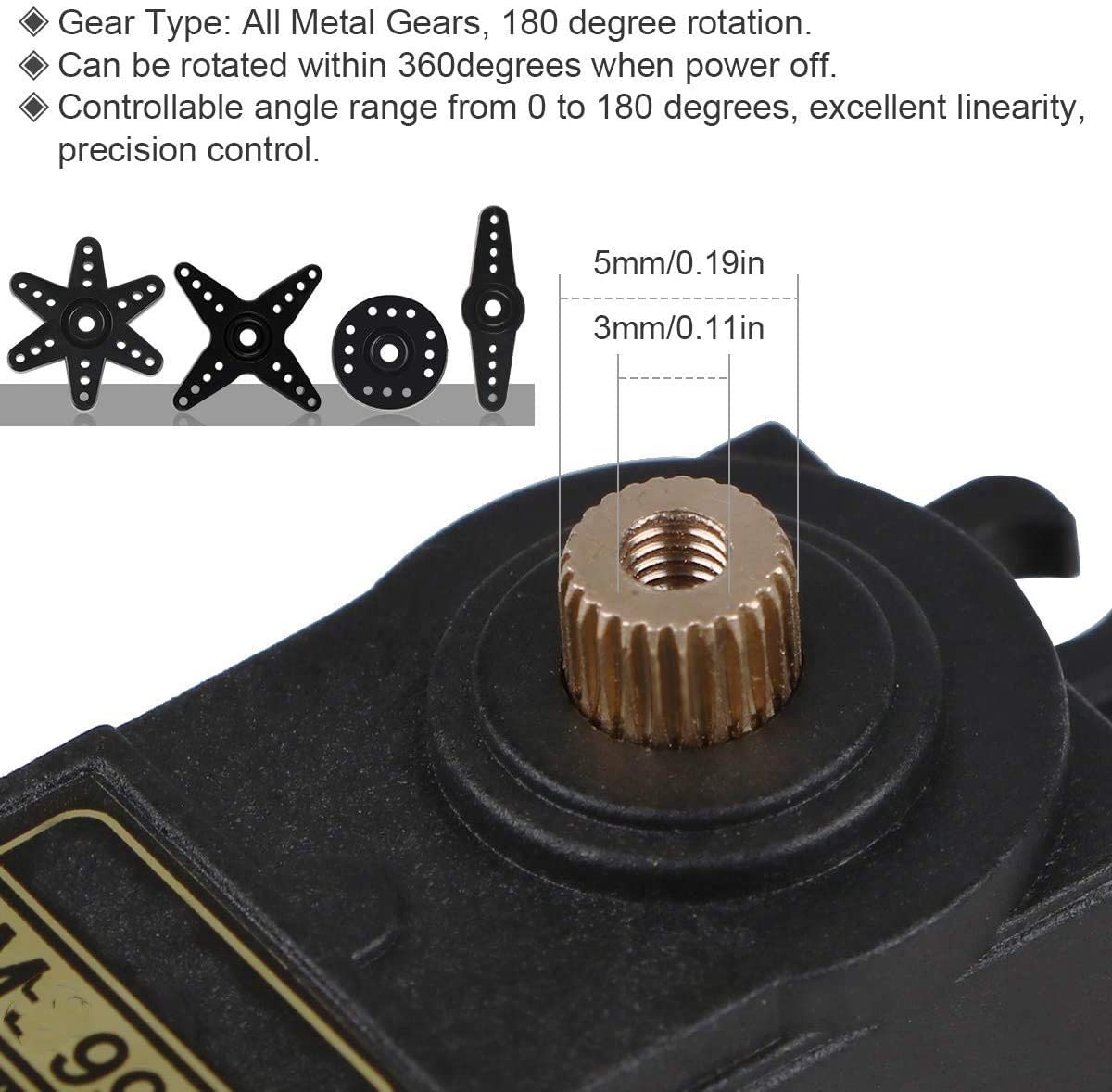

• Gear Type: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off.

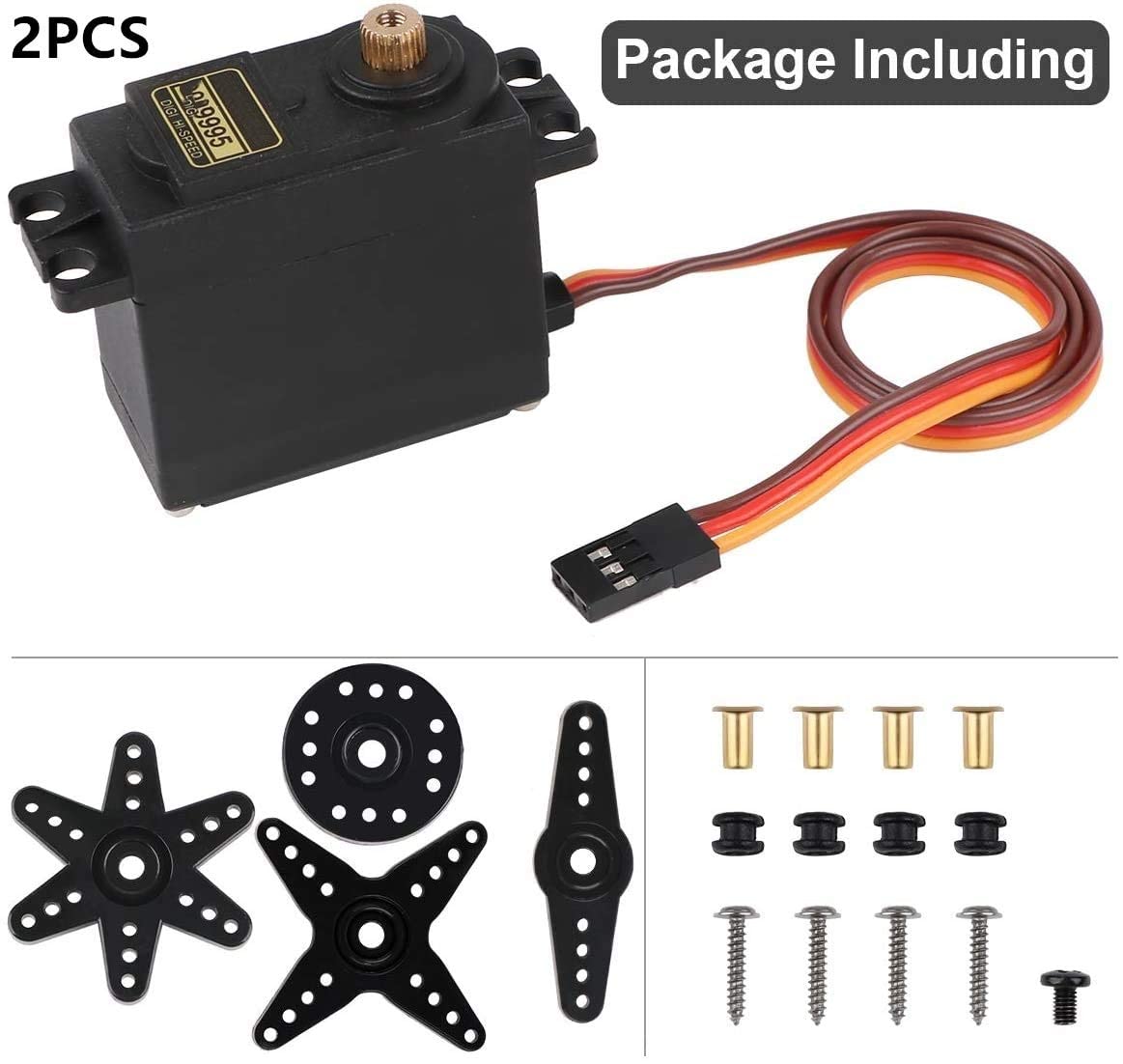

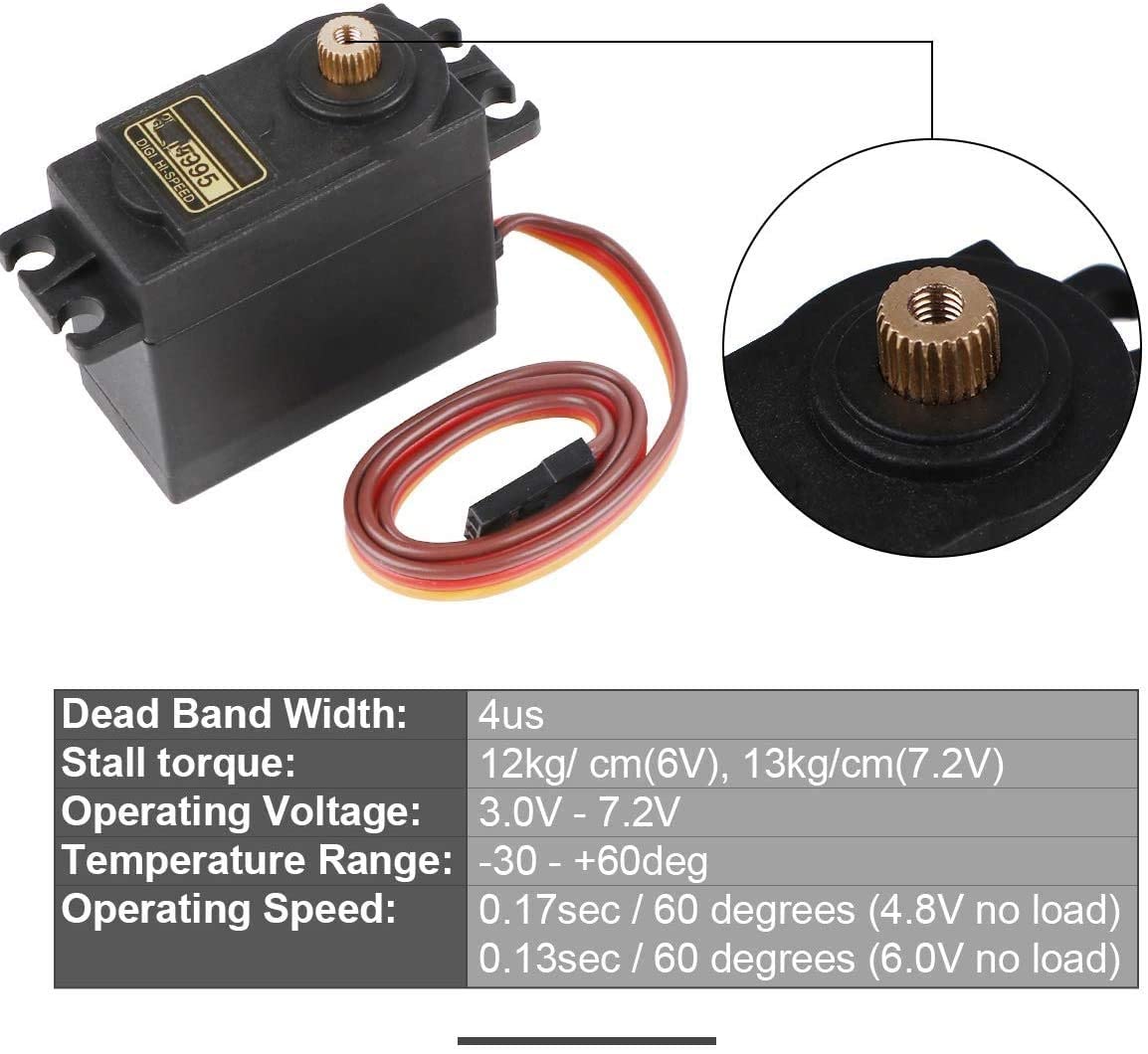

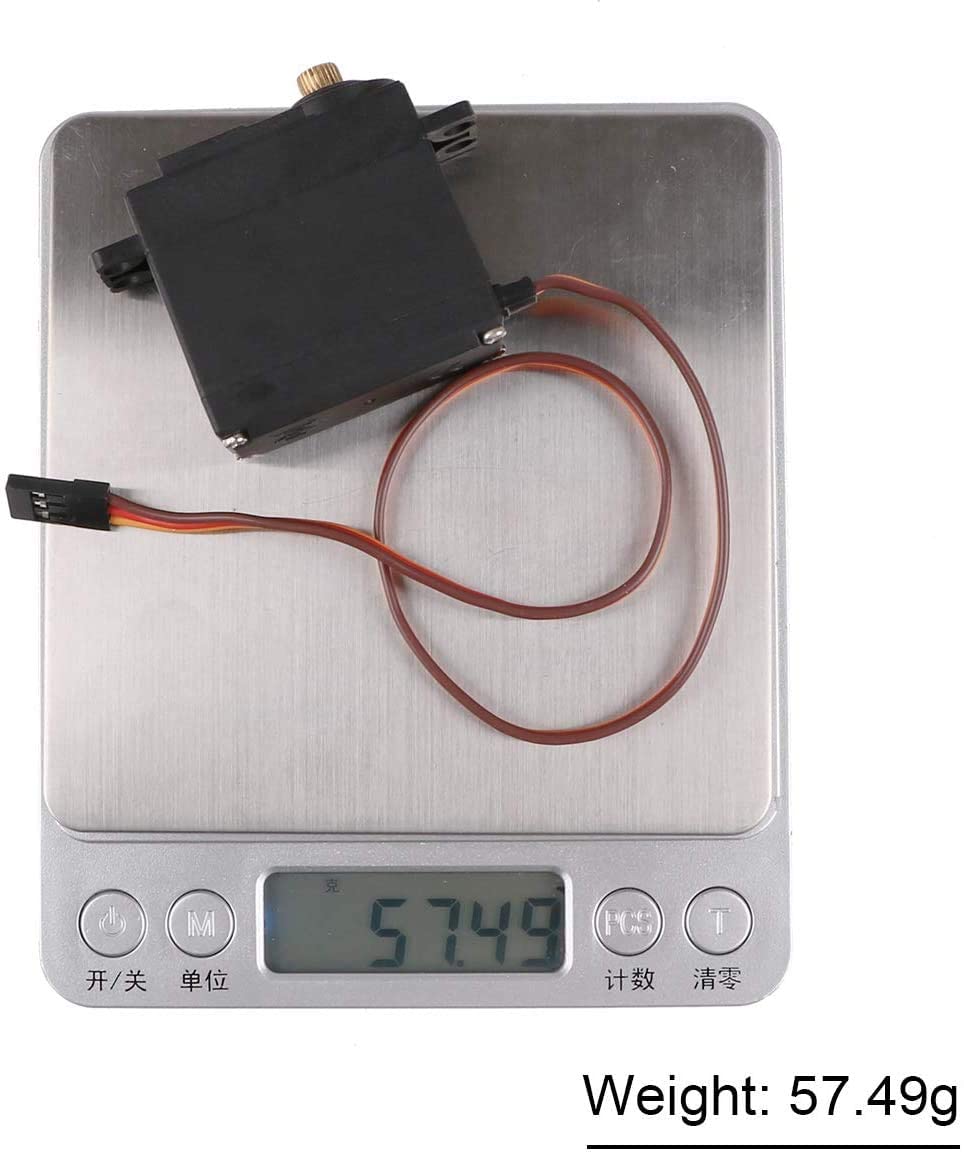

Specifications: Length of the connection cable 300 mm Operating speed: 0.17s / 60 degrees (4.8V with no load) Operating speed: 0.13s / 60 degrees (6.0V with no load) Locking torque: 12 kg / cm (6 V), 13 kg / cm (7.2 V) Operating voltage: 3.0 V - 7.2 V. Dead band width: 4us Connector specification: JR FUTABA and so on Temperature range: -30 - + 60 degrees Item size: 40.7 * 19.7 * 42.9mm (1.6 * 0.78 * 1.69 inch) Servo weight: 55g Control specifications: Control method: PWM Pulse width: 500-2500 Working ratio: 0.5 ms - 2.5 ms Pulse duration: 20ms Connection: Red wire: + Yellow wire: PWM / signal Brown wire: GND Properties: Power supply: through external adapter Stable and shockproof Compatible with most standard receiver ports: Futaba, Hitec, Sanwa, GWS, etc. Ideal for bipod robots / robots / remote-controlled car, suitable for models of 50-90 methanol fixed-wing aircraft and 26- to 50-cc petrol fixed-wing aircraft Note: 1. Make sure the duty cycle of the controller you are using meets our specifications. Otherwise, the servo cannot be rotated to the specified degree. 2. If you have any questions, please feel free to contact us. We will help you as soon as possible. Package included: 2 * servo
