ZEROplus Mortice Overhead Door Limiting Restrictor Arm Stay, 90° Opening Door Angle, Z102-Z

• Mortice overhead limiting stay which limits the opening angle of a door to 90 degrees. Since it is a morticed product, it is primarily for use on timber doors. It is reversible so is suitable for either left hand or right hand doors. It can also be used on double action doors.

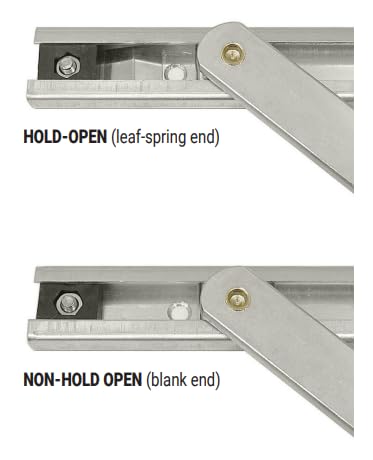

• The channel is morticed into the top of the door, and the head plate fits under the soffit. It is manufactured from mild steel with electro zinc-plated finish. There is a leaf spring at one end of the channel, and by reversing the channel it can be fitted to either hold the door open (leaf spring fitted nearest the door jamb) or function as a non-hold open stay (blank end fitted nearest the door jamb). Since this limit stay is often used on outward opening external doors, all parts are electro zinc plated to extend life
• The channel is 357mm long x 30mm wide x 12mm deep. The minimum door leaf width for doors fitted with butt hinges is 610mm.
• Manufactured from mild steel with electro zinc-plated
• Successfully tested to Grade 3 (96 hours neutral salt spray exposure). This product is supplied complete with seven #6 x 19mm BZP countersunk wood screws

Mortice overhead limiting stay which limits the opening angle of a door to 90 degrees. Since it is a morticed product, it is primarily for use on timber doors. It is reversible so is suitable for either left hand or right hand doors. It can also be used on double action doors. The channel is morticed into the top of the door, and the head plate fits under the soffit. It is manufactured from mild steel with electro zinc-plated finish. There is a leaf spring at one end of the channel, and by reversing the channel it can be fitted to either hold the door open (leaf spring fitted nearest the door jamb) or function as a non-hold open stay (blank end fitted nearest the door jamb). Since this limit stay is often used on outward opening external doors, all parts are electro zinc plated to extend life. The channel is 357mm long x 30mm wide x 12mm deep. The minimum door leaf width for doors fitted with butt hinges is 610mm. Successfully tested to Grade 3 (96 hours neutral salt spray exposure). This product is supplied complete with seven #6 x 19mm BZP countersunk wood screws
