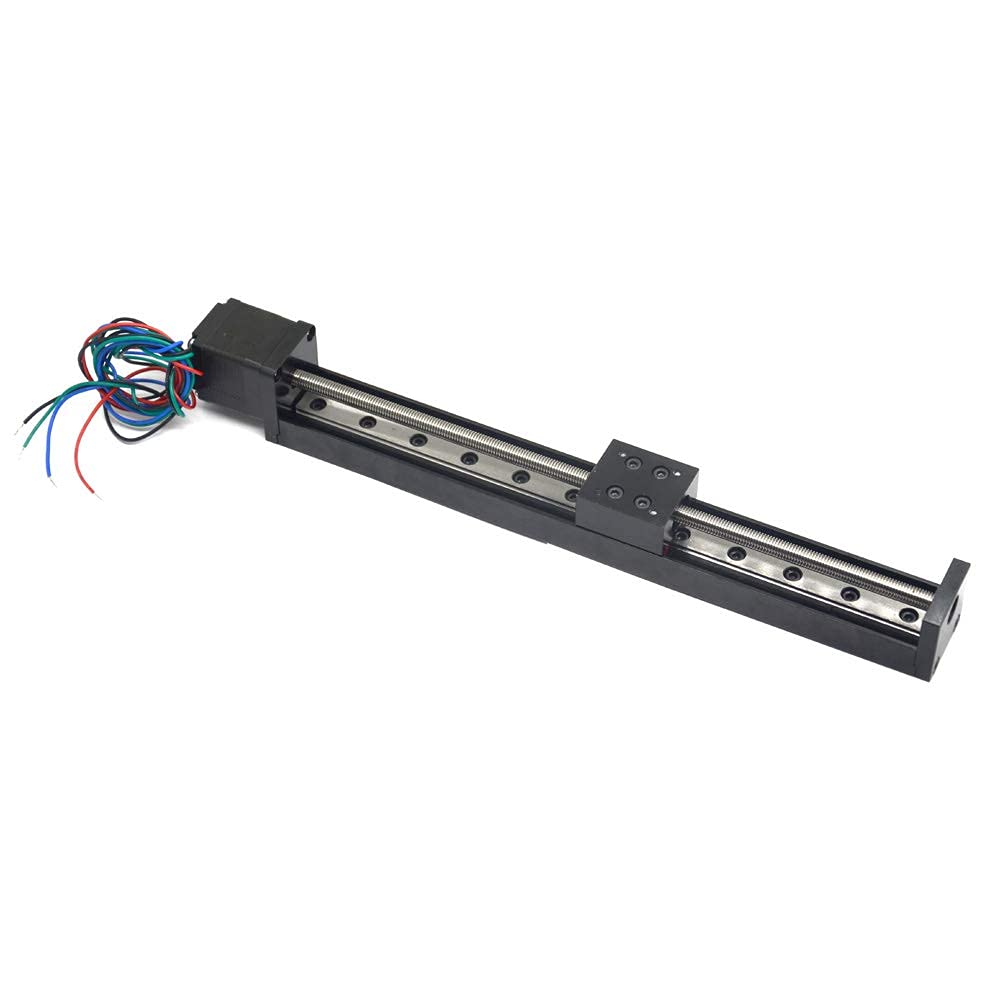

Zeberoxyz 1PCS Mini Linear Rail Guide Slide Actuator T6x1 Lead Screw with NEMA11 Stepper Motor,200mm Effective Stroke Length for DIY CNC Router Parts X Y Z Linear (Size:200mm)

• Widely used for DIY CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
• Material: Made of high quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion
• Accuracy: Repeat positioning accuracy is ±0.05mm Load: Maximum horizontal load capacity: 2.5kg; Maximum vertical load capacity: 1kg.Speed: 0-120mm/min
• Effective stroke: 200mm effective stroke, T6x1: 6mm diameter, 1mm lead 1mm pitch (lead screw can move 1mm in one turn)
• Package Content:1PCS T6x1 Linear Stage Actuator with NEMA11 Stepper Motor

Specifications: Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 28mm Motor length: 30mm Holding torque: 6N.cm Current: 0.6A Resistance: 5.5 ohm Inductance: 3.2 mH Rotor Inertia: 8g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 200mm Total length:275mm Type: linear system moulde Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm Weight: about 434g Package Content: 1PCS T6x1 Linear Stage Actuator with NEMA11 Stepper Motor PLEASE NOTE: Please allow 0-1mm error due to manual measurement. Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown on the picture. Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.
