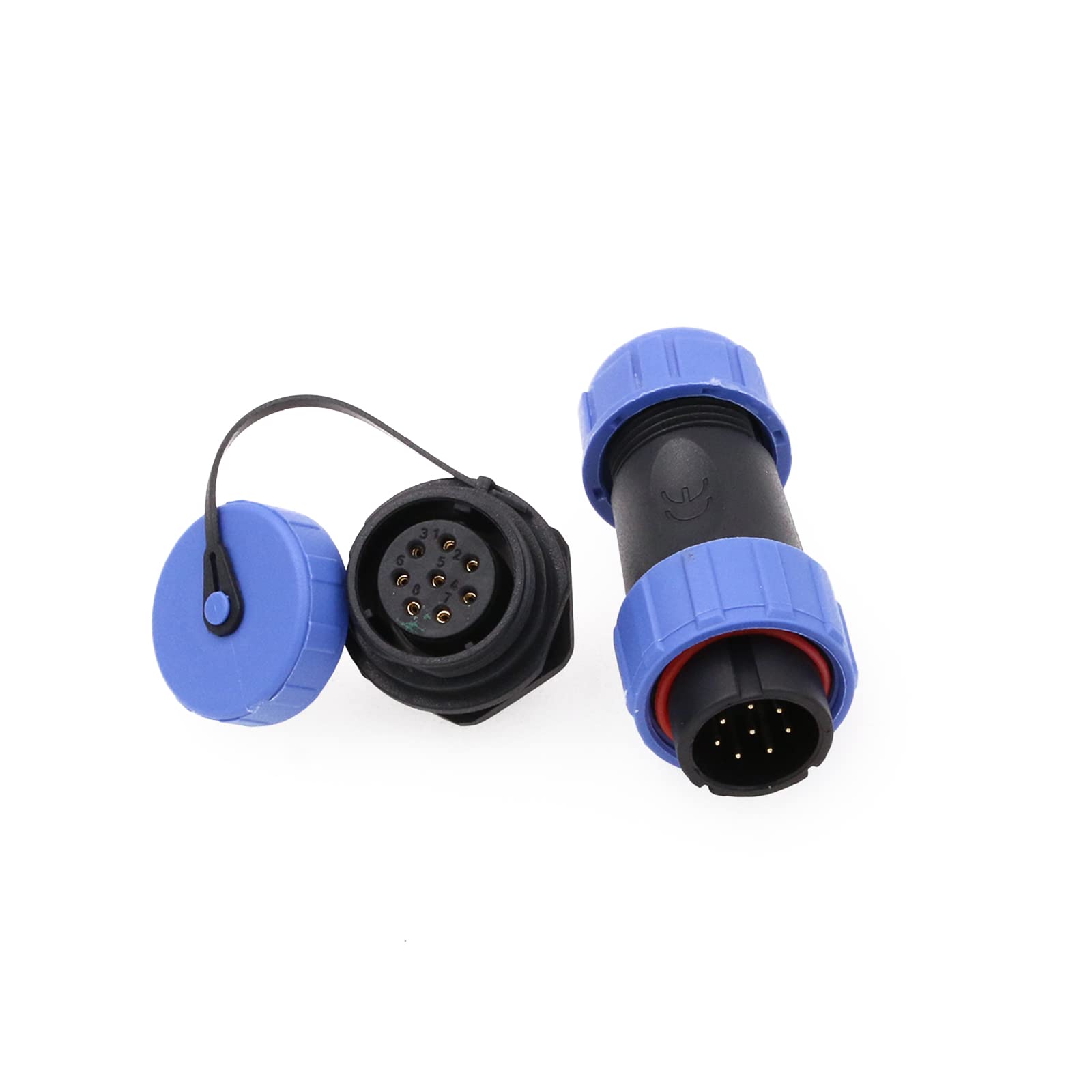

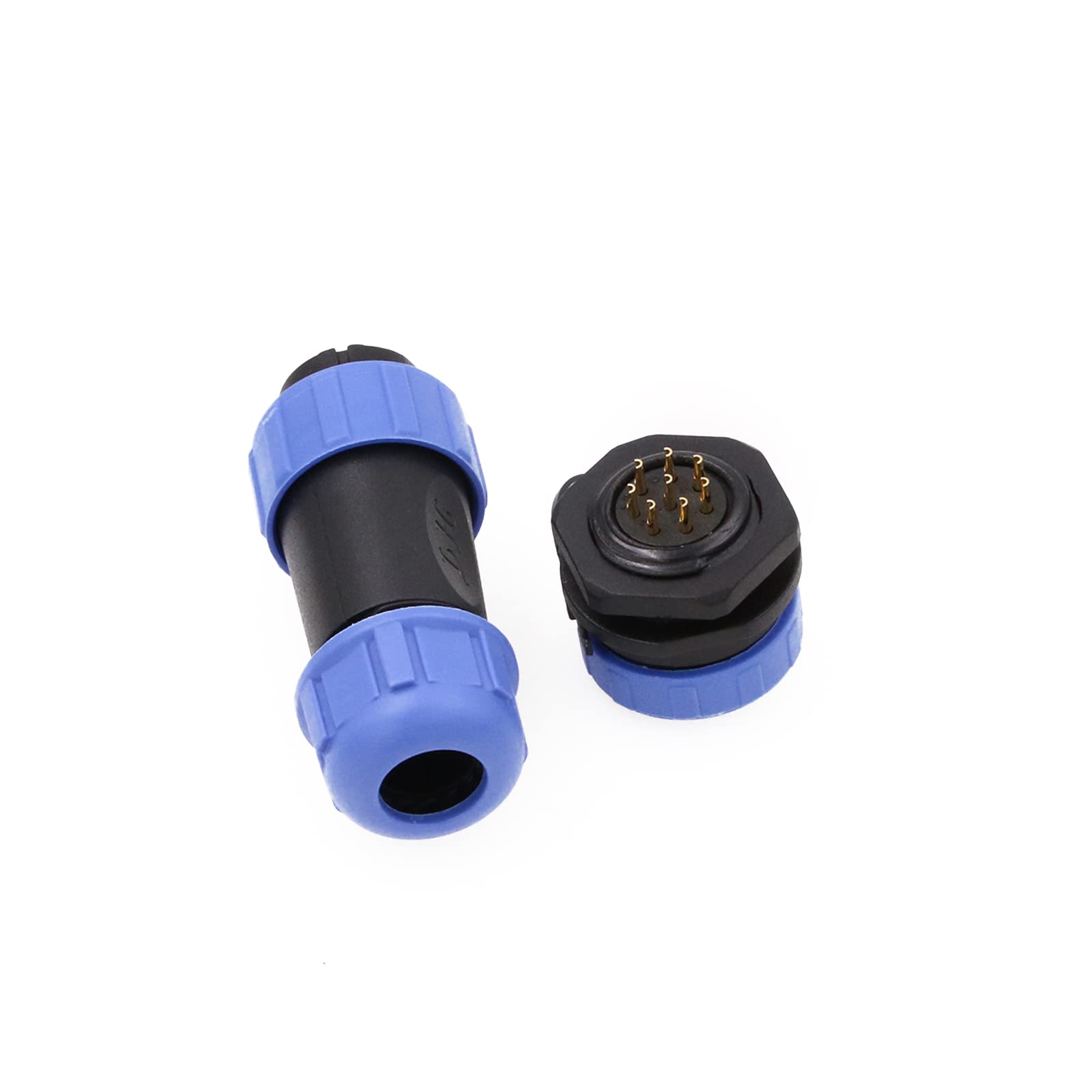

ZBLZGP SP21 8 Pin Panel Mount Circular Aviation Connector Plastic Waterproof Industrial IP68 Back Nut Welding Connector for Electric LED Lighting

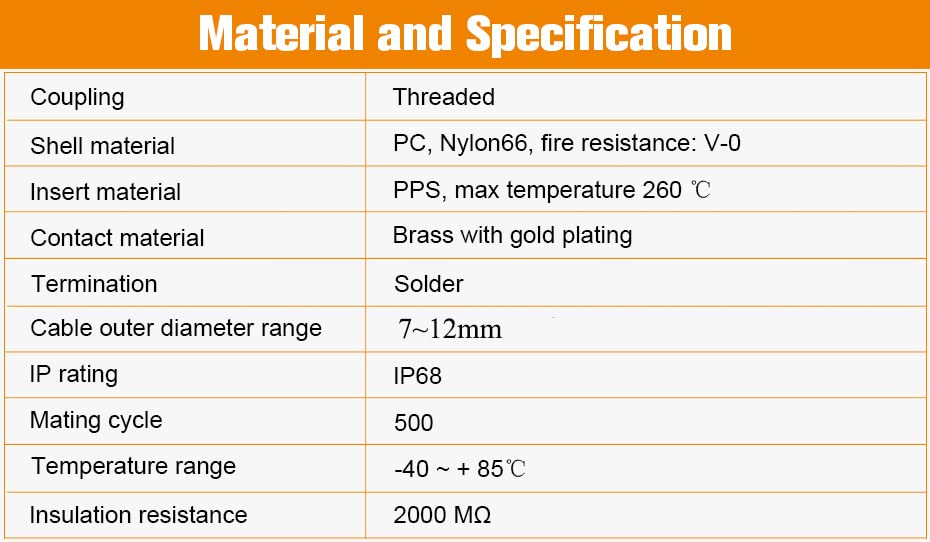

• SP21 8pin waterproof power cable connector, φ21mm panel cut.Rated Current / Voltage: 5A / AC 500V;Withstand Voltage: AC 1500V;Contact Diameter Φ1mm*8;Wire Size: ≤0.785mm² or 18AWG;Insert Material: PPS max temperature 260°C, Fire Resistance: V-0.
• Housing material: Thermoplastic PA66;Contact material: copper (gold plated, silver plated);Mechanical life: more than 500 times;Temperature Range: -25~+85°C;Insulation Resistance MΩ: 2000.
• Widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries.High grade contact materials, can connect effectively.
• The color of the item may vary slightly due to photography and your own computer.Pictures are for reference only, please refer to the real thing.
• The SP series of connectors are precision moulded in engineering polymers to give outstanding service in hazardous environments achieved by quality design to meet the IP68 rating, wire connection is by solder terminals (soldering skills need to be good), please pay attention to the voltage and current ratings and make sure any mains connectors are fitted by a competent person.

Tips: As a professional connector and cable manufacturer, we produce and sell cost-effective cables as well as connectors. our products and service would deserve your trust and satisfy your demand. What’s more, we are sure to provide you a discount if you order a large quantity of connectors and cables. If you are interested in them, please feel free to contact us, thank you!
