zalati Wireless Transceiver Receiver 2 Sets NRF24L01+PA+LNA RF Module with SMA Antenna 2.4 GHz 1100m + NRF24L01 Regulator + Board Wireless Communication System

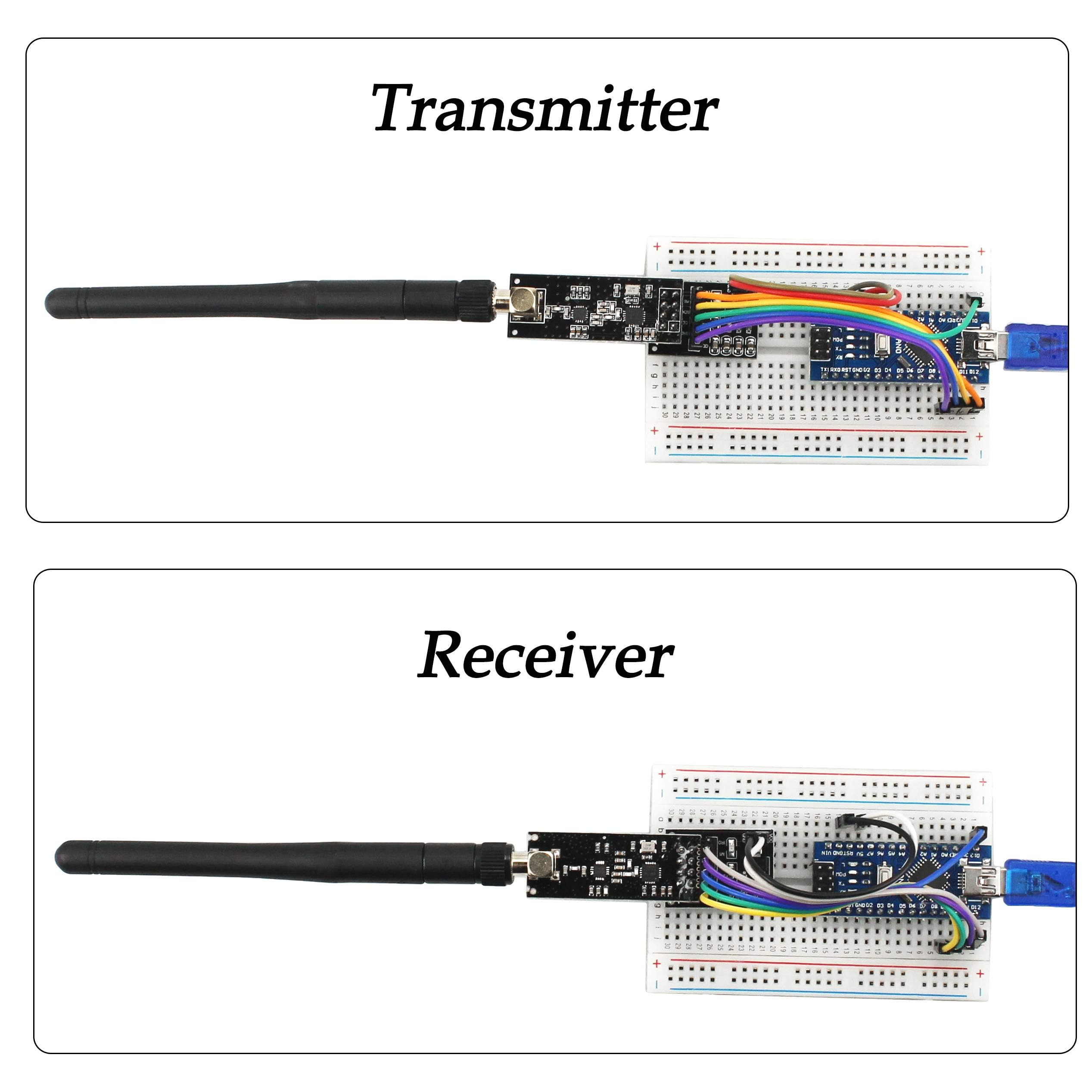

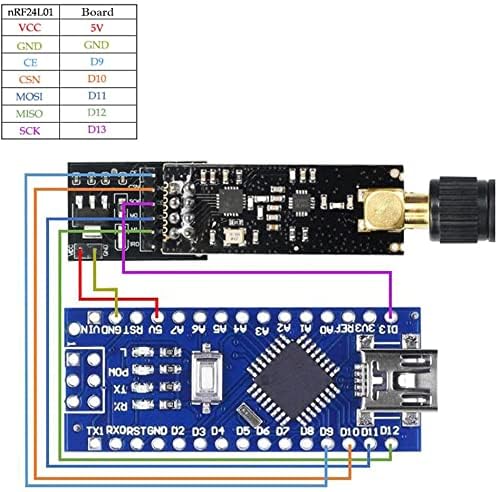

• It is easy to install. Please check the pictures for the installation or check the internet video.
• High-performance wireless data transmission chip NRF24L01 +, an increase of high-power PA and LNA chips, RF switches, band-pass filters and other professional full bidirectional RF, making the effective communication distance has been greatly expanded.

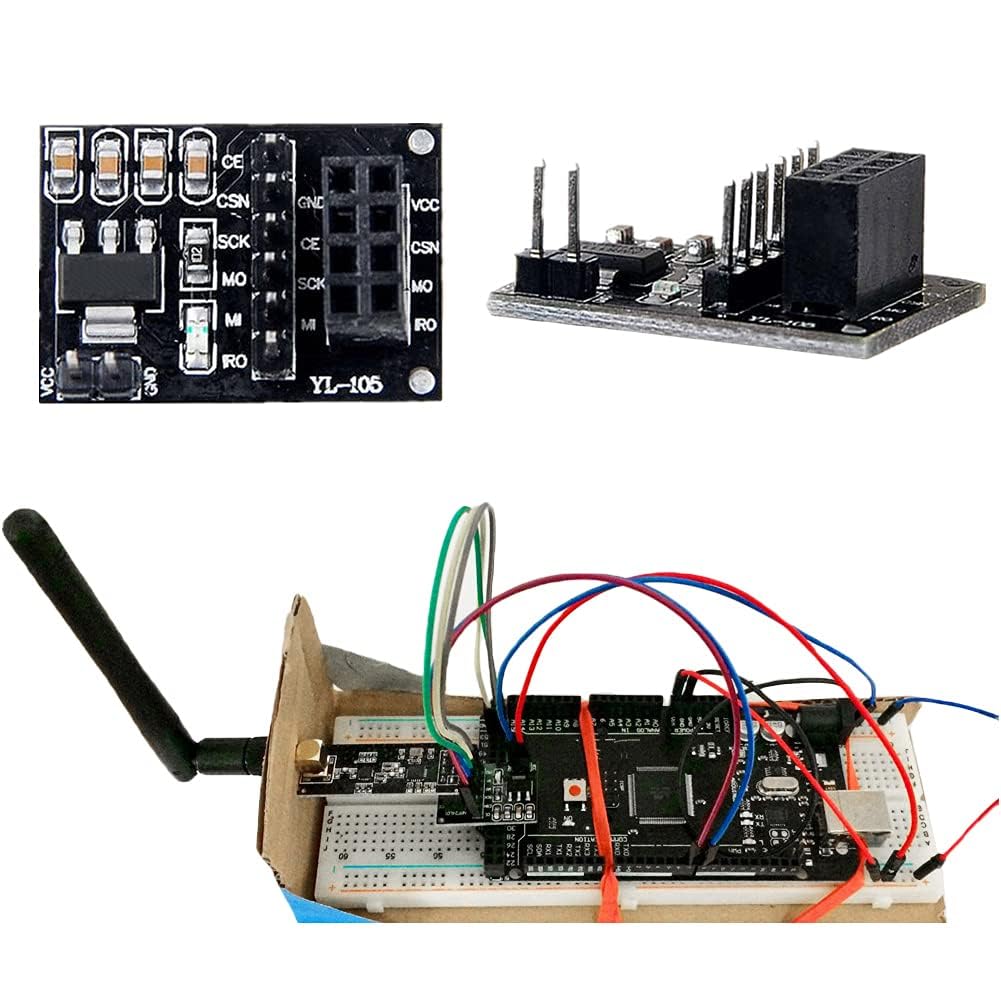

• Small power on SMD LED indicator; Onboard 3.3V voltage regulator accepts +5V supply and provides 3.3V for the attached "nRF24L01+" module.

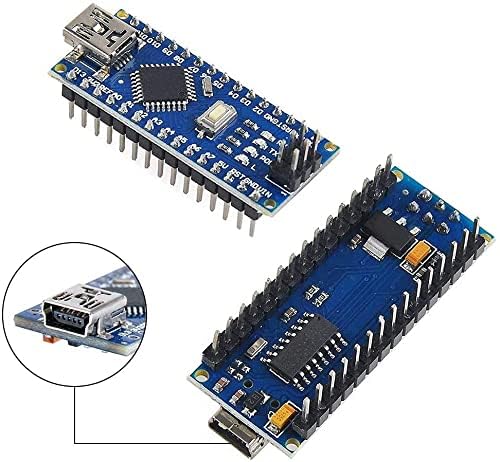

• The main Microsoft Controller Board of this kit, it can be powered via USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
• The main Microsoft Controller Board of this kit, it can be powered via USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).

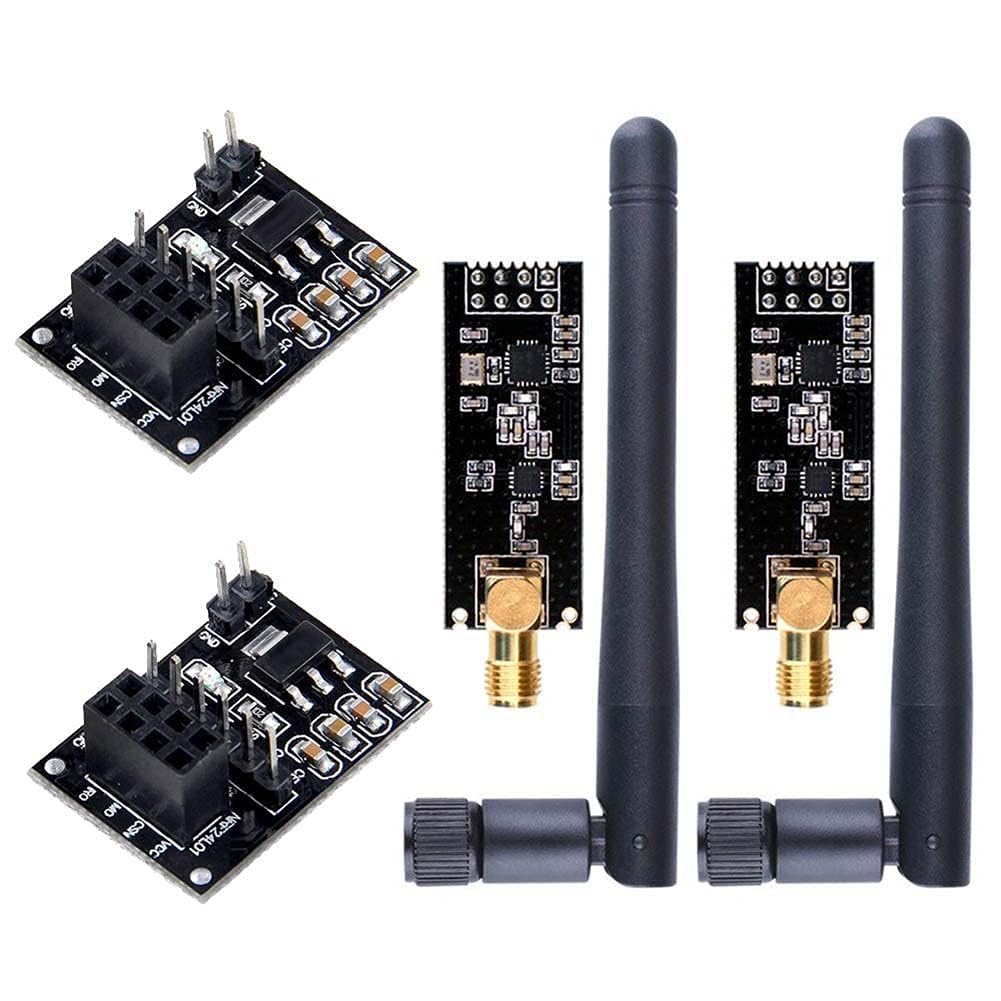

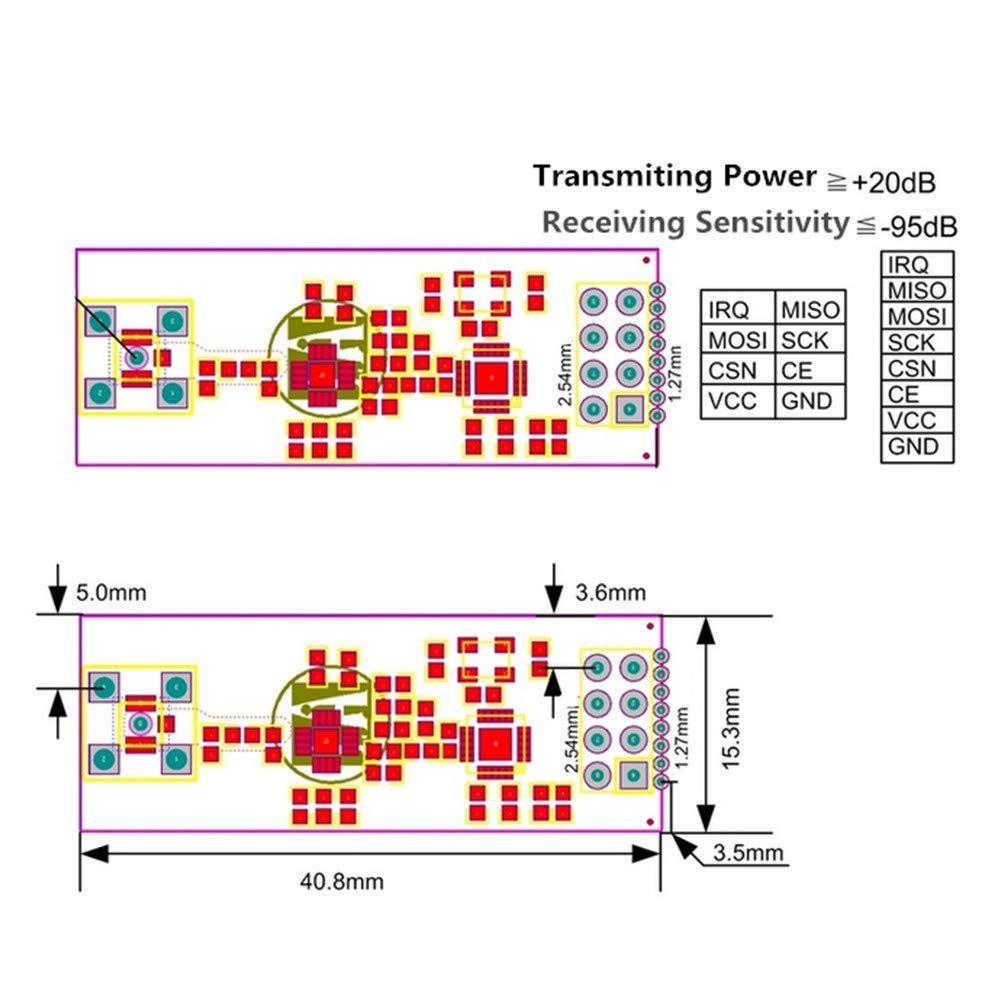

Description: NRF24L01+ Module with SMA Antenna 2.4 GHz 1100m: PA Gain：20dB LNA Gain：10dB Frequence: 2.4GHz~2.5GHz Range: 800+ meters line of sight Multi-frequency: 125 frequency Transmit Operating Current（Max）：115mA Receiving Operating Current（Max）：45mA Operating Voltage: 3 ~ 3.6V （Recommended 3.3V） NRF24L01+ Voltage Regulator Module: Pin Quantity：8Pin On-board : 3.3 chip. Voltage Regulator Input Voltage: 4.8V ~ 12V Board:for - Architecture: AVR - Operating voltage: 5V - Input voltage: 7-12V - SRAM: 2 KB - Clock frequency: 16 MHz - Analog I / O pins: 8 - EEPROM: 1 KB - DC current per I / O pins: 40 mA (I / O pins) - Digital I / O pins: 22 - PWM output: 6 - Power consumption: 19 mA Package Included: 2 x zalati NRF24L01+PA+LNA Wireless Transceiver Module 2 x zalati SMA Antenna SMA Antenna 2.4G 1100m 2 x zalati NRF24L01+ Voltage Regulator Module 2 x zalati Board 2 x zalati 30CM USB Cable
