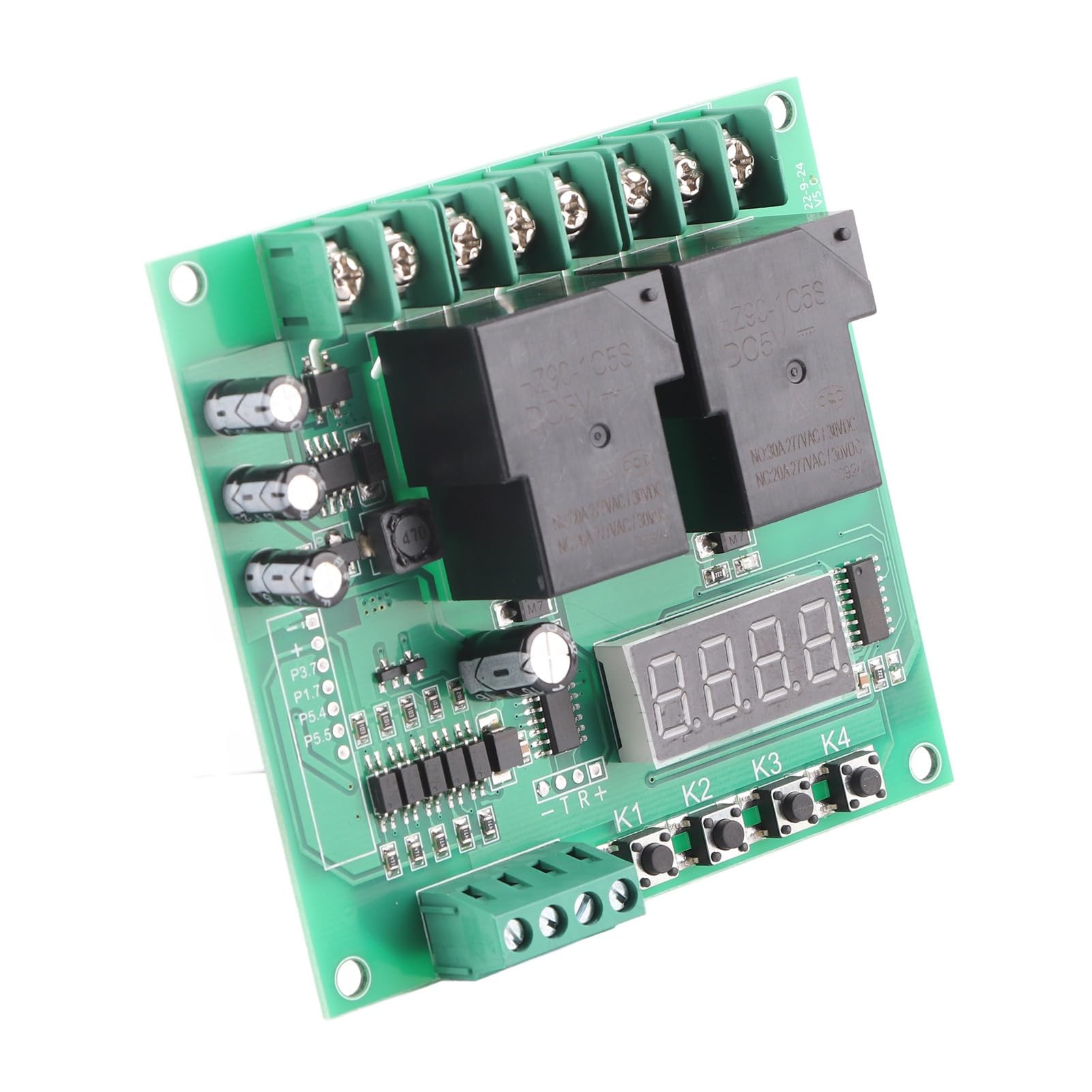

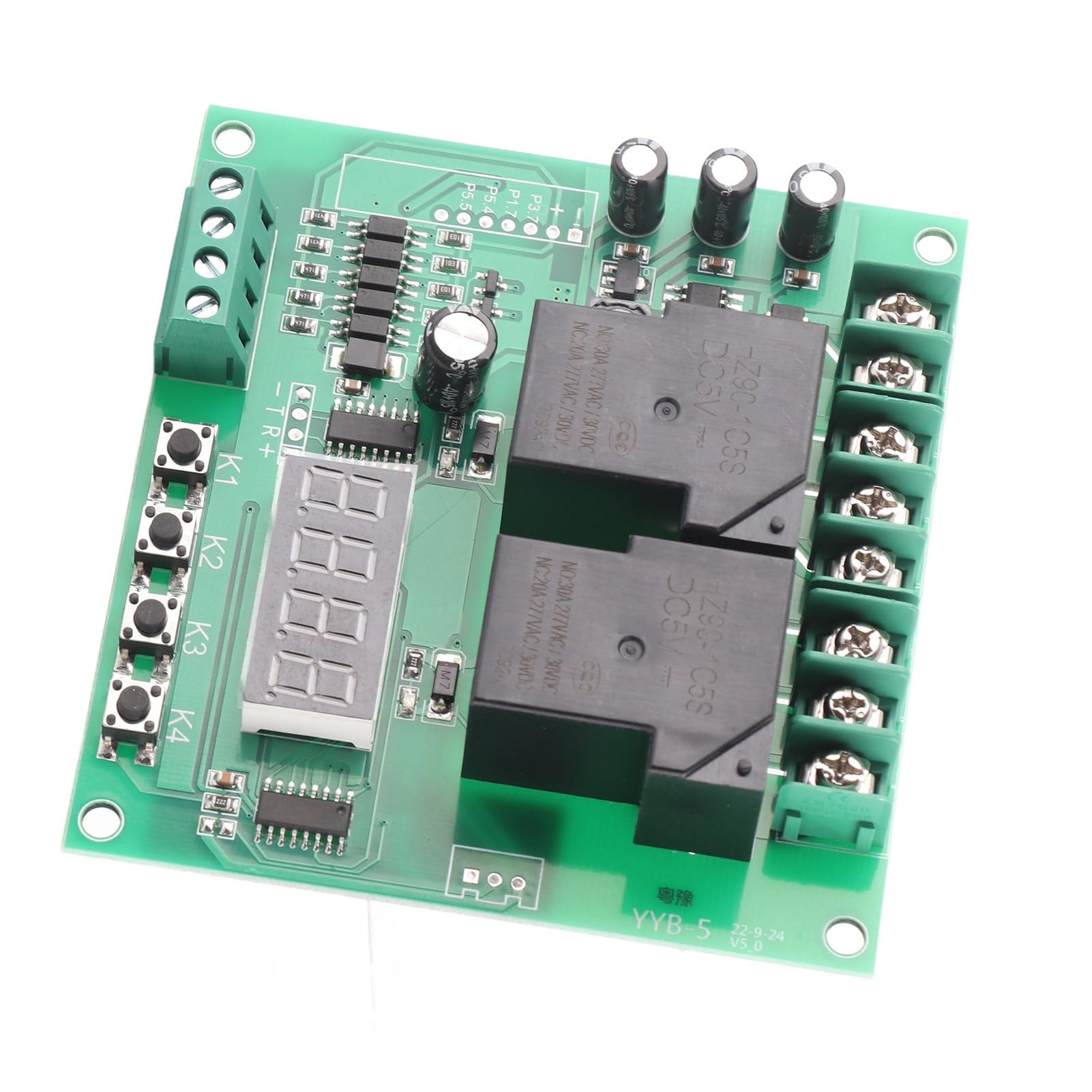

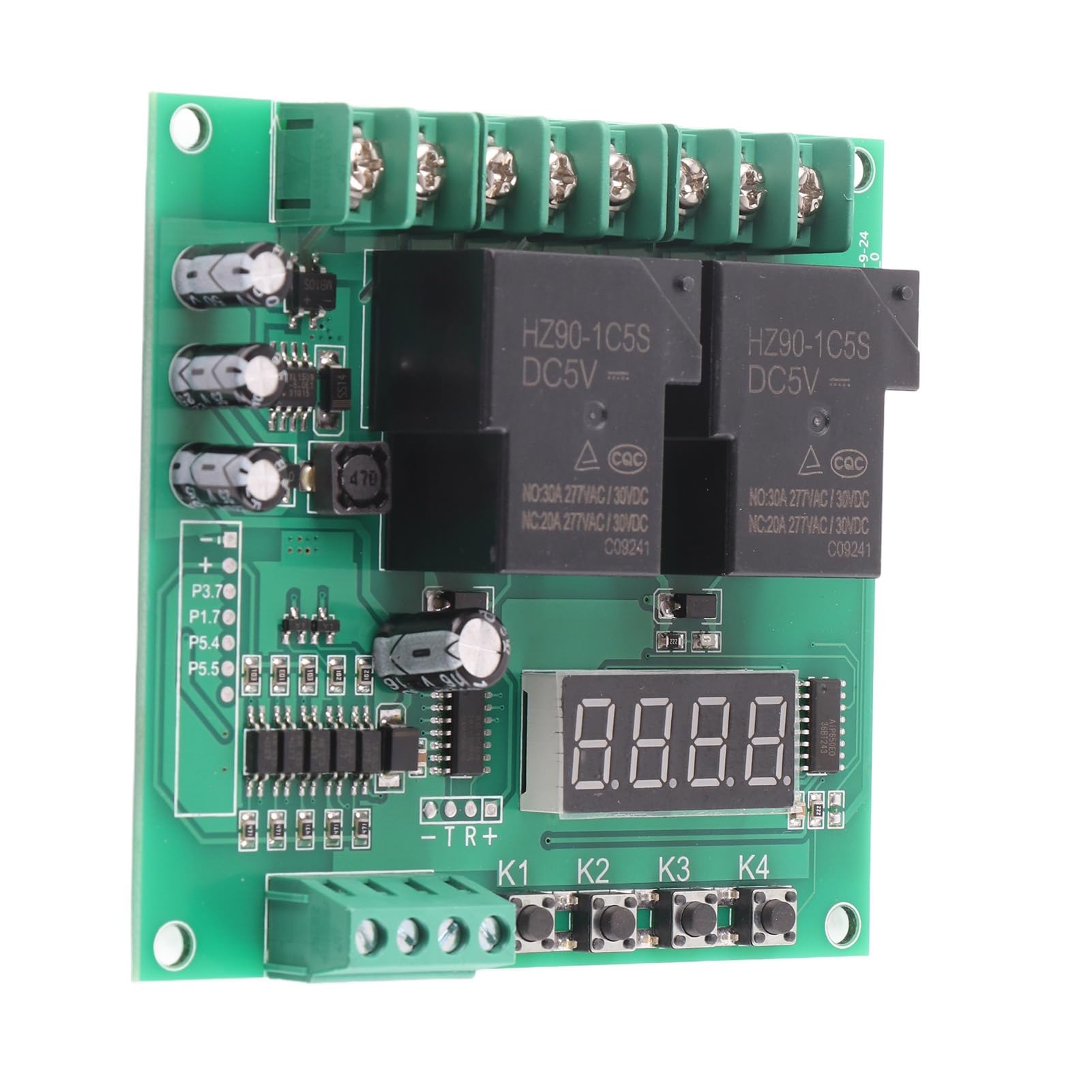

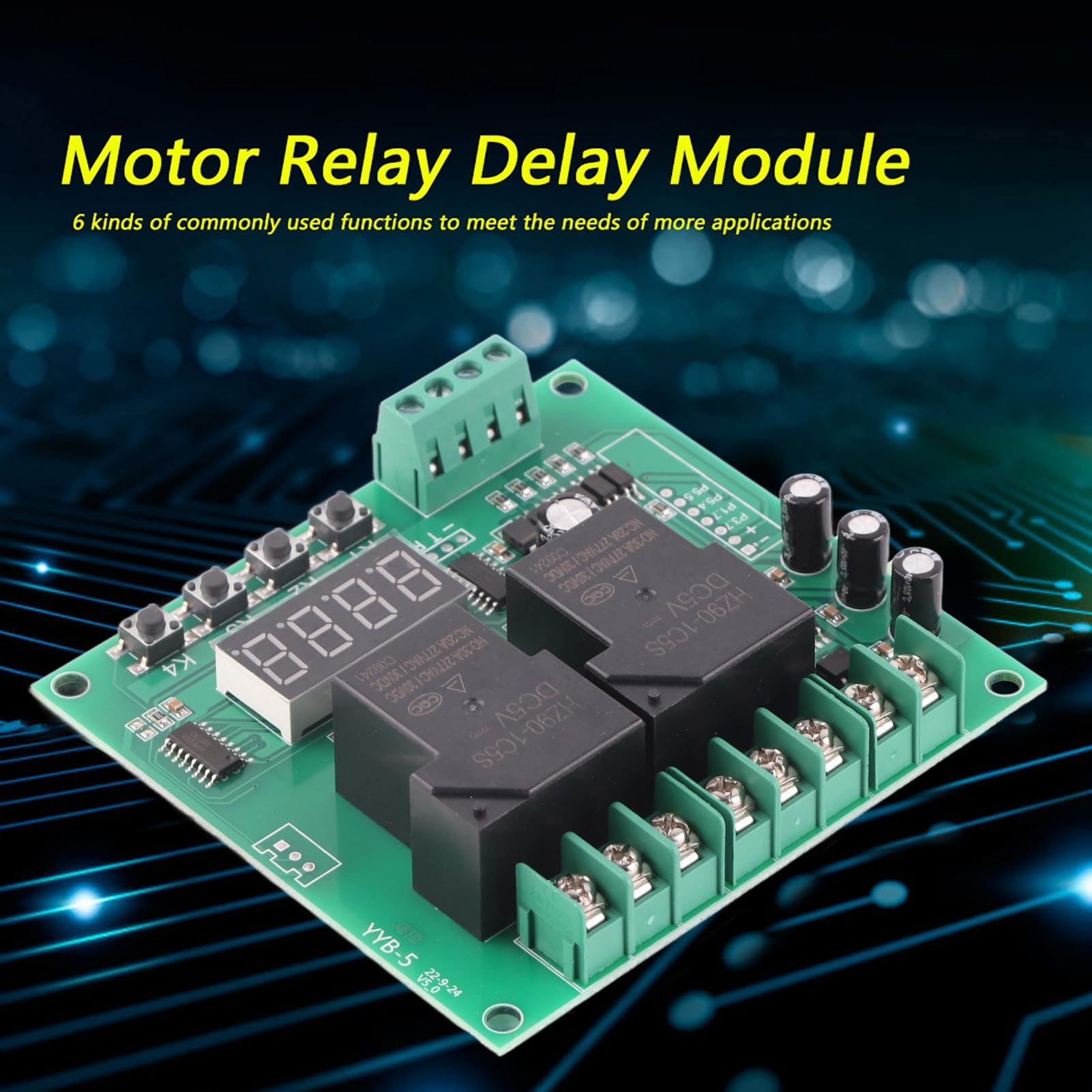

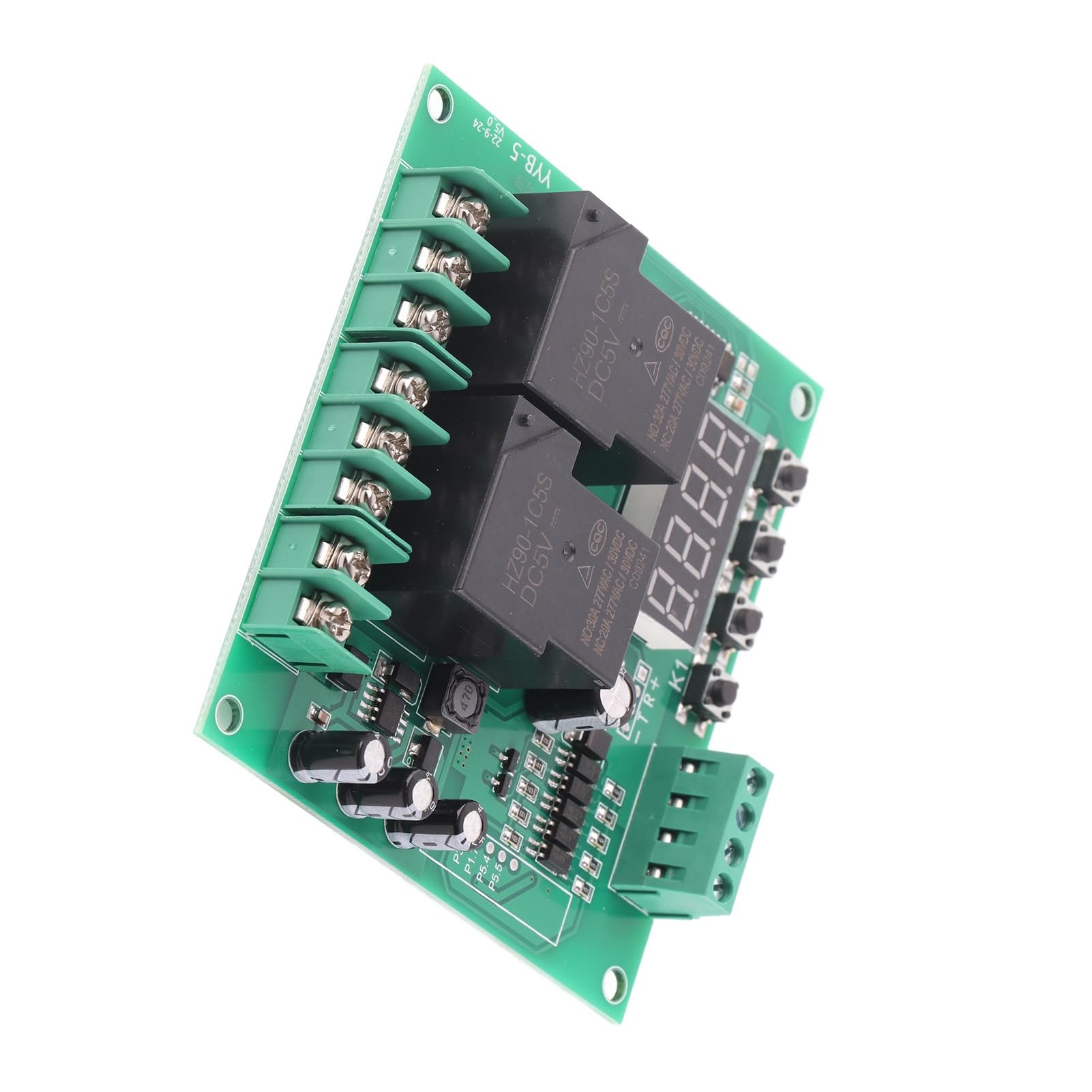

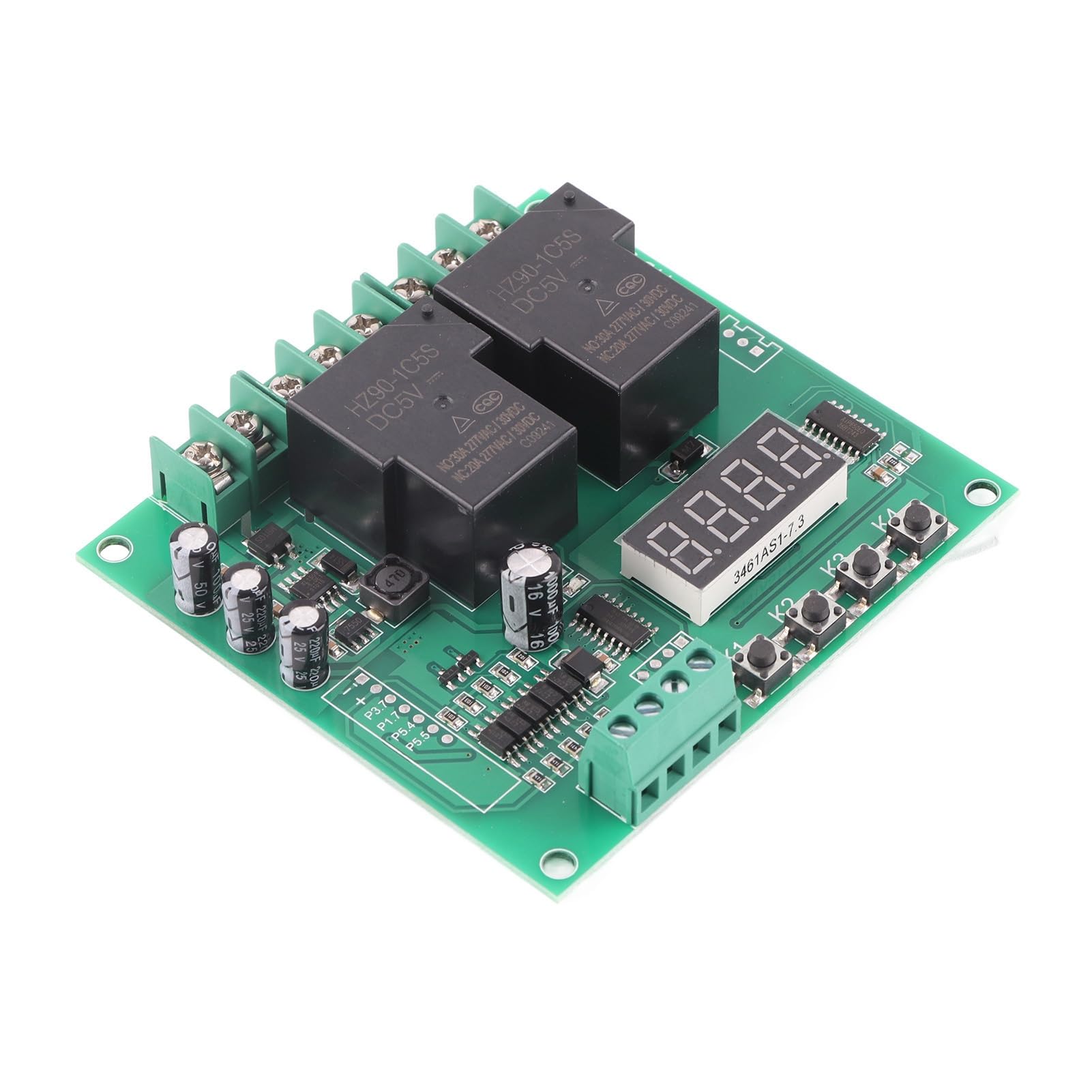

YYB - 5 12V 24V Motor Forward Reverse Control Board, Wireless Relay Delay Timing Cycle Module, 30A DC/AC Load Controller with 6 Programmable Modes for Pumps Lights

• 6 Programmable Operating Modes: This motor control board offers six distinct timing and cycling functions, enabling precise automation of forward-reverse motor sequences, timed delays, and emergency stops. Perfect for DIY projects or industrial setups needing reliable, repeatable motion control without manual intervention.
• High-Power 30A Load Capacity: The YYB-5 motor controller safely handles up to 30A DC or AC loads, making it ideal for driving motors, solenoid valves, pumps, and lighting systems. Its robust relay design ensures stable performance even under continuous heavy-duty operation across 7V–27V input range.
• Versatile Automation Applications: Use this forward reverse control board to automate greenhouse vents, aquarium pumps, conveyor belts, or garage door mechanisms. It’s suitable for hobbyists, engineers, and technicians who need flexible, programmable control over bidirectional devices in home, farm, or workshop environments.
• Durable Industrial-Grade Build: Constructed with high-quality PCB and sealed relays, the YYB-5 motor timing cycle module resists dust, vibration, and electrical interference. Its compact yet rugged design ensures long-term reliability in both indoor control panels and outdoor equipment enclosures.
• Complete Ready-to-Use Package: Includes one YYB-5 12V 24V motor forward reverse control board with clearly labeled terminals (IN1–IN3, NO/COM/NC) and intuitive key-based programming. No extra components needed—just connect your power source, load, and trigger signals to start automating complex cycles instantly.

Features: and 6 kinds of commonly used functions to meet the needs of more applications; It can control 2-way solenoid valve, pumps, motors, lights and other running freely Output power: it can control within 30A DC or AC load Time range: 0.1 seconds to 999 minutes any time adjustable Specification:Model:YYB-5 Input voltage: DC/ AC7V~27V Time range: 0.1 seconds to 999 minutes Weight: Approx.103g/3.6oz Wiring port Description: 1. AC/DC : Input 7V~27V 3. IN1: Signal input 1 (negative trigger) 4. IN2: Signal input terminal 2 (negative trigger) 2. IN3: Signal input 3 (negative trigger) 5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted 6. COM: relay common interface 7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension Function list: P - 1: to signal 1, relay 1 pulls to A time automatically stops; to signal 2, relay 2 pulls to B time automatically stops; signal 3 is emergency stop reset signal P - 2: signal 1, relay 1 is pulled to A time automatically stop; relay 2 from the signal to start delay B time after the suction to C time automatically stop (this function time unit needs to be consistent) P - 3: After power on, relay 1 pulls up to A time release, waiting for C time, relay 2 pulls to B time release, waits for C time; relay 1,2 turns endless operation endless cycle (If the control motor is reversible can be understood as: the motor is running a period of time; stop for some time; automatically reverse for some time; stop for some time; then automatically forward; P - 4: to signal 1, relay 1 pull; to signal 2 (limit), relay 1 stops and starts counting to A time relay 2 pull; to signal 3 (limit), relay 2 stops and starts timing To B time relay 1 pull; infinite loop (If the control motor is reversible can be understood as: press the start button 1; the motor is moving to the
