YWBL-WH Consumption Meter with Voltage Threshold DC Power Analyzer RS485 Interface ModbusRTU Protocol for Solar Panels Battery Systems PZEM-017 (PZEM-017+50A)

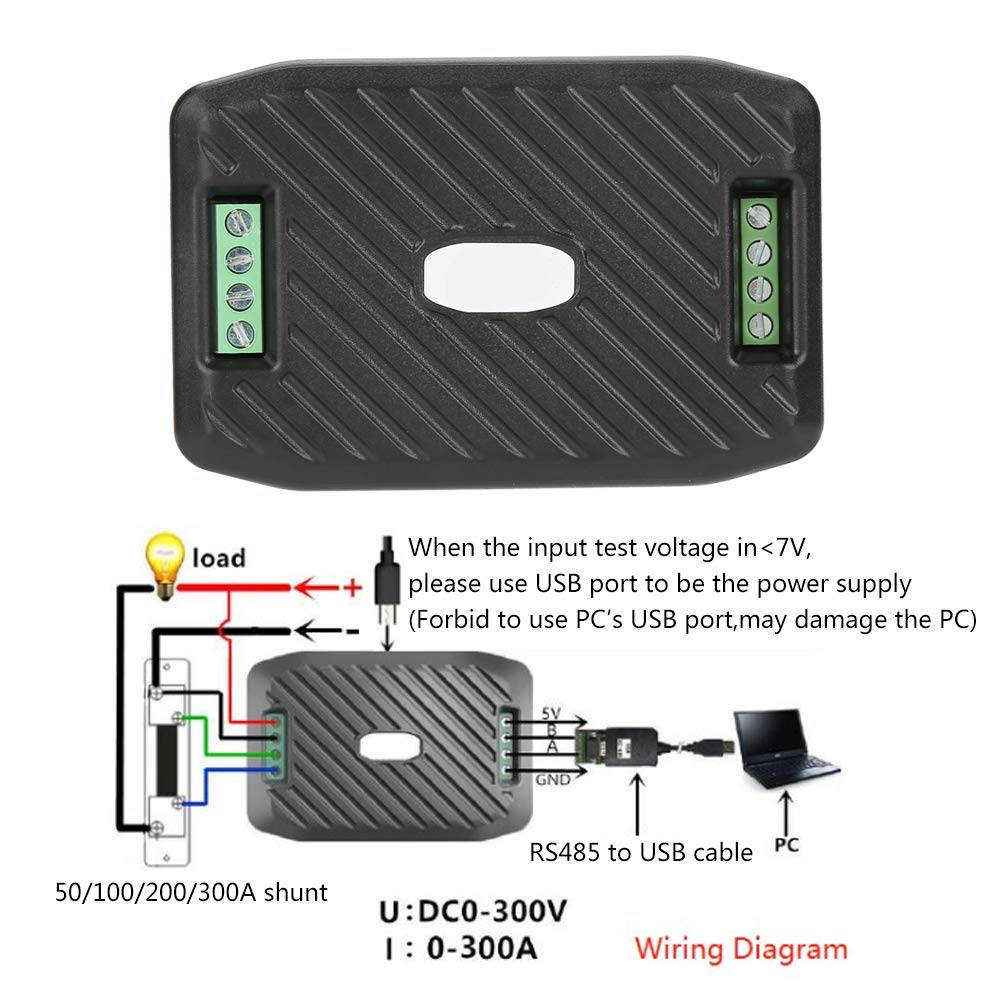

• [Multiple Shunt Options] Compatible with 50A 100A 200A 300A external shunts for flexible current measurement in solar systems or industrial DC applications.
• [Customizable Voltage Alerts] Programmable high/low voltage thresholds (5-350V) with alarm function to protect sensitive equipment from over/under voltage conditions.
• [ DC Measurement] Accurately monitors DC voltage (0.05-300V), current (0.02-300A), power (0.2-90kW) and energy consumption with 1% resolution via RS485 interface.
• [ModbusRTU Communication] Standard 9600 baud rate RS485 interface supports function codes 0x03 0x04 0x06 for seamless integration with PLCs and monitoring systems.
• [Compact Industrial Design] 3.5x2.4x0.9 inch module operates in -20 to 140°F environments ideal for battery banks EV charging stations and renewable energy systems.

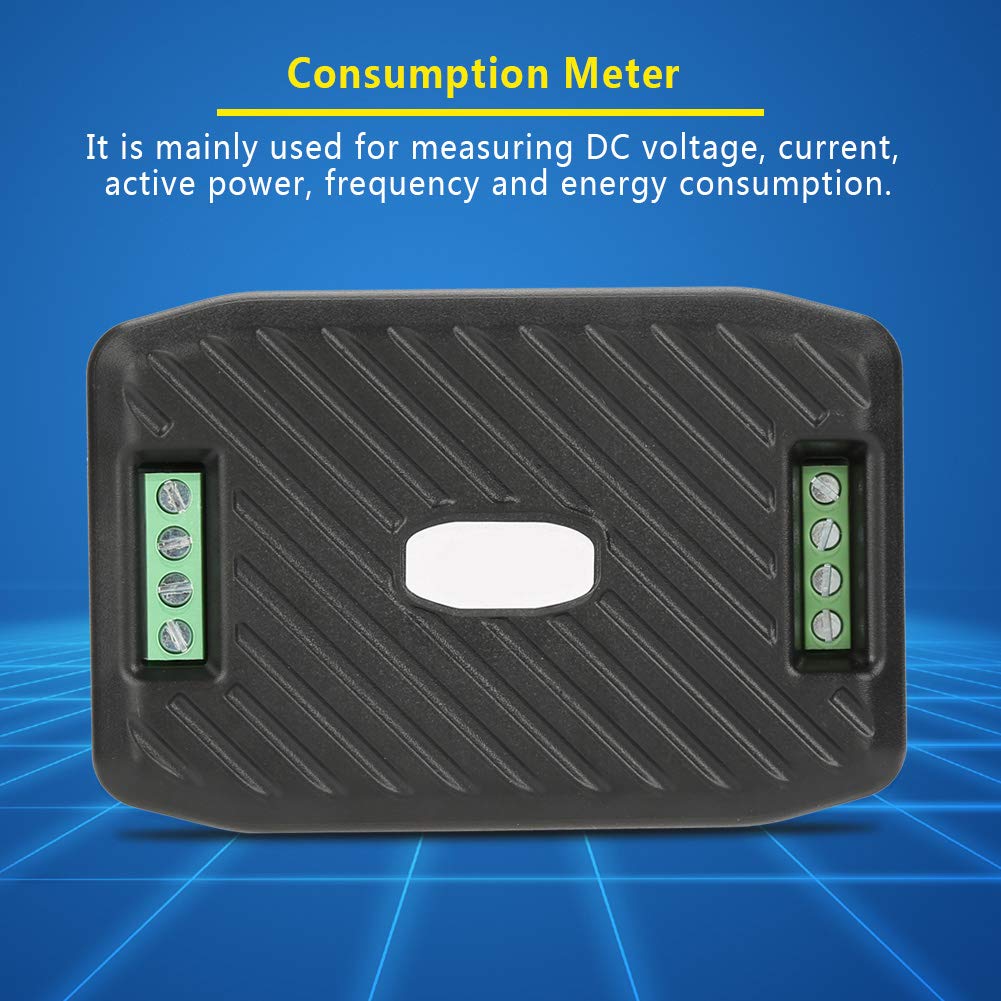

[ DC Measurement] Accurately monitors DC voltage (0.05-300V), current (0.02-300A), power (0.2-90kW) and energy consumption with 1% resolution via RS485 interface. [Customizable Voltage Alerts] Programmable high/low voltage thresholds (5-350V) with alarm function to protect sensitive equipment from over/under voltage conditions. [Multiple Shunt Options] Compatible with 50A 100A 200A 300A external shunts for flexible current measurement in solar systems or industrial DC applications. [ModbusRTU Communication] Standard 9600 baud rate RS485 interface supports function codes 0x03 0x04 0x06 for seamless integration with PLCs and monitoring systems. [Compact Industrial Design] 3.5x2.4x0.9 inch module operates in -20 to 140°F environments ideal for battery banks EV charging stations and renewable energy systems. This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface. Features: It is mainly used for measuring DC voltage, current, active power, frequency and energy consumption. The current measure range is 50A, 100A, 200A, 300A on the external shunt specification. There are 10 different kits to choose, enough to meet your various need. Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity. The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etc. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm. Specification: Brand: PEACEFAIR Model: PZEM-017 Voltage: Measuring Range: 0.05-300V (When the test voltage is ＜7V, please use the independent power supply mode) Resolution: 0.01V Measurement Accuracy: 1% C
