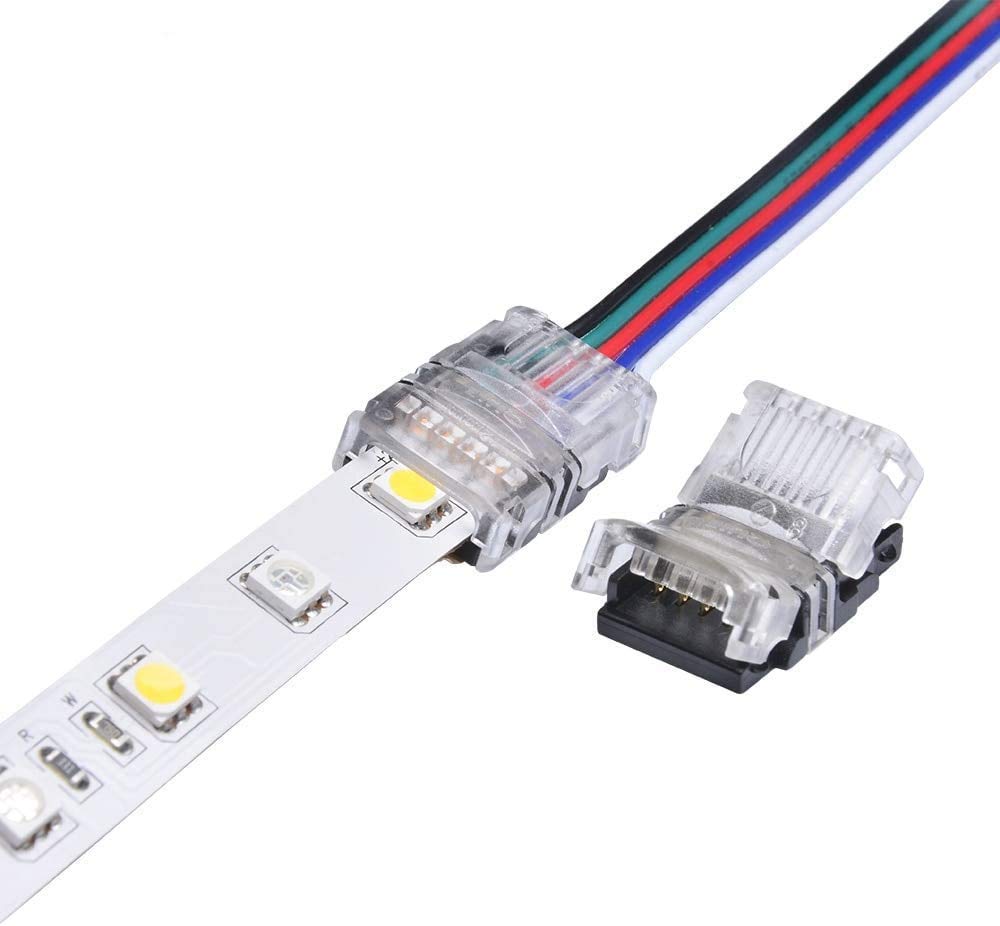

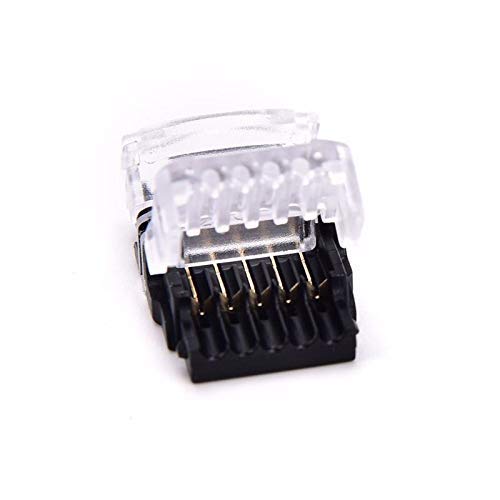

YUTOKEER 5 Pin LED Strip Connector 5050 LED Tape Light Connection Conductor LED Strip to Wire Connector for Waterproof IP65 12mm RGBW RGBY LED Strip Lights (5 PCS) (12mm Connector)

• Connect the stripping wire to the wire without stripping the insulation layer and welding, the connection is convenient and fast, saving 2/3 of the time.
• Powerful compatibility: compatible with 5v,12v and 24v led light bars, suitable for waterproof IP65 12mm width 5050 RGBW RGBY 5 solder pad LED Strip Lights.
• High-quality tinned copper core and PVC plastic wire sleeve can ensure stable, safe and durable connection, firmly bite the led light belt, much stronger than the old connector
• Not limited by the terminal position, you can connect the wires according to your needs, and use these 5 pin connectors together with the 5-core extension cable, you can accurately find the desired lighting position, no mother board to wire input and board to board The jumper, extension distance and angle are no longer a problem.
• The refractory nylon housing and high-precision brass connector are rugged and can firmly engage the LED light bar, much stronger than the old connector

100% brand new and high quality Features: - Bid farewell to the traditionalelectrical tape connection, more secure, more standardized and more efficient. - Do not peel the skin, the conductor isnot exposed, excellent load current, put an end to security risks. - Using puncture connection, do not destroythe original wire protection layer, the cross-sectional area of the wire isgreater than its own cross-sectional area, reduce the current load. - Extremely versatile, compatible with allkinds of single-core hardwire, multi-core, flexible line use, and suitable fora variety of applications. NOTE: 1. Make sure your LED light strip is 12mm width 5 pin IP65 WATERPROOF RGBW RGBWW strip light. Not work for non-waterproof or 10mm width led strip lights. 2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire. Specifications: Size: 12MM 5pin Rated voltage: <300V Rated current: <10A Case temperature: <135 ° C External cold: - 45 ° C Working environment: moisture-proofventilation -20 ° C ~ 80 ° C environment --Wire End： 1.Cut the desired wire length you need and separated the 5 wires (20-22AWG) around connection part. 2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires. 3.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface) Package include: 5 x 5pin LED Tape Light Connection
