Yunseity 4K@60Hz eARC HDMI Audio Extractor, HDMI 2.0b HDCP 2.3, Support CEC, HDR, HDR10, HDR10+, Dolby Vision, 18Gbps HDMI Audio Converter

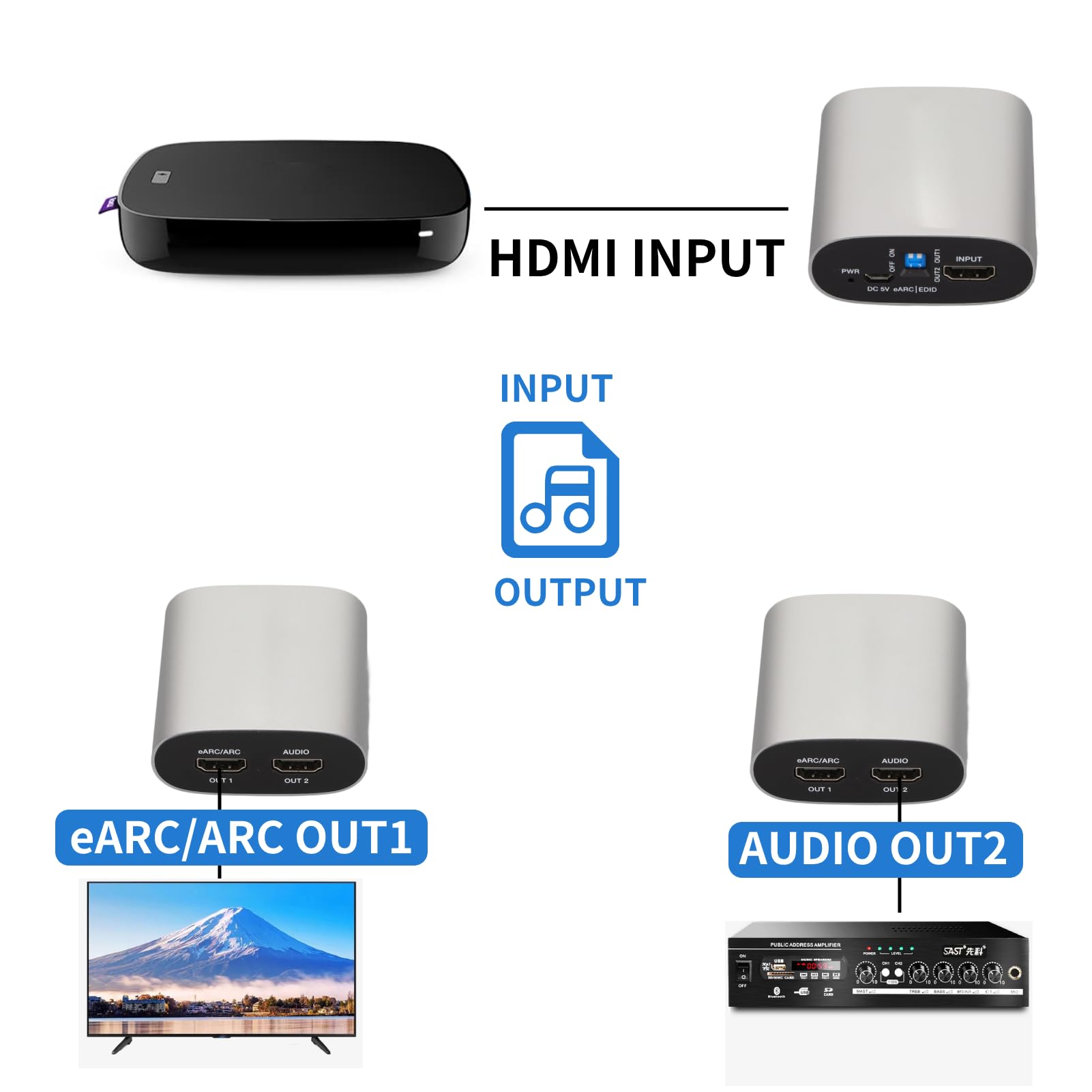

• Audio Extractor: 4K60 HDMI eARC Audio Extractor enables HDMI interface amplifier to play local input device signal source audio, and also to play the audio signal returned from display devices. The video resolution supports up to 4K2K@60Hz 4:4:4.
• HDMI audio formats supported: Dedicated HDMI audio only output connects to AV receiver and supports Dolby True HD, Dolby Digital, DTS Digital, DTS HD Master, Dolby/DTS 7.1&5.1CH, PCM7.1&5.1&2.0 stereo audio)
• High Resolutions: 4K60Hz HD multimedia interface EARC sound extractor, video resolution up to 4K2K, 60Hz 4:4:4, support CEC function, with intelligent EDID management and local loop output
• Standard Design: HD Multimedia Interface sound converter, compliant with HD Multimedia Interface 2.0b and HDCP 2.3/1.x specifications, supports 18Gbps video bandwidth, professional design, plug-and-play.
• Good Performance: Digital sound decoder supports VESA format, up to 60Hz QSXGA, and supports HDR, HDR10, HDR10+ and for Dolby Vision transparent transmission.

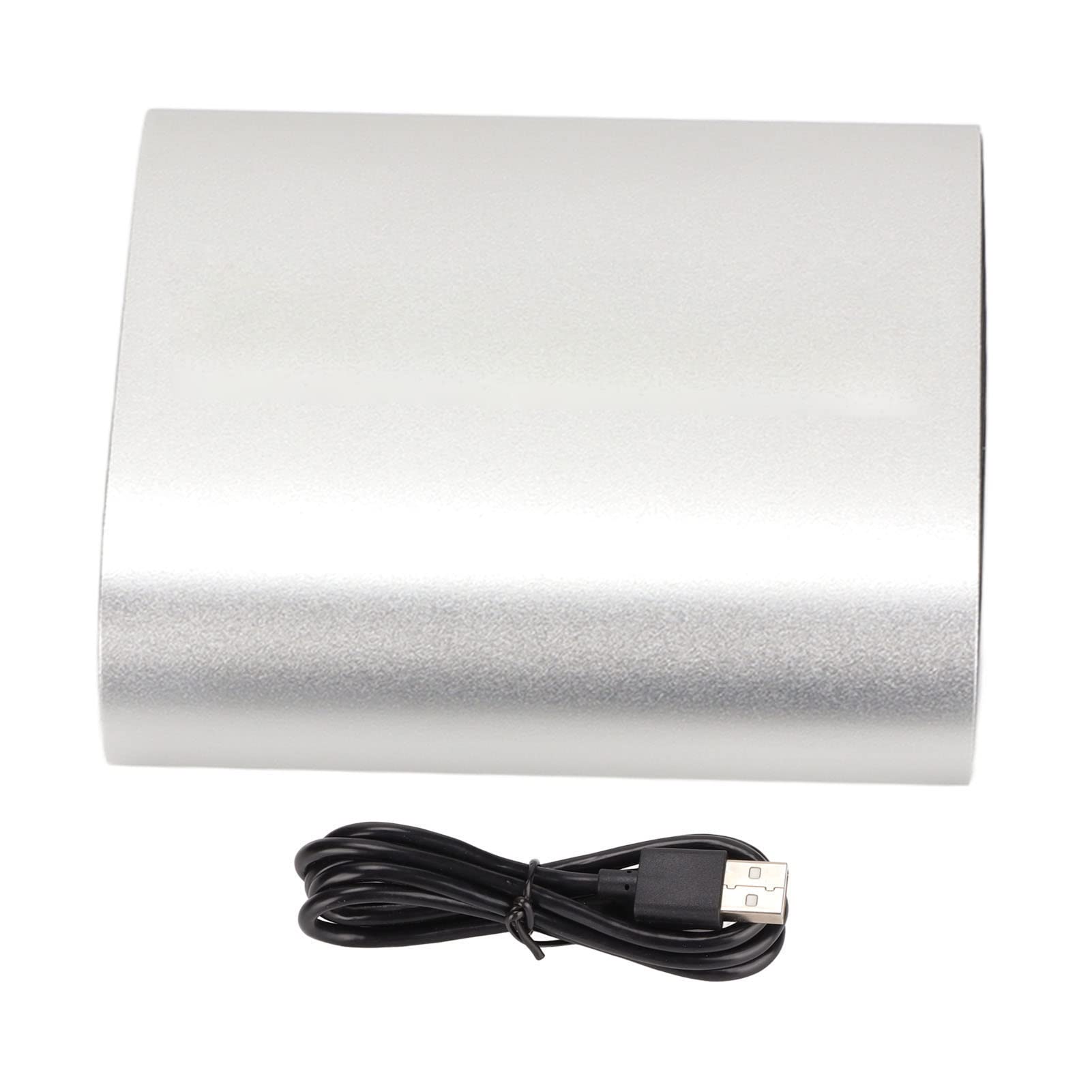

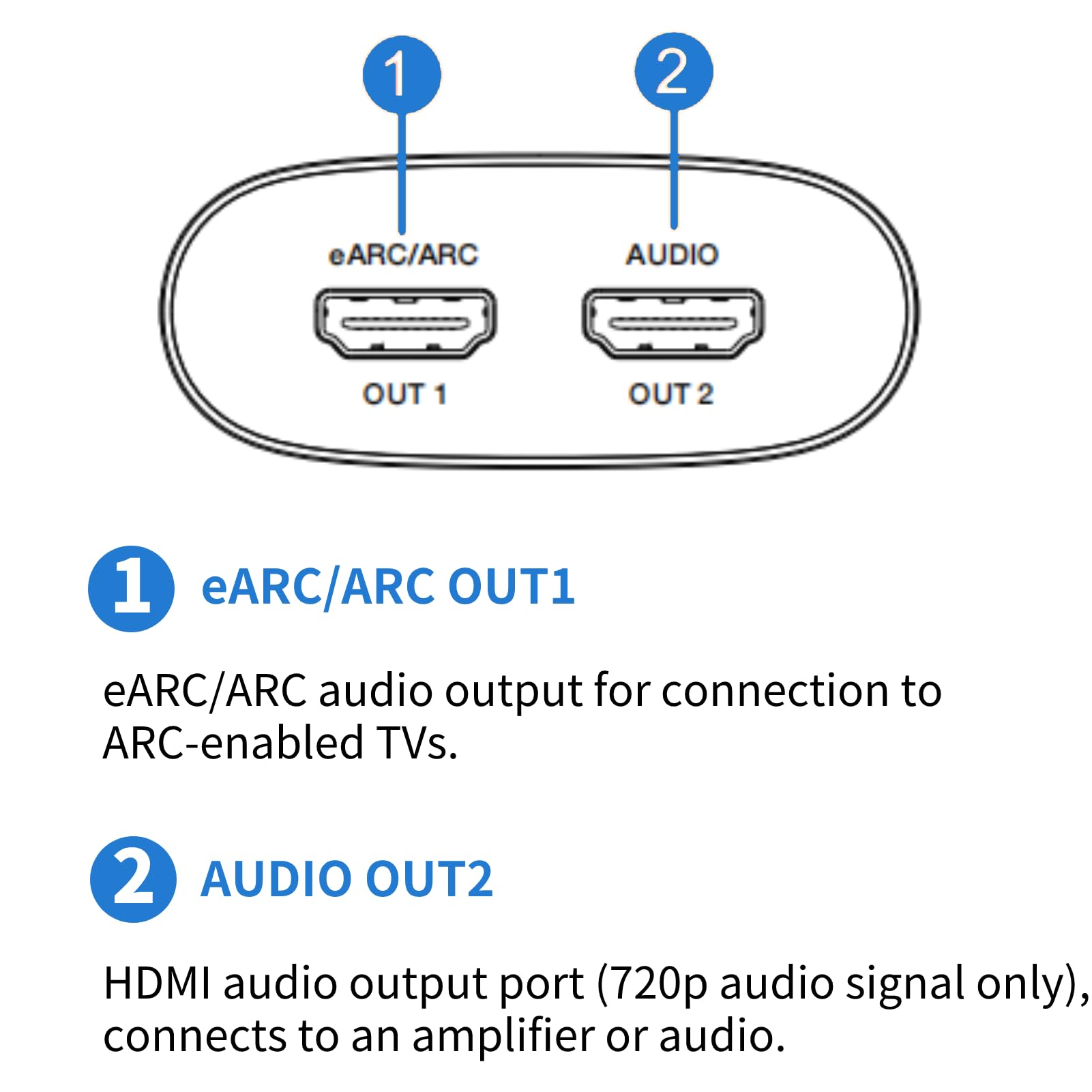

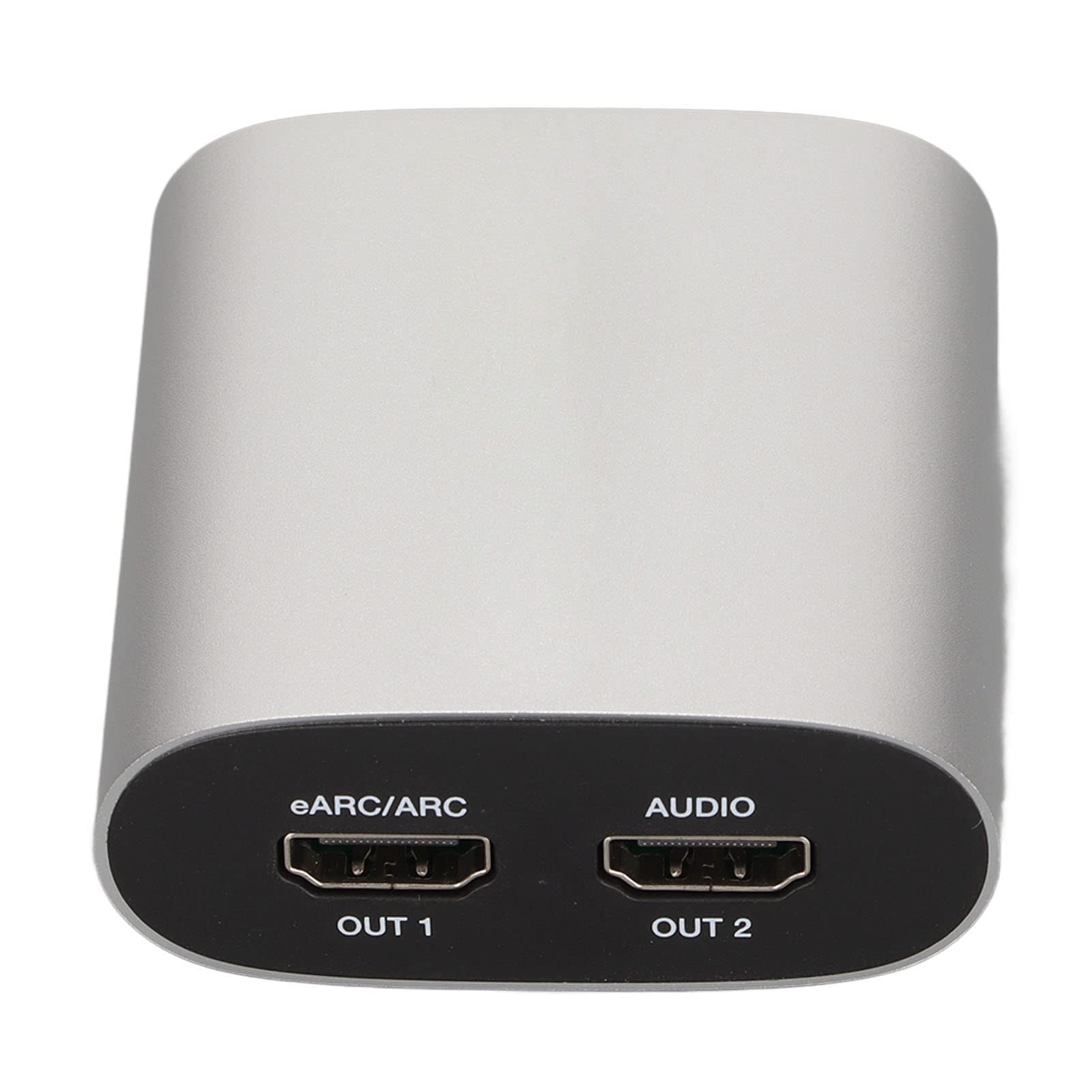

How to Use: Plug and play. Specification: Item Type: Sound Extractor Material: Aluminum Alloy Color: Silver Model: HDV-MB08 Input: 1 x HD Multimedia Interface IN (Type A, 19 Pin Female) Output: 2 x HD Multimedia Interface OUT (Type A, 19 Pin Female) HD Multimedia Interface Compatible: HD Multimedia Interface 2.0b HDCP Compliant: HDCP 2.3/1.x Specification Video Bandwidth: 18Gbps Video Resolution: 4k x 2k at 60Hz 4:4:4 Color Depth: 8 Bit, 10 Bit, 12 Bit (1080p at 60Hz) 8 Bit (4K2K at 60Hz YUV4:4:4) 8 Bit, 10 Bit, 12 Bit (4K2K at 60Hz YCbCr 4:2:2/4:2:0) Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 HD Multimedia Interface Sound Format: PCM 2.0, LPCM 5.1 / 7.1, for Dolby Digital, for Dolby Digital Plus, for Dolby TrueHD, for Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA DTS HD Master, DTS:X ESD Protection (Human Body Model): ±8kV (Air Discharge) and ±4kV (Contact Discharge) Package List: 1 x Sound Extractor1 x Data Cable 1 x English Manual
