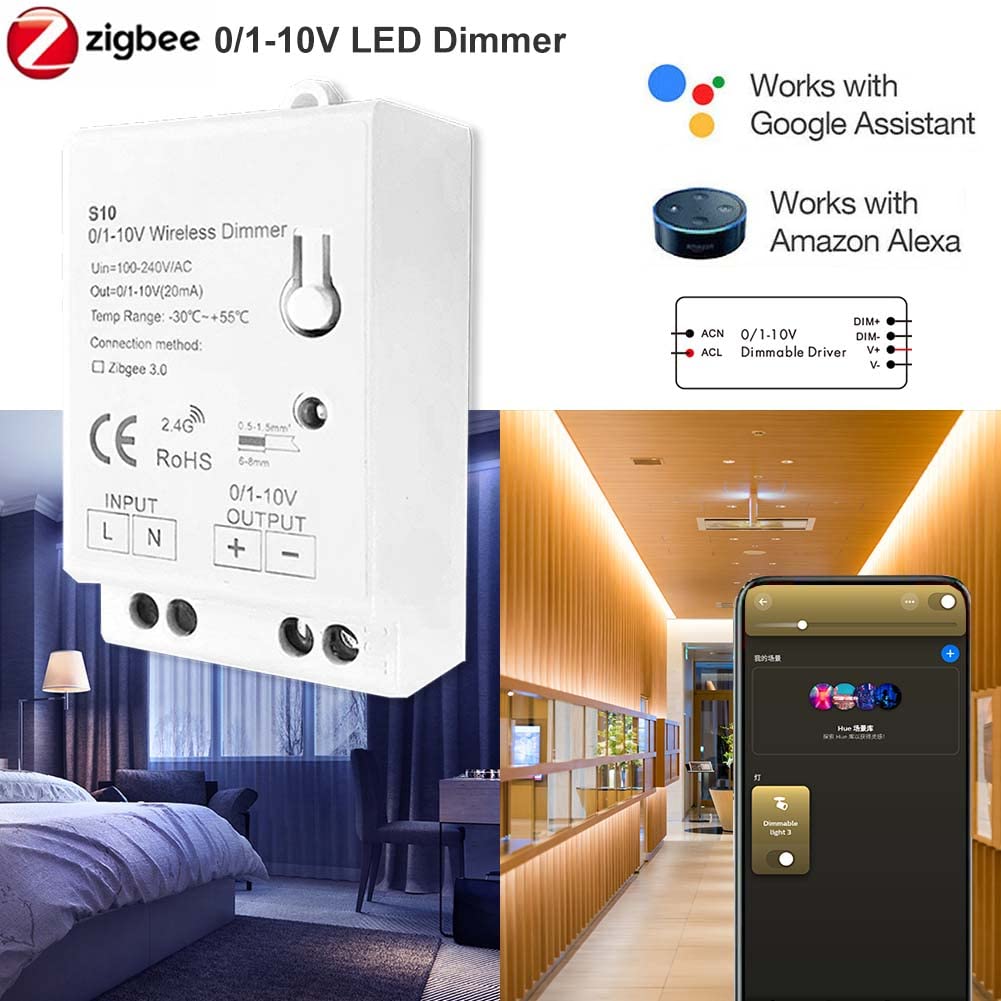

YSRSAI Zigbee 3.0 0-10V LED Dimming Controller Support Timing, Auto Switch for Tuya Zigbee 3.0 Hub Smartthings, Echo Plus, Z2mqt, for Dimmable 0-10V 1-10V LED Driver

• 【ZigBee 0-10V 1-10V Dimmable】Input voltage: 100-240VAC 60Hz output 0-10V use ZIGBEE 3.0 protocol, you need a hub, this dimmer is suitable for 0-10V, 1-10V dimmable LED power driver.

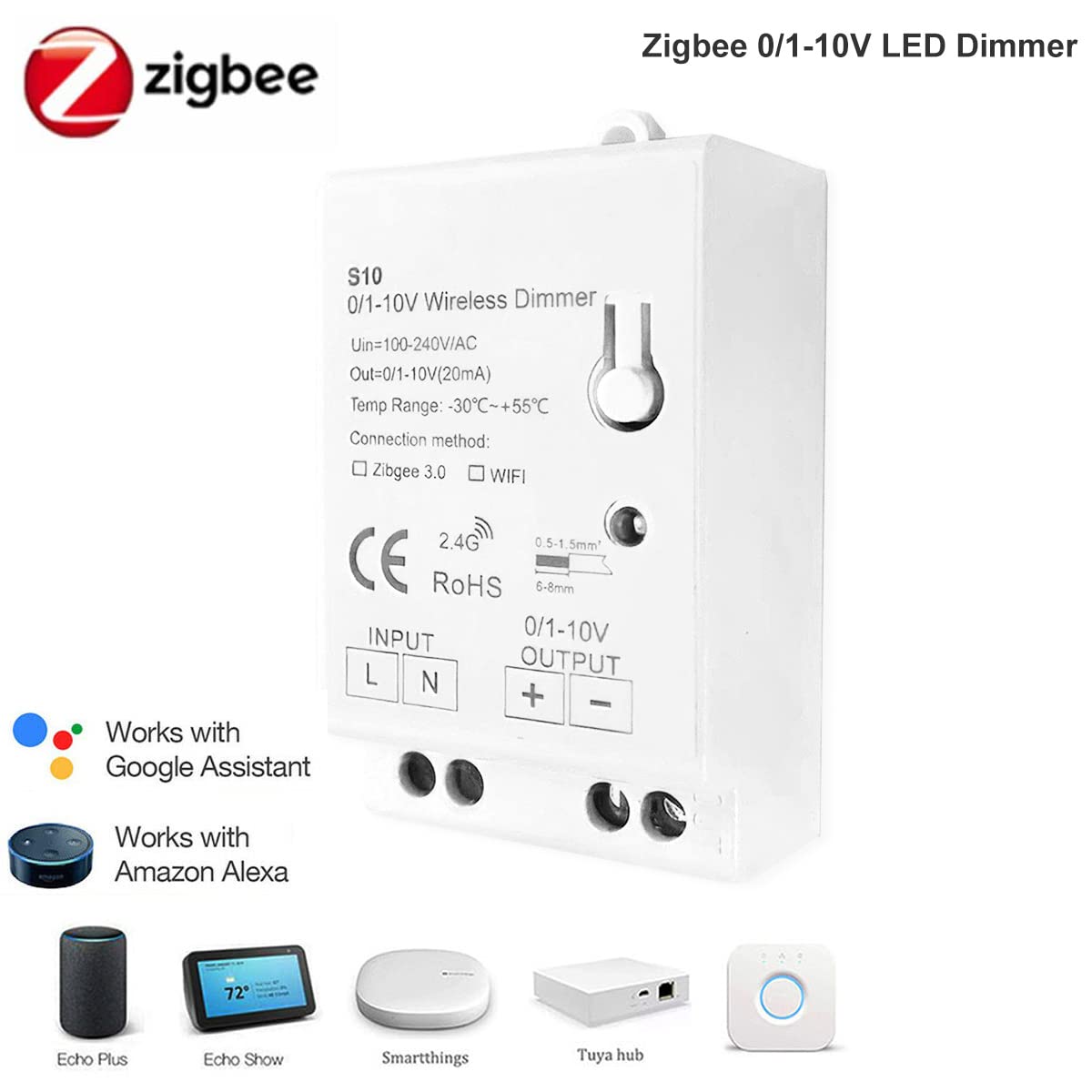

• Zigbee hub required: the Zigbee LED controller compatible with Zigbee 3.0 hub bridge, such as For example: Tuya Zigbee hub, Smartthings, Zigbee2MQTT, ZigBee 3.0 hub, if you no gateway have, Zigbee controller will not function
• Alexa voice control: Echo with built-in ZigBee module is required. Can be used e.g. Directly use: Amazon Echo Plus, Amazon Echo Plus (2nd Generation), Echo (4th Generation), Echo Studio, Echo Show (2nd generation) and other intelligent speakers with built-in Zigbee3.0 protocol - on/off, adjust brightness

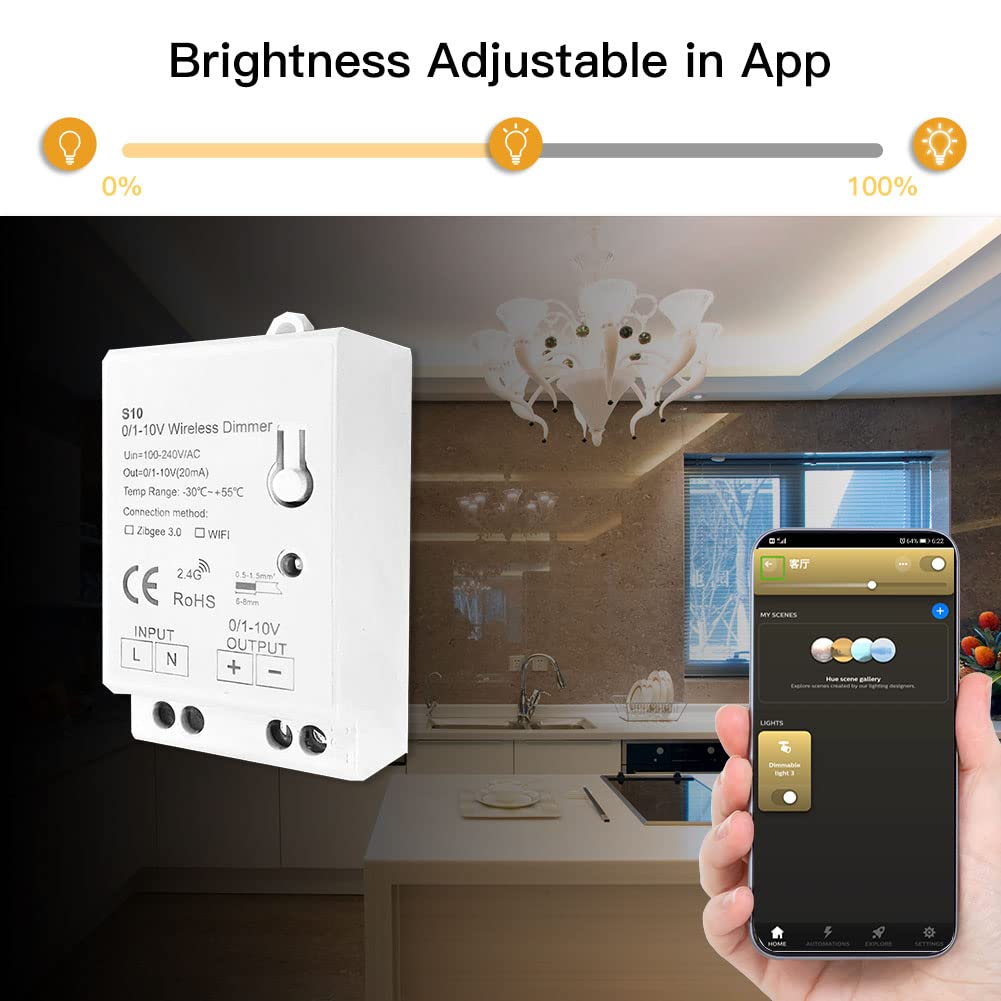

• Power on/off and 1%-100% brightness: support on/off, brightness adjustment, auto shutdown, scene function, and you can easily adjust the brightness from 0% to 100%. The minimum brightness can be adjusted as needed.

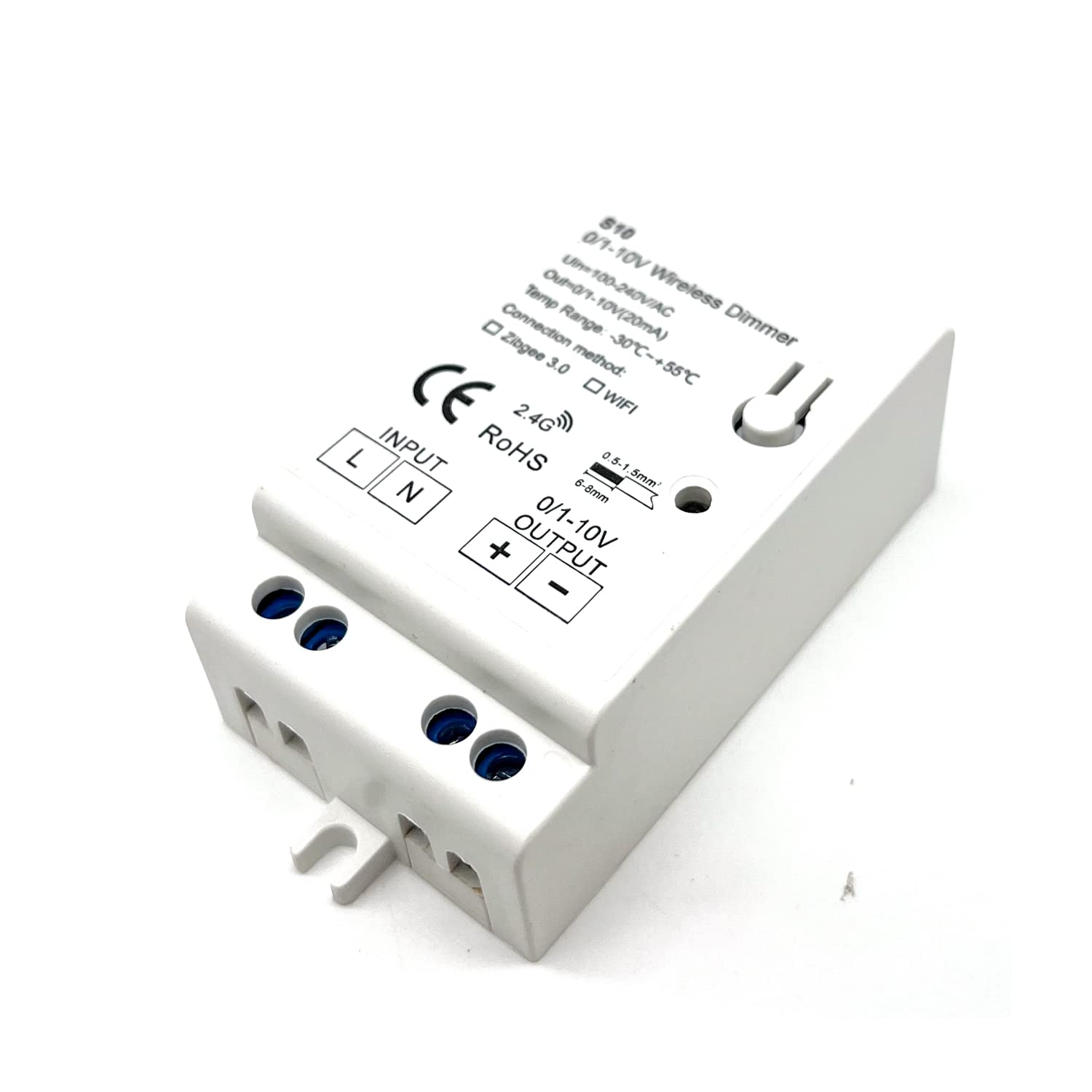

• Safe and comfortable design: 0 - 10 V no-load output signal conditioner. Using fireproof ABS material shell, the dimmer is safer to use. In addition, the small size and screw terminal design make it easy to connect and install. Anti-interference, suitable for long-term use of lamps.

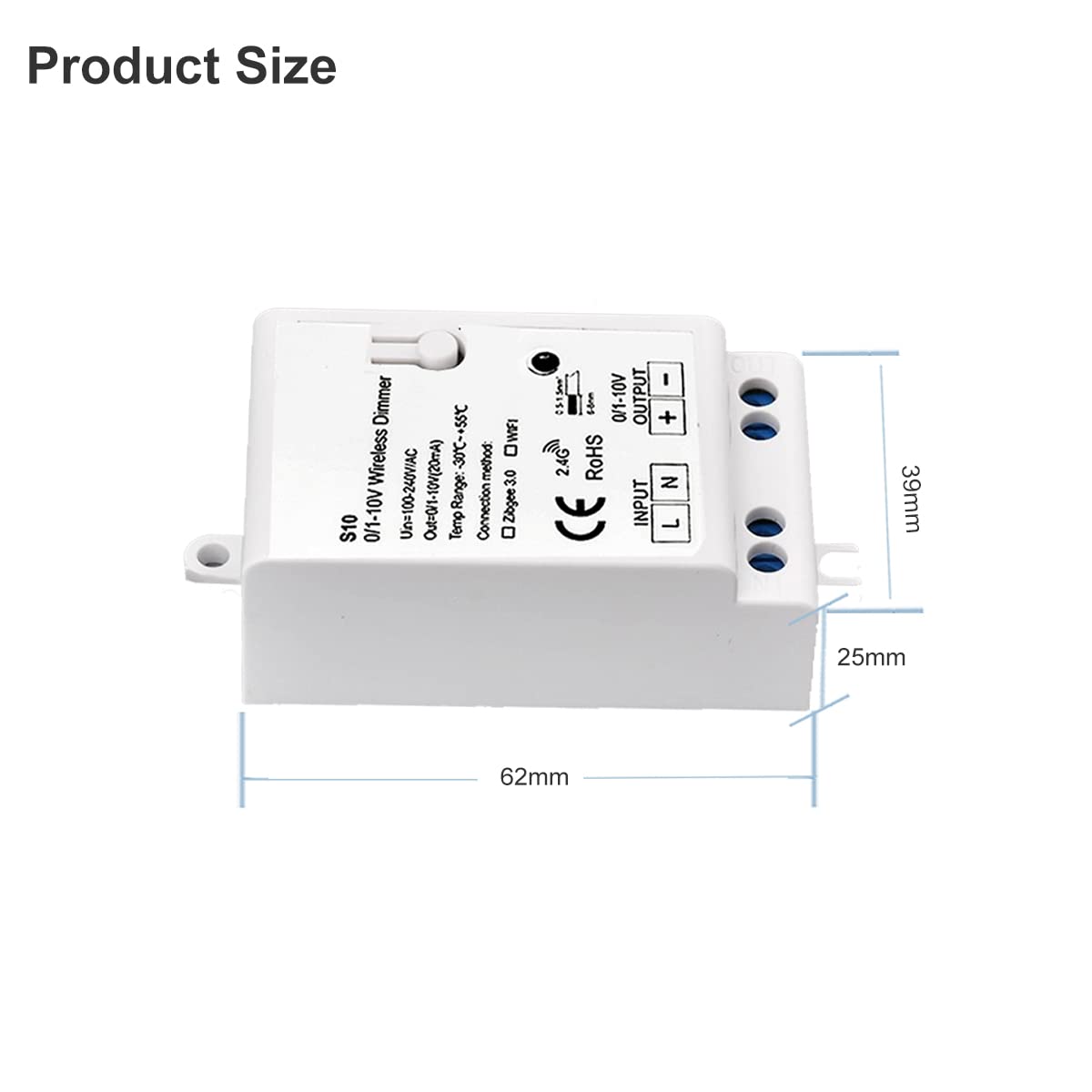

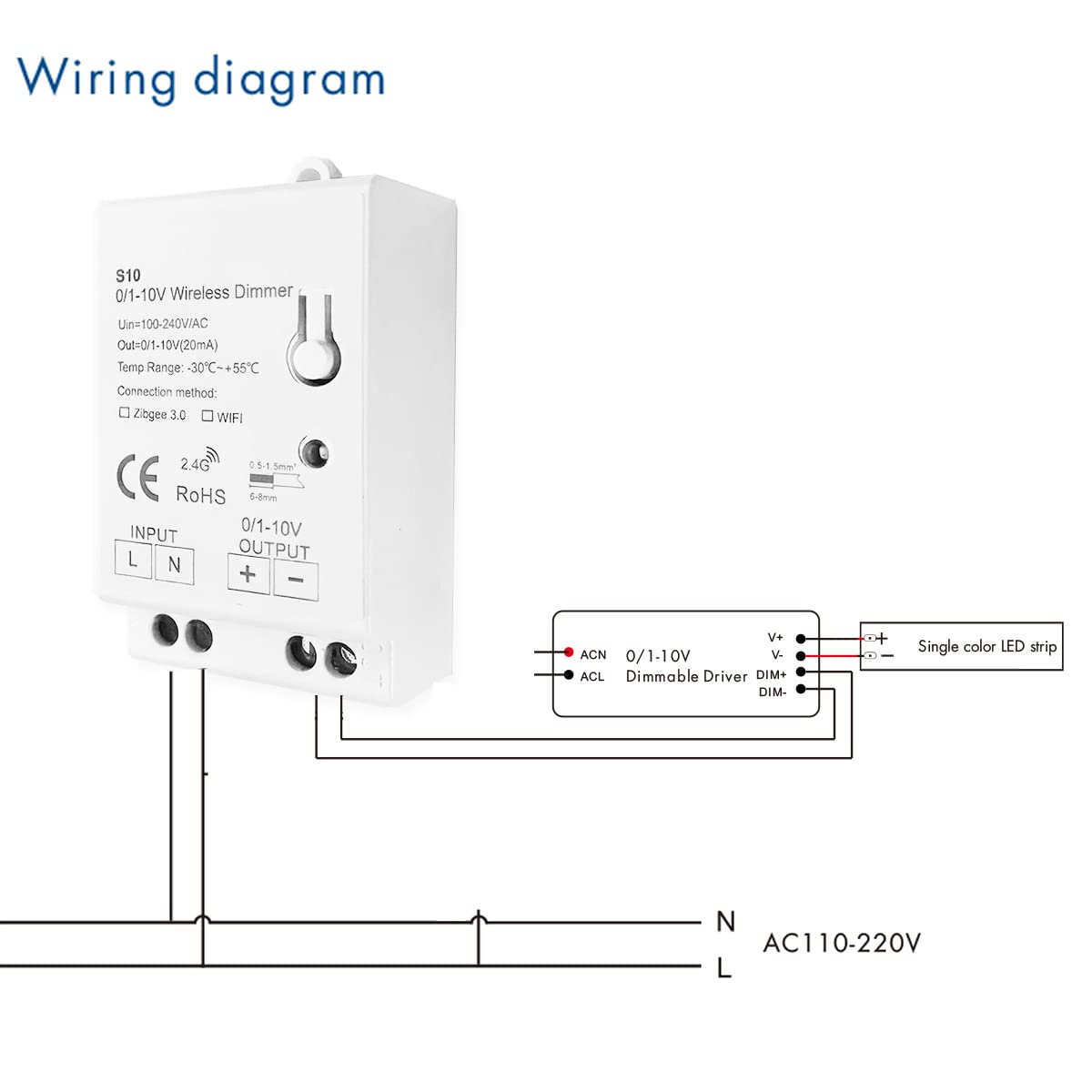

Product description Note: A ZigBee Gateway is required to use the device. The 0-10V Zigbee dimmer must be used with a 0-10V dimmer driver. Compatible with 0-10V/1-10V drive power These devices work with many ZigBee 3.0 Light Link Gateways Amazon Alexa for voice control via Hub Bridge/Echo Plus Gateway/Tuya Hub ZigbeeZ2mqtt Note: Please turn off the entire power supply before installation! Parameters Input power: AC100-277Vac. Output voltage: 0-10 V. Current: 20 mA. Radio frequency: Zigbee 3.0. Transmission distance: 30 m. Operating temperature: -20°C to 70°C Dimensions: 140mm x 50mm x 30mm How to reset Turn on the 0-10V device. Search and name the ZIGBEE 0-10V dimmer device in the app and control the LED light via the app. reset Step 1: The AC power supply turns the device on and off within 2 seconds. Step 2: Repeat step 1 five times. Step 3: After the device is turned on and step 2, the light flashes 3 times and then stays on. Reset is complete.
