Yowoo RC Cellmeter 7 Digital Battery Capacity Checker Controller Tester Voltage Tester for LiPo Life Li-ion NiMH Nicd Cell Meter

• Use for LiPo LiFe Li-ion NiMH Nicd battery
• High quality, safe and durable. Lightweight and compact with excellent performance

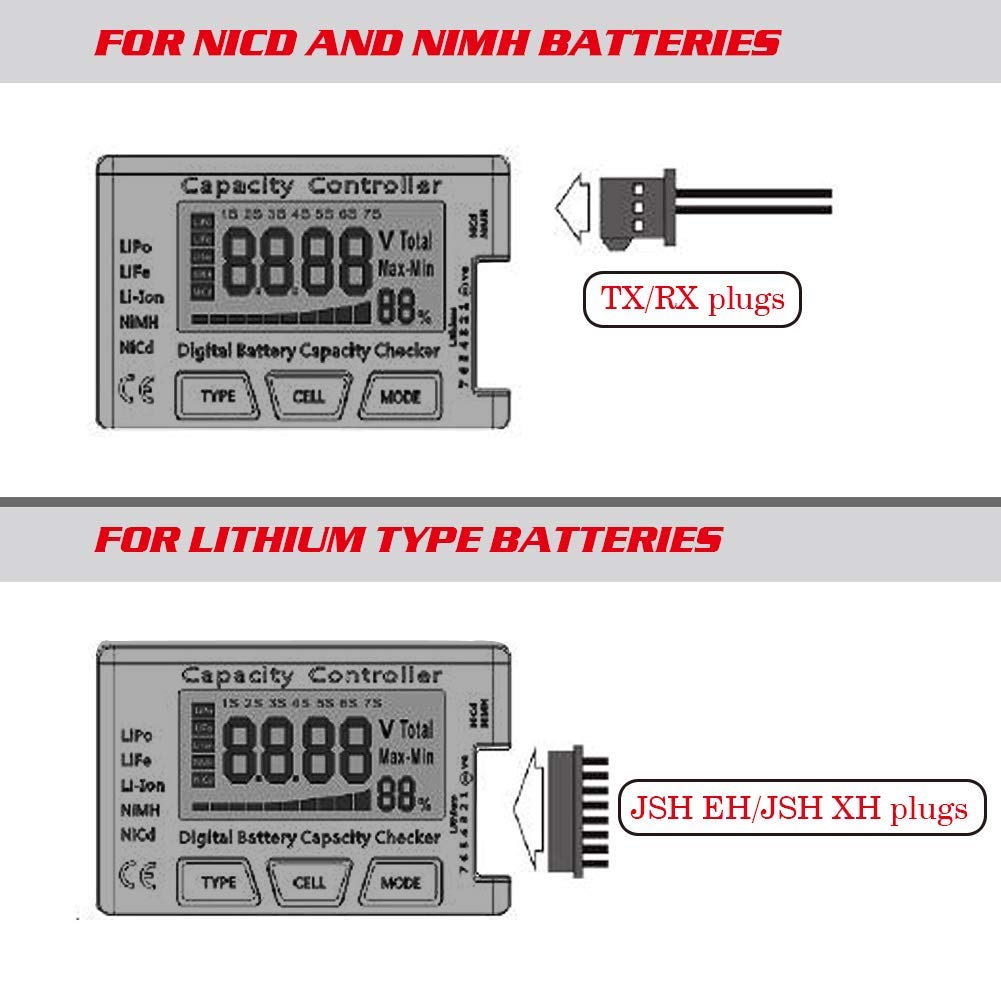

• Cell Number: NiCd / NiMH (4 - 7 Cells), Lithium Type (2 - 7 Cells)

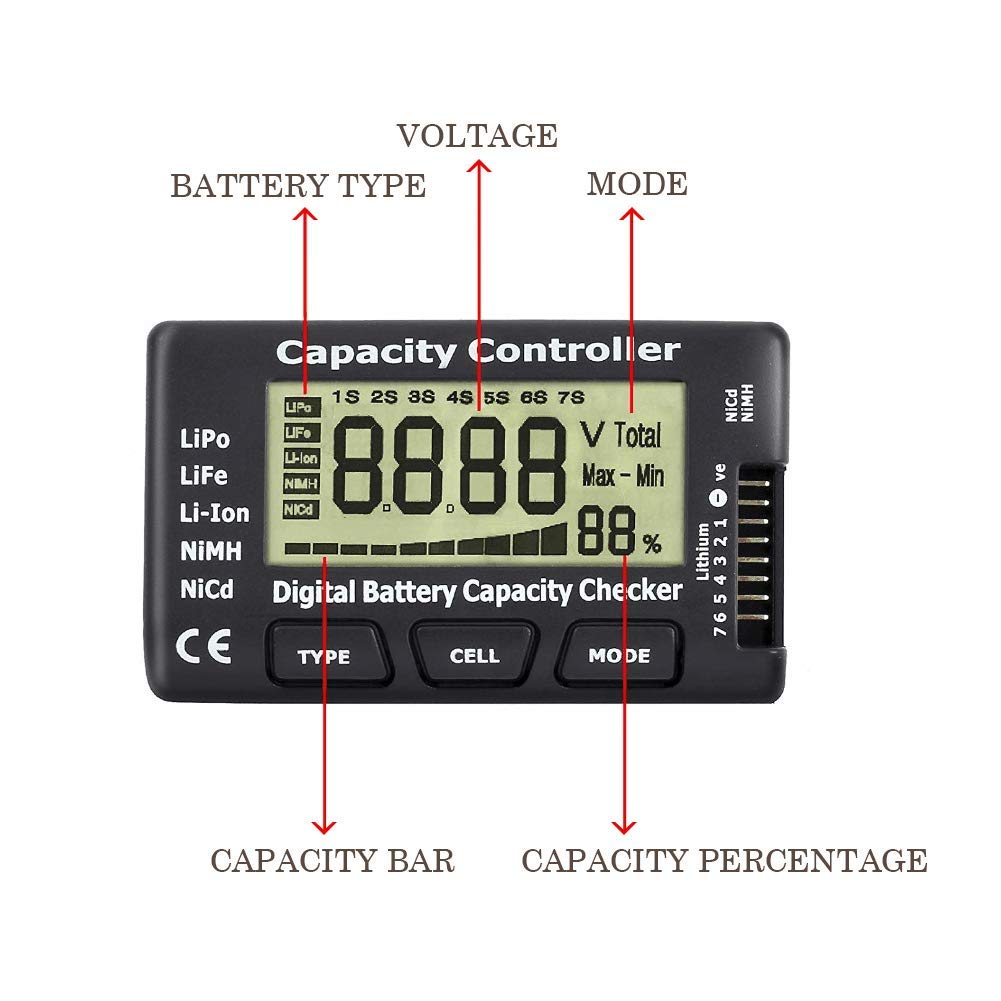

• Display Mode: Battery cell voltages, Total voltages, Lowest cell voltage, Highest cell voltage, Voltage gap between highest cell voltage and lowest cell voltage, Remaining battery capacity(%)
• Applies to check the batteries, simple and convenient to read your cell voltage

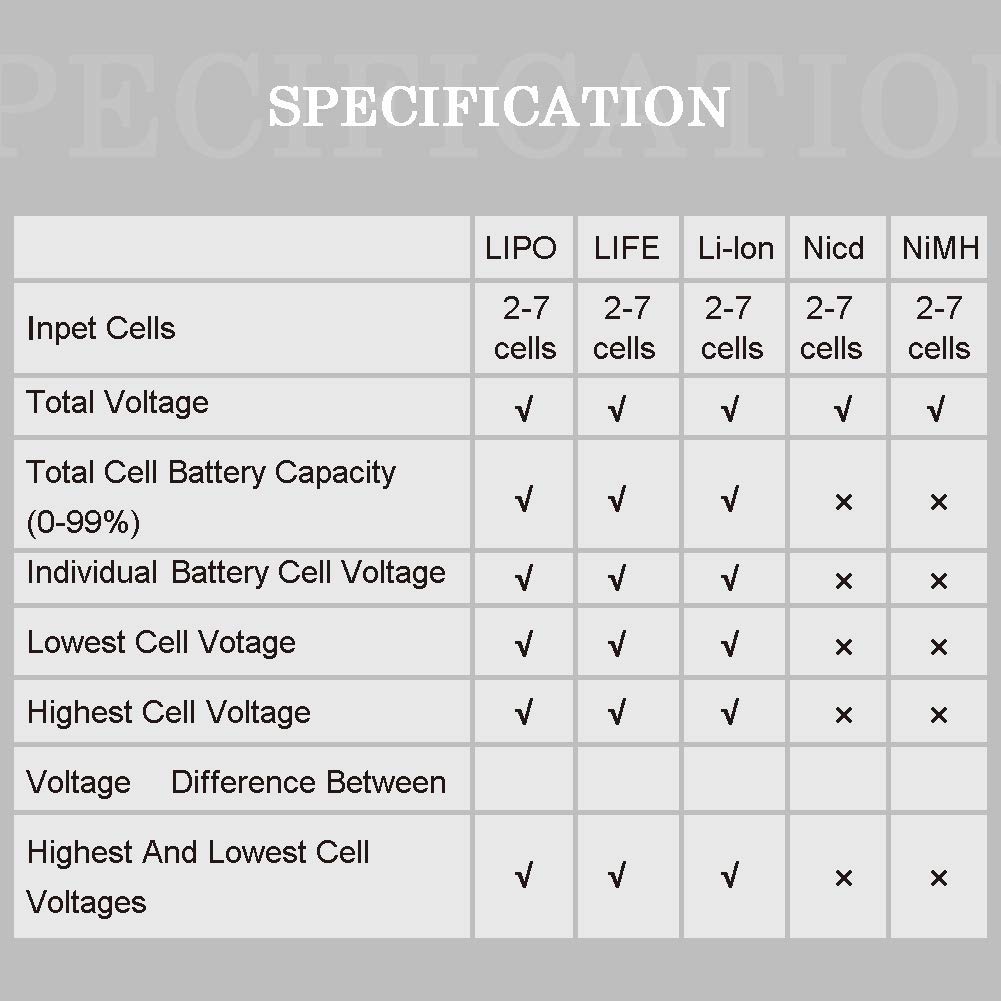

How To Use: Use for LiPo LiFe Li-ion NiMH Nicd battery Cell Number: NiCd/NiMH (4-7 Cells), Lithium Type (2-7 Cells) Press the Key "TYPE" to choose LIPO, LIFE, LI-ION respectively This 3 type can test battery cell voltages, total voltages, min cell voltage, max cell voltage, voltage gap between max cell voltage and min cell voltage, remaining battery capacity(%) Another two Type 'NiMH' and 'Nicd', can test total voltage only Press he Key "CELL", Each cell voltage will be displayed Press the Key "MODE", Total Voltage, Max Cell Voltage, Minimum Cell Voltage, Voltage Gap Between Highest Cell Voltage and Lowest Cell Voltage, Remaining Battery Capacity(%) will be shown Specifications: *Input cells: LIPO: 2-7 cells LIFE: 2-7 cells Li-lon: 2-7 cells NiCd: 4-7 cells NiMH: 4-7 cells *Total Voltage: LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: Yes NiMH: Yes *Total cell battery capacity(0-99%): LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: NO NiMH: NO *Individual Battery cell voltage: LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: NO NiMH: NO *Lowest cell voltage: LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: NO NiMH: NO *Highest cell voltage: LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: NO NiMH: NO *Voltage Difference Between Highest and lowest cell voltages: LIPO: Yes LIFE: Yes Li-lon: Yes NiCd: NO NiMH: NO Package: 1* Battery Checker 1* User manual
