Youmile USB Acquisition Module Data Acquisition Module STM32 10-Channel 12-Bit UART Communication ADC Module,with USB extension cable,15PIN cables Applied to MCU

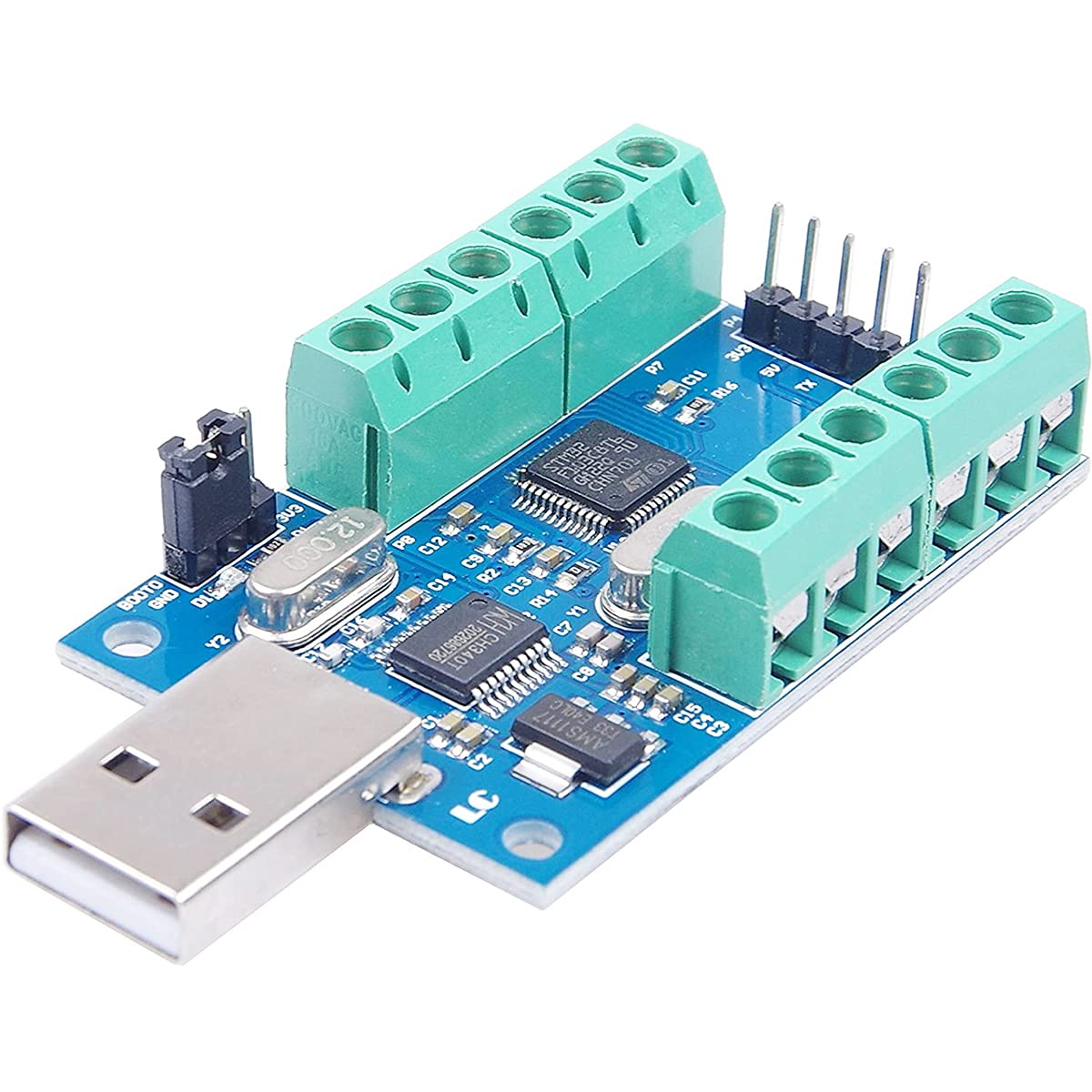

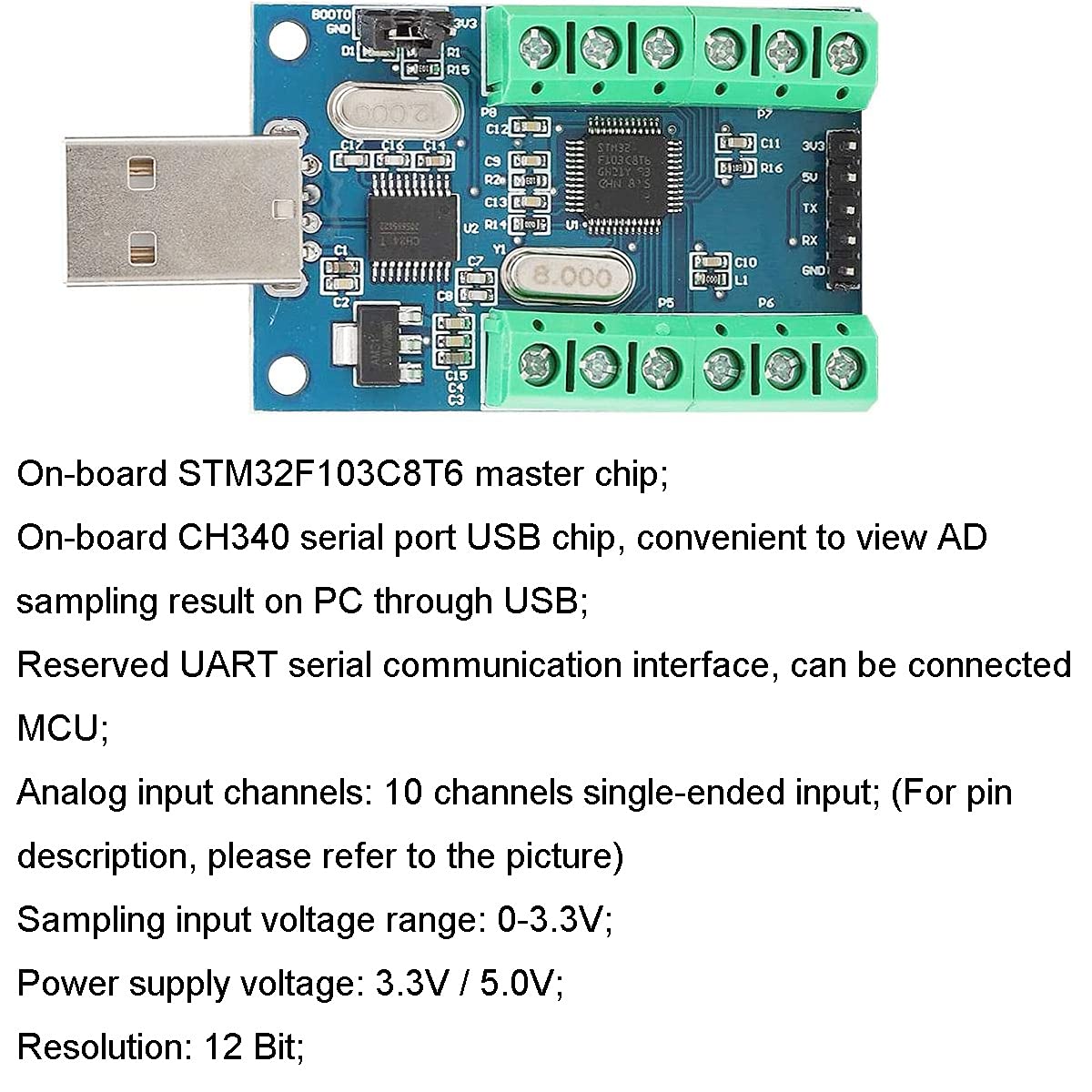

• 【Product Features】:On-board STM32F103C8T6 master chip;On-board CH340 serial port USB chip, convenient to view AD sampling result on PC through USB
• 【Reserved interface】: Reserved UART serial communication interface, can be connected MCU;

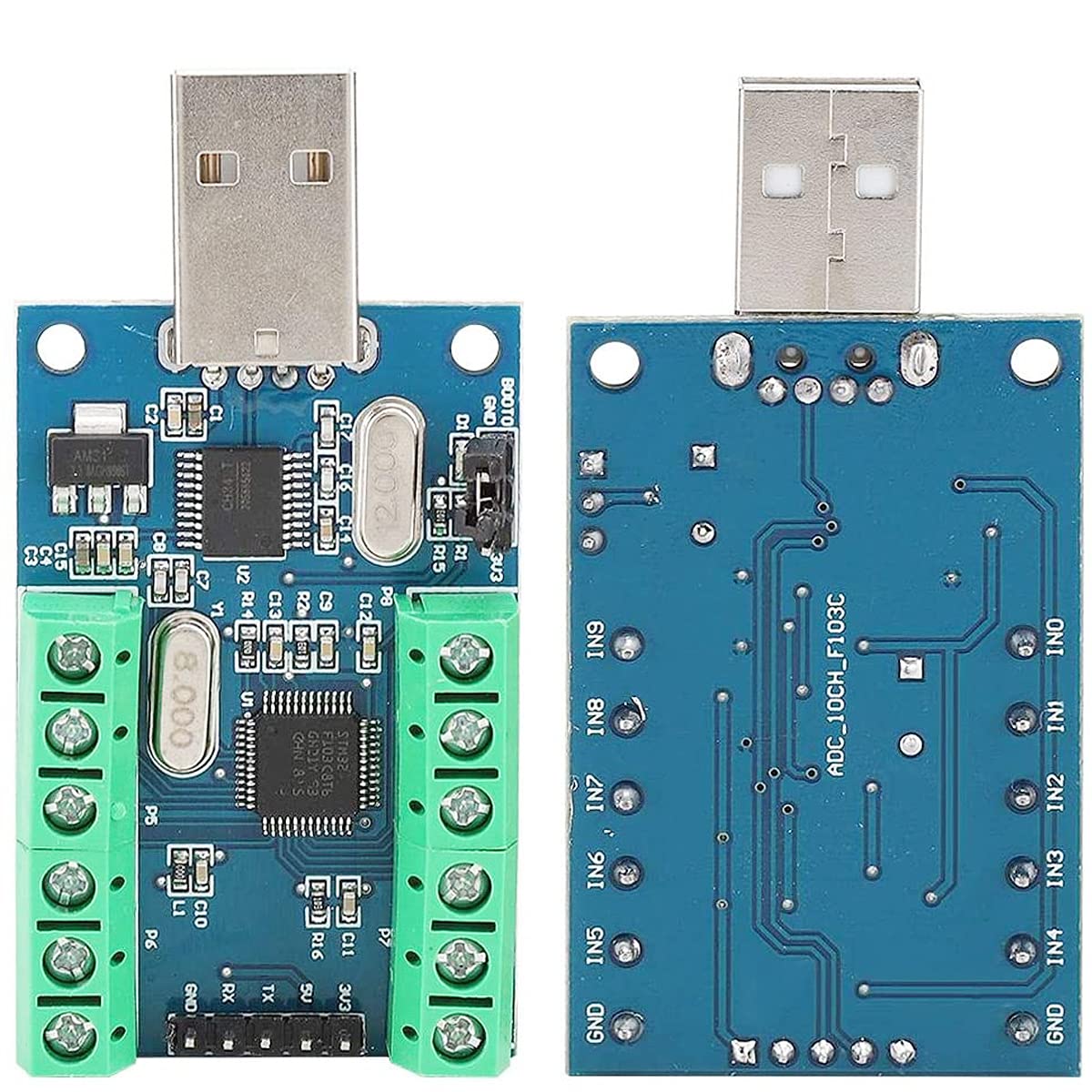

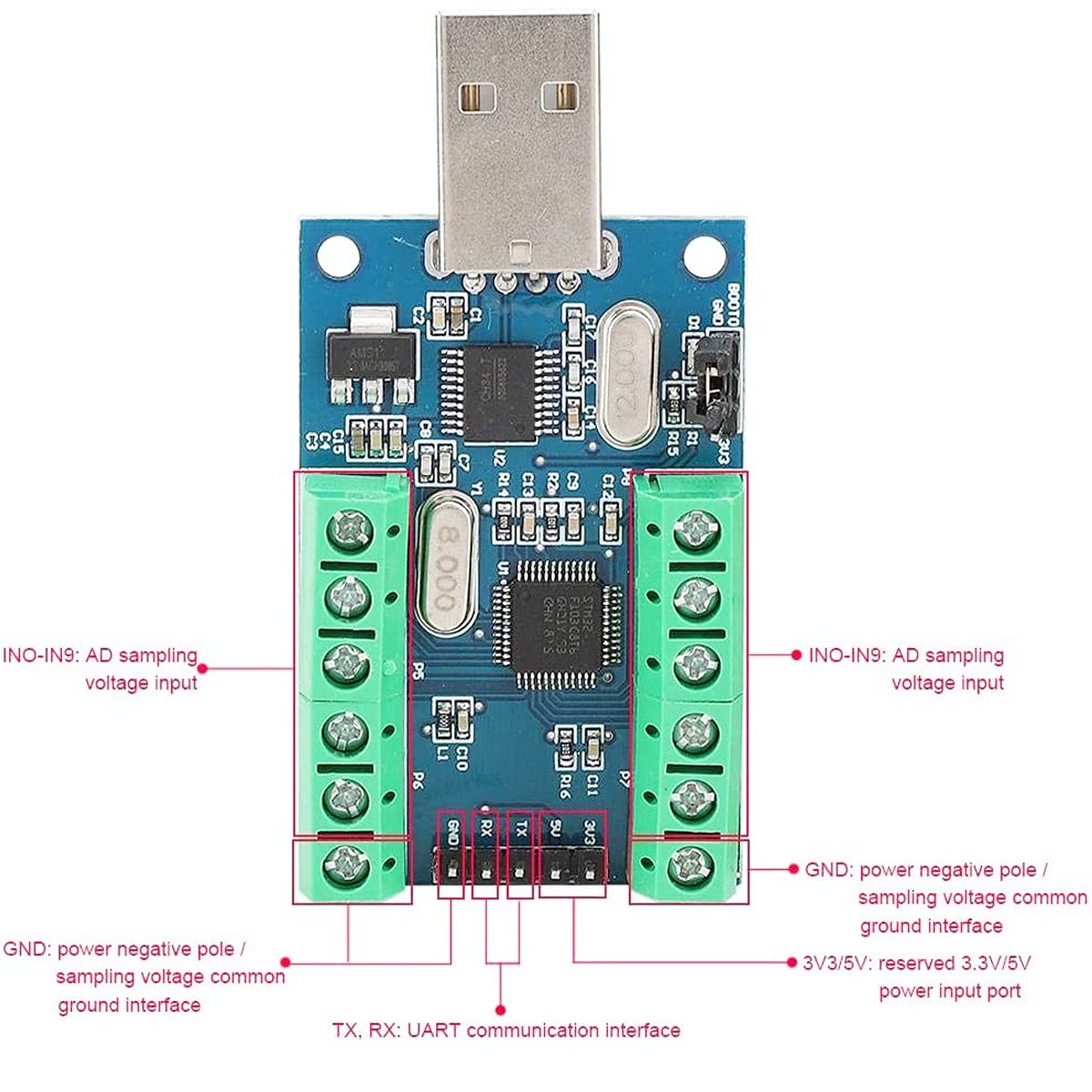

• 【Analog input channels】: 10 channels single-ended input; (For pin description, please refer to the picture)
• 【Product factor】： Sampling input voltage range: 0-3.3V; Power supply voltage: 3.3V / 5.0V; Resolution: 12 Bit;
• 【Link】: Schematic diagram of the data acquisition module code instructions for use Download link: https://www.amazon.com/clouddrive/share/5ciAuDXmgdZEuVVueuyEfCY6vH3C9XERiRhTI6Vne93

Product description Full-speed USB device interface, compatible with USB V2.0, peripheral components only need crystals and capacitors. Emulation standard serial port, used to upgrade the original serial peripherals, or through USB additional serial port. Computer-side Windows operating system serial applications are fully compatible, without modification. Hardware full duplex serial port, built-in send and receive buffer, support communication baud rate 50bps ~ 2Mbps. Support common MODEM contact signal RTS, DTR, DCD, RI, DSR, CTS. Through the addition of level conversion devices, providing RS232, RS485, RS422 and other interfaces. Support IrDA standard SIR infrared communication, support baud rate 2400bps to 115200bps. CH341 software compatible, you can directly use the CH341 driver. Supports 5V supply voltage and 3.3V supply voltage. Package Includes: 1 × USB Data Acquisition Module 1 x USB extension cable 1 x 15PIN cables
