Youmile TOF10120 100-1800mm UART I2C Output Laser Distance Sensor Laser Rangefinder Ranging Sensor Laser Flight Distance Measurement

• 【Features】: Single power supply; UART I2C interface for device control and data transfer; Lead-free, RoHS compliant.
• 【Autofocus】: TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF).
• 【High performance】: It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

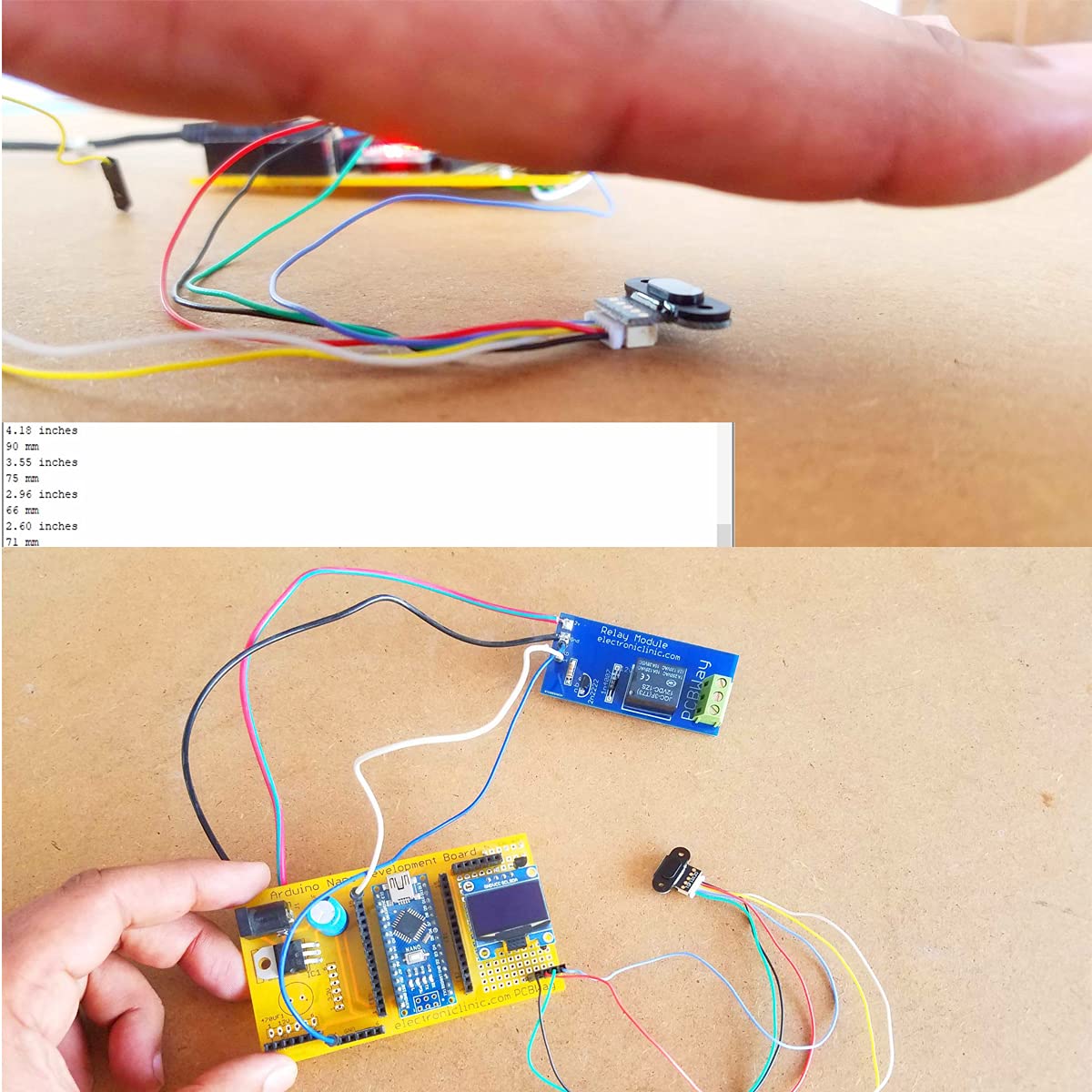

• 【Applications】: High-speed AF; Continuous AF for video; User detection for Personal Computers/Laptops/Tablets; Robotics (obstacle detection); White goods hand detection in automatic (faucets, refrigerator).
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

Product description TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-offlight technology allows performance independent of object reflectance. TOF10120’s time-of-flight sensing technology is realized by original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design. Reported range is independent of target reflection Operates in high infrared ambient light levels Advanced optical cross-talk compensation High speed range MAX 30 msec Single power supply Txd interface for device control and data transfer High-speed AF Continuous AF for video Laptops / tablets Robotics (obstacle detection) Range range 100 ~ 1800mm colour:Photo Color Material:plastic Package Includes: 1 x TOF10120 Laser Distance Sensor 1 x 6P cable 2 x screws
