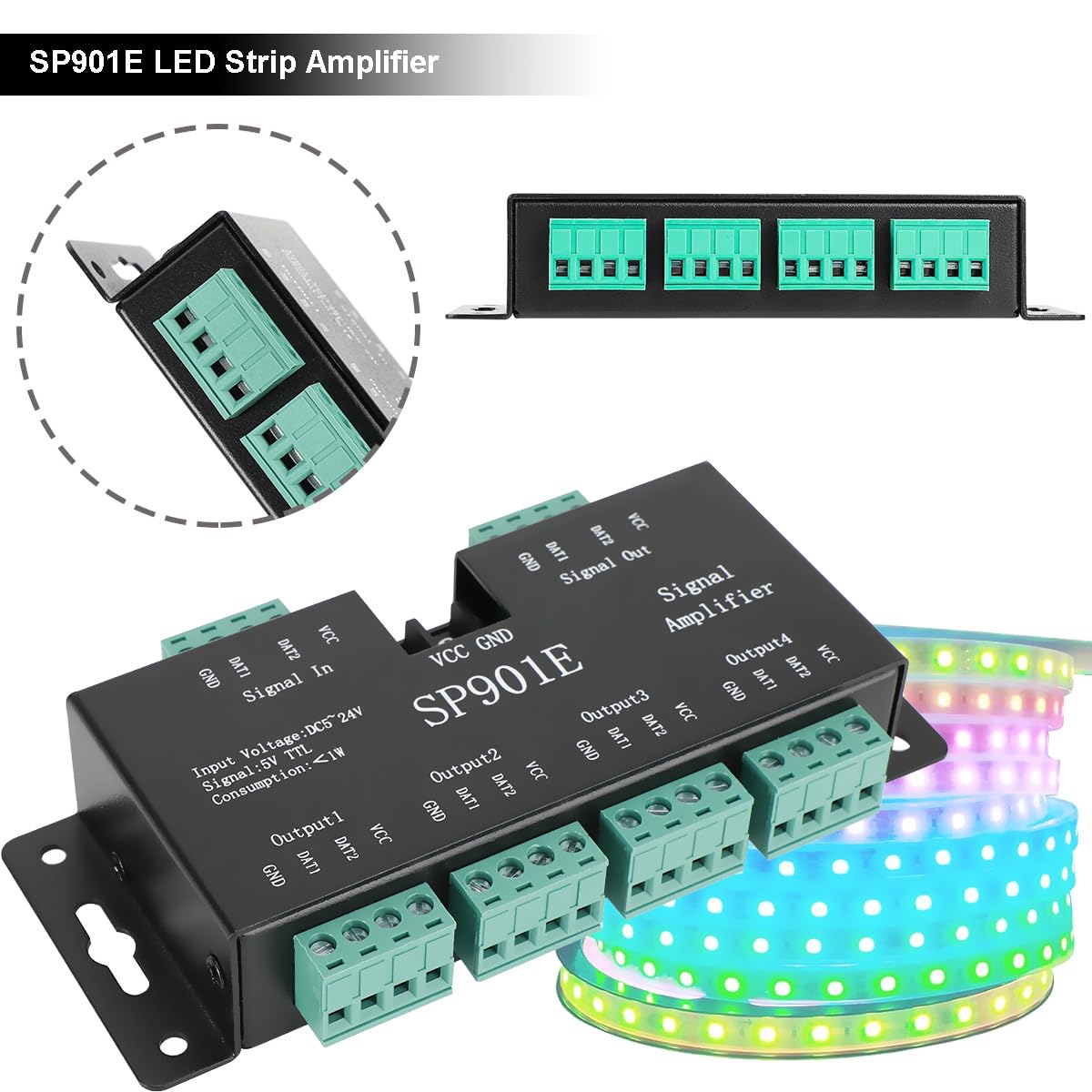

Youmile LED Strip Amplifier SP901E Pixel Signal Data SPI Repeater Controller Addressable RGB Light Strip 5V-24V with SM 2.54 3 Pin male and female Connector for WS2801 WS2811 WS2812B WS2813 WS2815

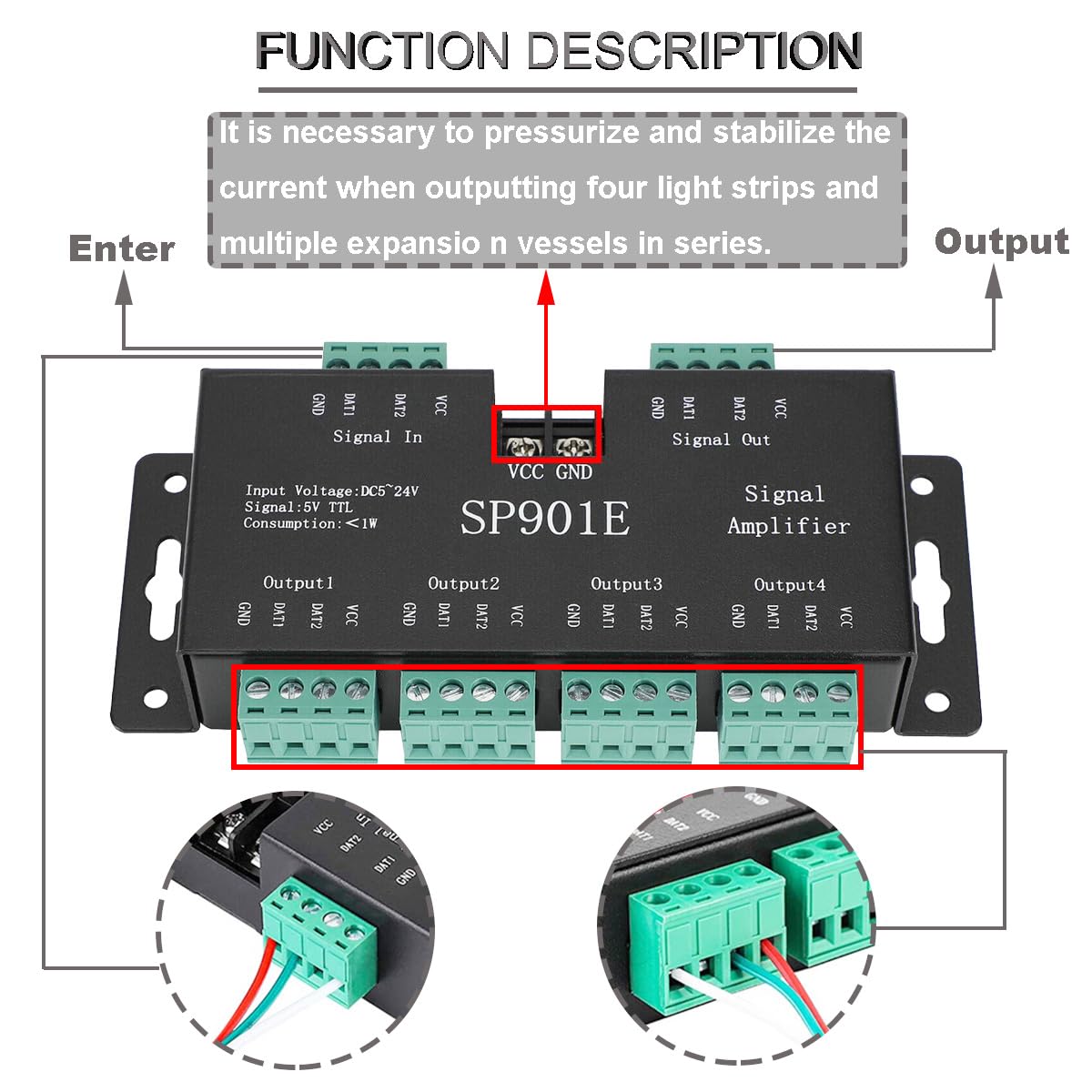

• 😊【What it does】: This LED signal amplifier is compatible with various 5V-TTL signals. It receives 1 signal and outputs 4 or 8 signals at the same time. Each channel can control the same number of LED pixels as the main controller.
• 😊【Compatibale IC type】: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102.
• 😊【Voltage】: DC5V~24V wide range of working voltage, but it cannot regulate the output voltage.The output voltage of the power supply must be the same as the working voltage of the LED lamp.If the lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply.
• 😊【Current distribution】: The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.

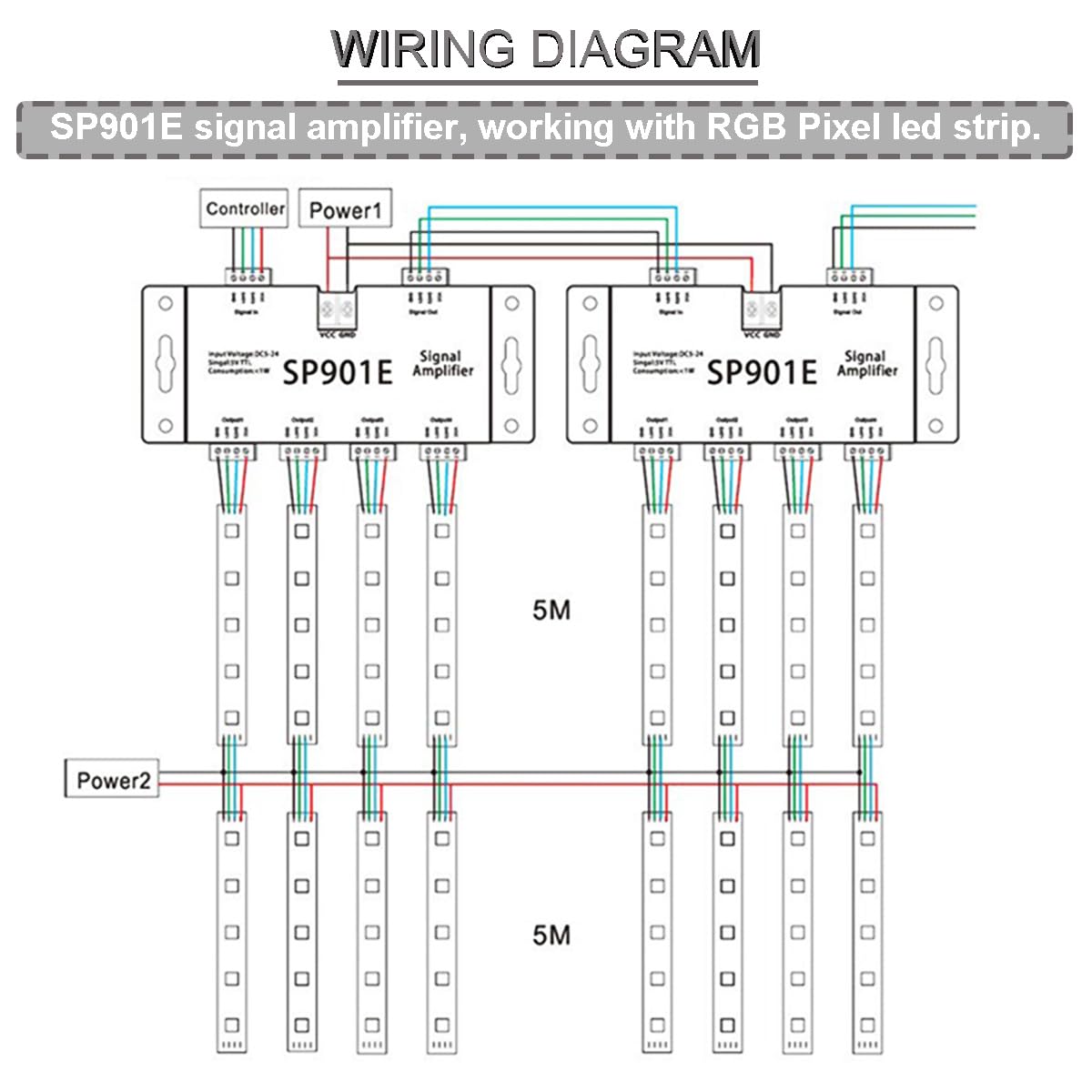

• 😊【Sub-control cascade design】: Multiple signal amplifiers can be cascaded together synchronously.Particularly suitable for small and medium dream color lighting projects.

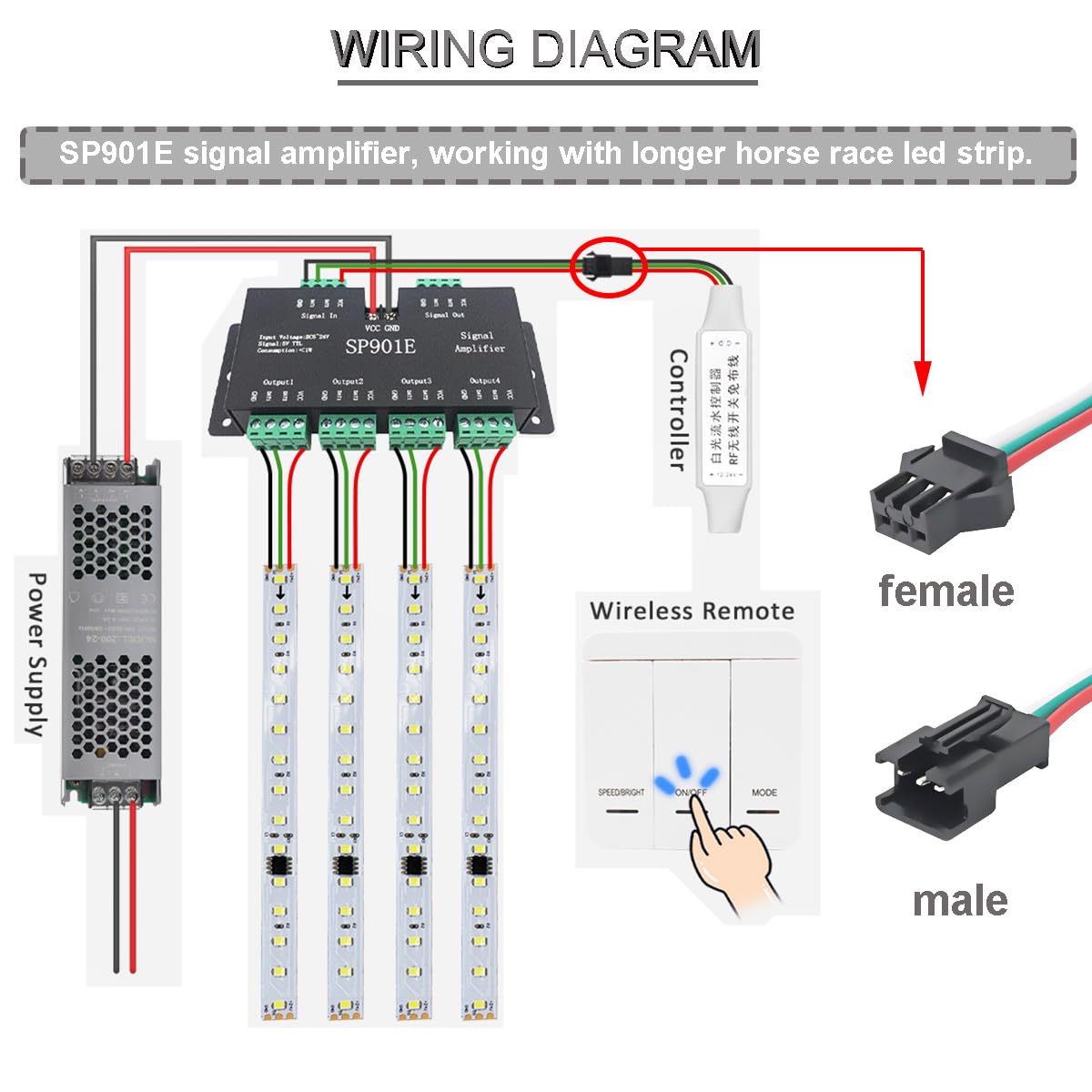

• 😊【Example】: You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 ,DC12V WS2815, DC12V 1903, DC12V 6803 at the same time via this singal amplifier since they have the same singal.
• 😊【Package Includes】: 1x SP901E Signal Amplifier;4 x SM 2.54 3 Pin male Connector;4 x SM 2.54 3 Pin female Connector.

Features: 1.Wide voltage supply and anti-reverse connection. 2.Applicable to 5V-TTL signal dual signal, support common IC models in the market. 3.Multiple sub-control cascade design is applicable. 4.Used with full color controller, the output voltage is consistent with the input voltage. 5.Single-line LED driver chip can support 8 simultaneous outputs, and dual signals are 4 channels. Specification: Working voltage: DC5V~24V Output:8 channels / 4 channels Static power consumption: lass than 1W Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102 Note: 1.The amplifier cannot regulate the output voltage at the VCC.That means the output voltage of your power supply must be as same as the working voltage of LED lights. 2.If the lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply. 3.The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally. Package Includes: 1 x SP901E Signal Amplifier 4 x SM 2.54 3 Pin male Connector 4 x SM 2.54 3 Pin female Connector
