Youmile LED light Driver board DC 5-24V 30W PWM LED dimming control Module fast and slow gradually brightening respiratory blinking function Adjustable three modes,with housings crimp terminal

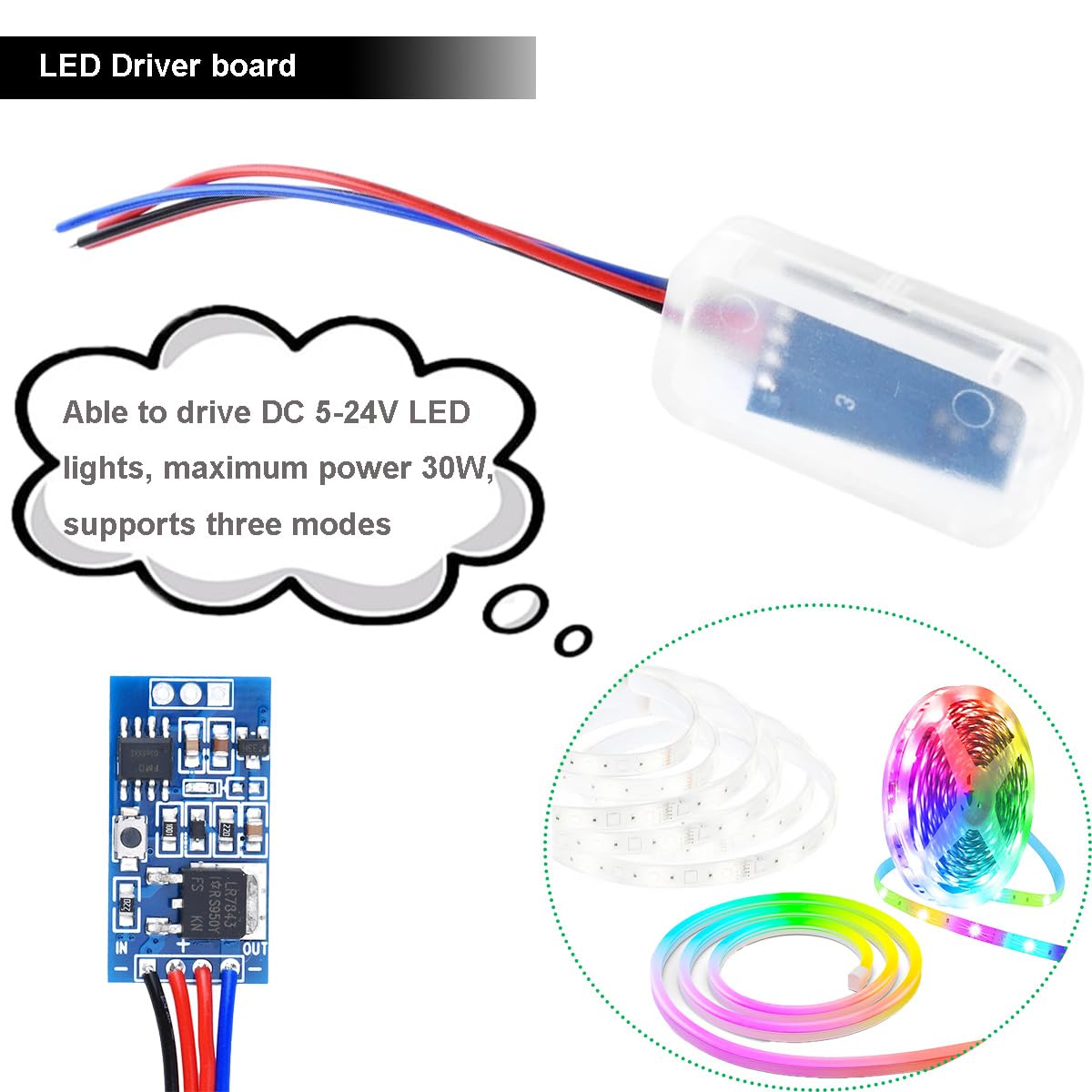

• 😊【What it does】: This is an LED light driver board with a high-power MOS tube, supports up to 30W LED lights, and can adjust three lighting modes.
• 😊【High-quality materials】: This LED driver board is made of high-quality materials and has stable performance. The included shell makes it dust-proof and waterproof and has a longer service life.

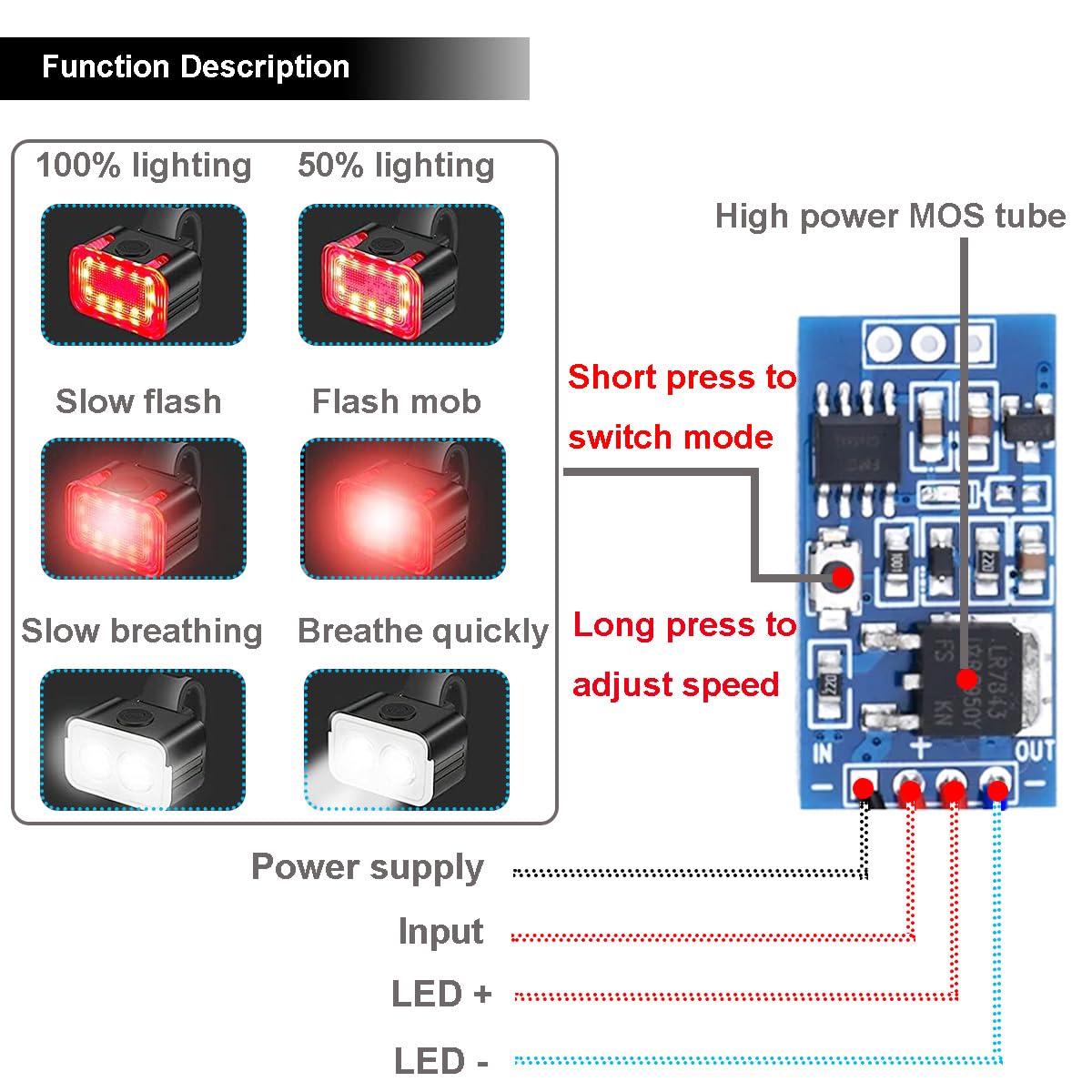

• 😊【Three modes are adjustable】: Brightness is adjustable, breathing light speed is adjustable, and flashing light speed is adjustable.Short press to convert mode, long press to adjust speed, wiring and power-on work, easy to use, you can add a switch in front of the module itself.
• 😊【Electrical characteristics】: Input voltage: DC 5-24V;Maximum power: 30W;Standby power consumption: less than 0.01MA, suitable for long-term battery power supply.

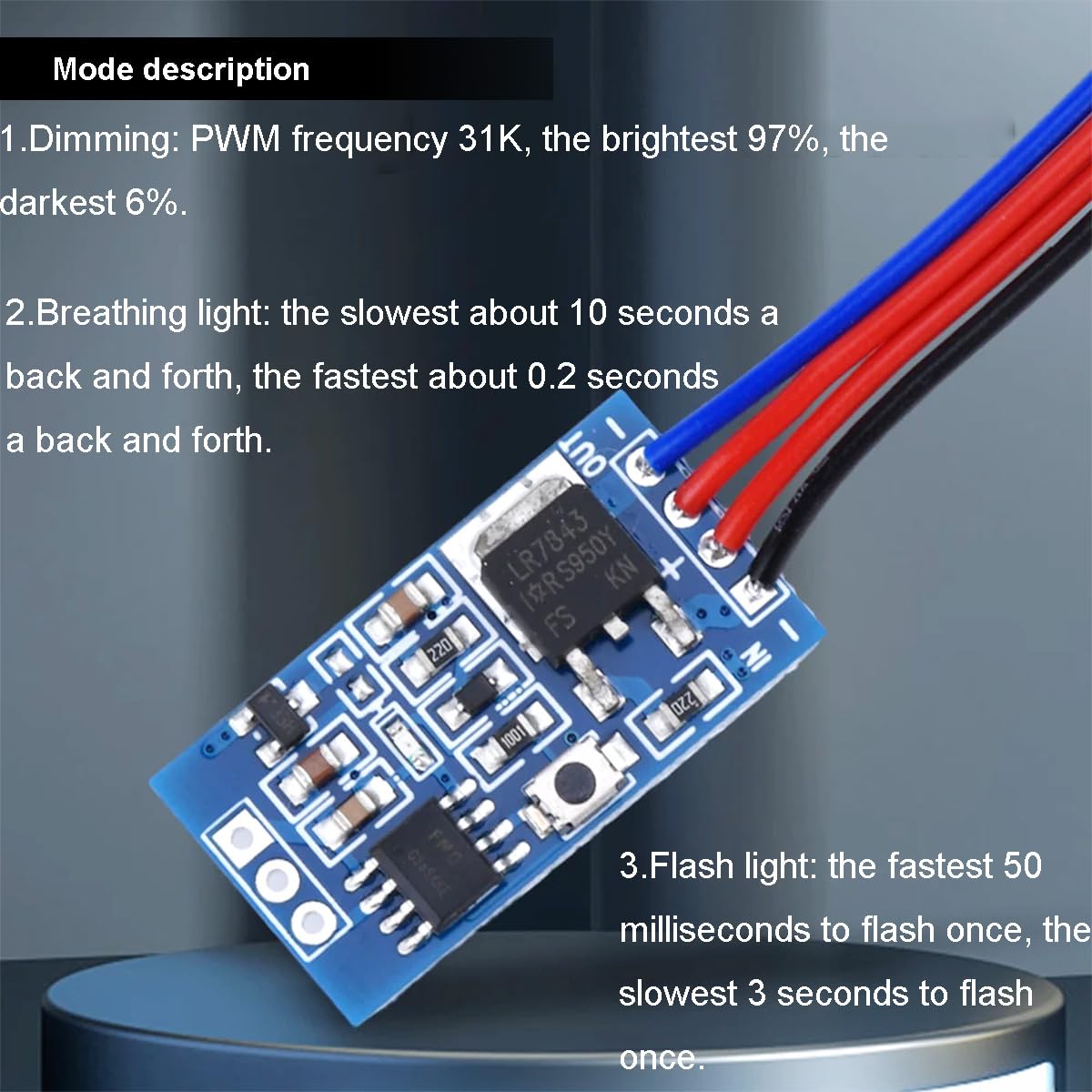

• 😊【Mode description】: 1. Dimming: PWM frequency 31K, brightest 97%, darkest 6%.2.Breathing light: The slowest one is about 10 seconds, and the fastest is about 0.2 seconds.3.Flashing light: The fastest flash is once every 50 milliseconds, and the slowest flash is once every 3 seconds.

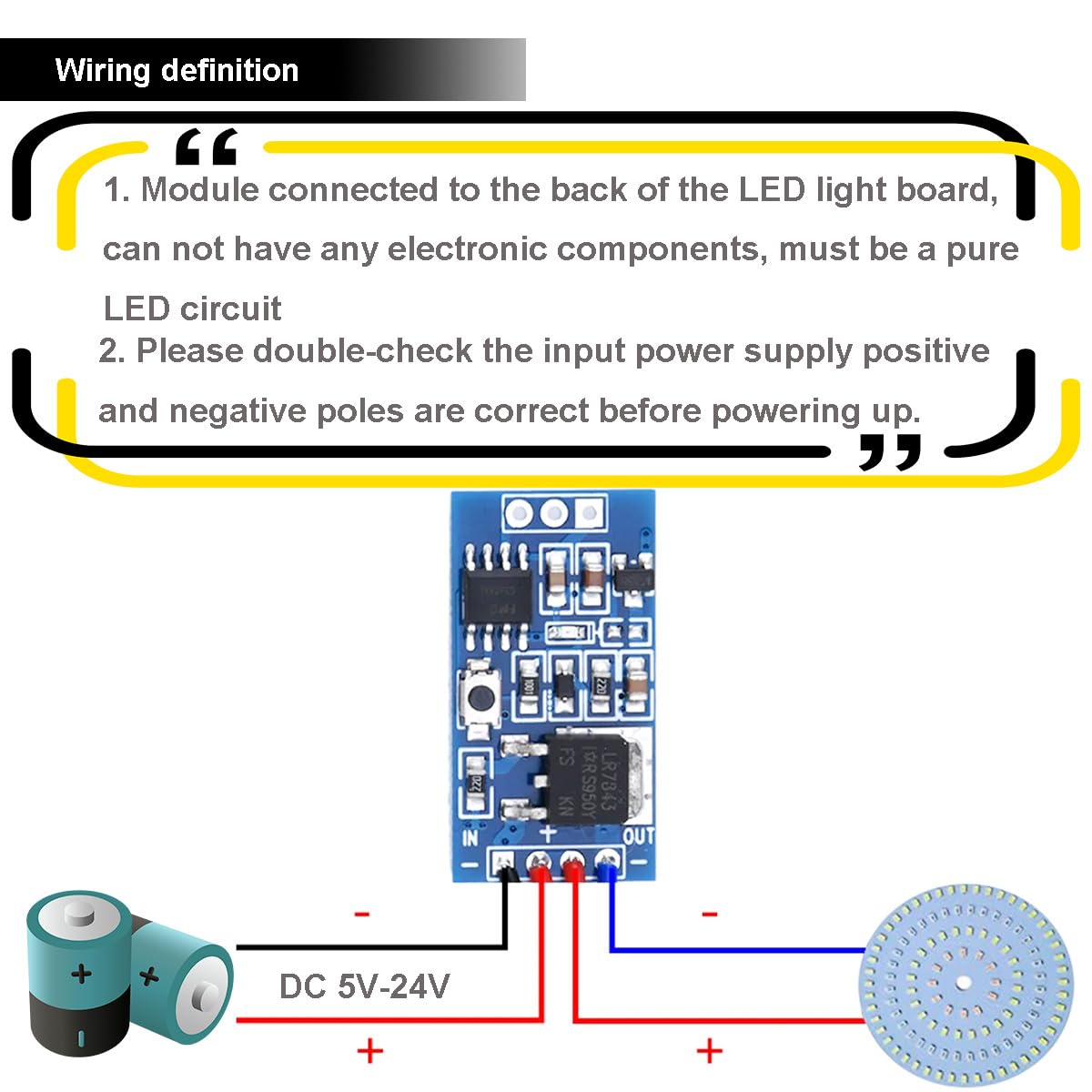

• 😊【Note】:1.Module connected to the back of the LED light board, can not have any electronic components, must be a pure LED circuit;2.Please double-check the input power supply positive and negative poles are correct before powering up.
• 😊【Package Includes】: 1 x LED light Driver board;1 x Housings;2 x Crimp terminal.

Specification: Name: Dimming control module Input voltage: DC 5-24V Maximum power: 30W Standby power consumption: less than 0.01MA, suitable for long-term battery power supply Function Description: 1. Adjustable brightness, adjustable speed of breathing light, adjustable speed of flashing light, three modes can be adjusted. 2. Mode and speed with memory function. 3. Short press to convert mode, long press to adjust the speed, wired to work on the power, easy to use, you can add a switch in front of the module itself. Mode description: 1. Dimming: PWM frequency 31K, the brightest 97%, the darkest 6%. 2. Breathing light: the slowest about 10 seconds a back and forth, the fastest about 0.2 seconds a back and forth. 3. Flash light: the fastest 50 milliseconds to flash once, the slowest 3 seconds to flash once. Note: 1. Module connected to the back of the LED light board, can not have any electronic components, must be a pure LED circuit 2. Please double-check the input power supply positive and negative poles are correct before powering up. Package Includes: 1 x LED light Driver board 1 x Housings 2 x Crimp terminal
