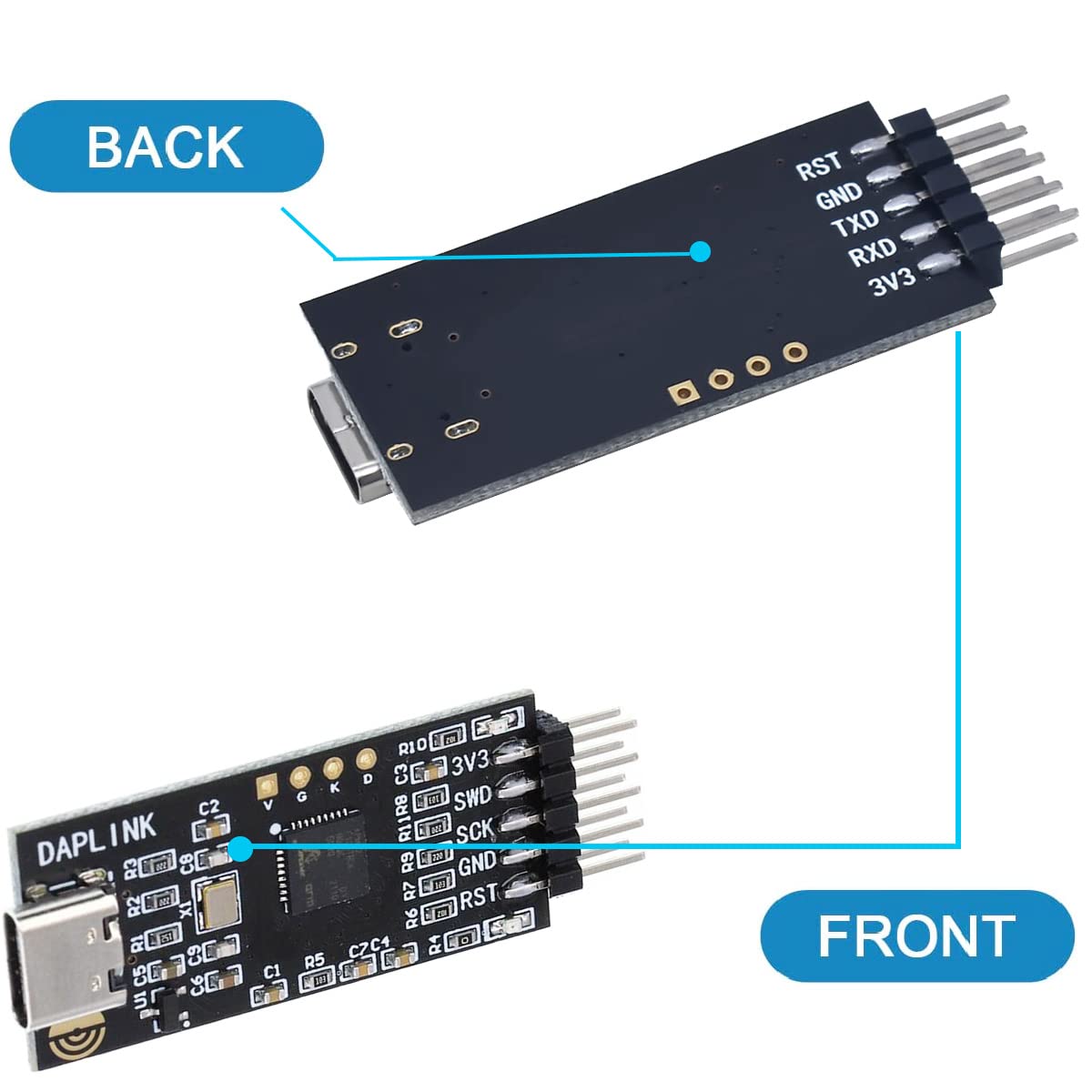

Youmile DAPLINK replaces JLINK OB/STLINK STM32 Burner, downloader and emulator ARM SWD/USB Type-C interface,with USB to Type-C cable,DuPont Cable

• 【Features】:Using USB-C interface, gold-plated process, longer life and more stable performance.
• 【Can replace】:DAPLINK supports virtual serial port.can replace USB to TTL tools such as CP2102/PL2303,Support program debugging and serial port LOG output

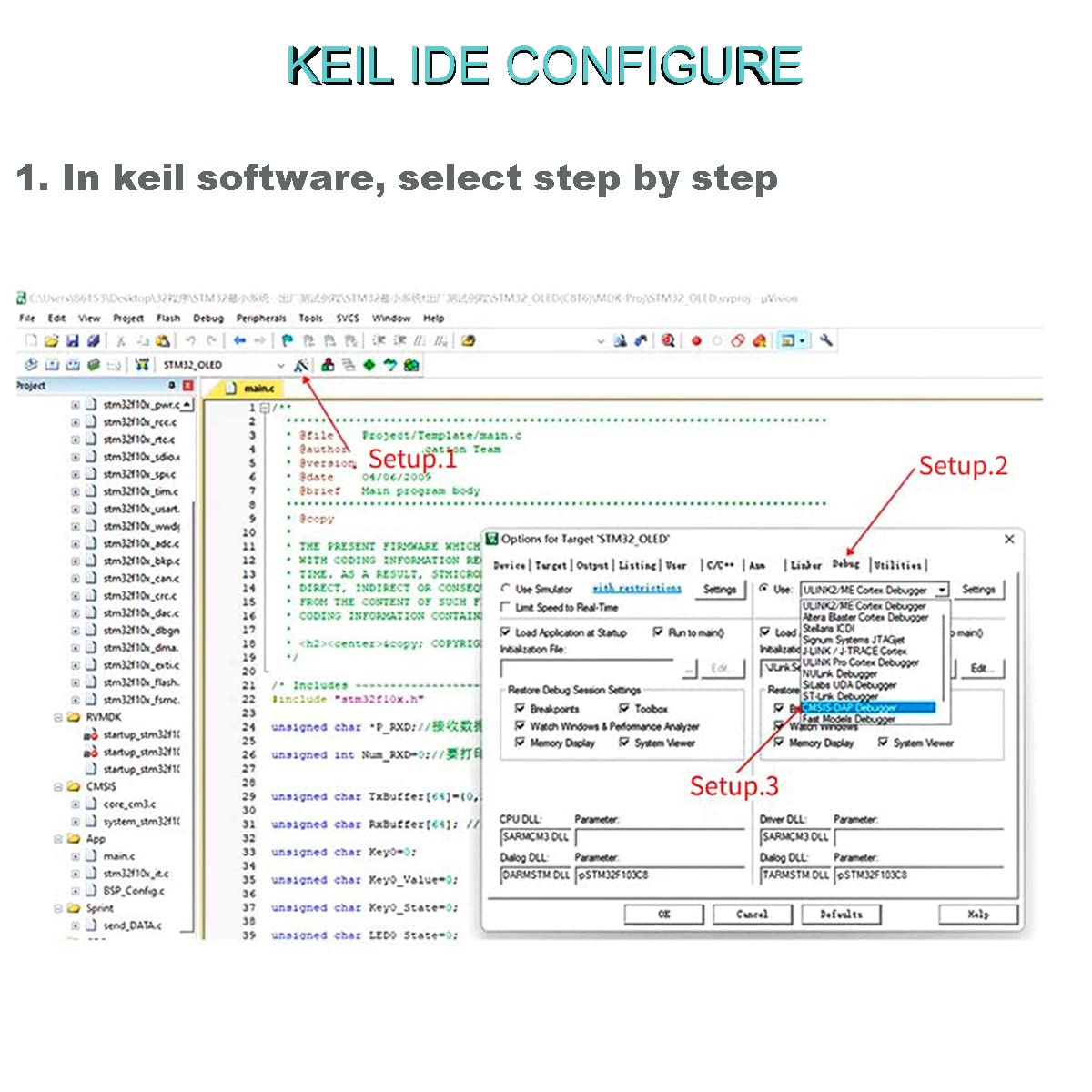

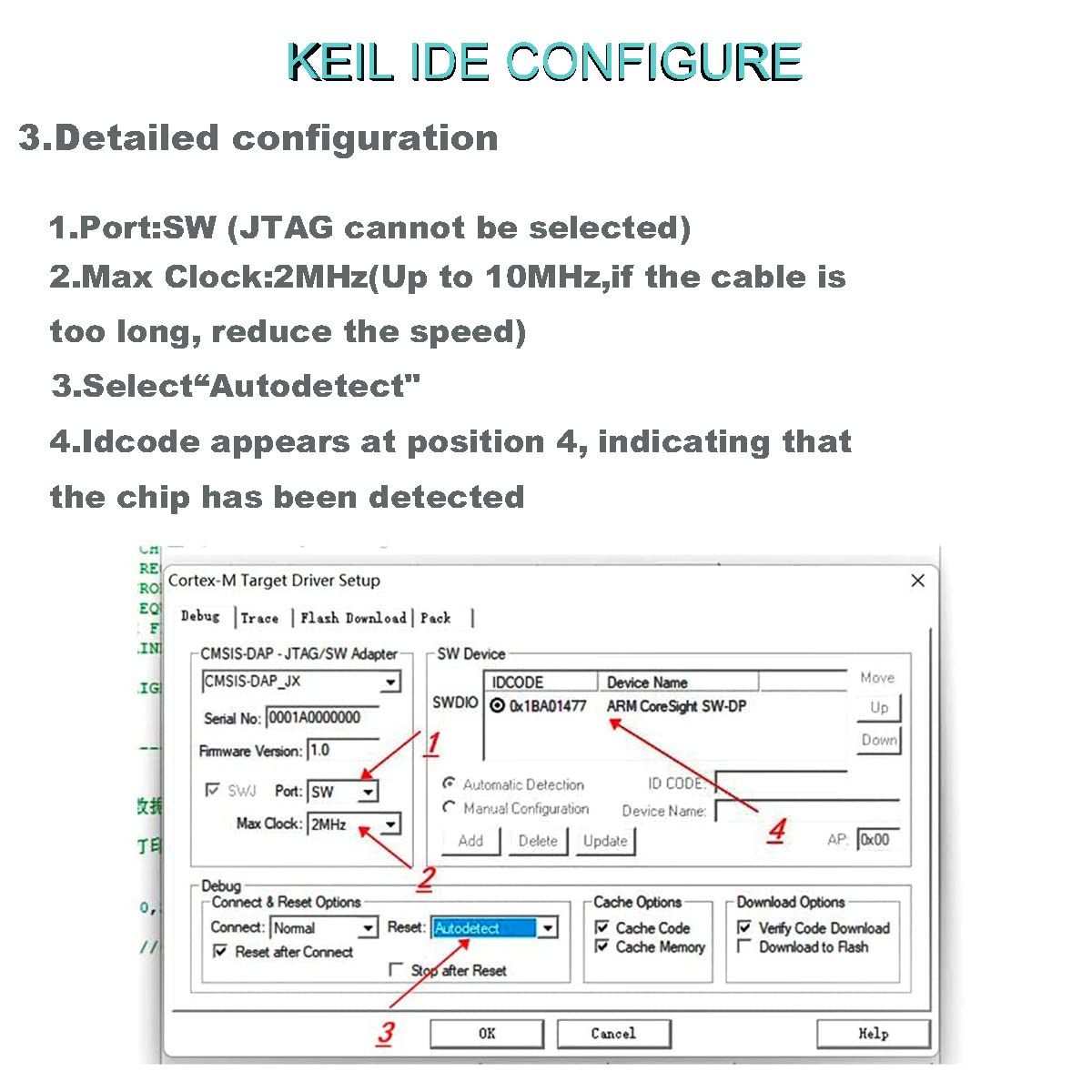

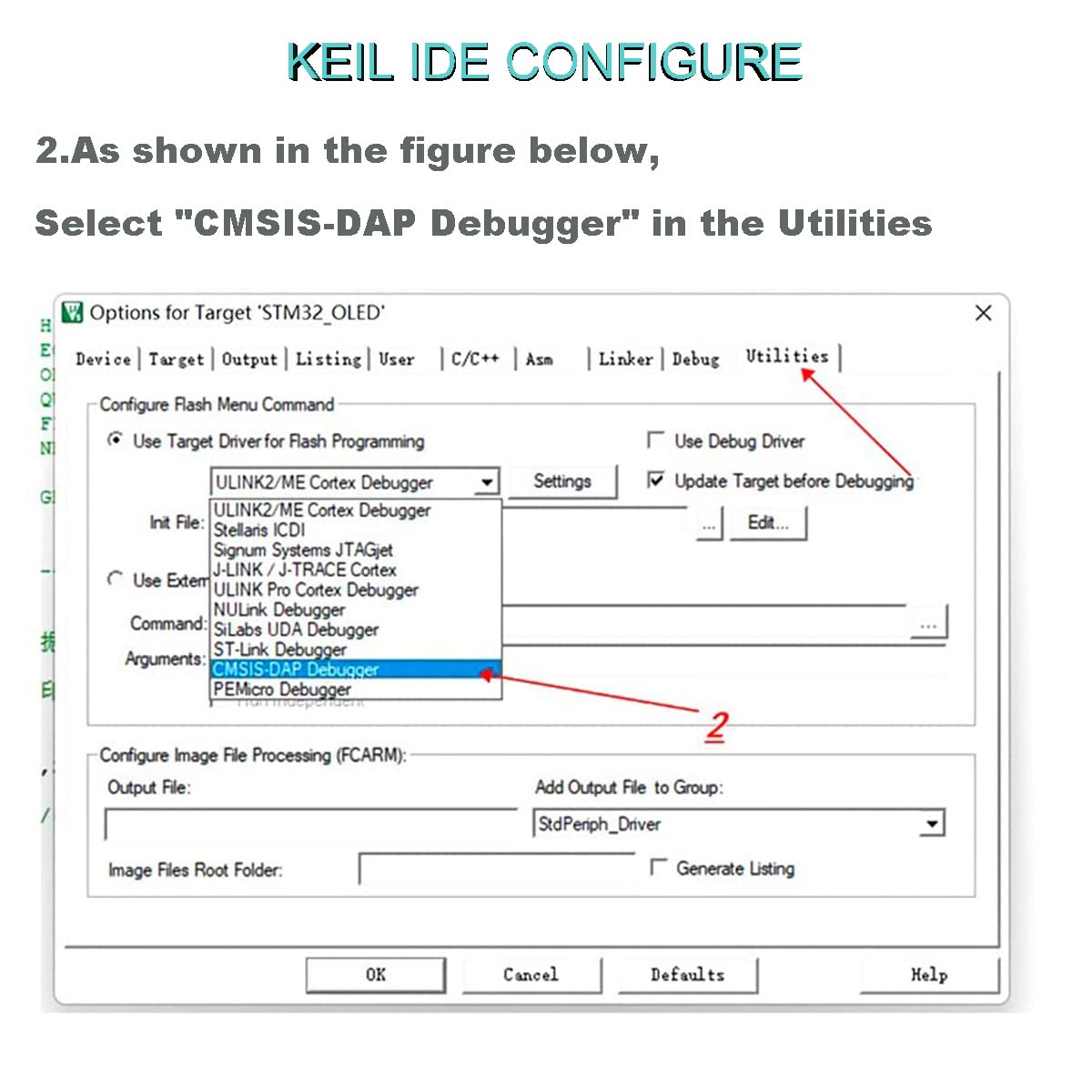

• 【Plug and Play】:Support mainstream IDE software, such as KEIL.No driver, plug and play.
• 【Wide applicability】:DAPLINK is a programmer for ARM COTEX-M core chip program download. It supports SWD interface and can program most ARM COTEX-M chips.
• 【Item Condition】: If you need the driver, please visit: https://bit.ly/3GmvWZU.

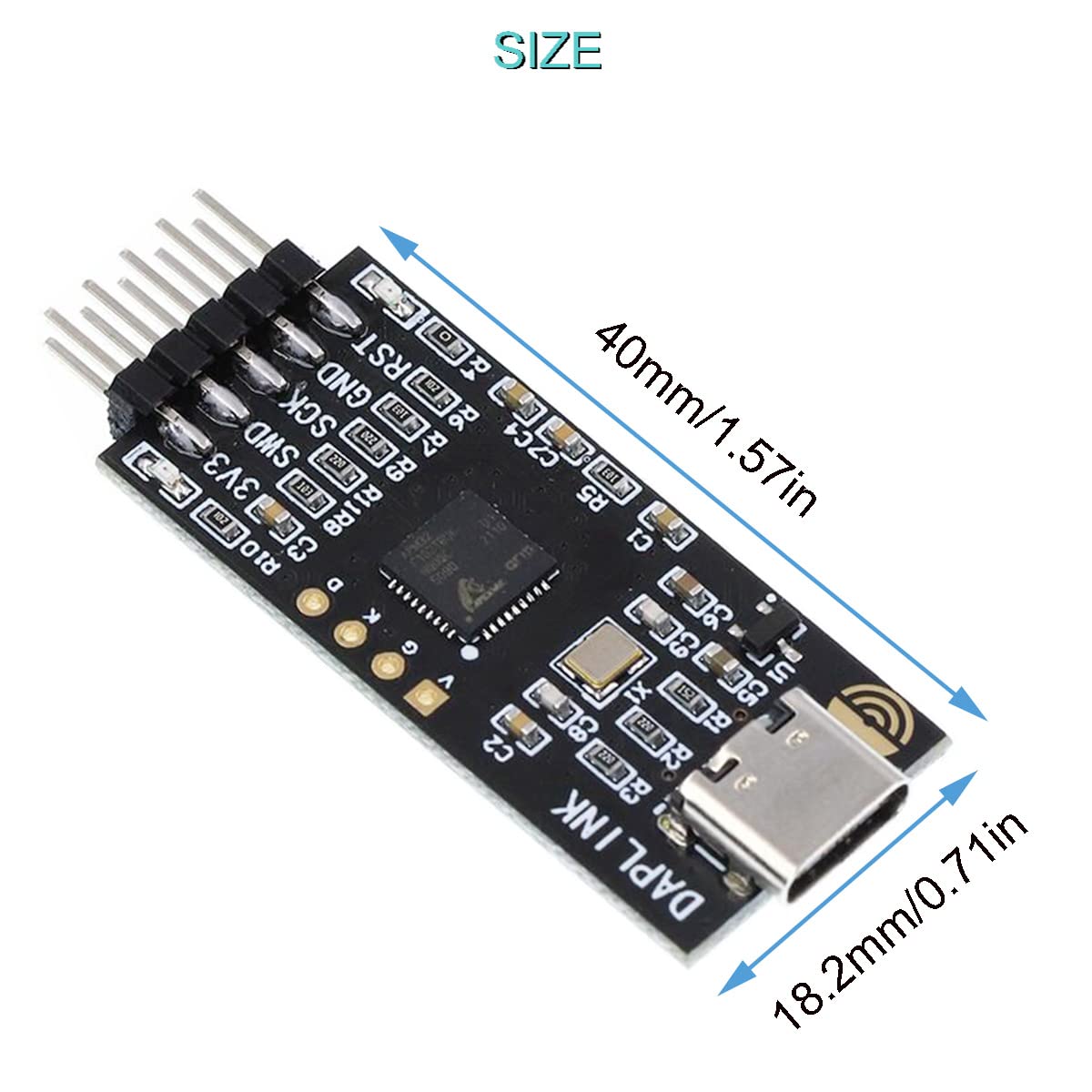

Product Introduction Some merchants in the market have changed CKS32, APM32 and other single-chip microcomputers to STM32 after polishing and lettering. Due to the different programming algorithms, DAPLINK programming will prompt unsuccessful programming. In this case, please use the J-LINK OB or STLINK downloader for programming. You can also add the CKS32 or APM32 chip package in the KEIL software, and select the corresponding model to program with DAPLINK. Specification Product Name: DAPLINK Emulator Supported Chips: All chips based on Cortex-M core Operating system: for windows, linux Debug interface: SWD, virtual serial port Input voltage: 5V (USB powered) Output voltage: 5V/3.3V Product size: 49*1 8mm The IDCODE of the STM32 chip starts with 1. caution! Package includes: 1 x DAPLINK Emulator 1 x 10-pin female and female Dupont cable 1 x USB to Type-C cable
