Youmile CSI Camera Module for Raspberry Pi 1080p 720p 5MP Webcam Video Camera Compatible 3 Model B+ / 3 Model B + FPC Cable

• Camera Specifications : The camera is capable of 2592 x 1944 pixel static images,and also supports 1080 p @ 30 fps, 720 p @ 60 fps and 640 x480 p 60/90 video recording,with 5MP OV5647 1080p webcam sensor
• Focus : The sensor has a native resolution of 5 megapixel, and has a fixed focus lens on board.

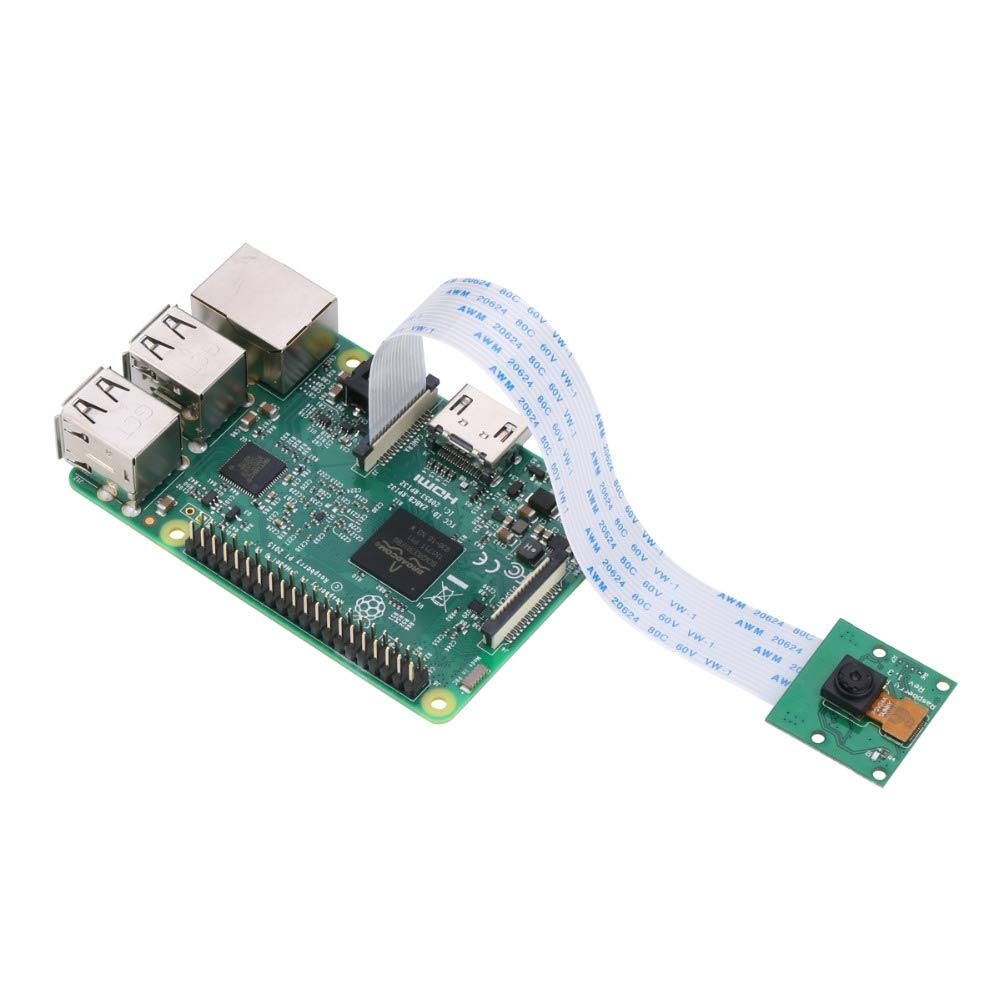

• Compatible With : Raspberry Pi camera module kit compatible with Raspberry Pi model B/B+/A+/4/3/2/1
• CSI Interface : This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
• Also suitable for UNO Board.

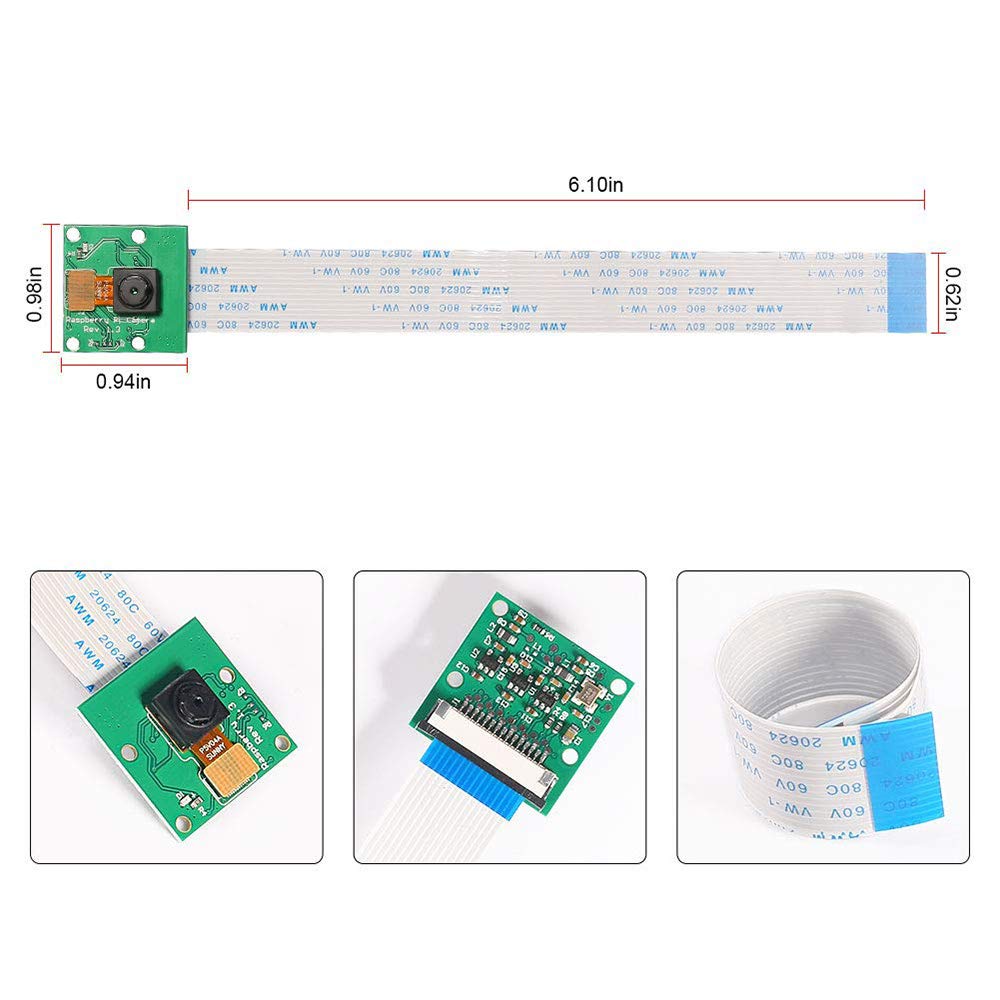

Features: Shot: 1/4 5M Aperture: 2.9 focal length: 3.29 FOV: 72.4 Sensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel) Sensor size: 0.14 x 0.11 " (1/4" format) Pixel Count: 2592 x 1944 Pixel Size: 1.4 x 1.4 um Lens: f=0.14", f/2.9 Angle of View: 54 x 41 degrees Field of View: 2.0 x 1.33 m at 2 m Full-frame SLR lens equivalent: 1.37" Fixed Focus: 1 m to infinity Video: 1080p at 30 fps with codec H.264 (AVC) Up to 90 fps Video at VGA Board size: 25 x 24 mm/0.98 x 0.94" (not including flex cable) Because the focal length of the lens is roughly the same as the width of the sensor, it is easy to remember the field of view: at x meters away, you can see about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at 1920x1080). References: Focal length and f-stop measurements, depth of field & angle of view calculators sensor info f-stop measurement. Package included: 1 x Raspberry Pi Camera 1 x 6.1" FPC Cable 15pin 1 x 19.6" FPC Cable 15pin
