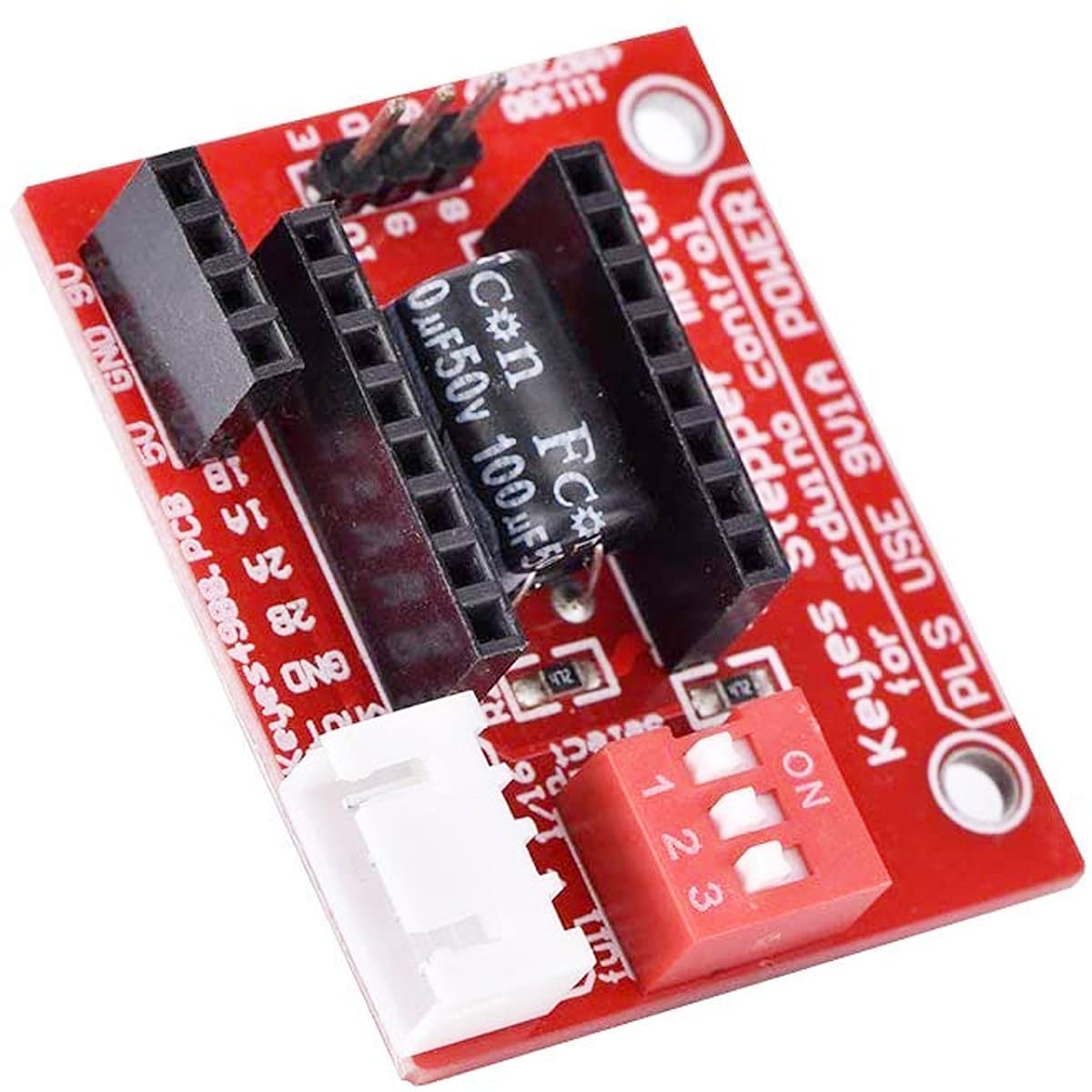

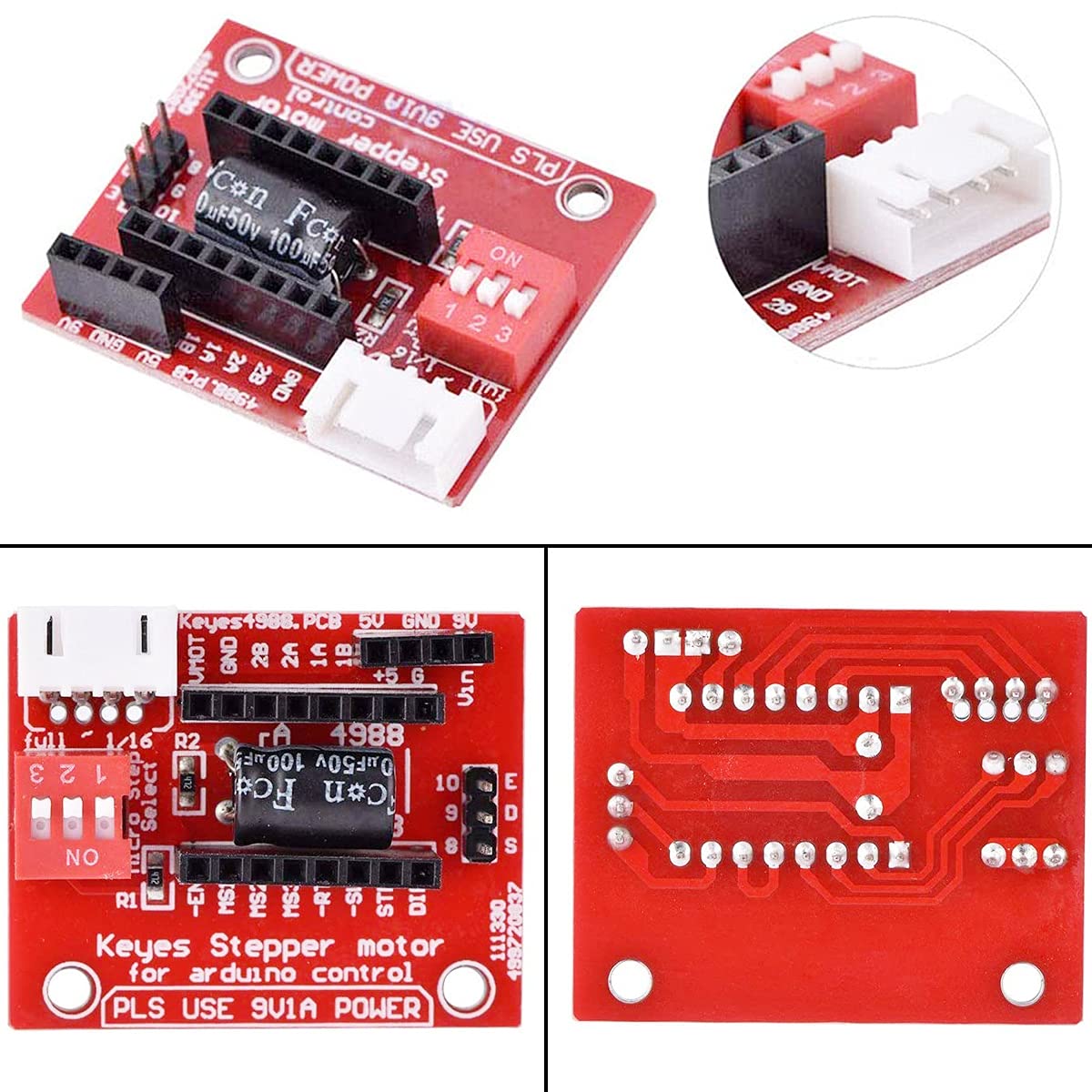

Youmile Control Extension Shield Board 3D Printer Stepper Motor Driver with A4988 DRV8825 DuPont Cable,for A4988 DRV8825 Printer Accessories

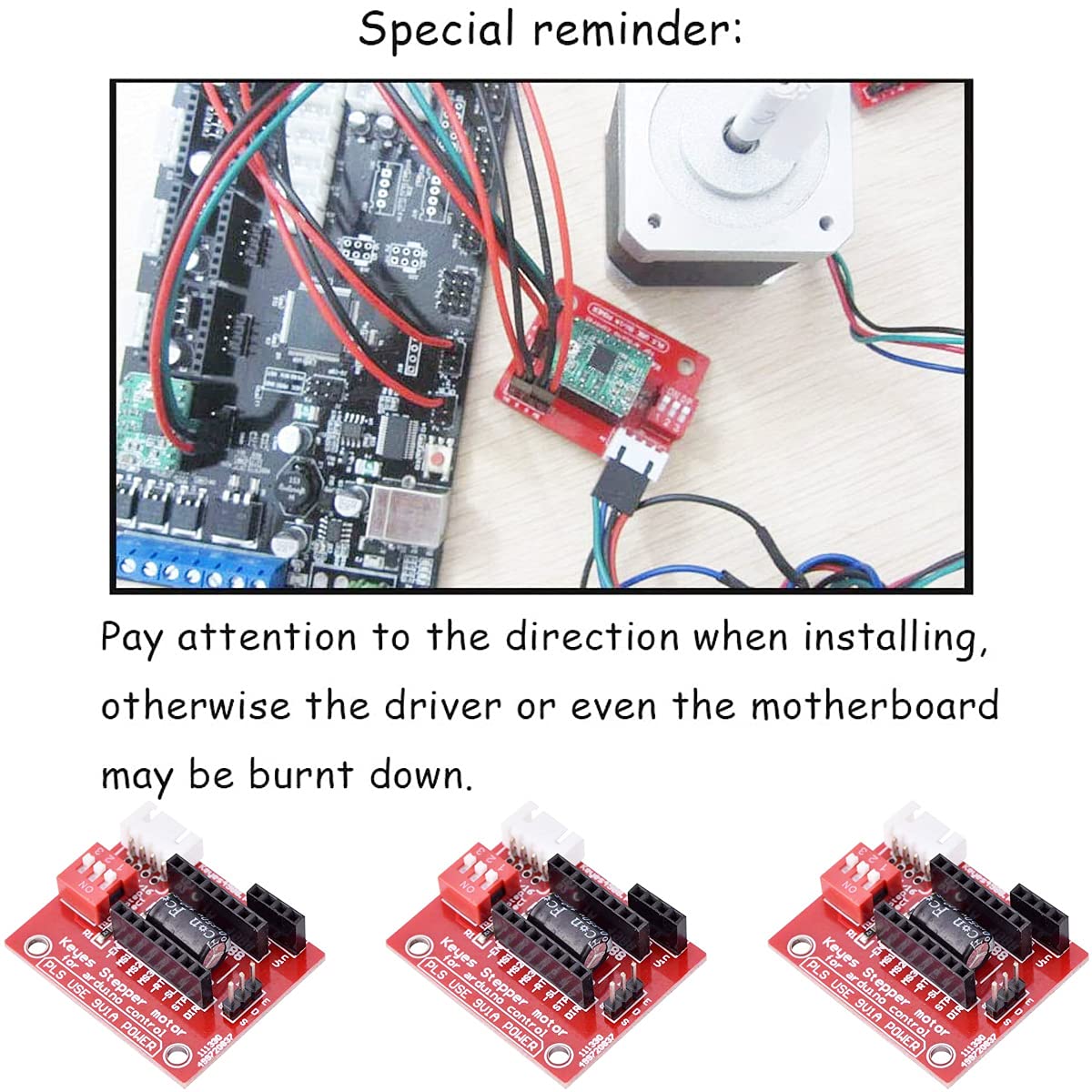

• 【Use and attention】: The A4988/DRV8825 can be used, pay attention to the direction when inserting, otherwise the drive may be burnt.

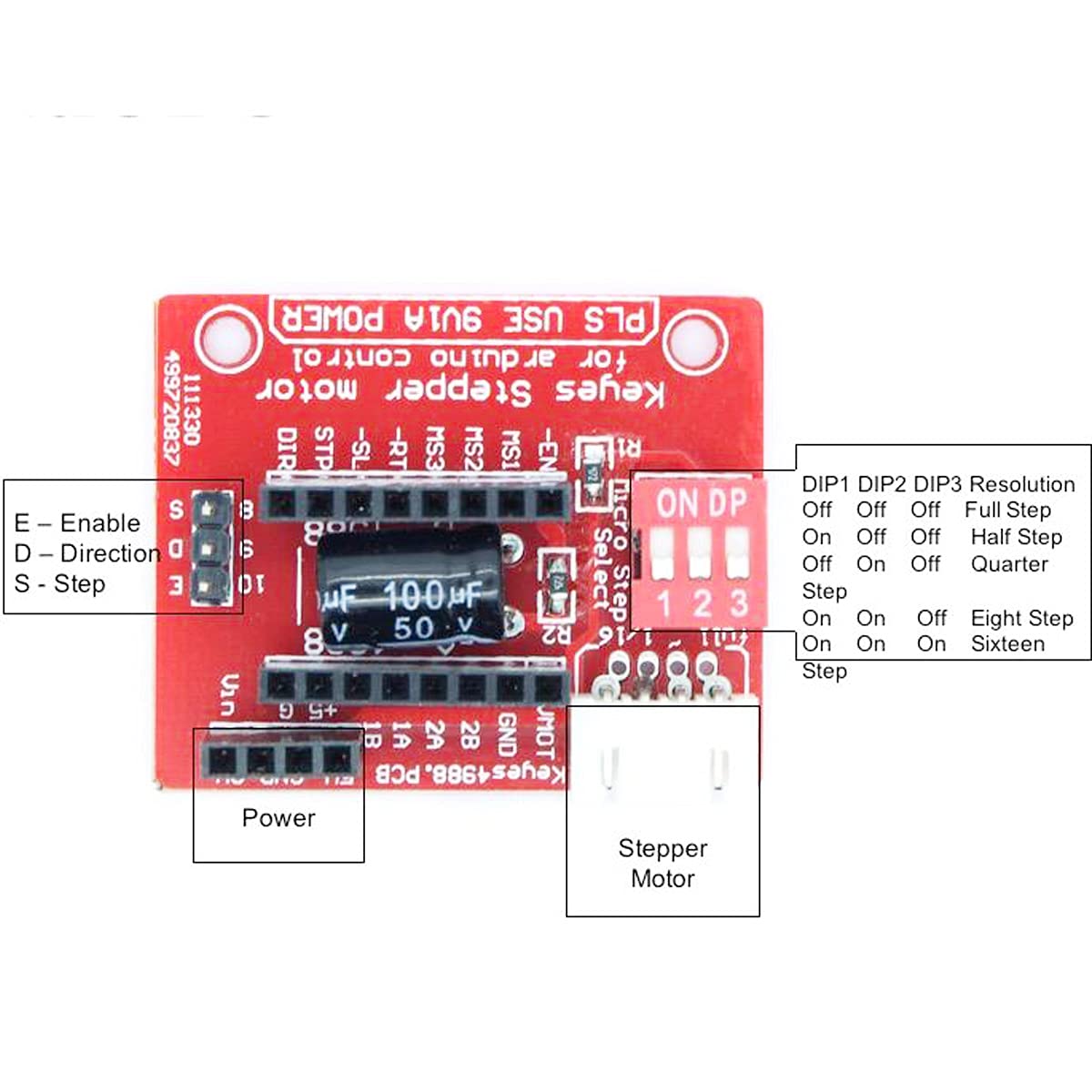

• 【Position indication】: The position where the jumper hits the ON DP indicates 16 subdivisions (4988) or 32 subdivisions (8825).
• 【Corresponding connections】: Jm connects the motor; Jv connects 5V and 12V-24V power supplies; Jc's ESDG corresponds to the EnableStepDirGnd drive signal output on the connection.
• 【More favorable】: We have distributed Dupont lines for you, making it more convenient for you to use
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

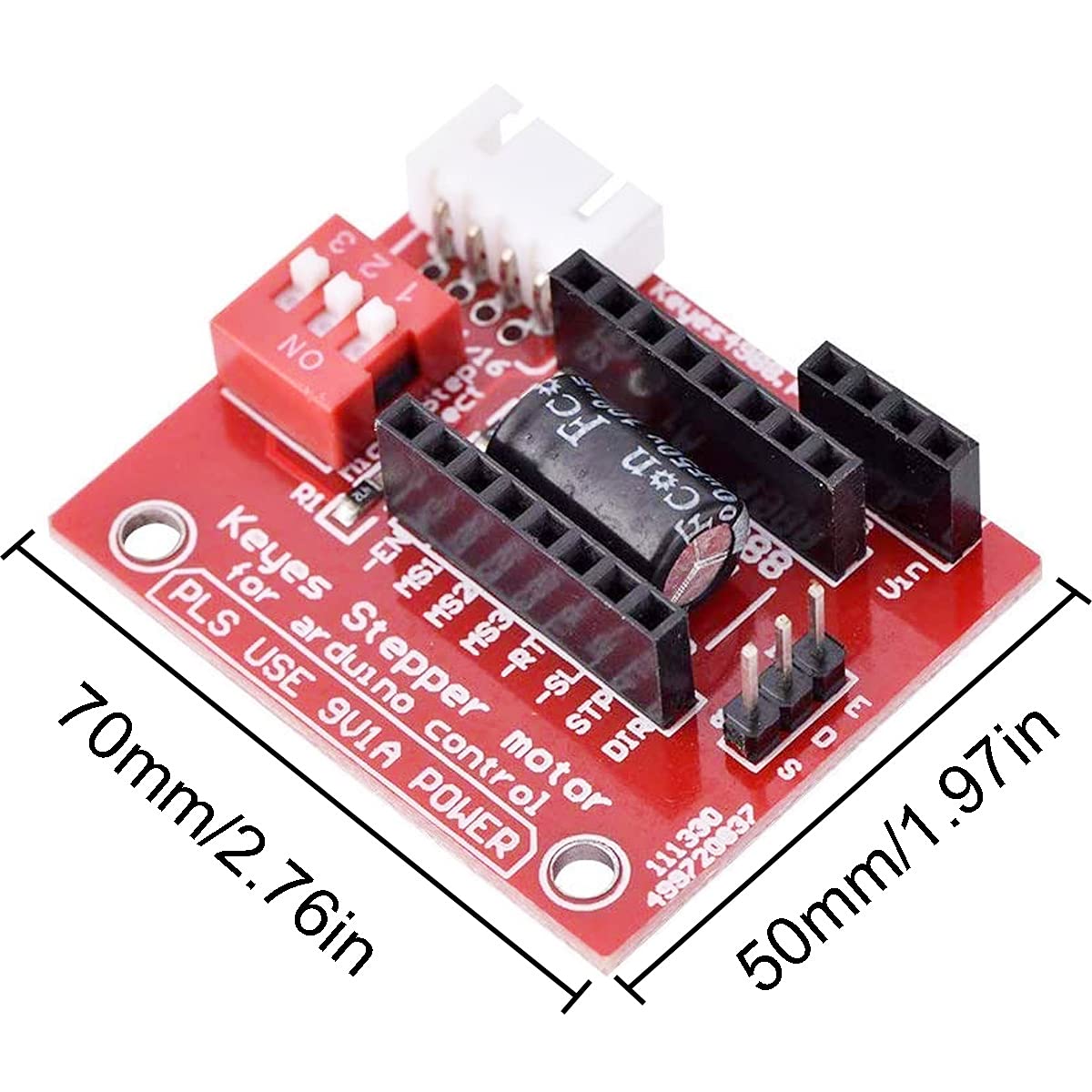

Product description: You can use the A4988/DRV8825, insert the attention direction, otherwise it will burn the drive.Jumper hit ON DP indicating the position of 16 segments (4988) or 32 segments (8825). Jm is connected with the motor. Jv connection 5V and 12V-24V power supply. Jc E\S\D\G are respectively connected with the Enable\Step\Dir\Gnd driving signal output. size:70*50mm/2.76*1.97 inch material:metal Package includes: 1 x Control Extension Shield Board 1 x 10PIN Male and female Dupont cable 1 x A4988 module 1 x DRV8825 module
