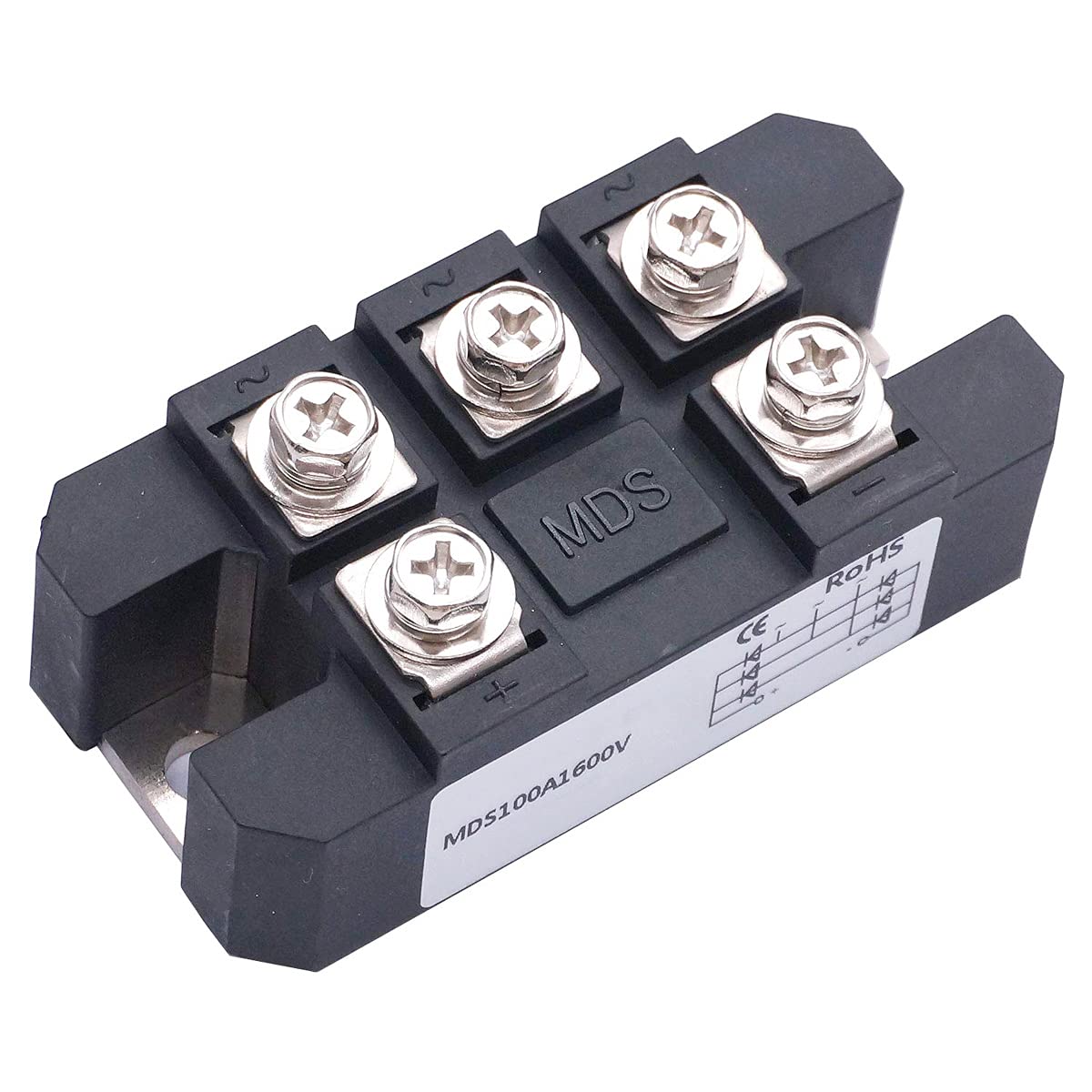

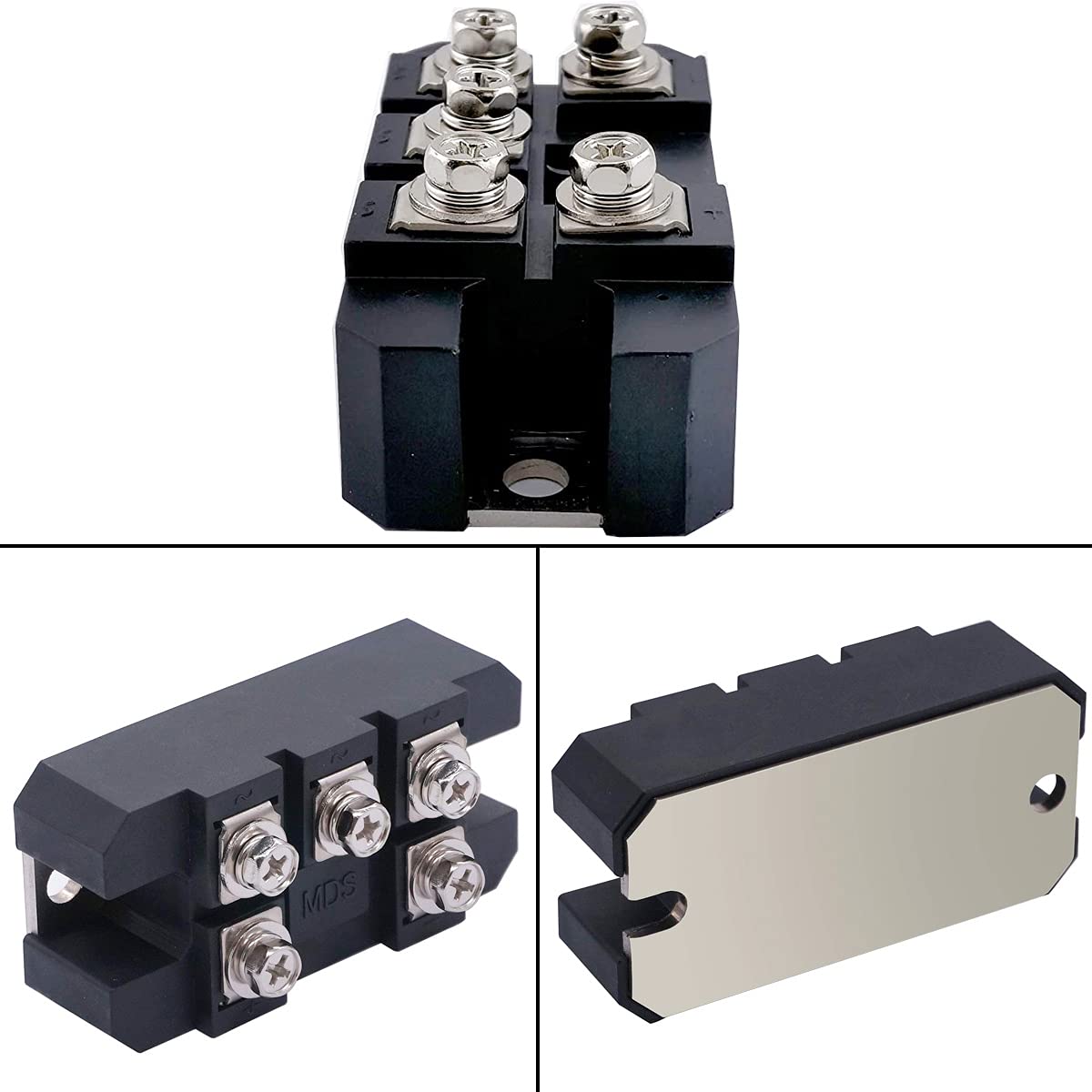

Youmile Bridge Rectifier MDS 100A 1600V Diode Bridge Rectifier Full Wave Diode Module 3 Phase 5 Terminal Rectification Module

• 【Model】: MDS-100A is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.
• 【High quality】: made of high-quality materials, fully crimped structure, excellent temperature characteristics and power cycling capabilities.
• 【Maximum limit】: average forward rectification current: 100A; repetitive peak reverse voltage: 1600V
• 【Application scope】: instrument equipment DC power supply, PWM variable frequency rectifier power input, DC motor excitation power supply, switching power supply and auxiliary current input, inverter current, inverter welding machine.

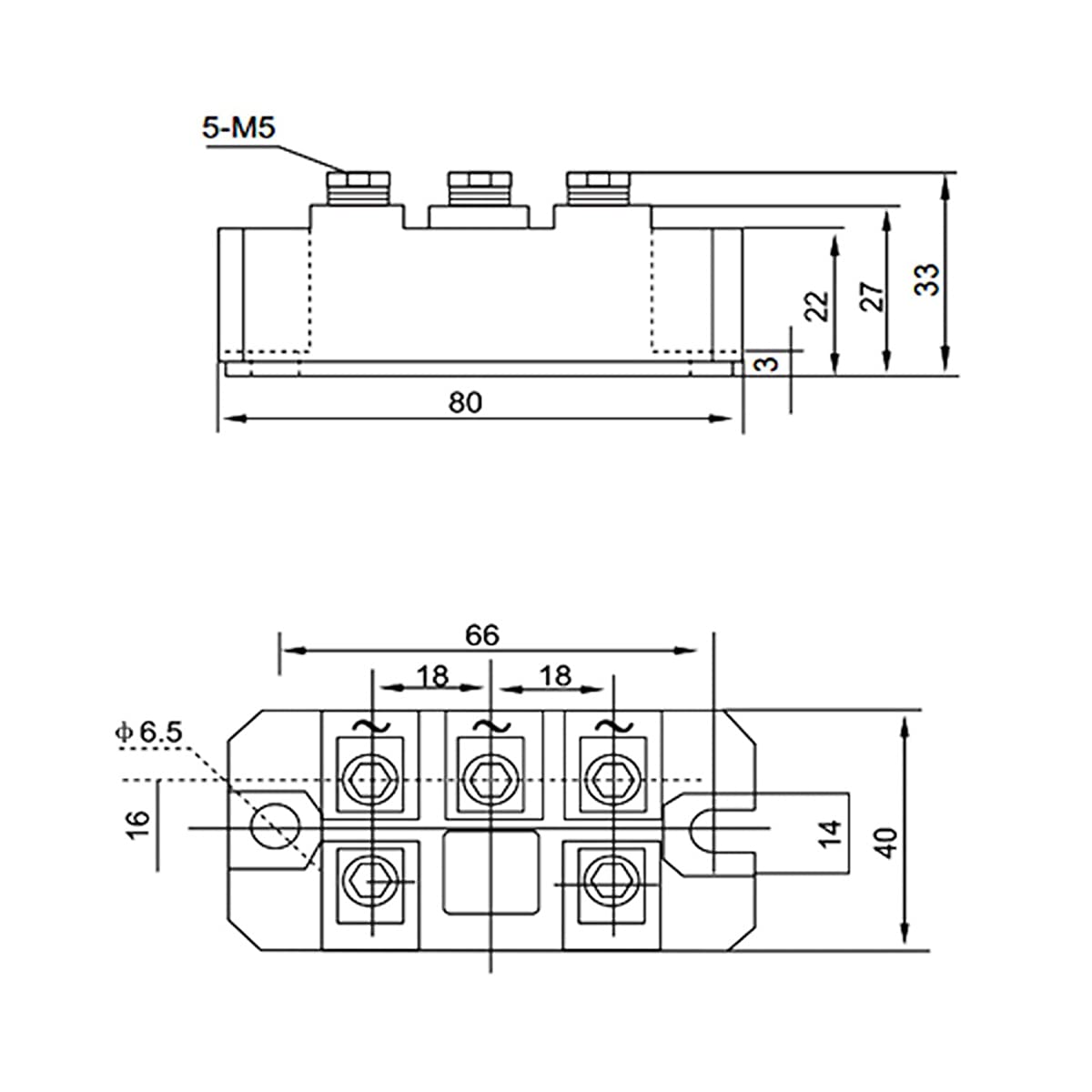

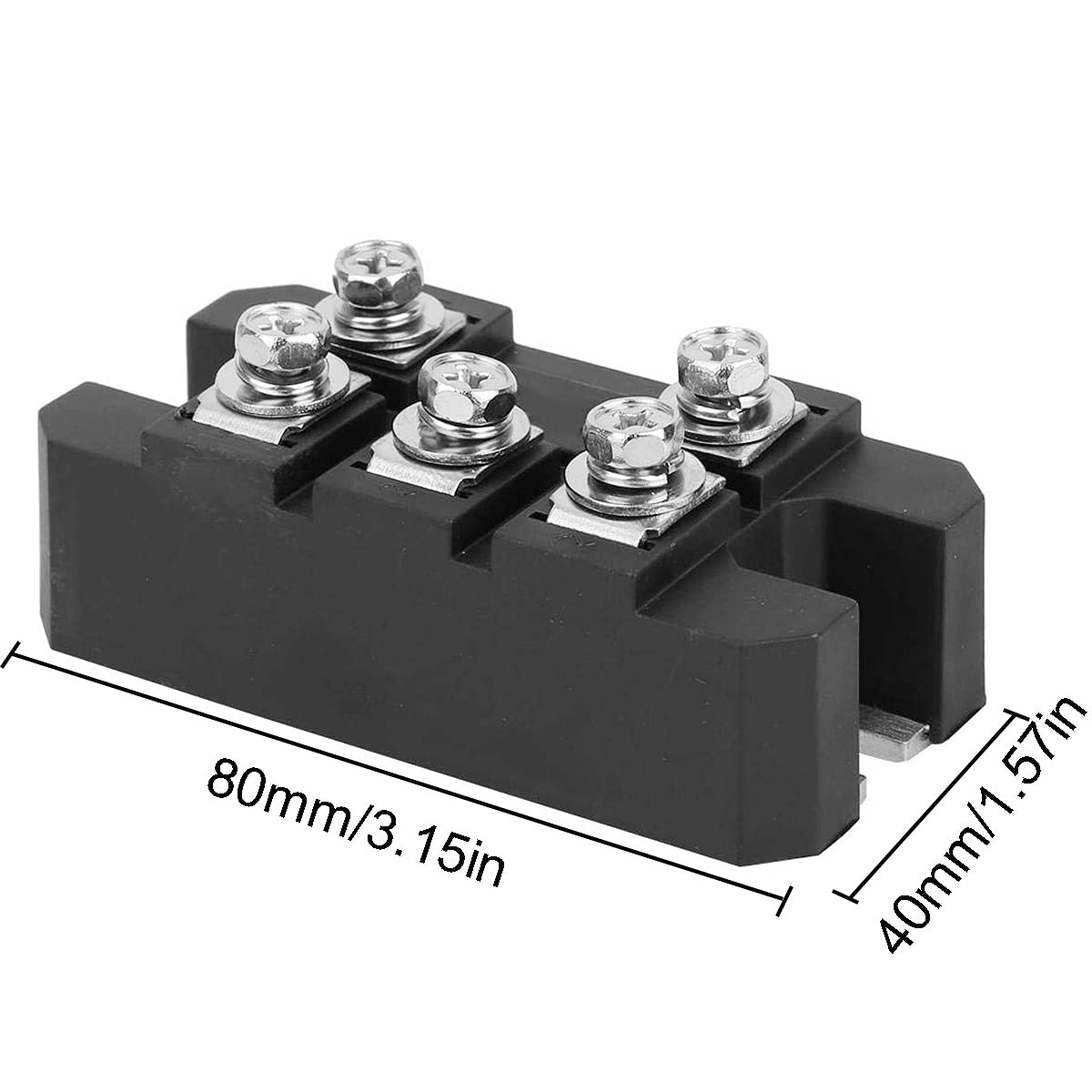

• 【Parameters】: Phase: Three Phase; Terminals: 5; Production Size: 80 x 40 x 32mm/ 3.1" x 1.6" x 1.2" (L*W*T); Mounted Hole Dia.: 6mm / 0.24"

Product description Features: High quality bridge rectifiers used for conversion of an alternating current input into a direct current output. Well welded structure with good temperature and power cycle ability ensures a more stable performance. Designed for 3 Phase, maximum average forward rectified current is 100A. It has a large over-current capacity, good heat dissipation and low voltage drop. This high power bridge rectifier can be widely used for power supply. Specifications: Material: Metal, plastic Model: MDQ100S1600V Maximum Average Forward Rectified Current: 100A Peak Voltage: 1600V Phase: 3 Phase Pin: 5 Size: 8*4*3cm/3.1*1.6*1.2in Hole Diameter: 0.6cm/0.2in Package Includes: 1 x Bridge Rectifier
