Youmile 8 pcs DC Motor PWM Speed Controller 5A 90W DC 3V 6V 12V 24V 35V peed Control Switch Mini LED Dimmer With resettable fuse LED Indicator Switch

• 【What it does】: The mini DC motor changes the output duty cycle of the governor by adjusting the potentiometer knob to realize the change of the motor speed or the brightness of the light.The duty cycle is fully adjustable within the range of 1%-100%.
• 【Protection Function】:The controller is safe with a 5A resettable fuse.If the current is too large, the fuse will automatically open to avoid the module from damaging, After cooling, the fuse is automatically restored.

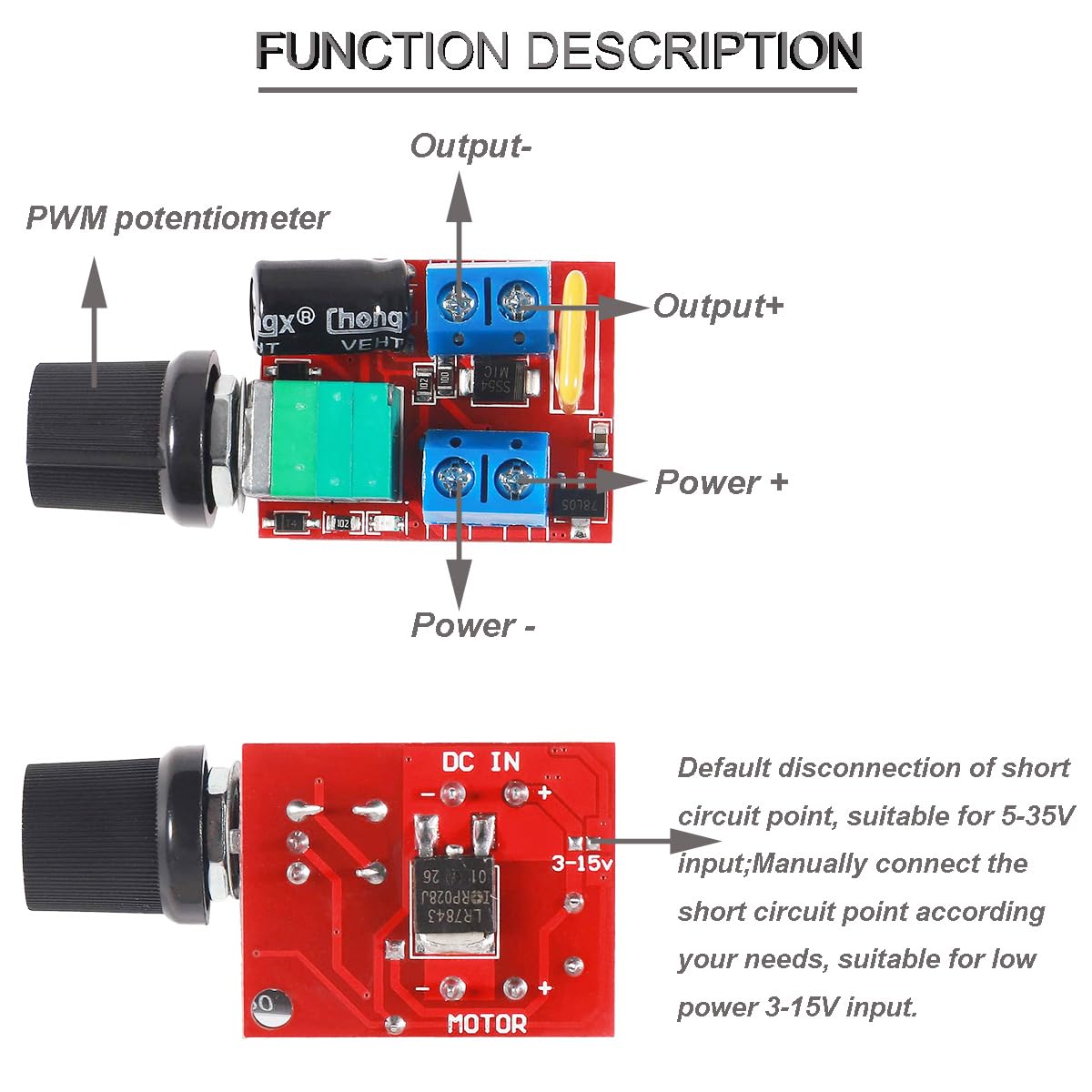

• 【Setting changes】: Default disconnection of short circuit point, suitable for 5-35V input;Manually connect the short circuit point according your needs, suitable for low power 3-15V input.

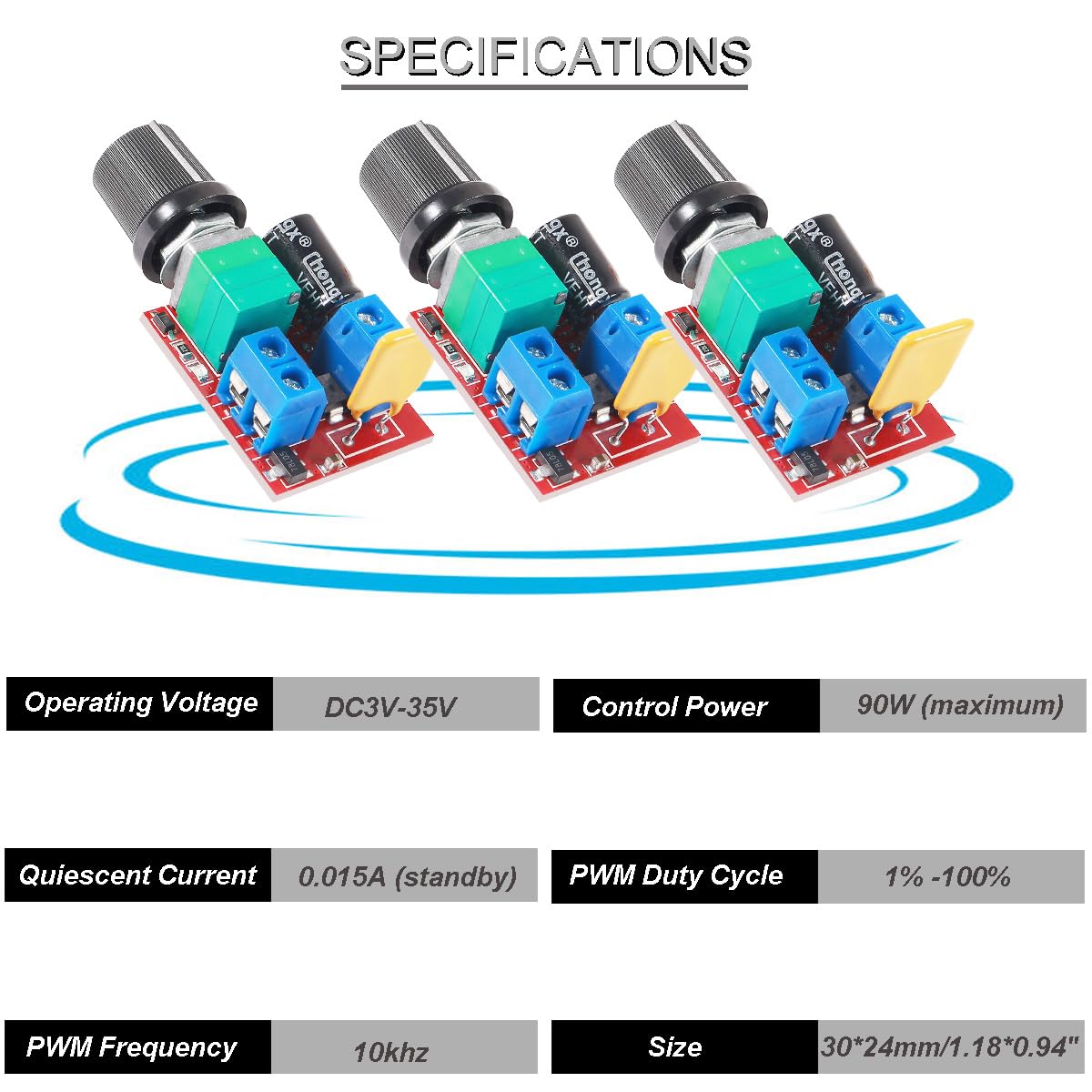

• 【Specifications】: Operating voltage: DC3V-35V;Control power:90W(maximum);Quiescent current:0.015A(standby);PWM Duty Cycle: 1%-100%;PWM frequency:10khz.

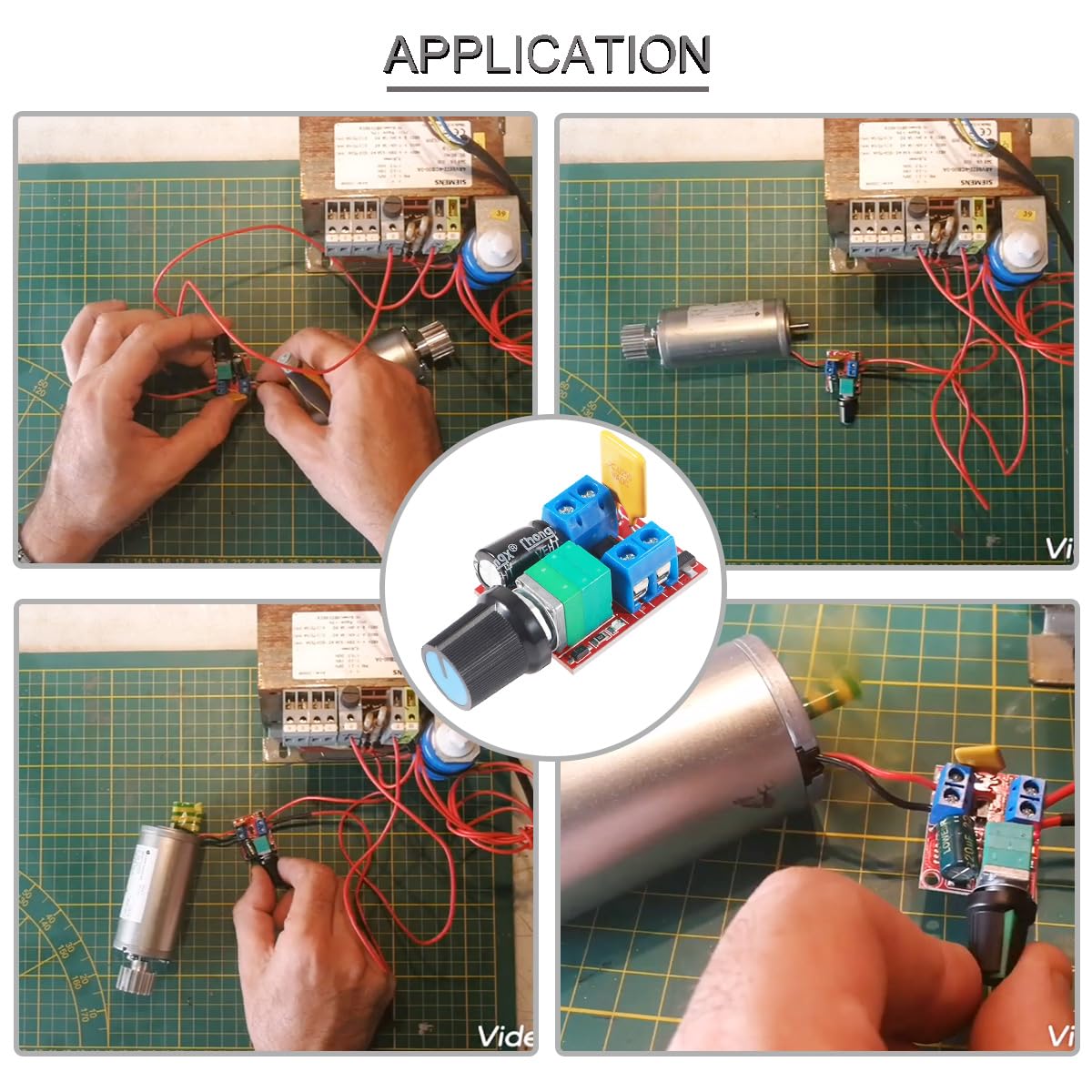

• 【Application range】: It is widely applicable to the control speed of DC motors and the brightness of lights to realize stepless speed regulation switch.

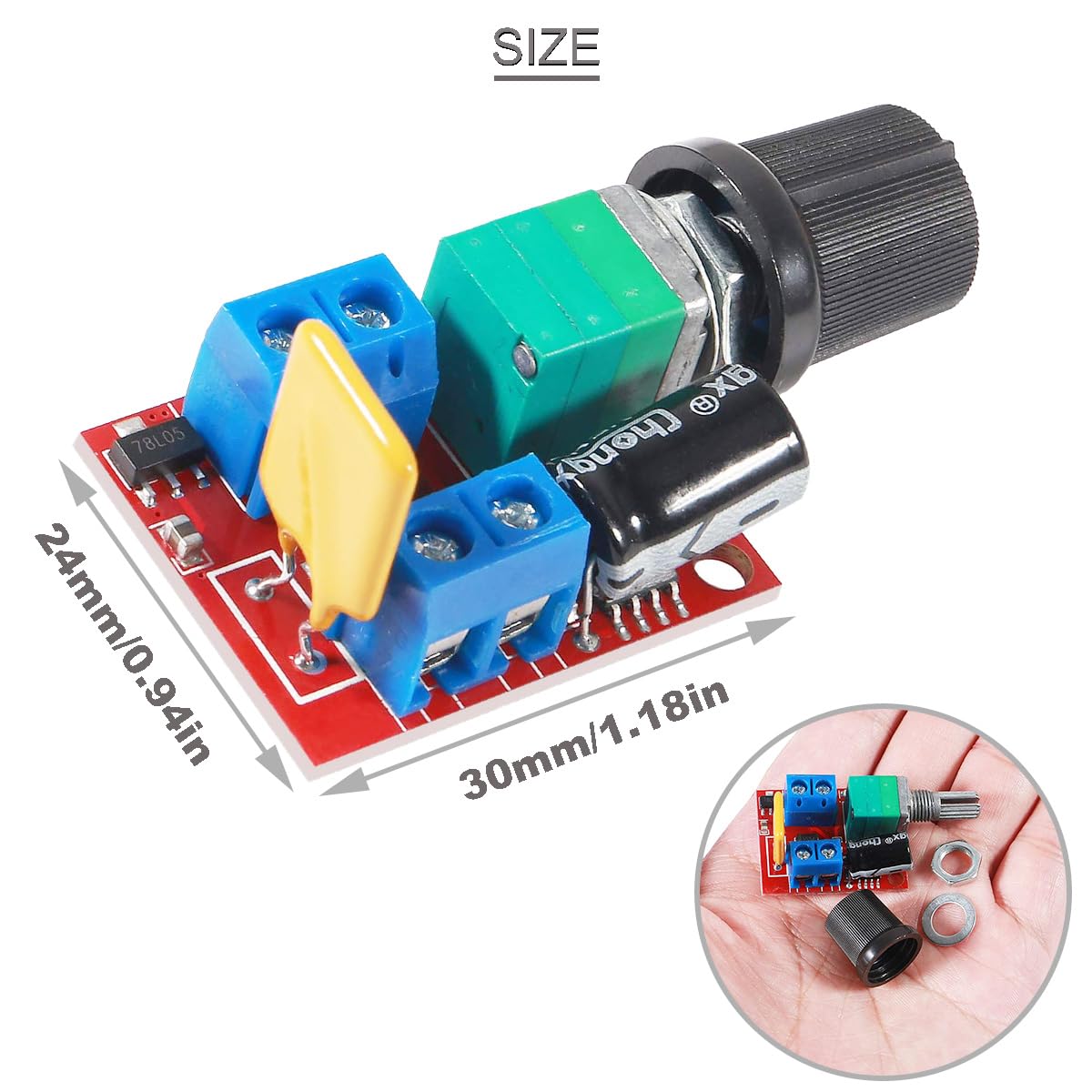

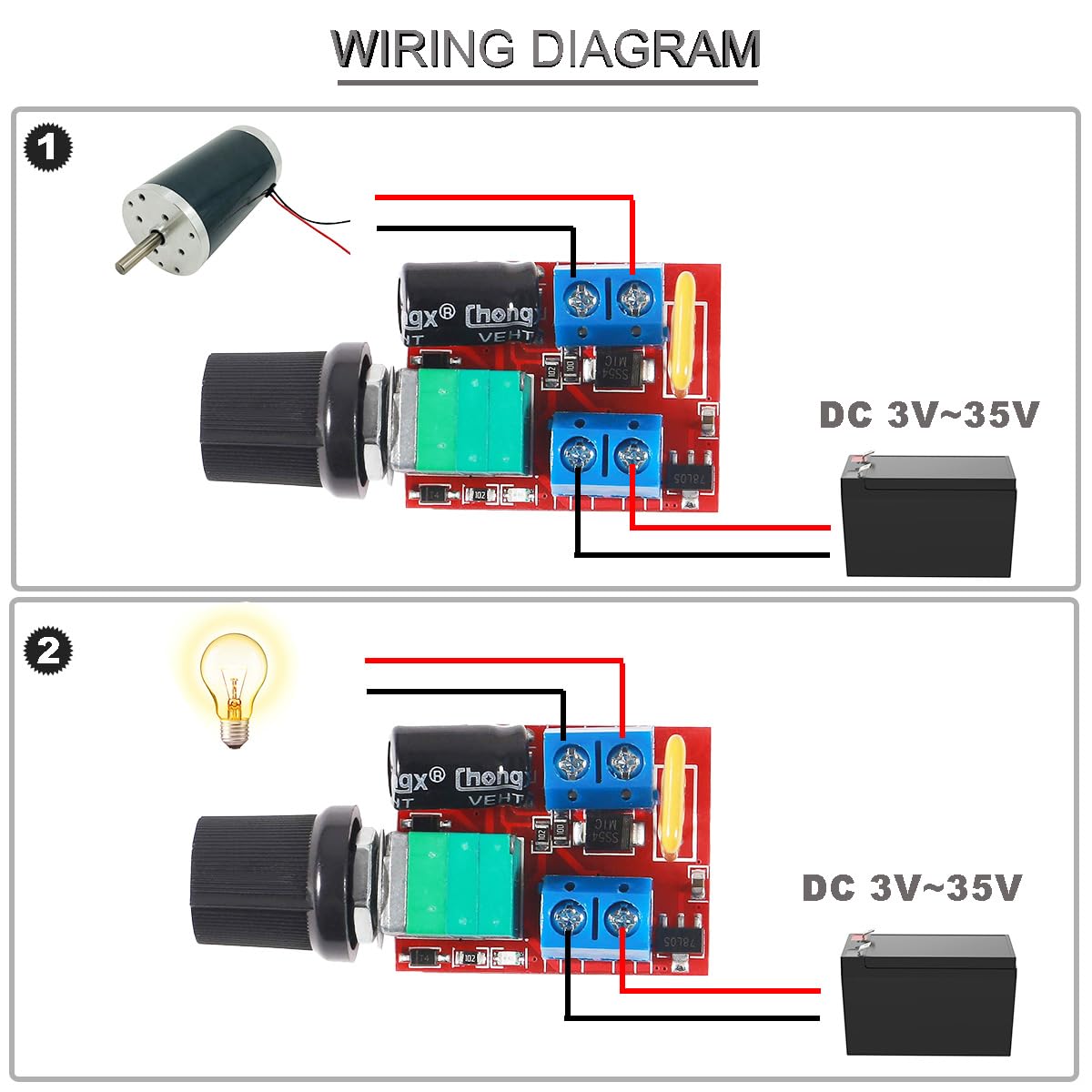

Product Description: This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.The motor speed controller can easily provide a continuous current of 5A to your DC motor or other DC load. Specificaties: Operating Voltage: DC3V-35V Control Power: 90W (maximum) Quiescent Current: 0.015A (standby) PWM Duty Cycle: 1% -100% PWM Frequency: 10khz Size: 30*24mm/1.18*0.94" Operating instruction: 1.Before you attempting to wire the controller, make sure power is off. 2.Please Check all connections before applying power, it will be damaged if connect the supply voltage with wrong polarity. 3.Turn on the power, and adjust the potentiometer.The LED indicates the power up and the speed of motor. 4.You can control the speed of the motor through potentiometer. 5.The DC Motor Speed Controller with a self-recovery fuse 5A and a Power-On LED light, which controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). Package includes: 8 x PWM DC Motor
