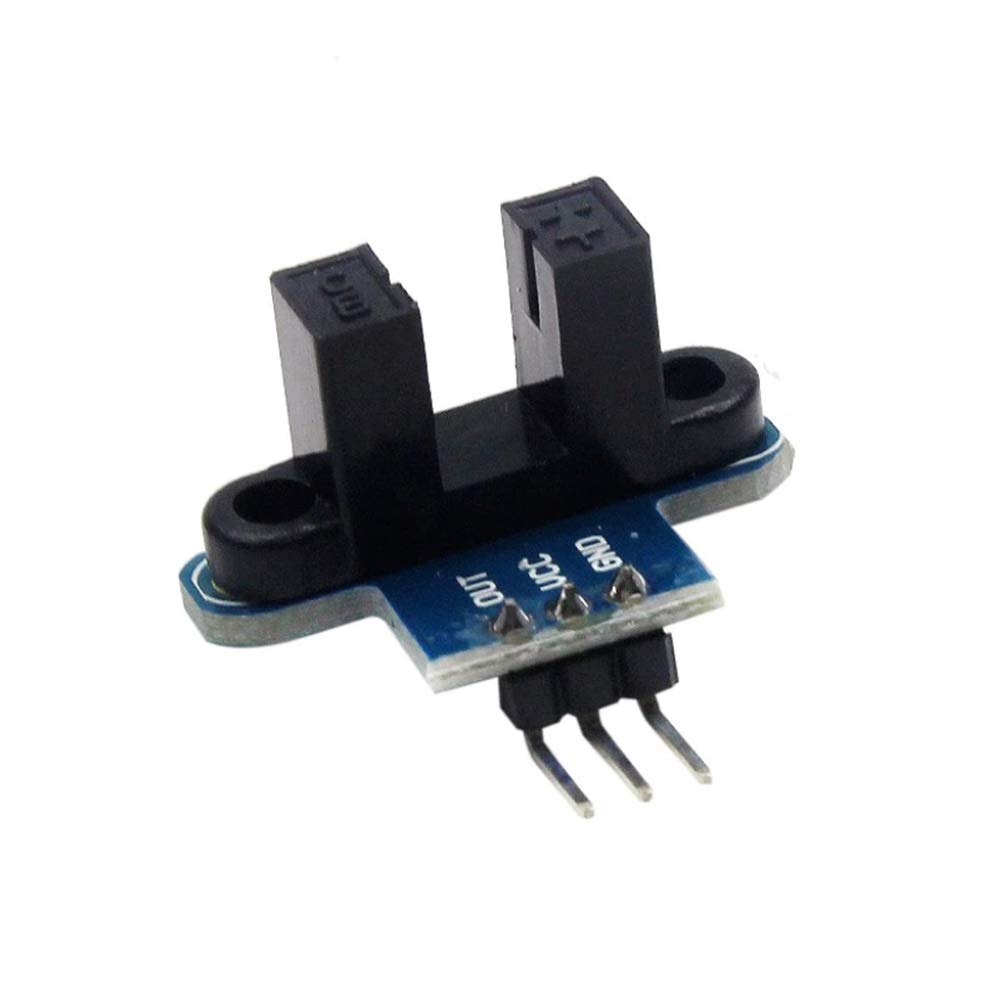

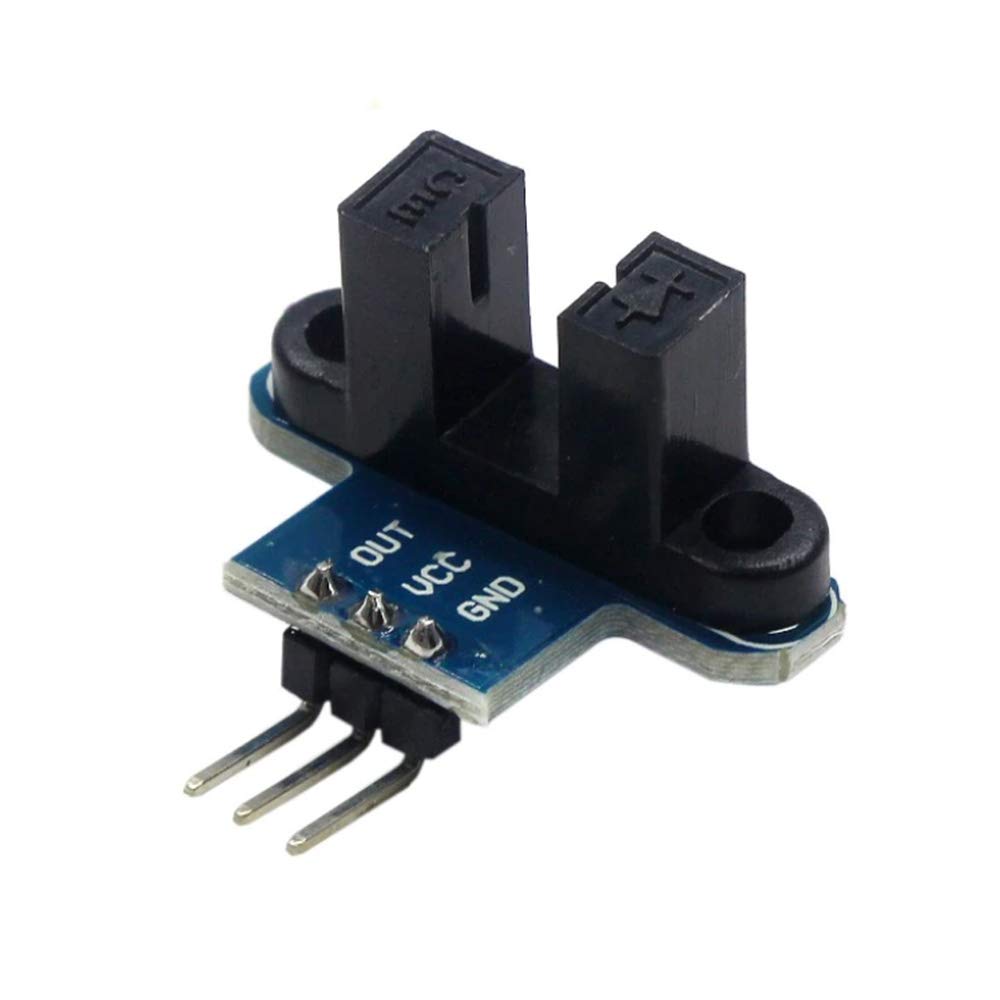

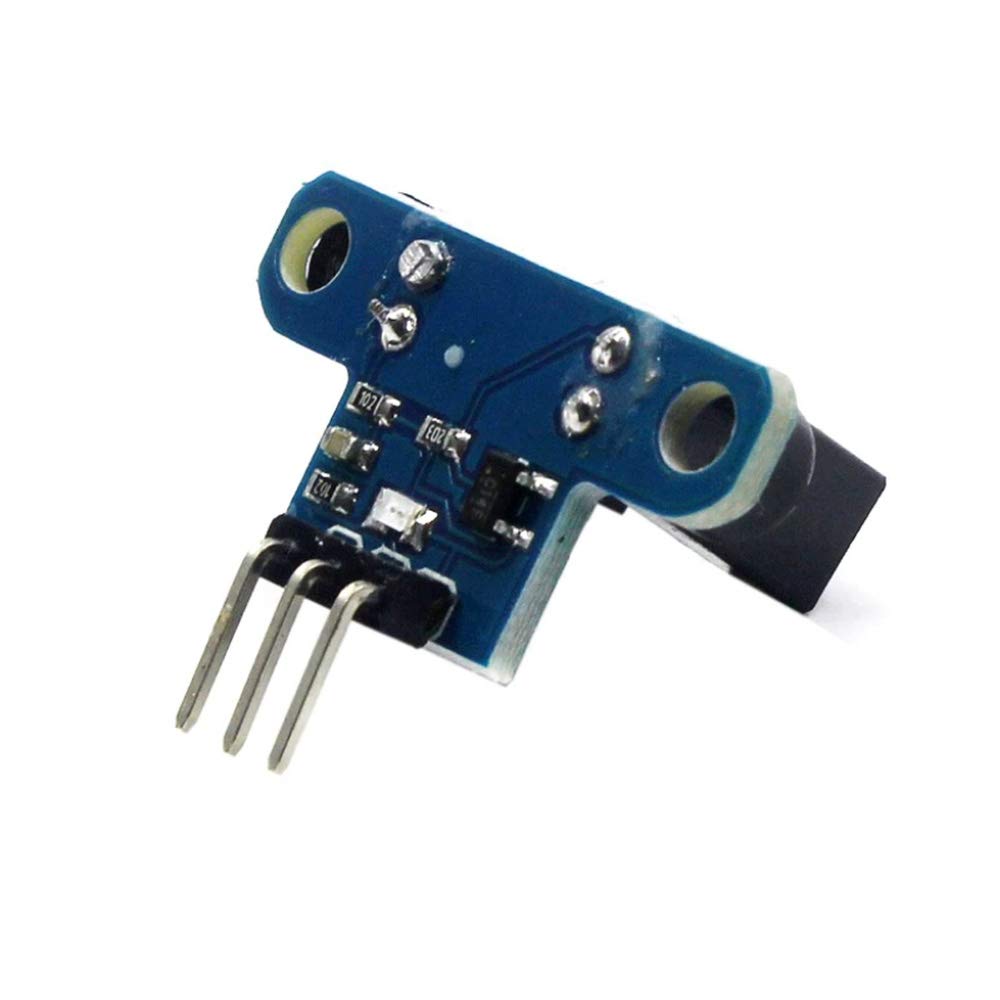

Youmile 5Pcs Speed Measuring Sensor IR Infrared Slotted Optical Optocoupler Module Photo Interrupter Sensor for Motor Speed Detection or Arduino with Encoders
About this item
- Infrared detection, eliminating the interferences of external stray light
- Schmitt trigger, stable wave form and signals
- Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
- Power: 3.3V to 5V

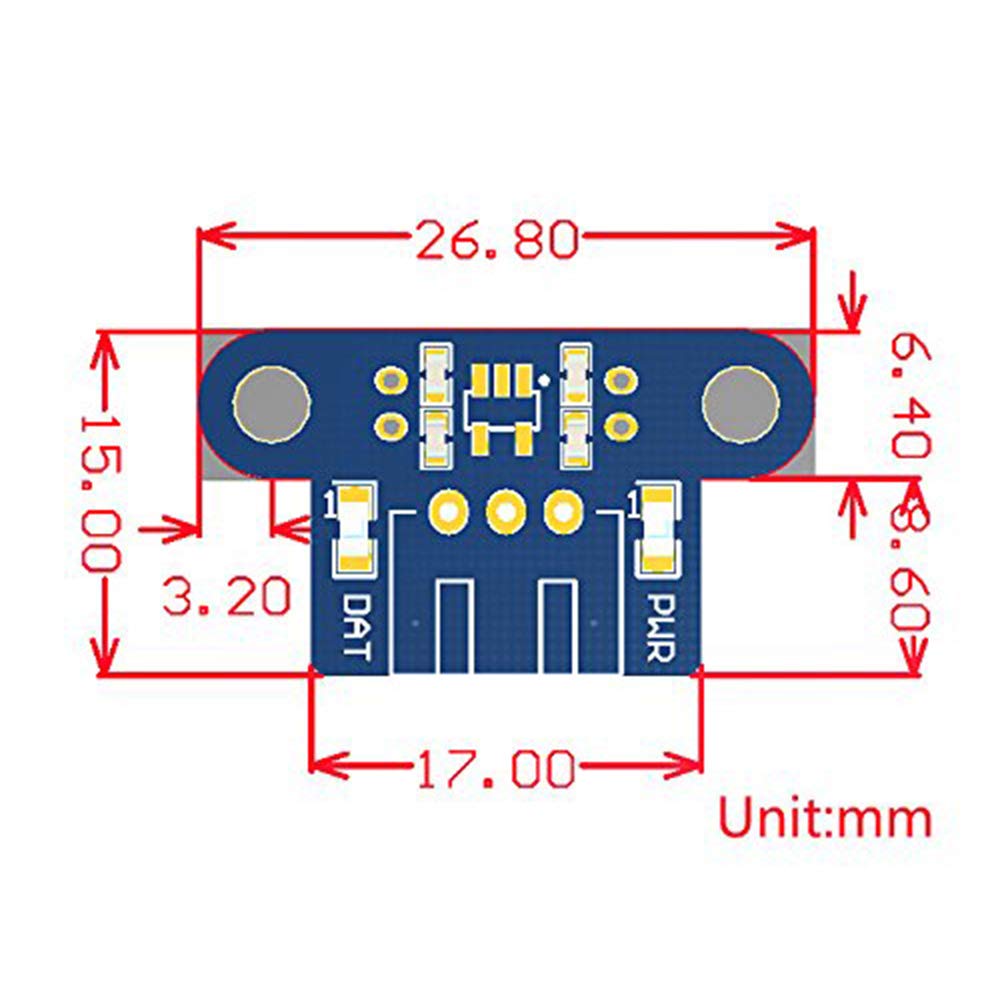

- Dimension: 26.8mm x 15mm x 18.7mm
Product description
Description: This is a photo Interrupter Sensor for robot speed measuring module which used as motor speed detection and pulse counter. Specification Power: 3.3V to 5V Dimension: 26.8mm x 15mm x 18.7mm Mounting holes size: 3mm Gap width: 6mm In the case of working with a MCU: VCC: 3.3V to 5V GND: GND DOUT: MCU.IO (digital output) Package included: 5 x Speed Measuring Sensor IR Infrared Slotted Optical 5 x Encoders 1 x 15Pin Dupont Cable Female to Male 1 x 15Pin Dupont Cable Femlae to Female
