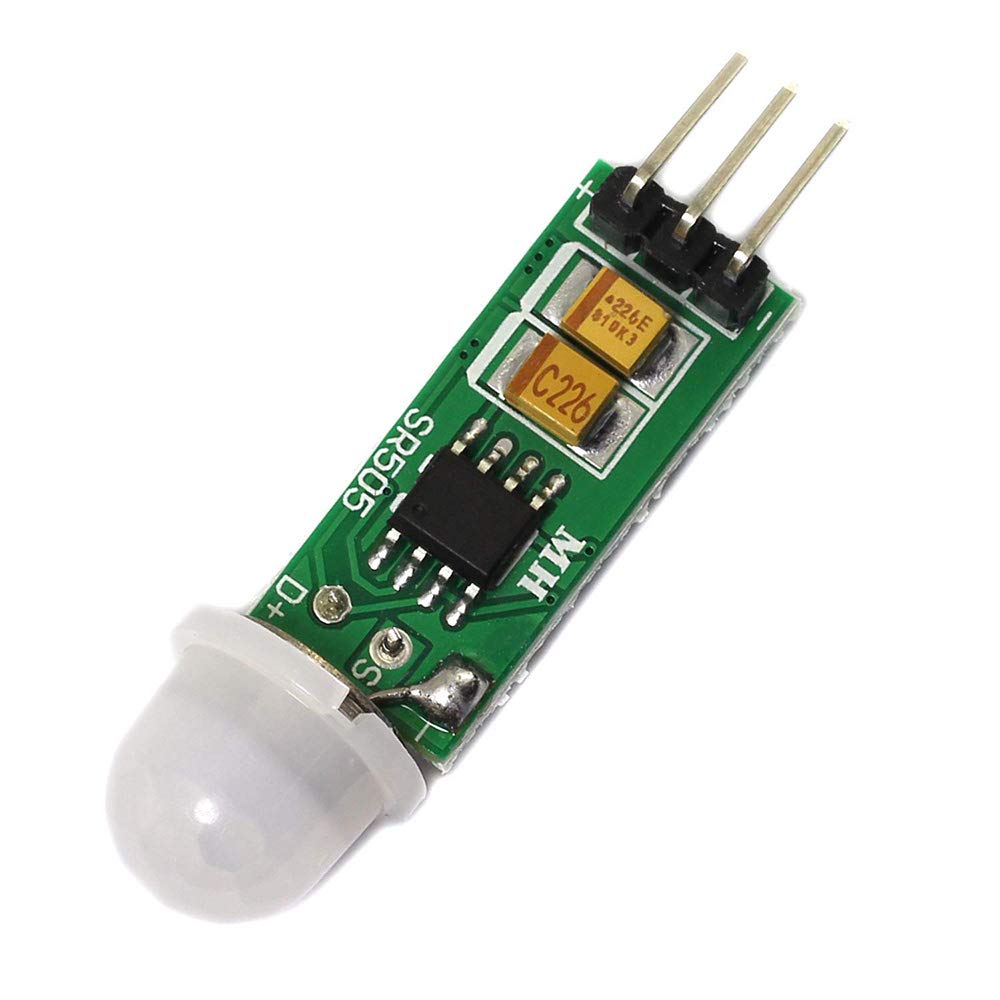

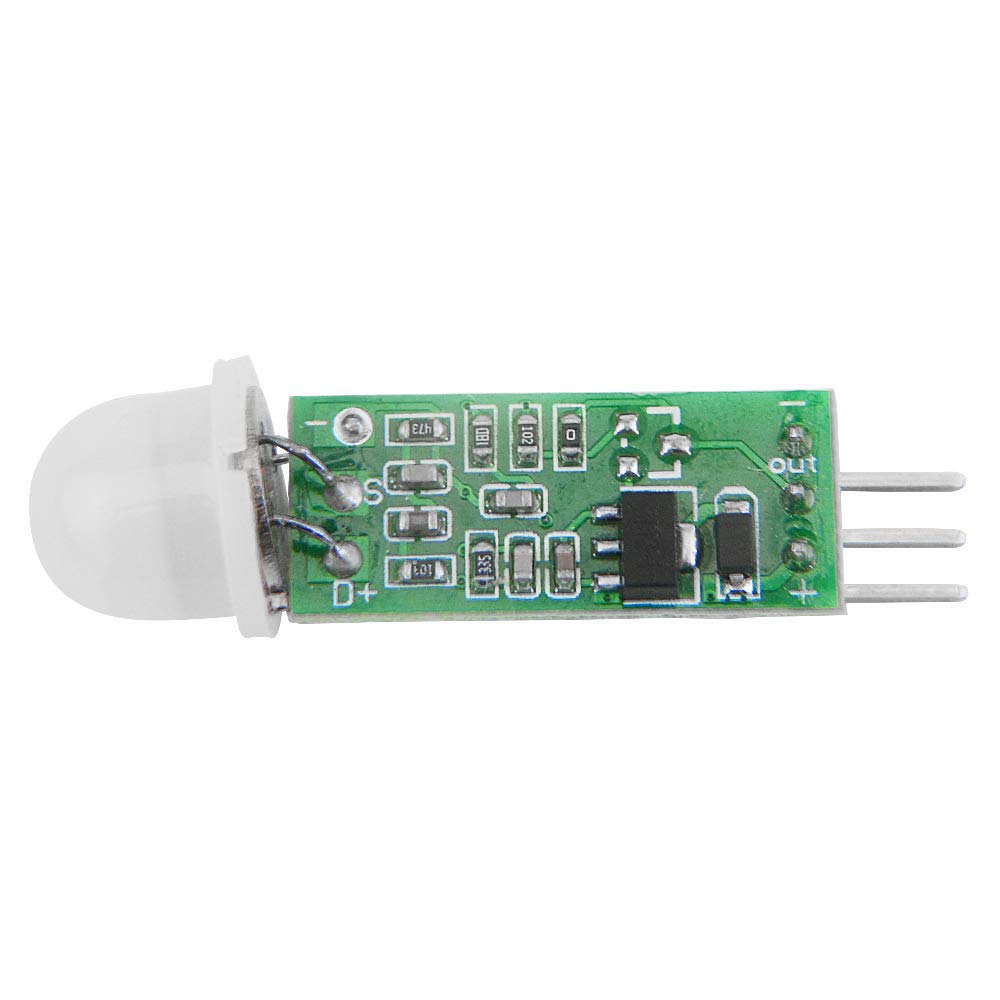

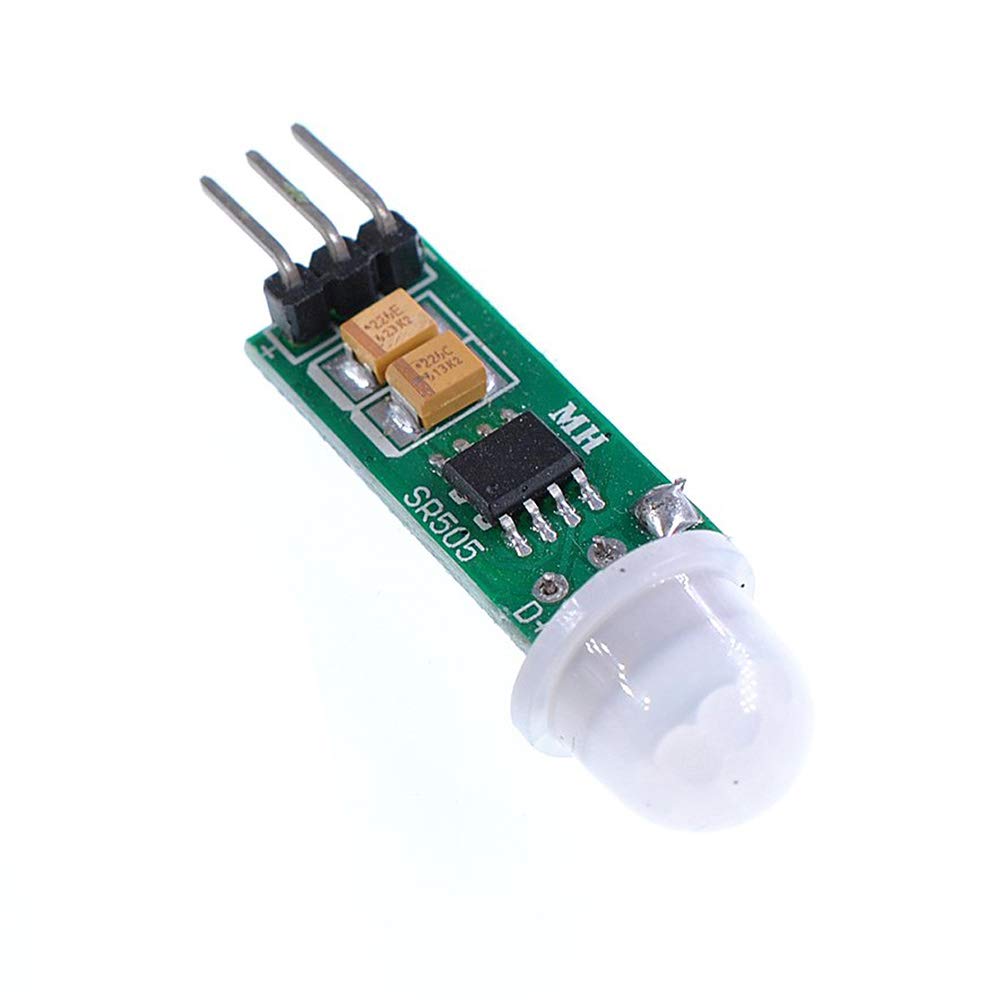

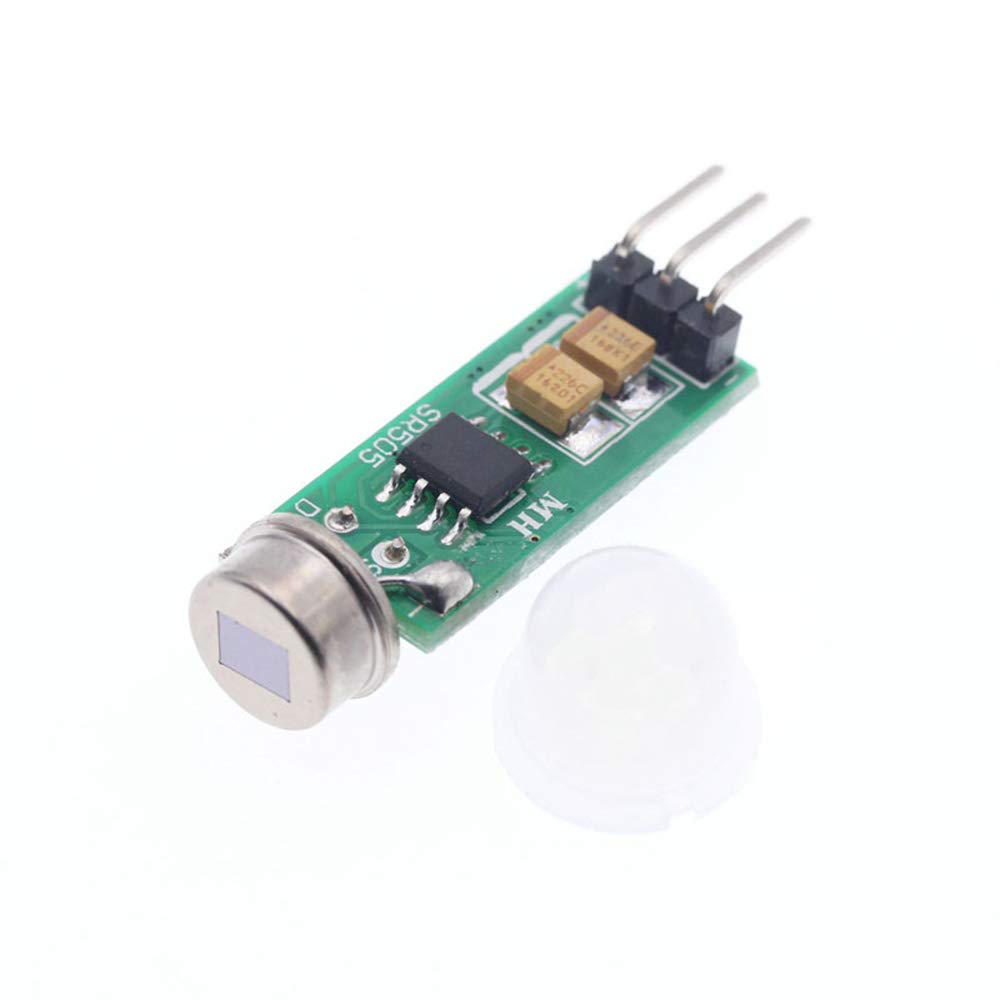

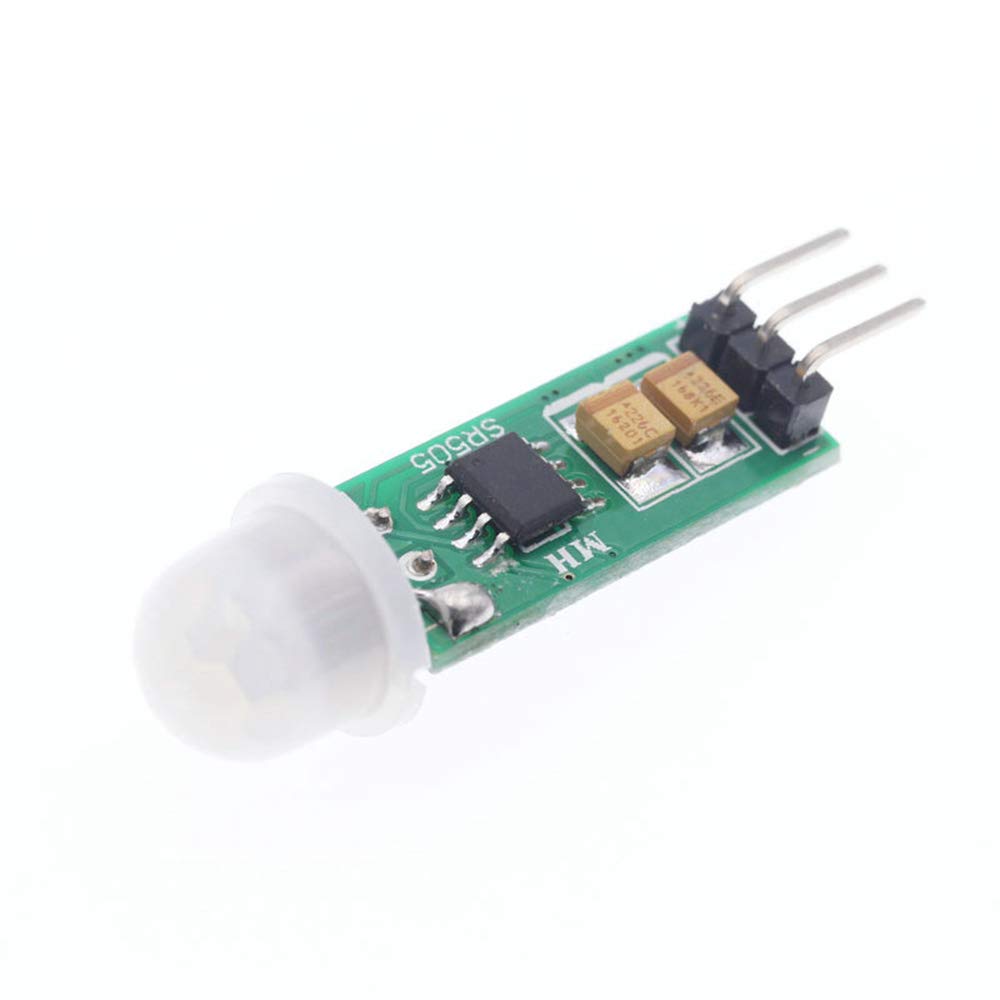

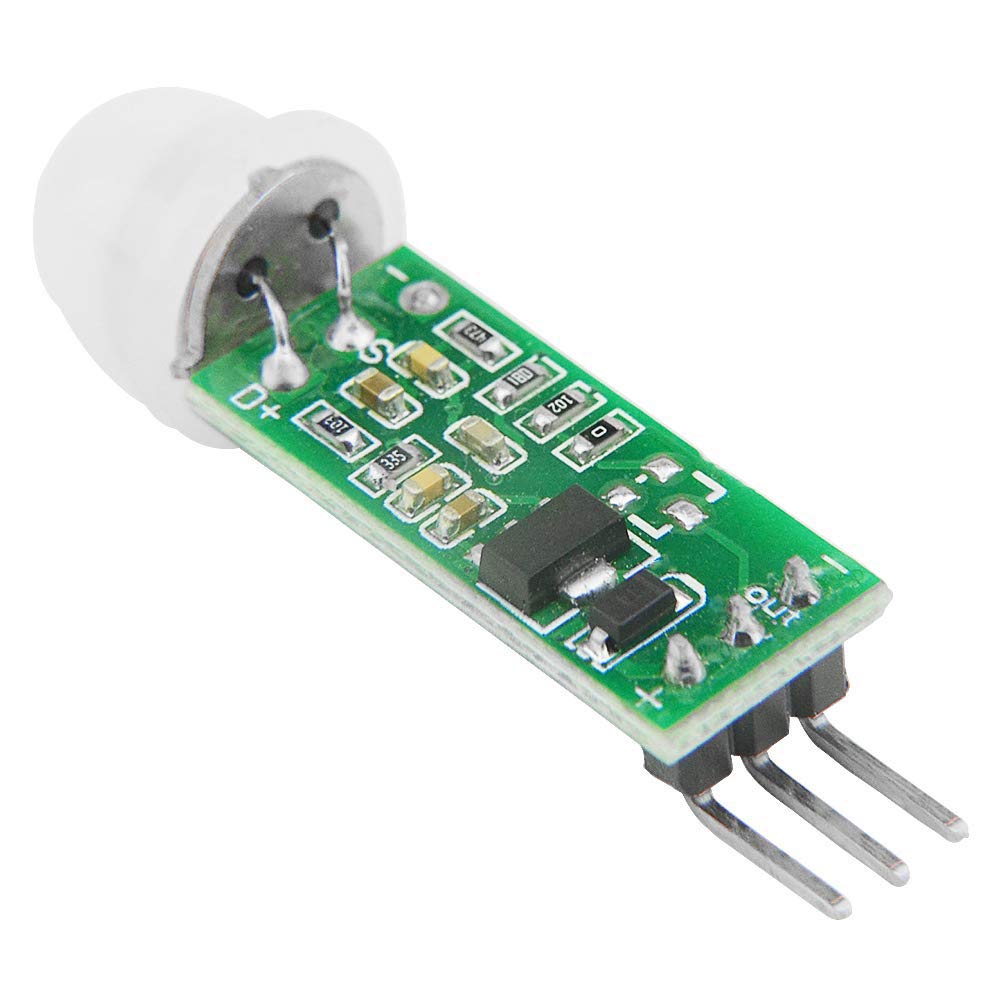

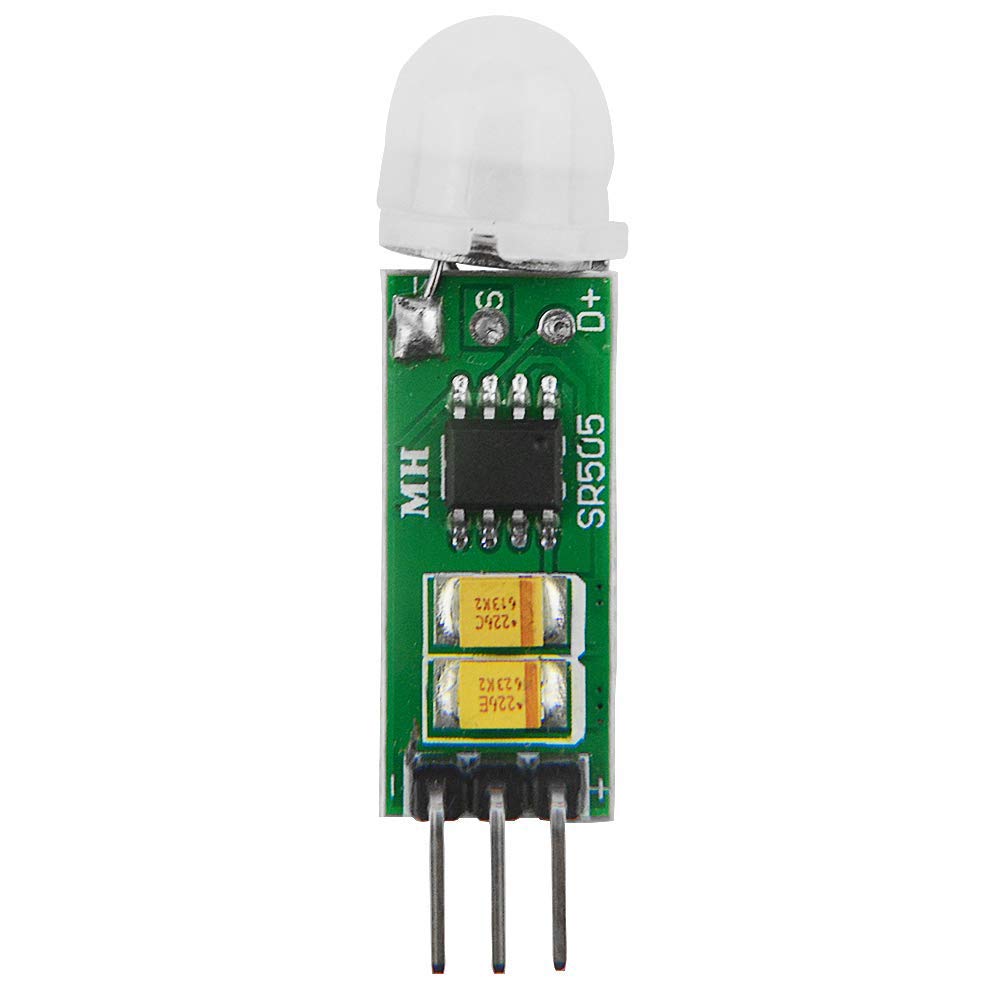

Youmile 5PCS Human Motion Sensor HC-SR505 Mini Infrared PIR Detector Module For Arduino Body Sensor Switch With Dupont Cable
About this item
- Operate Voltage is DC4.5V-20V;Working temperature: -20 ยฐC ~ + 80 ยฐC.
- It is made of electronic accessories element, inner conductor is pure copper. it is long lasting and durable for you to use.
- During the output level in the delay period, if there is the someone in the scope of its induction activities, its output will always keep a high level until the people leaves.
- Power consumption: quiescent current 50uA, particularly suitable for battery-powered appliances.
- Widely used in various auto-sensing of electrical equipment, body induction lamps, body sensors toys, especially battery-powered automatic control products.
Product description

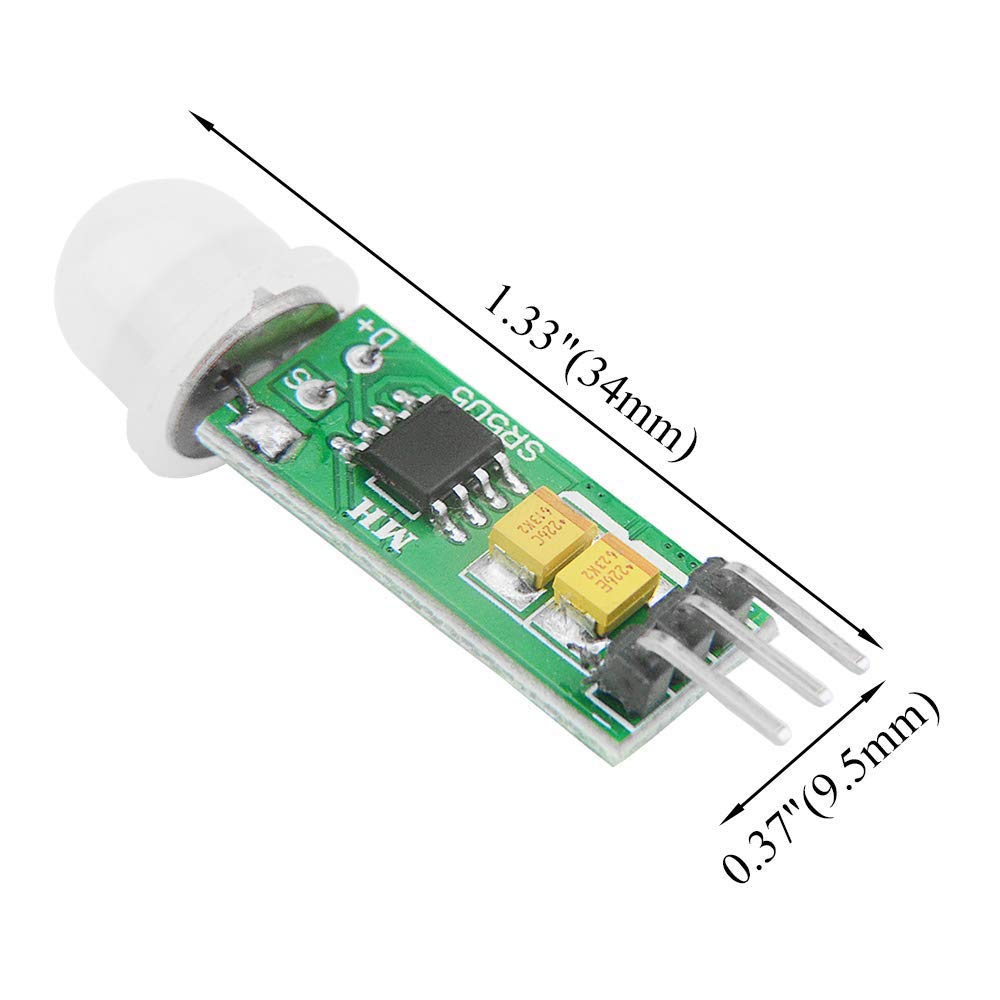

Description: Operating Voltage Range: DC4.5-20V Static current: Less than 60uA Output level: High 3.3V / Low 0V Trigger: repeatable trigger (default) Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes) PCB Dimensions: 10 x 23mm Induction angle: Less than 100 degree cone angle Induction distance: 3 meters Working temperature: -20 - +80 degrees Sensor Lens Dimensions: Diameter: 10mm / 0.39" PCB Dimensions: 10mm x 23mm / 0.39 x 0.90" Applications For: Body induction lamps Body sensors toys Security products Industrial automation and control Auto-sensing of electrical equipment Battery-powered automatic control Package included: 5 x HC-SR505 Module 1 x 11.8inch Male-FeMale Dupont Cable 15 Pin
Product details
